SUPTRONICS X10-DAC DAC Module I2S PCM1794A 24bit 192kHz 6x AOP NE5534P

This X10-DAC module will allow you to enjoy a powerful DAC with I2S input, while being compact. Thus, you can upgrade your DIY audio system based on a Raspberry Pi and offer it new possibilities.

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 12836
New product

49,90 €tax incl.

41,58 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

As this DAC does not have its own clock, it must be associated with the interface module I2S to USB XMOS X10-I2S. In the same way, it must also be associated with the regulated linear power supply X10-PWR, which can itself be powered by this 40VA 2x15V toroidal transformer + 2x6V.

SUPTRONICS X10-DAC

DAC Module I2S PCM1794A 24bit 192kHz AOP 6x NE5534P

X10-DAC Module DAC I2S PCM1794A 24bit 192kHz AOP 6x NE5534P pour Raspberry Pi

This X10-DAC module will allow you to enjoy a powerful DAC with I2S input, while being compact. Thus, you can upgrade your DIY audio system based on a Raspberry Pi and offer it new possibilities.

A proven PCM1794A converter

Already used in many other DACs, the PCM1794A conversion chip from Texas Instruments will ensure quality sound reproduction to your system. Indeed, this one is known to provide a sound at the same time dynamic, warm and soft. The chip supports files with sample rates up to 24bit 192kHz. In addition, this X10-DAC module ensures a DNR of 127dB and a THD+N of 0.0004%.

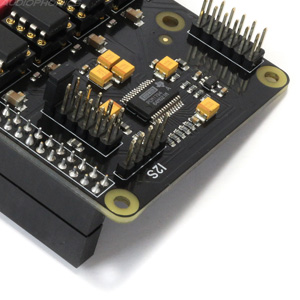

X10-DAC DAC PCM1794A
X10-DAC AOP

A series of PDOs for a custom sound

This small module integrates no less than 6 AOP NE5534P also from Texas Instruments and mounted on DIP8. Because of this mounting, it will also be possible for you to change AOP to enjoy a sound that would better suit your listening.

Components

In addition to the PCM1794A D/A converter and its 6 NE5534P AOPs, the module also includes other quality components. These include WIMA film capacitors, "Low ESR" electrolytic capacitors and gold-plated RCA subbases. Nothing is left to chance to ensure a very good sound reproduction.

A scalable DAC with the X10-I2S board
(not included)

The X10-DAC has only one I2S input and one RCA stereo output. By coupling it with the X10-I2S module the DAC gains in versatility by also equipping itself with a Coaxial, Optical and I2S output and a USB input supported by an XMOS xCore interface. Moreover, this X10-I2S module will also make it possible to make the DAC autonomous to be able to operate it without Raspberry Pi.

As this DAC does not have its own clock, it must be associated with the interface module I2S to USB XMOS X10-I2S. In the same way, it must also be associated with the regulated linear power supply X10-PWR, which can itself be powered by this 40VA 2x15V toroidal transformer + 2x6V.

X10-DAC Schema

Schéma X10-DAC
1GPIO (under the board)
2I2S Connector
3DAC modes selector
4DAC PCM1794A
5Power suuply connector
6AOP NE5534P
7RCA
83 pins connector for RCA

Technical characteristics

Specifications
DACTI PCM1794A
DNR127dB
THD+N0.0004%
Analog output level2V RMS
Supported sampling ratesVia I2S Raspberry Pi : 24bit 192kHz
Via X10-I2S board : 24bit 192kHz / DoP64
AOP (on DIP8)6x NE5534P
Voltage regulatorTexas Instruments Ultra-Low noise Voltage Regulator
InputsI2S (5 pins)
GPIO
OutputStereo RCA (+ 3 pins connector for RCA)
General
Power supplyDAC : DC +5V +15V -15V (±5%)
Raspberry Pi : 5V
Dimensions85 x 56 x 15mm
Fixation holes spacing58 x 49mm
Package1x X10-DAC
Screws and spacers

As this DAC does not have its own clock, it must be associated with the interface module I2S to USB XMOS X10-I2S. In the same way, it must also be associated with the regulated linear power supply X10-PWR, which can itself be powered by this 40VA 2x15V toroidal transformer + 2x6V.

Modes du DAC PCM1794A

DenominationMode
DEMDe-emphasis enable
CHSLL-channel, R-channel select
MONOMonaural mode enable
FMT0Audio date format select
FMT1Audio date format select
XSCKSystem clock input

Schmitt-trigger input, 5V tolerant.

To use the DAC autonomously.


Data sheet
InputI2S
OutputRCA
DAC / ADC ChipPCM1794
Max sampling rate192kHz
