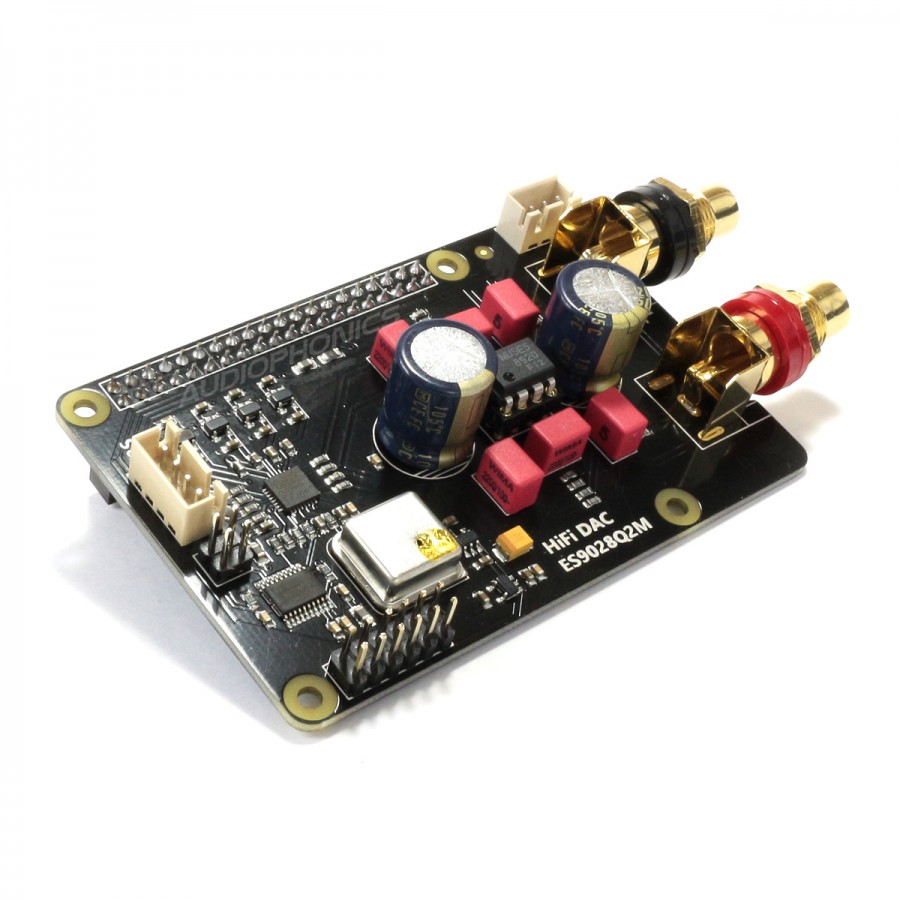

SUPTRONICS X20-DAC DAC Module I2S RCA ES9028Q2M 32bit 384kHz 1x AOP NJR MUSES 8920

This X20-DAC module will allow you to benefit from a very powerful DAC with I2S input, while being compact. Thus, you can upgrade your DIY audio system based on a Raspberry Pi and offer it new possibilities. This DAC is therefore designed to work with a Raspberry Pi and the other modules of the X10 and X20 series.

Average votes for this product
5.0 / 5
  Based on 2 customers reviews.

By buying this product you get 6 loyalty points


Reference : 12839
New product

64,90 €tax incl.

54,08 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

This module must imperatively be used with the regular linear feed X10-PWR, which one can be fed by this toric transformer 40VA 2x15V + 2x6V.

SUPTRONICS X20-DAC

DAC Module I2S RCA ES9028Q2M 24bit 192kHz AOP NJR MUSES 8920

X20-DAC Module DAC I2S ES9028Q2M 24bit 192kHz AOP NJR MUSES 8920

This X20-DAC module will allow you to benefit from a very powerful DAC with I2S input, while being compact. Thus, you can upgrade your DIY audio system based on a Raspberry Pi and offer it new possibilities. This DAC is therefore designed to work with a Raspberry Pi and the other modules of the X10 and X20 series.

List of X10 and X20 series modules sold separately :

X20-DAC ESS ES9028Q2M

ES9028Q2M chip for optimal performance

This module is based on an ESS ES9028Q2M converter, renowned for its excellent performance. It will ensure worry-free, high quality playback of your system, demonstrating high accuracy and clarity. This chip supports files with high sampling rates, up to 32bit 384kHe in PCM but also native DSD128 (using the X10-I2S module sold separately).

AOP NJR MUSES 8920

The X20-DAC's converter is supported by an excellent dual PDO NJR MUSES 8920. A brand renowned for its high quality PDOs. This incorporates J-FET technology with the objective of offering a sound as close as possible to the original signal. In addition, it reduces crosstalk between the two channels.

This AOP is mounted on DIP8. It can also be replaced to adapt to different listening styles.

AOP NJR MUSES 8920

Components

In addition to its very good ES9028Q2M converter and its AOP NJR MUSES 8920, the module also includes other quality components. You will find a TCXO 100MHz clock with ultra low phase noise, WIMA film capacitors, an ultra low noise voltage regulator, "low ESR" electrolytic capacitors from Panasonic or gold-plated RCA plugs.

A scalable DAC with the X10-I2S
(X10-I2S module sold separately).

The X20-DAC has only one I2S input and one RCA stereo output. By coupling it with the module X10-I2S the DAC gains in versatility by also equipping itself with a coaxial, Optical and I2S output as well as a USB input supported by an XMOS xCore interface. Moreover, this X10-I2S module will also make it possible to make the DAC autonomous to be able to operate it without Raspberry Pi.

module DAC X20-DAC avec X10-I2S

X20-DAC Schema

Schéma X20-DAC
1GPIO 40 pins
24 pins I2S Connector
3DAC ESS ES9028Q2M
4MCU manufacturer setting interface
5MCU STM8S003F3
6TCXO 100MHz Clock
7Power supply connector
8WIMA capacitors
9Electrolityc capacitors 50V 220µF
10AOP NJR MUSES 8920
11RCA Output
123 pins connector for RCA

Technical characteristics

Specifications
DACESS ES9028Q2M
DNR129dB
THD+N-120dB
Analog output level2V RMS
Supported sampling rateVia I2S Raspberry Pi : 24bit 192kHz
Via X10-I2S module (sold separately) 32bit 384kHz / DSD128
AOP1x NJR MUSES 8920
Voltage RegulatorTexas Instruments Ultra-Low noise Voltage Regulator
InputsI2S (4 pins)
GPIO
OutputStereo RCA (+ 3 pins connector for RCA)
General
Dimensions85 x 56 x 50mm
Fixation holes spacing58 x 49mm
Package1x X20-DAC
Spacers

This module must imperatively be used with the regular linear feed X10-PWR, which one can be fed by this toric transformer 40VA 2x15V + 2x6V.


Data sheet
InputI2S
OutputRCA
DAC / ADC ChipES9028Q2M
Max sampling rate384kHz

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
X20
