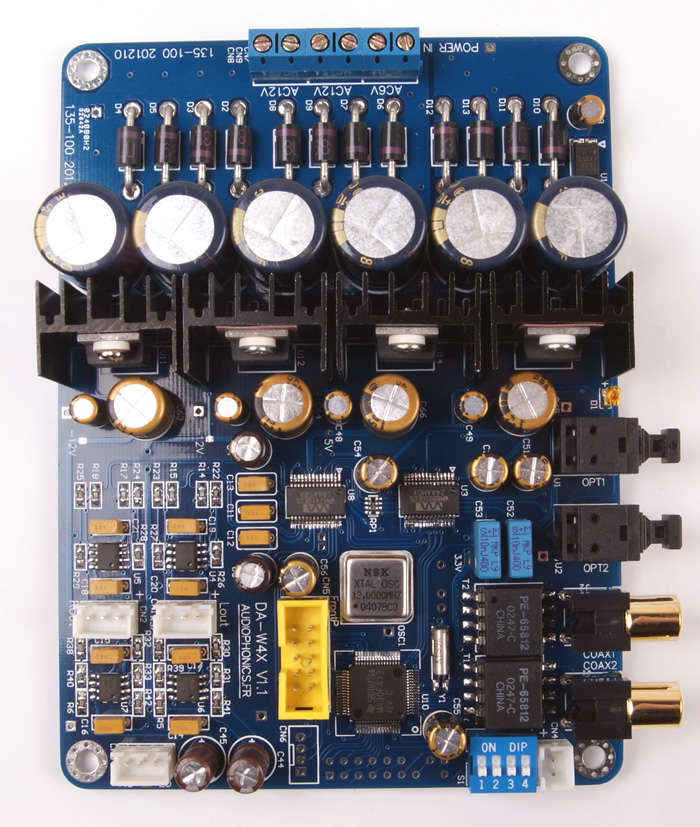

AUDIOPHONICS WM8741 DAC / Volume Controller WM8805 + WM8741

Audiophonics DAC8741 - DAC / Volume Controller WM8805 + WM8741

Audiophonics is proud to present its new DAC module ready to integrate into your achievements.
We relied on a reliable value, a WM8805 chip for SPDIF reception, coupled with the same manufacturer's WM8741 converter.

This DAC module allows to convert a digital signal with a sampling frequency of 32 to 192KHz and this in 16 or 24 bit.
This new module now includes a display, a volume controller and a source selector to select one of 4 available digital inputs.

Great care has been taken in the analog output, which now offers symmetrical and asymmetrical analog outputs.
Thethe power capacitors are of superior quality (Panasonic FC) and 4 regulators is responsible for providing a stable and pure power supply.

To operate it requires a transformerof less +/- 15VA including these voltages:2x12V AC + 1x7V AC
The 12V AC used for the analog part, the 7V AC to the digital part.

Symmetrical outputs (XLR) and asymmetric (RCA) available simultaneously at the output of the DAC
Preamp function : Variation of Volume and Selection of Input

Features:/ Strong>

• Blue Display
• Inputs: 2 x Optical and 2x Coaxial
• Receiving SPDIF by WM8805
• Decoding up to 24Bit 192KHz by WM8741
• Analog outputs via quick connector
• Capacitors Panasonic FC, Nichicon Gold tune, etc ...
• MKP Signal Capacitor
• Supply via a single transformer:15VA 2X12V + 1x7V
• Dimensions of the main board: 135 x 100 x 30 mm
• Mounting hole distance of main PCB: 125x90 mm
• Dimensions of the display module: 90 x 20 x20 (Blue display)
• Fixing hole center distance of the display: 80 mm
• Diameter of the axis of the rotary encoder: 6 mm (serrated)

Dip Switch:

• SW1: Anti clipping (from 0 to - 2db) as input
• SW2: Brightness of the display (min / max)
• SW3: Upsampling 128x / 256x
• SW4: not used
