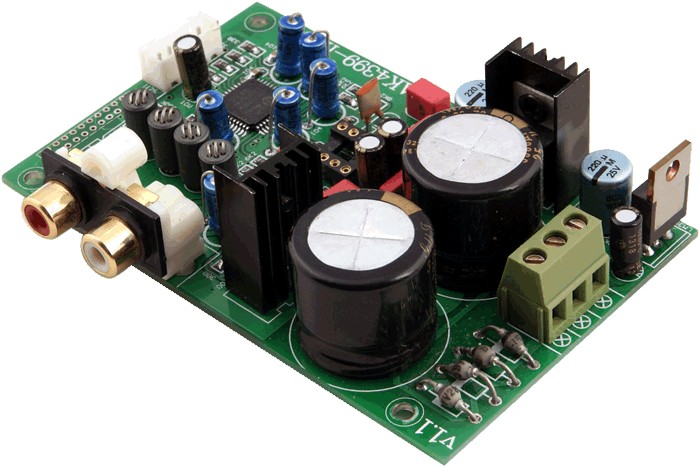

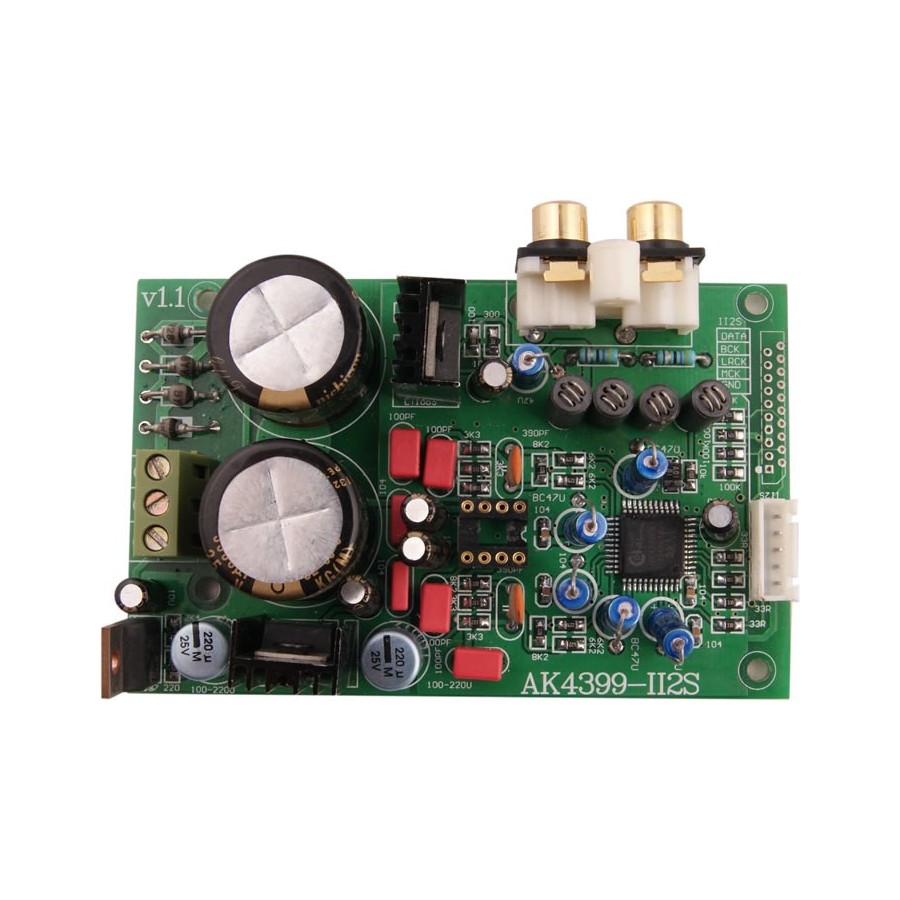

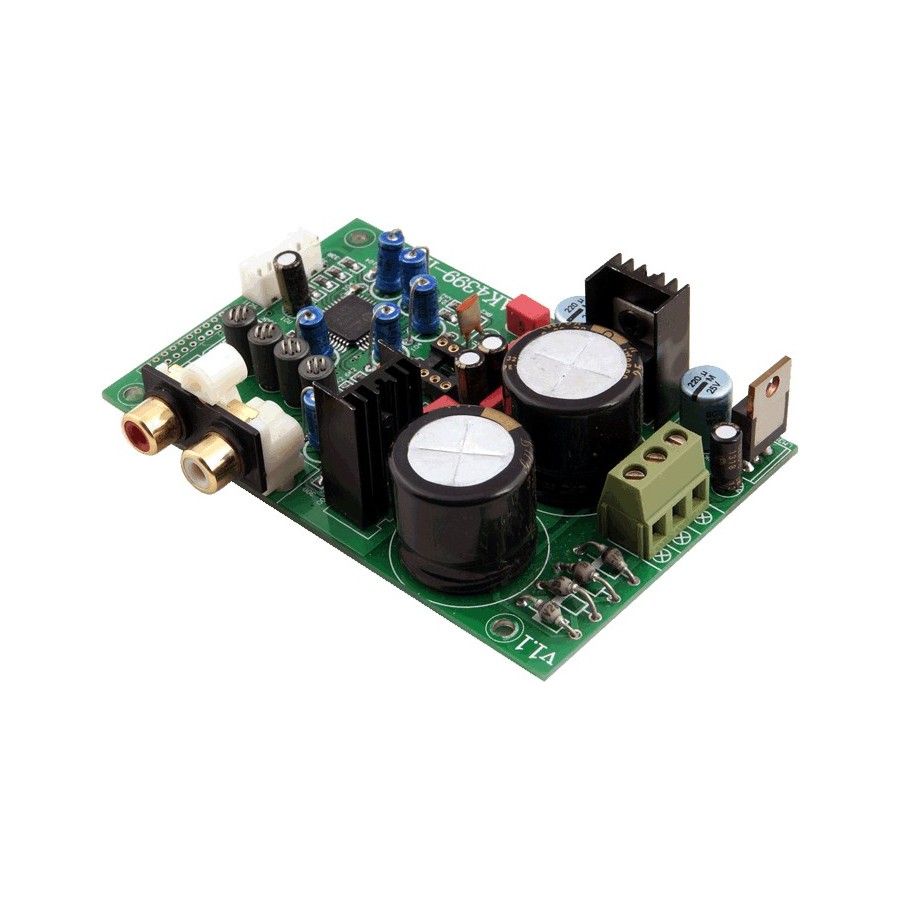

DAC AKM AK4399 I2S to Analogue 32bit / 192khz

DAC AKM4399 I2S to Analogue 32bit / 192khz

Excellent converter delivering a rich and detailed sound, it is for us the direct competitor of SABRE ES9018 (in term of sound)

This DAC module allows to convert a digital signal with a sampling frequency of 32 to 192KHz and this in 16 or 24 bit.
Equipped with an I2S input it will allow a simplified connection withsources, USB interfaces, or SOC like the Raspberry P (via a USB interface).

Since this DAC does not have a dedicated clock it is necessary in most assemblies to provide one via the MCK .

Features:/ Strong>

• Audiophiles Components: Nichicon KG, Wima
• Inputs I2S: DATA / BCK / LRCK / MCK / GND
• Decoding up to 32Bit 192KHz by AK4399
• THD + N: -105dB
• Signal-to-Noise Ratio 123 dB
• Analog Outputs on Stereo RCA
• Requires a double Aop (not delivered)
• Supply via a single transformer:30VA 2x12V(Not supplied)
• Dimensions of the main board: 100 x 63 x 40 mm

Can be used with:

• Raspberry Pi Model B512MB - HDMI Ethernet 2xUSB
• AMANERO Combo 384 Digital interface USB 384khz to I2s / DSD
• Audiophonics SA9023 Interface USB to I2S / SPDIF 24bit / 96khz
• AMC DAC PCM2706 Digital Interface USB -16 / 48khz Coax / Opt / I2s
• Audiophonics U-XMOS192 digital interface USB to I2S / DSD / Spdif
• Audiophonics U-XMOS384 digital interface USB to I2S / DSD / Spdif
• LJ CM6631A Interface USB to I2S / SPDIF 24bit / 192khz
• LJ TE7022 Interface USB to I2S / SPDIF 24bit / 96khz
