DAC Module AKM AK4495SEQ + AK4118 32bit / 384kHz
By buying this product you get 8 loyalty points
Reference : 11126
New product
Viewed products
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
This DAC module with source selector is ready to play any type of High Definition files.
It integrates the new chip AKM AK4495SEQ32bit 384khz associated with a receiver coaxial / Optical Toslink SPDIF AK4118.
Moreover, thisDAC AK4495SEQhas an input of type I2S compatible with pin pine with this interface XMOS U208 USB.
This DAC module is therefore able to convert a digital signal with a sampling frequency of 32 to 384kHz, in 16, 24 or 32bit.

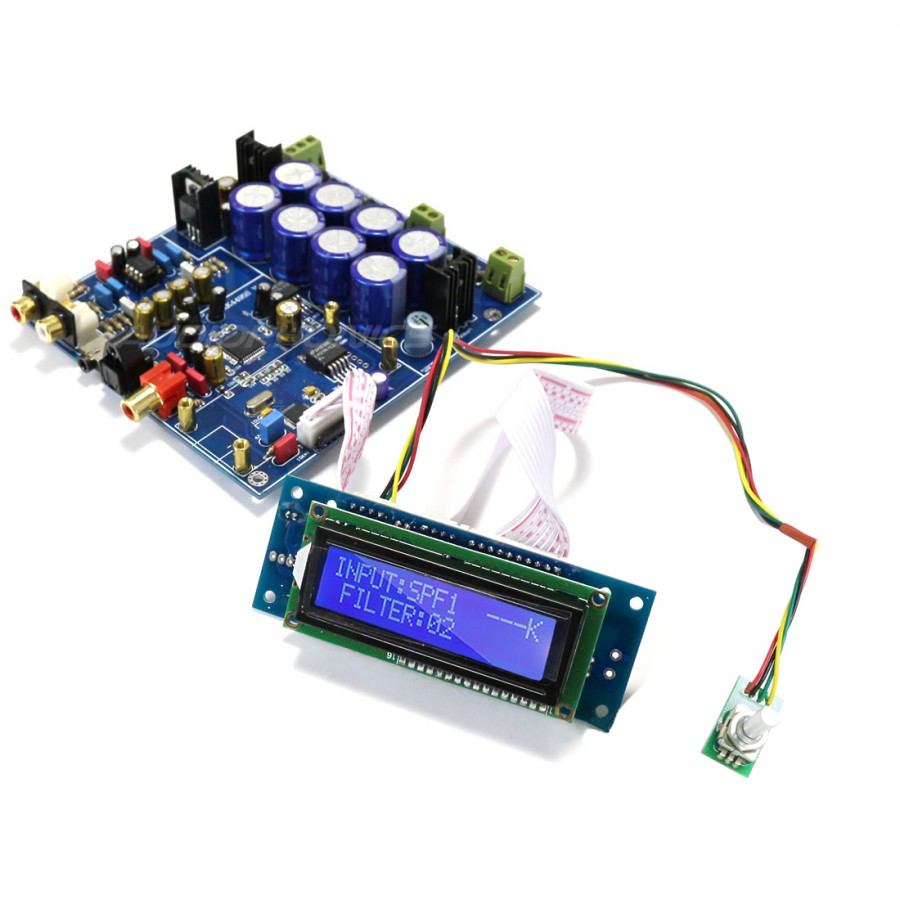

This new converter includes a blue display and a source selector to select one of the 2 digital inputs available.
In addition, the AOP provided is a LM49860 on DIP8 interchangeable support.
Features:
- Blue display 16x2 (71x29mm).

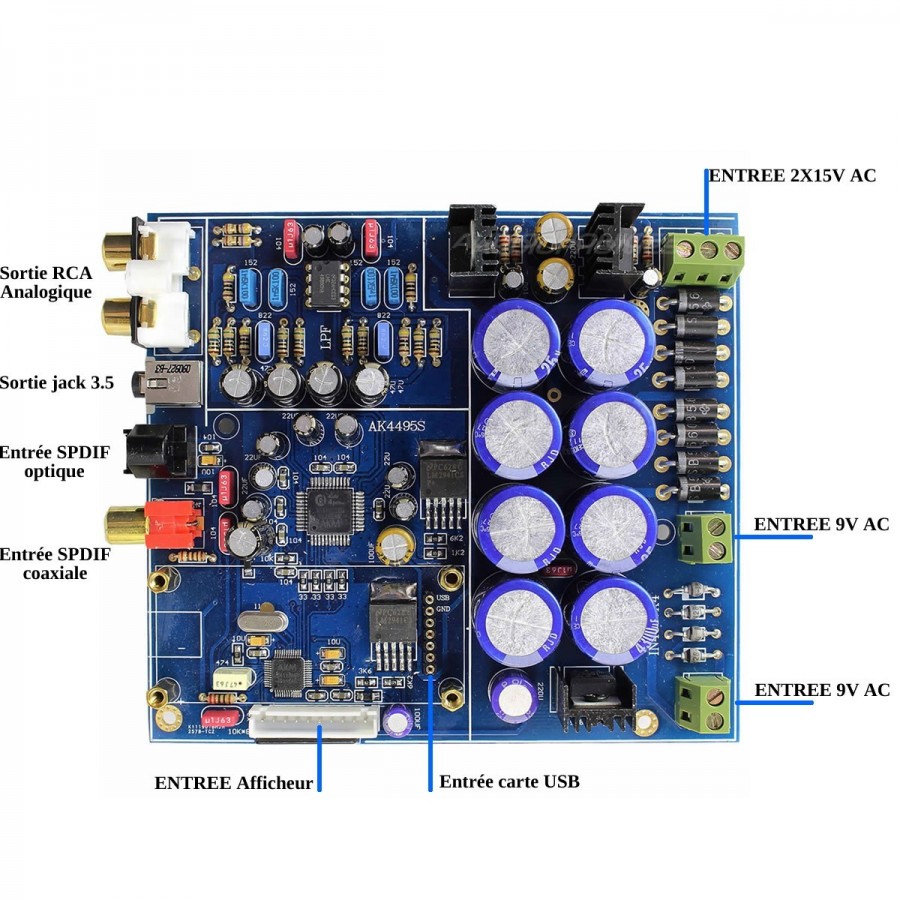

- Inputs: 1x Optical, 1x Coaxial and 1x I2S.
- Converter AKM AK4495SEQ.
- SPDIF Receiver AKM AK4118.
- Decoding up to 32bit 384kHz by AK4495 on I2S connector.
- Decoding up to 24bit 192kHz by AK4118 (Optical and Coaxial).
- Signal Noise Ratio: 123 dB.
- AOP high fidelity: LME49860 removable on supports DIP8.
- Supply via a single transformer:30VA 2x 15 / 16V + 2x 9V.
- Delivered with its screen + selection button
Dimensions and weight:
- Dimensions of the main board: 132x118x27mm.
- Mounting hole distance from the main PCB: 108x92mm.
- Fixing hole distance from display: 78x32mm.
Pinout I2S / USB
We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :
Only registered users can post a review. Log in or create an account .
Average votes 3.5 / 5 2 reviews | Why write products reviews ? You can share your feelings about products and help other people by sharing your experience |
Note :
2/5
Date :
2020-06-23
Valter C.
Note :
5/5
Date :
2020-02-23
Rene R.
R ROELS
Excellent convertisseur, la base est très saine, musical, respect des tombes, dynamique, en entrée usb comme entrée spdif
Pour en avoir fait acheter une bonne douzaine pour les amis et proches, c est du bonheur, rien a envier a des convertisseurs de 1000€ a 1500€ ( croyez moi mon expérience, je suis ingénieur du son 35 ans au service de la musique ), après une petite modification sur la sortie analogique c est un pur bonheur, je vous conseil le même dac tout monté en vente sur ce site
This review has been posted for DAC Module AKM AK4495SEQ + AK4118 32bit / 384kHz Excellent convertisseur, la base est très saine, musical, respect des tombes, dynamique, en entrée usb comme entrée spdif
Pour en avoir fait acheter une bonne douzaine pour les amis et proches, c est du bonheur, rien a envier a des convertisseurs de 1000€ a 1500€ ( croyez moi mon expérience, je suis ingénieur du son 35 ans au service de la musique ), après une petite modification sur la sortie analogique c est un pur bonheur, je vous conseil le même dac tout monté en vente sur ce site
