ESS ES9038PRO DAC Module I2S XLR 32bit 384khz DSD with Screen

This excellent DAC module is based on a high-end ESS ES9038Pro conversion chip. This ensures exceptional audio performance. The whole is supported by a set of components of high quality, for a rich and detailed restitution.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 24 loyalty points


Reference : 12705
New product

249,00 €tax incl.

207,50 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

DAC ESS9038PRO

I2S XLR RCA Optical Coaxial 32bit 384kHz DSD

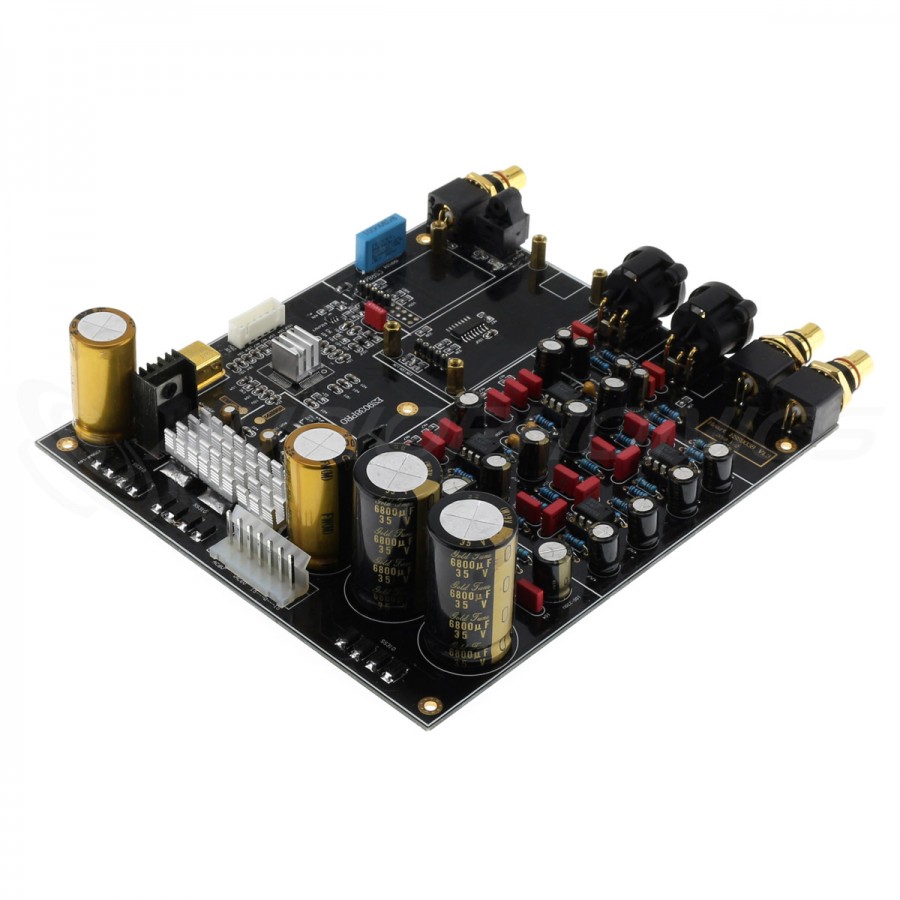

Module DAC ESS ES9038PRO

DAC ESS ES9038PRO

This DAC module is based on a high-end ESS ES9038PRO conversion chip. This document contains details about the transmitted signal, which results in infrequent timbre and harmonic quality.

A module particularly supplied with quality components

The ES9038PRO is supported by many high quality components, contributing to the quality of its sound reproduction. So we find on the 4 low noise NJM 5532DD / 5534DD PCB mounted on DIP8 (and therefore modifiable), LM317T / LM337T / 7805-CT voltage regulators and strong> 2 LDO low noise LT1963 . All this contributes to providing a stable current and a clean signal for a careful reproduction. In addition, a 100Mhz clock drastically lowers the jitter, always with a view of sound fidelity.

Complete connectivity

The module benefits from a complete connectivity that will satisfy most needs. There is therefore an input I2S to adapt according to his needs, as well as a coaxial plug, an optical plug and the possibility of adding a Bluetooth module to take advantage of remote transmission. In output the module offers a RCA Stereo, but also a balanced XLR output, much rarer on this type of module.

Modular thanks to the I2S

This module has mainly been thought to be associated with an excellent Amanero I2S / USB interface or an I2S / USB XMOS interface  to deliver an exceptional sound reproduction. Of course, it is also possible to take advantage of the I2S to use a different interface according to your needs. The module also allows you to add a Bluetooth receiver with a dedicated connector.

A complete DAC

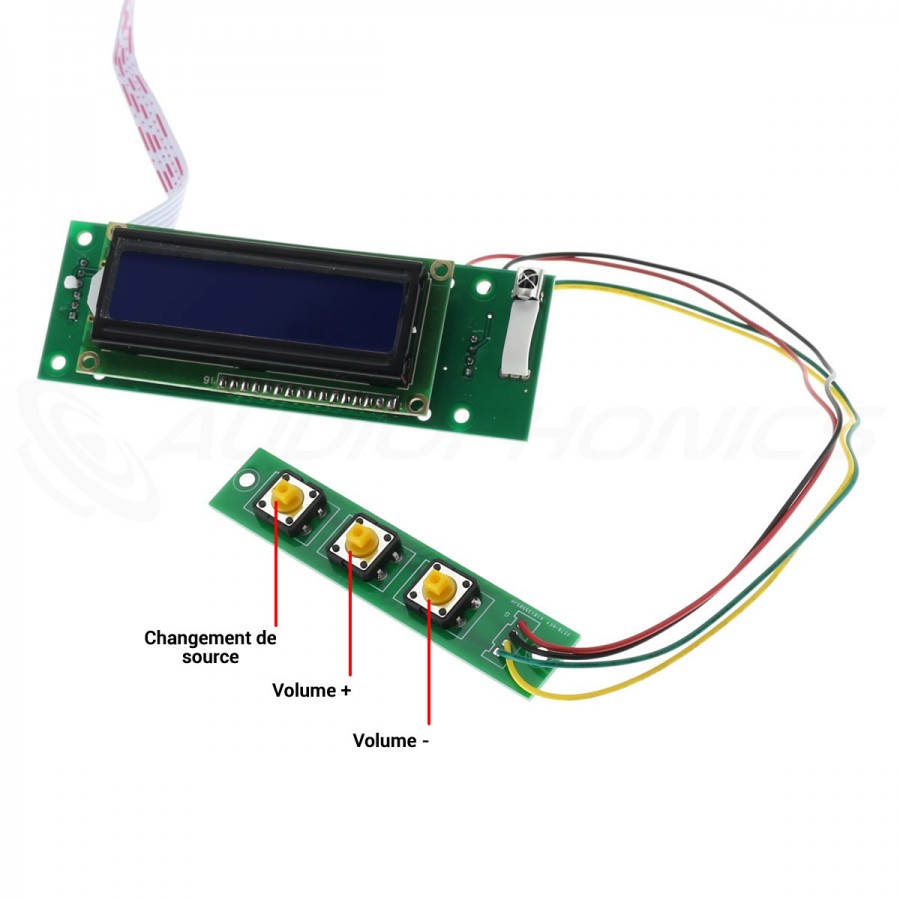

To function effectively and enjoy all its features, the DAC is accompanied by several accessories. There is therefore an LCD screen capable of displaying, for example, the active source, the sampling rate, the signal format (DSD or PCM), the type of filter or the volume. To make these settings a panel with 3 buttons allows you to act on each parameter.

Technical characteristics

Specifications
DACESS ES9038PRO
Regulators / LDO1x LM317T
1x LM337T
3x LT1963
1x 7805CT
OPA (DIP8)2x NJM 5532DD
2x NJM 5534DD
Clock100Mhz
DNR140dB
THD+N122dB
Sampling ratePCM : Up to 32bit 384kHz
DSD
Connectors
InputI2S (sold separately)
Optical
Coaxial
Bluetooth (receiver sold separately)
OutputsStereo RCA
XLR
General
Power supply2x 6V AC
15-0-15V
DAC Dimensions187 x 152 x 42mm
Screen PCB dimensions113 x 38mm
Screen PCB mounting holes spacing93 x 30mm
Display dimensions64 x 16mm
Control panel PCB dimensions88 x 17mm
Control panel PCB mounting holes spacing80mm
Poids300g
Package1x DAC ES9038Pro
1x LCD Screen
1x Control board

Schéma

DAC ES9038PRO
17805CT Regulator
2100Mhz Clock
3ESS ES9038Pro DAC
43x LT1963 Regulators
5LM317T / 337T Regulators
62x 5532DD OPA
72x 5534DD OPA
8Stereo RCA Output
9XLR Output
10I2S Input (for USB Interface, sold separately)
11Optical input
12Coaxial input
13Connector for Bluetooth receiver (sold separately)
14Screen connector
15Power connector AC 2x6V 15-0-15V

Data sheet
InputI2S
OutputOptical Toslink
OutputXLR
OutputRCA
OutputCoaxial SPDIF
DAC / ADC ChipES9038PRO
Max sampling rate384kHz
