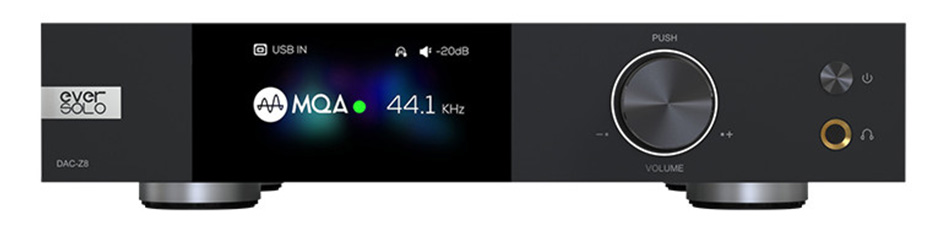

EVERSOLO DAC-Z8 DAC ES9038Pro XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

ES9038Pro DAC

The heart of the DAC-Z8, its digital-to-analog conversion stage, is equipped with an excellent ESS ES9038Pro chip. This ensures low distortion and noise for a truly convincing high-fidelity music experience. In addition, the DAC-Z8's audio circuitry is specifically calibrated to deliver its full potential.

Optimized I/V circuit

The I/V circuit of the DAC-Z8 consists of 8 OPA1612 OPAs. It uses multi-channel signal shunting compensation technology, with the 8 OPAs corresponding to the 8 output channels of the I/V conversion stage, ultimately providing a two-channel parallel output. In addition to the high-precision resistors, this circuitry assists in the lossless amplification of the XLR, RCA and headphone outputs, improving channel separation, dynamic range and sonic integrity.

Bluetooth 5.0

In addition to a complete connectivity, the DAC-Z8 has a Bluetooth 5.0 Qualcomm QCC5125 receiver, which allows you to broadcast your music remotely, from a smartphone or a tablet for example, while supporting the codecs of high-resolution transmission aptX HD and LDAC for a high quality restitution in wireless.

Specifications
Product type	DAC
Inputs	Bluetooth 5.0 1* USB-B 1* USB-C 1* Optical Toslink 1* Coaxial
Outputs	1* Balanced stereo XLR 1* Single-ended stereo RCA 1* Jack 6.35mm headphone output
DAC chip	ES9038Pro
USB interface	XMOS XU316
OPA	10* OPA1612
Bluetooth receiver	Qualcomm QCC5125
Supported sampling rates	USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, MQA Optical / Coaxial : PCM upto 24bit 192kHz, DSD DoP up to DSD64, MQA
Supported Bluetooth codecs	SBC AAC aptX aptX LL aptX HD LDAC
Screen	LCD 3"
Control app
Recommended headphone impedance	16-300Ω

Specifications

Product type

DAC

Inputs

Bluetooth 5.0
1* USB-B
1* USB-C
1* Optical Toslink
1* Coaxial

Outputs

1* Balanced stereo XLR
1* Single-ended stereo RCA
1* Jack 6.35mm headphone output

DAC chip

ES9038Pro

USB interface

XMOS XU316

OPA

10* OPA1612

Bluetooth receiver

Qualcomm QCC5125

Supported sampling rates

USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, MQA
Optical / Coaxial : PCM upto 24bit 192kHz, DSD DoP up to DSD64, MQA

Supported Bluetooth codecs

SBC
AAC
aptX
aptX LL
aptX HD
LDAC

Screen

LCD 3"

Control app

Recommended headphone impedance

16-300Ω

XLR output performances
Output level	4.1Vrms @ 0dBFS
THD+N (A-Weighted)	0.000062% @ 1kHz (-124dB @ 1kHz)
THD+N (No-Weighted)	0.000069% @ 1kHz (-123dB @ 1kHz)
Noise (No-Weighted)	< 1.2µVrms
SNR (No-Weighted)	133dB @ 1kHz
Frequency response	20Hz-20kHz (±0.1dB)
Crosstalk	-130dB @ 1kHz
DNR (No-Weighted)	133dB @ 1kHz

XLR output performances

Output level

4.1Vrms @ 0dBFS

THD+N (A-Weighted)

0.000062% @ 1kHz (-124dB @ 1kHz)

THD+N (No-Weighted)

0.000069% @ 1kHz (-123dB @ 1kHz)

Noise (No-Weighted)

< 1.2µVrms

SNR (No-Weighted)

133dB @ 1kHz

Frequency response

20Hz-20kHz (±0.1dB)

Crosstalk

-130dB @ 1kHz

DNR (No-Weighted)

133dB @ 1kHz

RCA output performances
Output level	2.3Vrms @ 0dBFS
THD+N (A-Weighted)	0.000086% @ 1kHz (-121dB @ 1kHz)
THD+N (No-Weighted)	0.000097% @ 1kHz (-120dB @ 1kHz)
Noise (No-Weighted)	< 1.2µVrms
SNR (No-Weighted)	133dB @ 1kHz
Frequency response	20Hz-20kHz (±0.1dB)
Crosstalk	-130dB @ 1kHz
Dynamic range (No-Weighted)	133dB @ 1kHz

RCA output performances

Output level

2.3Vrms @ 0dBFS

THD+N (A-Weighted)

0.000086% @ 1kHz (-121dB @ 1kHz)

THD+N (No-Weighted)

0.000097% @ 1kHz (-120dB @ 1kHz)

Noise (No-Weighted)

< 1.2µVrms

SNR (No-Weighted)

133dB @ 1kHz

Frequency response

20Hz-20kHz (±0.1dB)

Crosstalk

-130dB @ 1kHz

Dynamic range (No-Weighted)

133dB @ 1kHz

Headphone output performances (Low gain mode)
Output level	1.2Vrms @ 0dBFS
Output power	45mW @ 32Ω
THD+N (A-Weighted)	0.00015% @ 1kHz (-116dB @ 1kHz)
THD+N (No-Weighted)	0.00018% @ 1kHz (-115dB @ 1kHz)
Noise (No-Weighted)	< 2µVrms
SNR (No-Weighted)	124dB @ 1kHz
Frequency response	20Hz-20kHz (±0.1dB)
Dynamic range (No-Weighted)	119dB @ 1kHz

Headphone output performances (Low gain mode)

Output level

1.2Vrms @ 0dBFS

Output power

45mW @ 32Ω

THD+N (A-Weighted)

0.00015% @ 1kHz (-116dB @ 1kHz)

THD+N (No-Weighted)

0.00018% @ 1kHz (-115dB @ 1kHz)

Noise (No-Weighted)

< 2µVrms

SNR (No-Weighted)

124dB @ 1kHz

Frequency response

20Hz-20kHz (±0.1dB)

Dynamic range (No-Weighted)

119dB @ 1kHz

Headphone output performances (High gain mode)
Output level	2.8Vrms @ 0dBFS
Output power	26mW @ 300Ω
THD+N (A-Weighted)	0.00016% @ 1kHz (-116dB @ 1kHz)
THD+N (No-Weighted)	0.00018% @ 1kHz (-115dB @ 1kHz)
Noise (No-Weighted)	< 2µVrms
SNR (No-Weighted)	124dB @ 1kHz
Frequency response	20Hz-20kHz (±0.1dB)
Dynamic range (No-Weighted)	124dB @ 1kHz

Headphone output performances (High gain mode)

Output level

2.8Vrms @ 0dBFS

Output power

26mW @ 300Ω

THD+N (A-Weighted)

0.00016% @ 1kHz (-116dB @ 1kHz)

THD+N (No-Weighted)

0.00018% @ 1kHz (-115dB @ 1kHz)

Noise (No-Weighted)

< 2µVrms

SNR (No-Weighted)

124dB @ 1kHz

Frequency response

20Hz-20kHz (±0.1dB)

Dynamic range (No-Weighted)

124dB @ 1kHz

General
Supply voltage	110~240VAC 50/60Hz
Consumption	9W
Dimensions (LPH)	27018750mm
Color	Black
Package	1* EverSolo DAC-Z8 1* Remote control 1* Power cable 1* USB cable

General

Supply voltage

110~240VAC 50/60Hz

Consumption

Dimensions (L*P*H)

270*187*50mm

Color

Black

Package

1* EverSolo DAC-Z8
1* Remote control
1* Power cable
1* USB cable

Input	USB
Input	Optical
Input	SPDIF
Input	Bluetooth
Output	RCA
Output	Jack 6.35mm
Output	XLR
DAC / ADC Chip	ES9038PRO
Max sampling rate	DSD512
Max sampling rate	MQA
Max sampling rate	768kHz
Color	Black
Networking	No
Remote Control	Yes
