FX-AUDIO DR07 DAC Headphone Amplifier
By buying this product you get 16 loyalty points
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
FX-Audio DR07 DAC Headphone Amplifier 2x AK4493 XMOS XU316 Bluetooth 5.1 QCC5125 32bit 768kHz DSD512
The FX-Audio DR07 is a quality DAC and headphone amplifier combo at an affordable price. Its meticulous design and comprehensive connectivity make it highly versatile, ensuring its integration into the vast majority of audio systems. What's more, its architecture and components ensure precise, musical sound reproduction.
FX-Audio DR07: Quality components

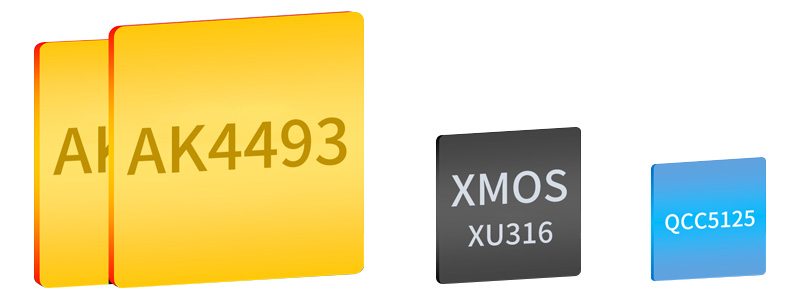

At the heart of the DR07 are a pair of AK4493 DAC chips and an XU316 XMOS USB receiver. This selection of components ensures that the DR07 delivers high-quality decoding and the ability to support high-resolution audio streams up to PCM 32bit 768kHz and DSD51.2.
A Qualcomm QCC5125 Bluetooth 5.1 receiver completes the design, giving the device a Bluetooth reception function. This makes it possible to stream music remotely, from a smartphone for example.
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC Headphone amplifier |
| Inputs | Bluetooth 5.1 1x USB-B 1x Coaxial 1x Optical |
| Outputs = | 1x Jack 3.5mm headphone output 1x Jack 6.35mm headphone output 1x Optical 1x Stereo RCA line out |
| DAC chips | 2x AKM AK4493 |
| Bluetooth receiver | Qualcomm QCC5125 |
| USB receiver | XMOS XU316 |
| Distortion | ≤ 0.0005% |
| Frequency response | 10Hz - 40kHz (±0.3dB) |
| SNR | 120dB |
| Headphone output power | 2x 1100mW @ 32Ω |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, DSD up to DSD512, MQA Optical / Coaxial : PCM up to 24bit 192kHz, MQA |
| Supported Bluetooth codecs | SBC, AAC, aptX, aptX LL, aptX HD, LDAC |
| RCA output level | 2.5Vrms |
| General | |
|---|---|
| Dimensions | 132 x 185 x 32mm |
| Weight | 552g |
| Color | Black |
| Package | 1x FX-Audio DR07 1x Remote control 1x Antenna 1x USB-A to USB-B cable 1x Power supply |
| Input | USB |
| Input | Optical |
| Input | SPDIF |
| Input | Bluetooth |
| Output | Jack 6.35mm |
| Output | Optical Toslink |
| Output | Jack 3.5mm |
| Output | RCA |
| DAC / ADC Chip | AK4493EQ |
| Max sampling rate | DSD512 |
| Max sampling rate | 768kHz |
| Color | Black |
| Class | N/A |
| Networking | No |
| Remote Control | Yes |
