IFI AUDIO ZEN DAC 3

With the ZEN V3, Ifi Audio presents a new version of its successful ZEN series. The brand's ambition is still to offer a digital/analog converter offering exceptional performance at the lowest possible price. This V3 version builds on the success of its predecessor, while integrating a Burr-Brown DAC chip capable of supporting a 768 kHz sampling rate.

No customer reviews yet, login to write a review.

By buying this product you get 22 loyalty points


Reference : 19198
New product

229,00 €tax incl.

190,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

IFI AUDIO ZEN V3 DAC Burr Brown USB-C XMOS 16 Core MQA 768kHz DSD512

IFI AUDIO ZEN V3 : Front view

With the ZEN V3, Ifi Audio presents a new version of its successful ZEN series. The brand's ambition is still to offer a digital/analog converter offering exceptional performance at the lowest possible price. This V3 version builds on the success of its predecessor, while integrating a Burr-Brown DAC chip capable of supporting a 768kHz sampling rate.

IFI AUDIO ZEN DAC V3 : A high-quality DAC

The heart of the Zen V3 is a Burr-Brown DAC chip supporting a sampling rate up to 768 kHz, DSD512 and capable of decoding MQA files. Moreover, thanks to the Burr-Brown chip, the manufacturer's True Native architecture enables "bit-perfect" transmission, ensuring sound reproduction as close as possible to the original recording. Furthermore, Zen V3 is equipped with an ultra-quiet, ultra-clean audiophile-grade power supply, featuring Active Noise Cancellation II technology that cancels out all incoming EMI and RFI noise.

IFI AUDIO ZEN DAC V3 : A versatile headphone amplifier

In addition to being an excellent DAC, the Zen V3 also has the good grace to offer a headphone amplifier stage. With an output power of 390mW and two headphone outputs (4.4mm and 6.3mm jacks), it can drive the vast majority of headphones on the market. Furthermore, the brand's proprietary Xbass+ and PowerMatch technologies offer analog bass boost, perfect for certain open headphones, and an increased gain level for the most demanding headphones.

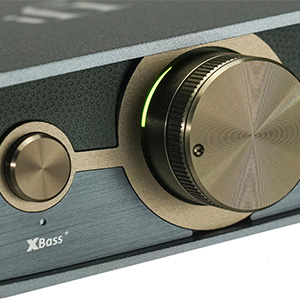

IFI AUDIO ZEN V3 : Macro view of facade

IFI AUDIO ZEN DAC V3 : Flexibility in use

Ifi Audio's Zen V3 is designed to be as flexible as possible. Thus, in addition to the two headphone outputs (balanced and unbalanced) on the front panel, there's a switch on the back offering volume control bypass. This allows the Zen V3 to be used directly with active speakers, or connected as an input to an amplifier. Finally, the Zen V3 can be powered via the USB-C input for easy cable management, but if you decide to power it via a DC jack, then the USB-C input becomes capable of receiving data.

Technical characteristics

Specifications
Product typeDAC
Headphone amplifier
DAC ChipDAC by Burr-Brown
USB InterfaceXMOS 16 coeurs
Input1x USB-C
Outputs1x RCA Line output
1x Balanced Jack 4.4mm line output
1x Single-Ended Jack 6.35mm headphone output
1x Balanced Jack 4.4mm headphone output
Supported sampling ratesPCM up to 768kHz
DSD up to DSD512
DXD up to 768kHz
MQA
LINE OUTPUTS CIRCUIT
Output levelSingle-ended RCA : Fixed = 2.1V, Variable = 1V / 3.3V max
Balanced Jack 4.4mm : Fixed = 4.2V, Variable = 2V / 6.2V max
Output impedanceSingle-ended : ⩽100Ω
Balanced : ⩽200Ω
Signal-to-noise ratio (SNR)≥ 113dBA @ 0dBFS
Dynamic range (DNR)≥ 113dBA @ 0dBFS
Total harmonic distortion (THD)Single-ended : ⩽0.003% @ 0dBFS
Balanced : ⩽0.0015% @ 0dBFS
HEADPHONE OUTPUTS CIRCUIT
Output powerSingle-ended : 210mW @ 32Ω
Balanced : 390mW @ 64Ω
Output impedance⩽ 1Ω
Signal-to-noise ratio (SNR)≥ 109dBA @ 0dBFS
Dynamic range (DNR)≥ 109dBA @ 0dBFS
Total harmonic distortion (THD)Single-ended : ⩽0.013% @ 32Ω 1.27V
Balanced : ⩽0.005% @ 600 Ω 2V
General
Consumption⩽2.5W
Power SupplyUSB-C
5V DC
Dimensions158 x 115 x 35mm
Weight456g
Package1x Ifi Audio Zen V3
1x RCA cable
1x USB-A to USB-C cable

Data sheet
InputUSB
OutputRCA
OutputJack 4.4mm
OutputJack 6.35mm
DAC / ADC ChipNC
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorBlack
ClassClass D / T
NetworkingNo
Remote ControlNo
