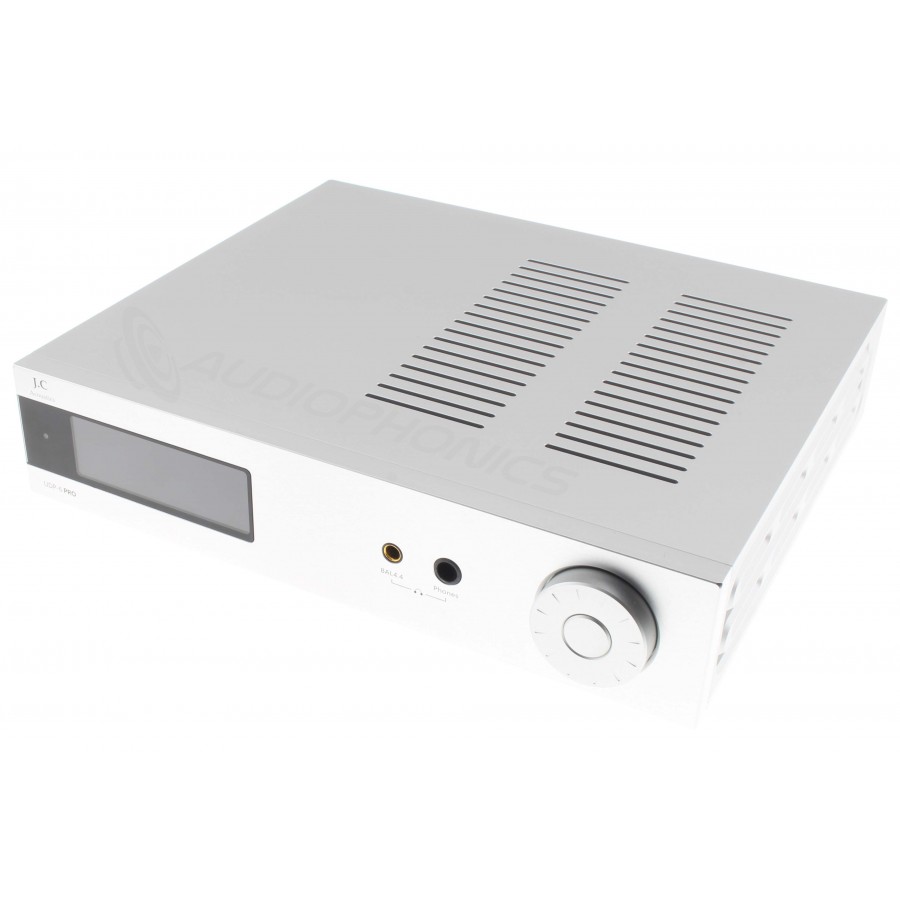

J.C ACOUSTICS UDP-6PRO DAC Headphones Amplifier

New
The J.C Acoustics UDP-6PRO is a DAC headphones amplifier based on audiophile components. It features an ES9039SPRO DAC chip and an XU216 XMOS USB interface for support of high-resolution sampling rates up to PCM 32bit 768kHz and DSD512. It also boasts a balanced Class AB headphone amplifier circuit with four TPA6120A2 chips for output power of up to 7500mW under 32 ohm on its balanced headphone output.

No customer reviews yet, login to write a review.

By buying this product you get 109 loyalty points


Reference : 20505
New product

1 099,00 €tax incl.

915,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 20-02-2025.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

J.C Acoustics UDP-6PRO DAC Balanced Headphones Amplifier ES9039SPRO 32bit 768kHz DSD512

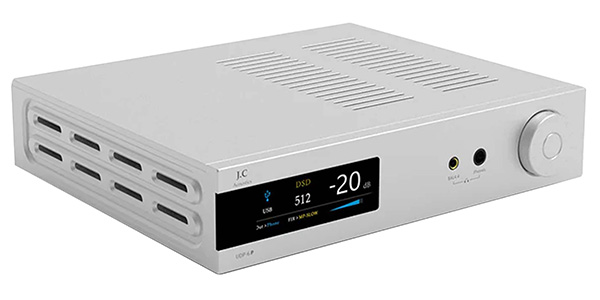

J.C. Acoustics UDP-6P DAC picture

The J.C Acoustics UDP-6PRO is a DAC and headphones amplifier based on audiophile components. It features an ES9039SPRO DAC chip and an XU216 XMOS USB interface for support of high-resolution sampling rates up to PCM 32bit 768kHz and DSD512. It also boasts a balanced Class AB headphone amplifier circuit with four TPA6120A2 chips for output power of up to 7500mW under 32 ohm on its balanced headphone output.

The device is completed by a high-performance power supply consisting of a 60VA transformer and no less than 6 filter capacitors. Each component is independently powered for low noise. The front panel features an attractive 3” color IPS display with a practical, modern interface. As for connectivity, the UDP-6PRO has plenty to offer, with numerous digital inputs, two headphone outputs (6.35mm jack/4.4mm jack) and two analog outputs (RCA/XLR).

The circuit of the J.C. Acoustics UDP-6P

J.C Acoustics UDP-6PRO: Audiophile architecture

The UDP-6PRO benefits exclusively from high-quality components and an audiophile architecture to get the best out of your audio sources.

The components of the J.C. Acoustics UDP-6P

J.C Acoustics UDP-6PRO: ES9039SPRO DAC and XMOS XU216 interface

The UDP-6PRO's digital-to-analog conversion is based on an ESS ES9039SPRO DAC chip and an XMOS XU216 USB interface. This enables it to support high-resolution sampling rates up to PCM 32bit 768kHz and DSD512. In addition, an SC8422 chip supports optical/coaxial SPDIF signal processing up to 24bit 192kHz.

ES9039SPRO DAC and XMOS XU216 interface

J.C Acoustics UDP-6PRO: A balanced headphones amplifier circuit

The headphones amplifier stage features a balanced architecture with 4 OPA1642 and 4 TPA6120A2 amplifier chips for detailed, powerful sound reproduction. This configuration offers excellent dynamics and resolution across all frequencies. As a result, the UDP-6PRO's headphone outputs deliver substantial power, making it a headphone amplifier capable of driving high-end, high-impedance headphones.

Balanced 4.4mm jack headphones output power

  • 7500mW @ 32 ohm
  • 900mW @ 300 ohm
  • 450mW @ 600 ohm

6.35mm jack headphones output power

  • 1850mW @ 32 ohm
  • 225mW @ 300 ohm
  • 112mW @ 600 ohm
The amplification circuit of the J.C. Acoustics UDP-6P
J.C. Acoustics UDP-6P screen

J.C Acoustics UDP-6PRO: Color IPS display

The front panel of the UDP-6PRO headphones amplifier DAC features a beautiful 3” color IPS display. This is accompanied by a modern, practical interface. In fact, it provides access to the various information concerning the current playback, as well as navigation between the device's different parameters.

J.C Acoustics UDP-6PRO: A low-noise power supply

The UDP-6PRO's power supply circuit is based on an optimised 60VA custom-made OFC copper transformer, six filter capacitors totalling almost 30,000µF and a regulated five-line power supply, allowing a stable and clean current to be delivered independently to each component of the unit. This enables the UDP-6PRO to achieve exceptional audio performance.

The J.C. Acoustics UDP-6P power supply

J.C Acoustics UDP-6PRO overview

J.C. Acoustics UDP-6P overview
1Color IPS display
2Balanced 4.4mm headphones output
3Single-ended 6.35mm headphones output
4Multifunction button
5Balanced XLR output
6Single-ended RCA output
7Coaxial input
8Toslink optical input
9I2S LVDS input via HDMI
10USB-B input
11Power supply

Technical characteristics

Specifications
Product typeDAC / Headphones amplifier
DAC chipES9039SPRO
Amplification chips4x TPA6120A2
OPAOPA1642
Inputs1x USB-B
1x Coaxial
1x Optical Toslink
1x I2S LVDS via HDMI
Outputs1x Single-ended RCA output
1x Balanced XLR output

1x Balanced 4.4mm jack headphones output
1x Single-ended 6.35mm jack headphones output
Supported sample ratesUSB: PCM 32bit 768kHz, DSD512 (DoP & Native)
Coaxial / Optical toslink: 24bit 192kHz
I2S LVDS via HDMI: PCM 32bit 768kHz, DSD512 (DoP & Native)
DAC specifications (balanced XLR output)
Frequency response20Hz-40kHz (+/-0.2dB)
THD+N0.00015% (-6dB @ 1kHz, A-WT)
SNR120dB
Channel separation-133dB @ 1kHz
Line output powerRCA: 2.3Vrms
XLR: 4.6Vrms
Headphones amplifier specifications (balanced 4.4mm jack output)
THD+N0.00025% (4Vrms @ 1kHz, A-WT)
Frequency response133dB
Channel separation-133dB
Output power4.4mm balanced jack: 7500mW @ 32 ohm / 900mW @ 300 ohm / 450mW @ 600 ohm
6.35mm unbalanced jack: 1850mW @ 32 ohm / 225mW @ 300 ohm / 112mW @ 600 ohm
General
Power supply230V AC (Fusible 1.6A)
Power consumption< 25W
Standby: 3W
ColorSilver
Dimensions239 x 50 x 208mm
Weight3kg

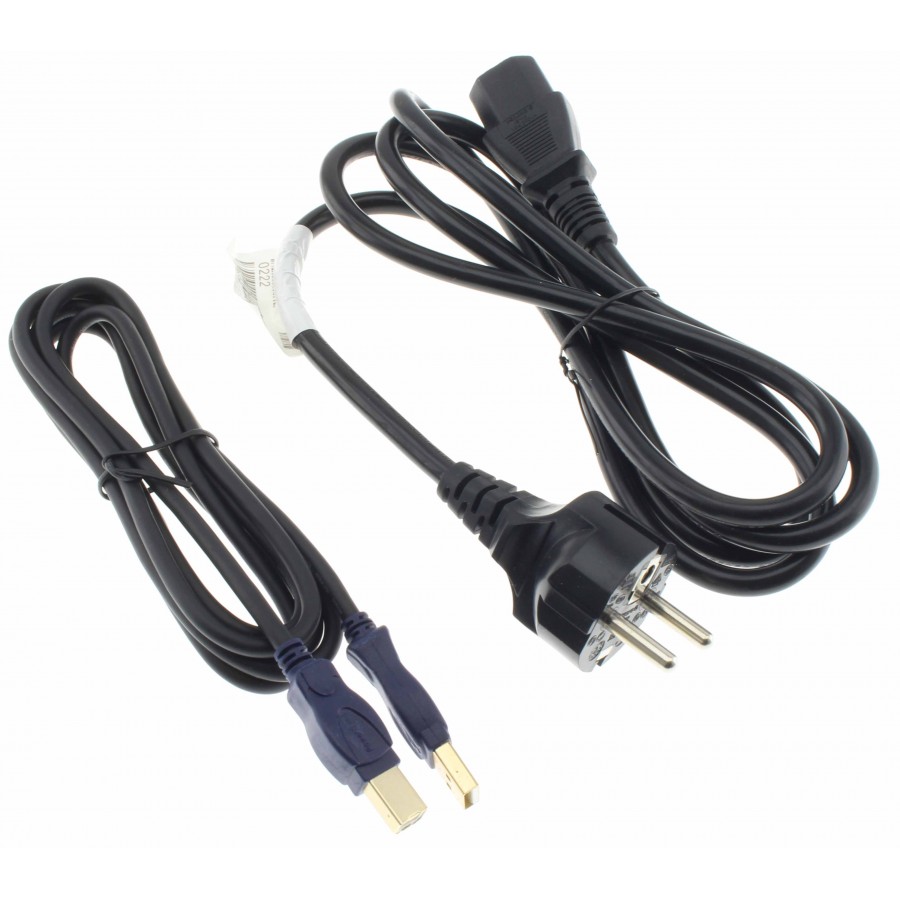

Package1x J.C Acoustics UDP-6PRO
1x USB-A to USB-B cable
1x Power cable

Data sheet
InputSPDIF
InputI2S via HDMI
InputUSB
InputOptical
OutputXLR
OutputJack 4.4mm
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipES9039MPro / ES9039MSPro
Max sampling rate768kHz
Max sampling rateDSD512
ColorSilver
ClassClass A / AB
NetworkingNo
Remote ControlNo
