LOXJIE D60 DAC Headphone Amplifier Silver

With its D60 DAC / headphone amplifier, Loxjie offers a modern, high-performance device, carefully designed and equipped with audiophile components. It incorporates an ES9039MSPRO DAC chip with MQA decoder, as well as an XMOS XU-316 USB interface, enabling it to support sampling rates up to PCM 32bit 768kHz, DSD512 and MQA-CD. Versatile, it features numerous digital inputs, including an HDMI I2S input and Bluetooth 5.1 reception thanks to a latest-generation Qualcomm chip.

On the headphone amplification side, it benefits from a balanced architecture and offers three outputs: single-ended 6.35mm jack, balanced 4.4mm jack and balanced XLR 4 pins. It is capable of delivering power up to 2x350mW at 600Ω and 2x6000mW at 16Ω, enabling it to drive all types of headphones. The package is rounded off by a nice display and user-friendly interface, as well as the possibility of using numerous PCM and DSD filters. As for its RCA and XLR line outputs, they feature adjustable output levels of 2.5Vrms and 5.2Vrms maximum respectively.

Loxjie D60: A balanced headphone amplifier circuit

The symmetrical architecture of the D60's headphone amplifier circuit limits noise and interference levels, while greatly enhancing the dynamic range of the unbalanced 6.35mm jack, balanced 4.4mm jack and balanced 4-pin XLR headphone outputs. Headphone listening with the D60 is rich in detail. What's more, it boasts a power reserve capable of driving headphones with impedances ranging from 16 ohm to 600 ohm:

• 2x6000mW @ 16Ω
• 2x3000mW @ 32Ω
• 2x700mW @ 300Ω
• 2x350mW @ 600Ω

Loxjie D60: 7 PCM and 4 DSD filters

The Loxjie D60's various filters can be used to modify the signal's transient response to adapt to different types of source and optimize sound reproduction.

Loxjie D60: HDMI I2S input

The D60's HDMI I2S input enables it to retrieve signals from a variety of sources, thanks to two available interface modes: normal or inverted.

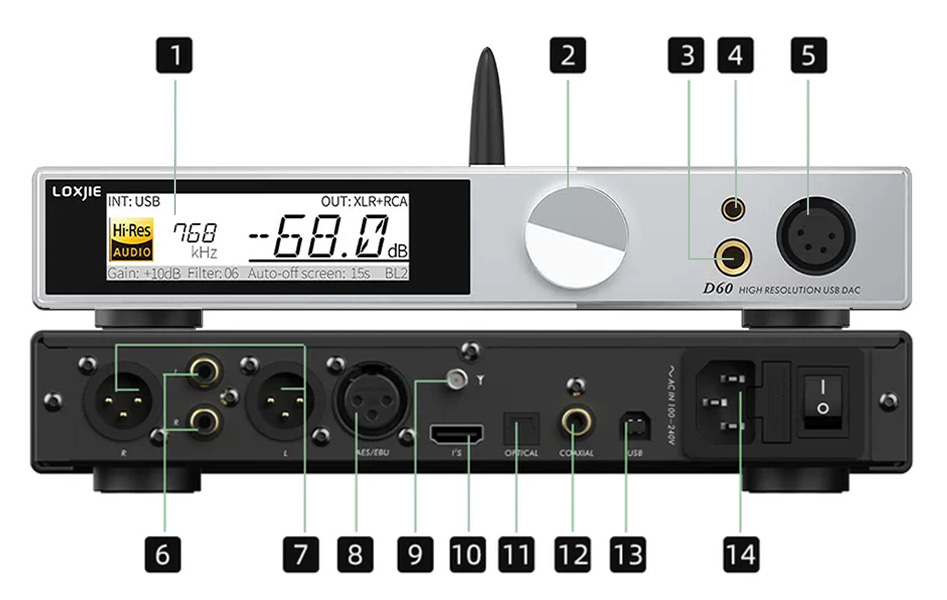

Loxjie D60: Display with intuitive interface and Bluetooth remote control

On the front of the D60 is a beautiful screen with an intuitive, modern and dynamic user interface. It also features a Bluetootth remote control for convenient remote control.
