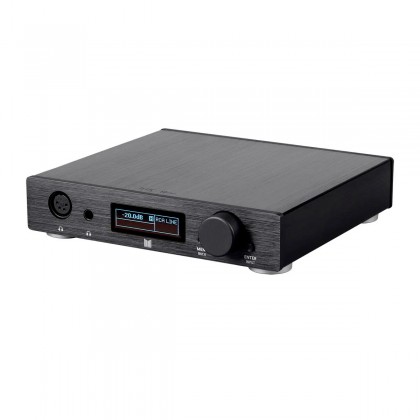

MONOLITH THX AAA-788 Balanced Headphone Amplifier DAC 2x AKM 4493 2x THX AAA-788 32bit 192kHz DSD128

The Monolith THX AAA-788 is a symmetrical headphone and DAC amplifier combo benefiting from a particularly well thought-out architecture and embedding high quality components for advanced audio performance.

Average votes for this product
5.0 / 5

By buying this product you get 57 loyalty points


Reference : 14384
New product

579,00 €tax incl.

482,50 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

The power supply is supplied with a US-standard power cord, you must use a US to FR Adapter to use it on European plugs.

Monolith THX AAA-788

Balanced Headphone Amplifier DAC 2x AKM 4493 2x THX AAA-788 32bit 192kHz DSD128

Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788

The Monolith THX AAA-788 is a symmetrical headphone and DAC amplifier combo benefiting from a particularly well thought-out architecture and embedding high quality components for advanced audio performance. Indeed, it integrates two THX AAA-788 amplifier chips and two AKM AK4493 digital/analog conversion chips, as well as Dirac Sensaround II technology, the whole allowing a precise, rich, deep reproduction with a beautiful sound stage. The unit is also equipped with a complete set of balanced and unbalanced connectors, making it extremely versatile.

Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788

THX Amplifier

THX Achromatic Audio Amplifier Technology (THX AAA) provides uncompromising headphone amplification, ensuring an exceptional audio experience with extremely low noise and distortion while maintaining very low power consumption.

Balanced architecture

Using the balanced headphone input and output, each THX stereo amplifier operates in bridged mode to maximize the output power of each channel. Each DAC also operates in mono mode, each taking over signal processing for a dedicated channel.

AKM AK4493 Dual DAC

The Monolith THX AAA-788 carries a pair of AKM AK4493 32bit digital/analog conversion chips. These DACs support PCM streams up to 32bit 768kHz and up to DSD256. The internal circuitry also incorporates a 32bit digital filter to further improve the sound quality and musicality of the device.

Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788
Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788

Dirac Sensaround II

Music is often mixed for speakers, not headphones. The result is a headphone listening experience where the sound image seems distorted, as instruments and voices are not precisely placed and may appear muffled. Dirac Sensaround II technology creates a wide sound stage, offering clarity and immersive realism. Whether you're listening to music, watching a movie or playing a game, Dirac Sensaround II puts you at the heart of the sound experience.

Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788
Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788

Balanced & Single-Ended headphone outputs

The Monolith THX AAA-788 offers two headphone outputs on the front panel: balanced on XLR 4-pin and unbalanced on jack 6.35mm. So you can enjoy listening with either balanced or unbalanced headphones.

Great versatility

The THX AAA-788 benefits from a particularly complete connection system. The inputs include stereo RCA, balanced XLR, AES/EBU, Coaxial, Optical and USB-B. The output of the amplifier features stereo RCA and a balanced headphone output on 4-pin XLR and an unbalanced headphone output on jack 6.35mm.

Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788

Filters

The device also allows the use of filters to adapt the sound reproduction to your listening and your equipment. For example, if your headphones tend to emphasize some sibilance, the use of the PEQ filter allows you to attenuate the corresponding frequency peak. The Shelf EQ filter allows it to boost or cut off part of the high frequencies (HF) or low frequencies (LF).

The DAC's filter also allows you to change the low-pass filter (LPF) or adjust the slope of the high-frequency (HF) filter.

Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788

Dynamic range control

The DRC function allows the installation of Shelving Filters. The DRC starts with the high-pass and low-pass filters to separate the high and low frequencies (24dB/oct @ 140Hz), then two independent stereo compressors and a mixer to combine the high and low frequencies. The compression is not Soft Knee, but starts exactly above the threshold level, with no compression below the threshold. The LF offset simply adjusts the threshold level of the LF compressor, in accordance with the HF compressor (the threshold level of the LF compressor corresponds to the threshold level setting + the LF offset setting). The DRC block is located before the volume control. Therefore, the DRC threshold level refers to the level of the incoming signal. The attack time of the compressors is about 100ms.

Monolith THX AAA-788 Amplificateur Casque DAC Symétrique 2x AKM 4493 2x THX AAA-788

Technical characteristics

Specifications
Product typeHeadphone amplifier
DAC
Amplification chip2x THX AAA-788
DAC chip2x AKM AK4493
Analog inputs1x Single-ended RCA
1x Balanced XLR
Digital inputs1x Optical
1x Coaxial
1x AES/EBU
1x USB-B
Outputs1x Stereo RCA
1x Jack 6.35mm single-ended headphone output
1x XLR balanced headphone output
Frequency response1Hz - 40kHz ±0.5dB (96kHz input)
SNR (A-Weighted)> 120dB
Dynamic range> 120dB
THD< 0.0005%
Crosstalk< 100dB
PowerBalanced: 1960mW @ 16Ω
Single-ended: 1560mW @ 16Ω
Balanced: 3120mW @ 32Ω
Single-ended: 1360mW @ 32Ω
Balanced: 1160mW @ 150Ω
Single-ended: 290mW @ 150Ω
Balanced: 580mW @ 300Ω
Single-ended: 150mW @ 300Ω
Balanced: 290mW @ 600Ω
Single-ended: 73mW @ 600Ω
Max XLR input voltage5.2Vrms
XLR input impedance20kΩ
Max RCA input voltage2.6Vrms
RCA input impedance10kΩ
Supported sampling ratesOptique : PCM up to 24bit 96kHz
Coaxial : PCM up to 24bit 192kHz
AES/EBU : PCM up to 24bit 192kHz
USB-B : PCM up to 32bit 192kHz / DSD up to DSD128
General
Power supply16VDC 1.25A
Dimensions221 x 198 x 50.8mm
Package1x Monolith THX AAA-788
1x Power supply

Data sheet
InputAES/EBU
InputXLR
InputOptical
InputRCA
InputSPDIF
OutputXLR
OutputRCA
OutputJack 6.35mm
ColorBlack
Remote ControlNo
