DAC Headphone Amplifier ES9038Pro XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
The M500 MKIII from SMSL is an improved version of the very good DAC and headphone amplifier M500 MKII, offering superior performances for a sound restitution still of a great precision and richness, in particular thanks to an update of some components.
SMSL M500 MKIII
SMSL M500 MKII
Advanced audio architecture
New SDAA architecture
-
USB Interface
XMOS XU316 3rd generation
XMOS XU316 2nd generation
DAC Chip
ES9038Pro (uses of 8 channels)
ES9038Pro (uses of 2 channels)
OPA
9x OPA1612A
3x OPA1612A
Clock
CK-03 Module
CK-02 Module
THD+N
-123dB (@ 4Vrms)
-121dB (@ 4Vrms)
Dynamic range
133dB
131dB
User interface
New SDAA interface
Standard interface
The M500 MKIII is equipped with an ESS ES9038Pro digital/analog conversion chip and takes advantage of the 8 channels available. This excellent DAC is furthermore combined with an ES9311 chip and thus has an independent power supply, ensuring very low power noise. This combination allows the M500 MKIII to reveal a precise and neutral sound.
The M500 MKIII embeds the new CK-03 clock circuit of the brand. This one allows a significant reduction of the level of jitter for a restitution always clearer.
The USB input of the M500 MKIII uses a second generation 32bit XMOS XU316 interface, combined with a custom driver allowing the transmission of high resolution streams up to 32bit 768kHz PCM, DSD512 and DoP256.
MQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers or rights holders. These files are light enough to stream or download.
The M500 MKIII is dressed in a beautiful anodized aluminum alloy case, machined with great precision using a CNC. The front panel features a tempered glass window that allows for excellent light emission from the beautiful 1.9" IPS display, while effectively protecting it from scratches.
The M500 MKIII provides seven digital filters, allowing you to adapt its playback to your listening situation and your audio system.
The headphone amplifier stage uses a brand new PLFC circuit, allowing it to have a substantial power reserve of 2x2W under 16Ω, with distortion below -120dB. The gain of the headphone amplifier can be adjusted to suit all types of headphones. The circuit also incorporates a separate protection circuit for the left and right channels.
The volume of the headphone output and the preamplifier are completely independent and therefore cannot interfere with each other. Moreover, the volume levels are kept in memory by the M500 MKIII.
In this MKIII version, the M500 incorporates a Bluetooth 5.0 receiver, making it easy to stream music remotely, for example from a smartphone or tablet. The M500 MKIII supports the aptX HD and LDAC transmission codecs, ensuring excellent wireless sound quality.
The M500 MKIII is delivered with a remote control (RC-8C). This one allows to act remotely on all the functions of the camera.
" The Mark III revision of M500 improves on both looks and performance of this balanced DAC. In that subsystem, everything you could ask for is provided as far as performance. "
Specifications | |
---|---|
Product type | DAC and headphone amplifier |
Inputs | Bluetooth 1x USB-B 1x Optical Toslink 1x Coaxial |
Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR 1x Jack 6.35mm headphone output 1x Jack 4.4mm headphone output |
DAC Chip | ESS ES9038Pro |
USB interface | XMOS XU316 |
THD+N | 0.00006% (-123.5dB) (UN-WTD) |

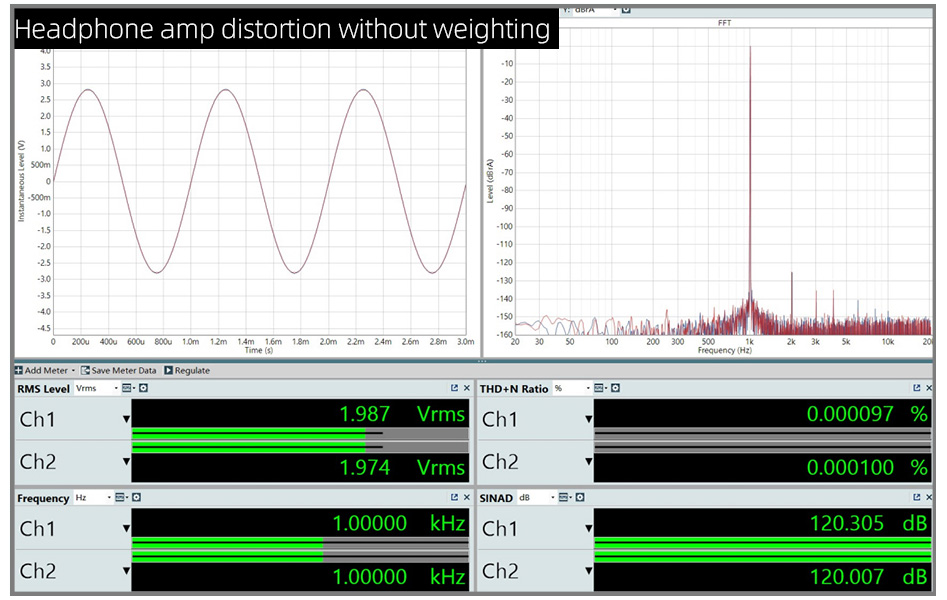

Headphone amplifier THD+N | 0.0001% (-120dB) (UN-WTD) |
Headphone amplifier output power | 2x2W @ 16Ω 2x1W @ 32Ω |
Headphone amplifier gain | Low: 0dB High: +9dB |
Dynamic range | XLR : 133dB RCA : 126dB |
SNR | XLR : 133dB RCA : 126dB |
USB compatibility | Windows 7 / 8 / 8.1 / 10 Mac OSX10.6 or later Linux |
MQA decoding | USB / Optical / Coaxial |
MQA-CD decoding | Optical / Coaxial |
DoP Decoding | USB / Optical / Coaxial |
Supported sampling rates | USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256 Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
Supported Bluetooth codecs | AAC, SBC, aptX, aptX HD, LDAC |
General | |
---|---|
Supply voltage | 100-240VAC 50/60Hz |
Consumption | 5W |
Standby consumption | < 0.5W |
Dimensions | 85 x 88 x 197mm |
Weight | 0.9kg |
Color | Black |
Package | 1x SMSL M500 MKIII 1x Remote control 1x Power cable 1x USB Cable |
Input | USB |
Input | Optical |
Input | SPDIF |
Input | Bluetooth |
Output | XLR |
Output | Jack 4.4mm |
Output | RCA |
Output | Jack 6.35mm |
DAC / ADC Chip | ES9038PRO |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Max sampling rate | MQA |
Color | Black |
Class | Class D / T |
Networking | No |
Remote Control | Yes |
