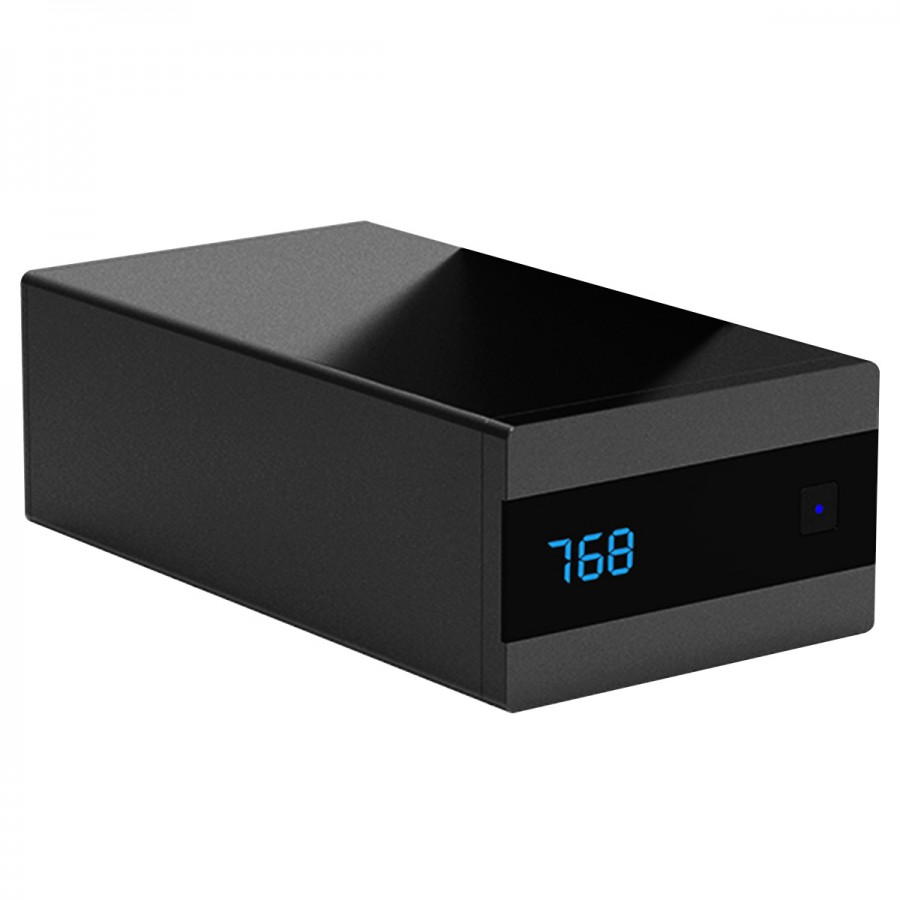

DAC USB AK4493S XMOS XU316 32bit 768kHz DSD512 Noir
SMSL comes back with an updated version of the Sanskrit, the Sanskrit 10Th MKIII, taking back the compact and practical design of the former model while improving its performances thanks to new components. We thus find there a powerful, versatile and affordable DAC with a neat design.
In this edition of the DAC, the digital/analog conversion stage is equipped with the new AKM AK4493S chip, ensuring precise and dynamic sound reproduction. This is associated with a USB XMOS XU316 interface, supporting high resolution audio streams up to PCM 32bit 768kHz and DSD512. The Sanskrit's CK-03 clock system allows for perfect signal synchronization and therefore a significant reduction in jitter. Finally, the power supply stage includes a powerful filtering system to provide a clean and stable electrical signal to all audio circuits.

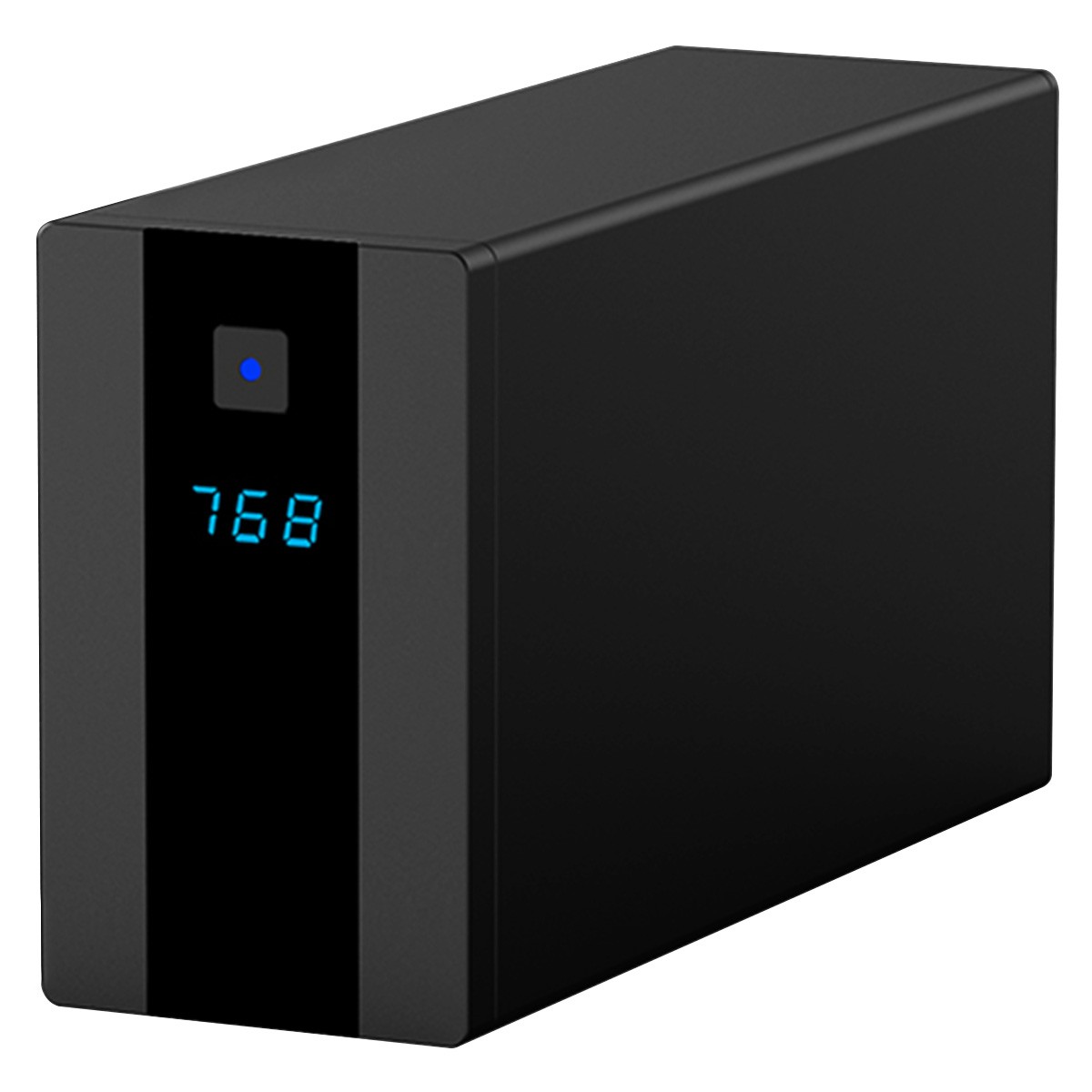

The design of the Sanskrit is designed to take up a minimum of space on your desk or in your HiFi system. It can be placed in three different ways. An accelerometer automatically changes the orientation of the screen.

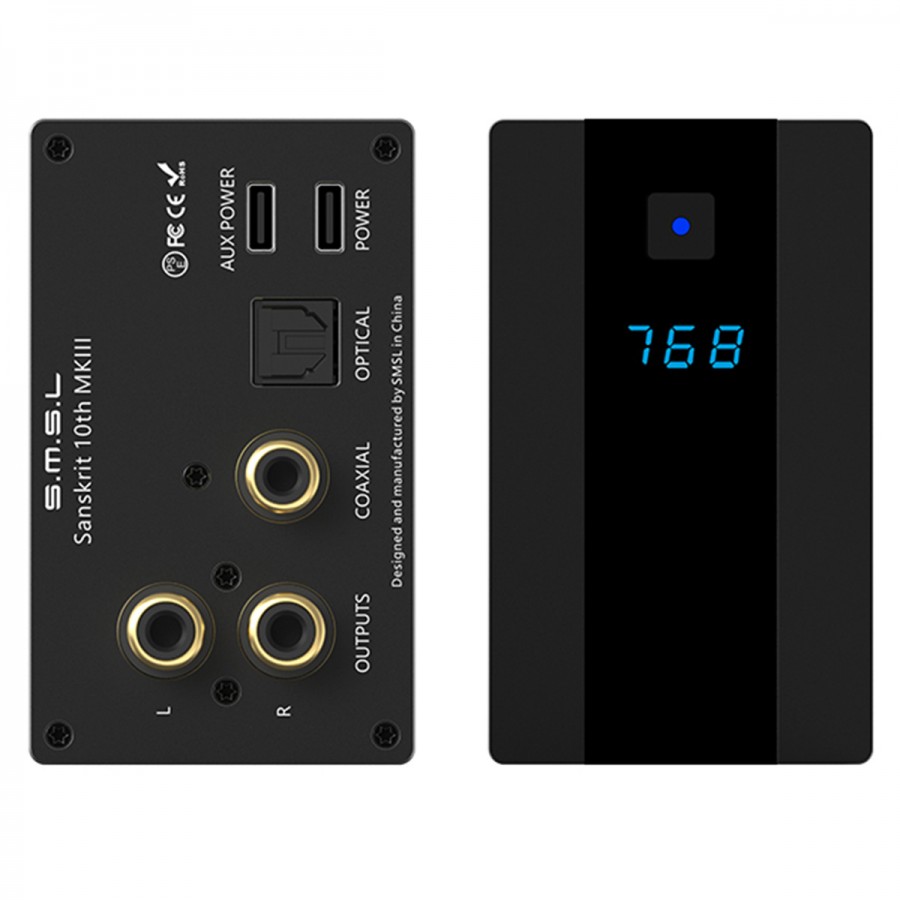

1 | IR Receiver |
2 | Screen |
3 | Power / input selection button |
4 | RCA output |
5 | Coaxial input |
6 | Optical input |
7 | USB input |
8 | Auxiliary power input |
Specifications | |
---|---|
Product type | DAC |
DAC chip | AKM AK4493S |
USB interface | XMOS XU316 |
Inputs | 1x USB-C 1x Optical Toslink 1x Coaxial |
Output | 1x Stereo RCA |
Output level | 2Vrms |
THD+N | 0.00013% (117dB) |
Dynamic range | 121dB |
SNR | 121dB |
Compatibility | Windows 7 / 8 / 8.1 / 10 /11 Mac OS X 10.6 or later Linux |
Supported sampling rates | USB : PCM up to 32bit 768kHz, DSD up to DSD512 Optical / Coaxial : PCM up to 24bit 192kHz |
General | |
---|---|
Consumption | < 5W |
Standby consumption | < 0.1W |
Dimensions | 75*45*144mm |
Weight | 320g |
Color | Black |
Remote control | Yes |
Package | 1x SMSL SANSKRIT 10TH MKIII 1x USB-A to USB-C cable 1.2m |
Input | USB |
Input | Optical |
Input | SPDIF |
Output | RCA |
DAC / ADC Chip | AK4493S |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Color | Black |
Networking | No |
Remote Control | Yes |
