SONCOZ SGD1 DAC Dual ES9038Q2M 32bit 784 kHz DSD512 XMOS U208 Bluetooth 5.0Gray

Here is a DAC with volume control based on ESS ES9038Q2M SABRE technologies. It has been warmly welcomed thanks to its many features, as well as its thorough integration of high fidelity music criteria. Its modern design is extremely ergonomic, making the SGD1 an ideal choise for all audiophiles looking for a solution that provides high quality audio playback, with extensive connectivity and easy installation within any type of ambitious audio system.

Average votes for this product
5.0 / 5

By buying this product you get 49 loyalty points


Reference : 14530
New product

499,00 €tax incl.

415,83 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

DAC SGD1 - SONCOZ

2x ES9038Q2M 32bit  784 kHz / DSD512 - XMOS U208 - AKM 4418A




Here is a DAC with volume control based on ESS ES9038Q2M SABRE technologies. It has been warmly welcomed thanks to its many features, as well as its thorough integration of high fidelity music criteria. Its modern design is extremely ergonomic, making the SGD1 an ideal choise for all audiophiles looking for a solution that provides high quality audio playback, with extensive connectivity and easy installation within any type of ambitious audio system.

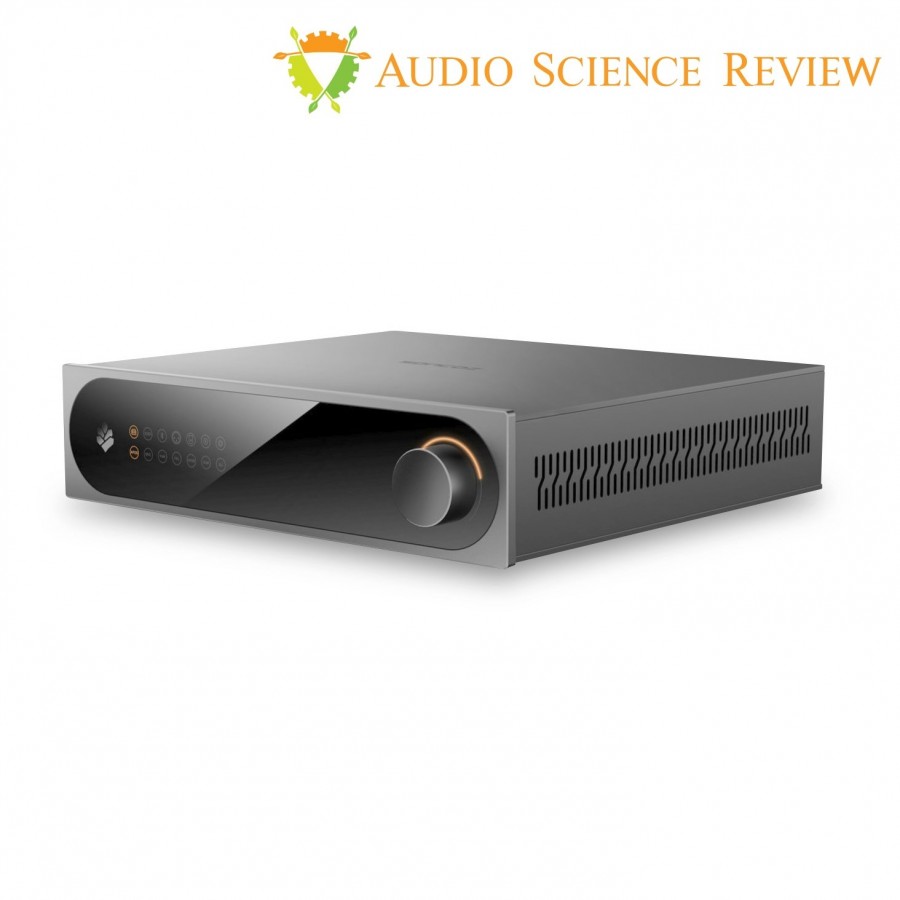

Review by Audio Science Review

There is great attention paid to keeping noise and interference to a minimum. All of this helps SGD1 beat over 200 DACs in SINAD (distortion plus noise)!

 test by the measurement forum Audio Science Review

Two ES9038Q2M DAC chips

Soncoz SGD1 DAC open inner circuit


The SGD1 is a well designed DAC built on chips ES9038Q2M Sabre 32-bit integrated in dual mono mode : each of these chips see its computing power 100% dedicated to a single channel of the stereophonic signal. This achieves a sound restitution of exceptional clarity with tremendously low crosstalk.

This component belongs to ESS flagship series and is among the best current hardware solutions for high-fidelity audio decoding. It uses HyperStream 32 BIT 768kHz architecture with native DSD support. Each one of this chips is also equipped with advanced reconstruction filters and uses some of the finest dithering techniques available on the audio market.

ESS ES9038Q2M SABRE DACs are also very popular thanks to their ability to operate volume with almost no consequences on the audio bitrate.

XMOS U208 USB interface & AKM 4418A Digital Audio Interface

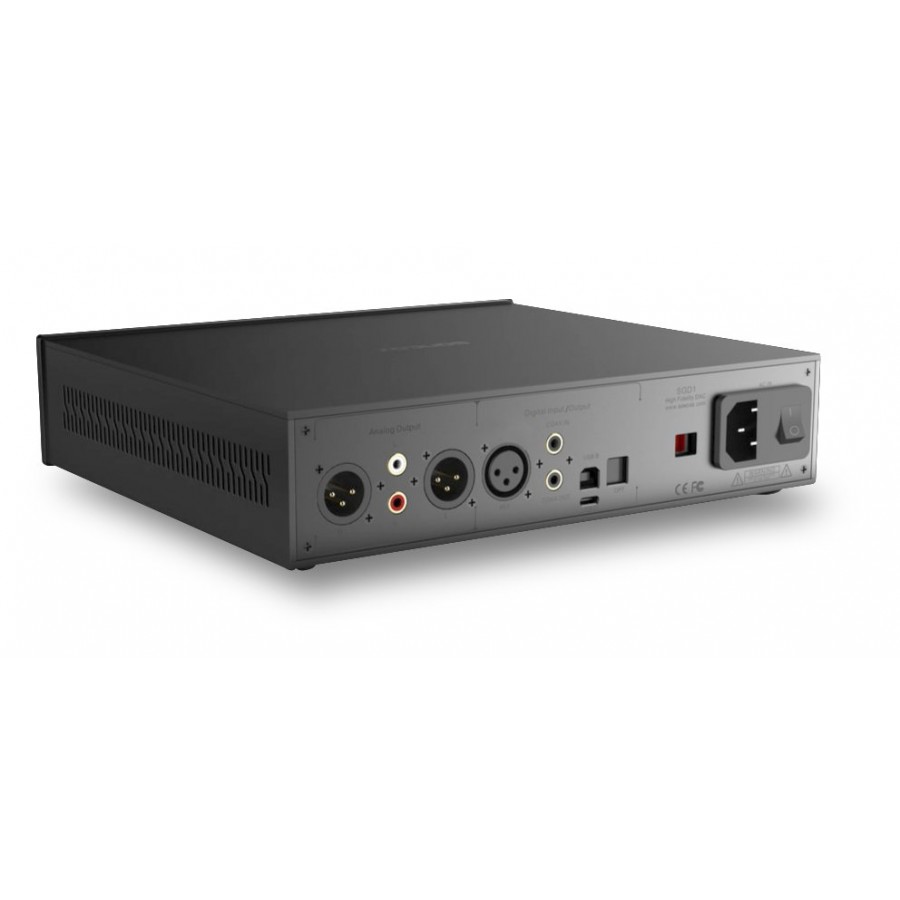

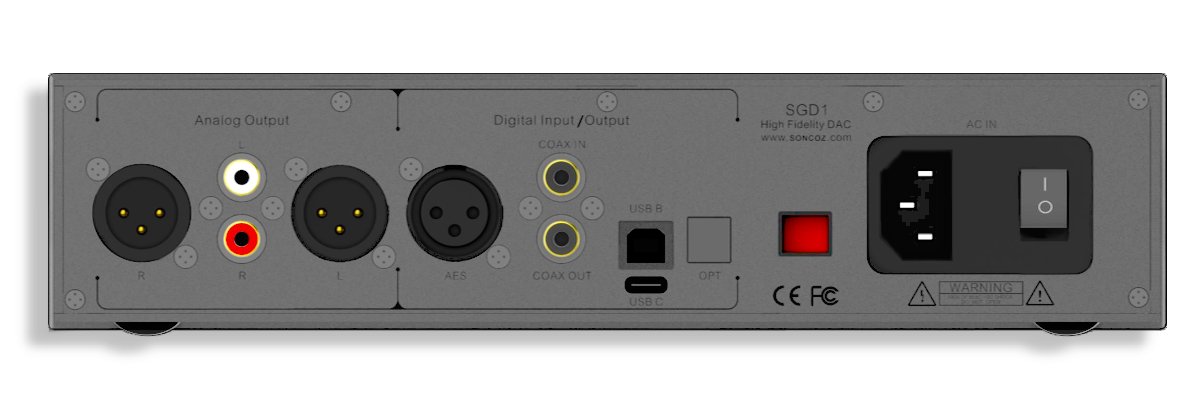

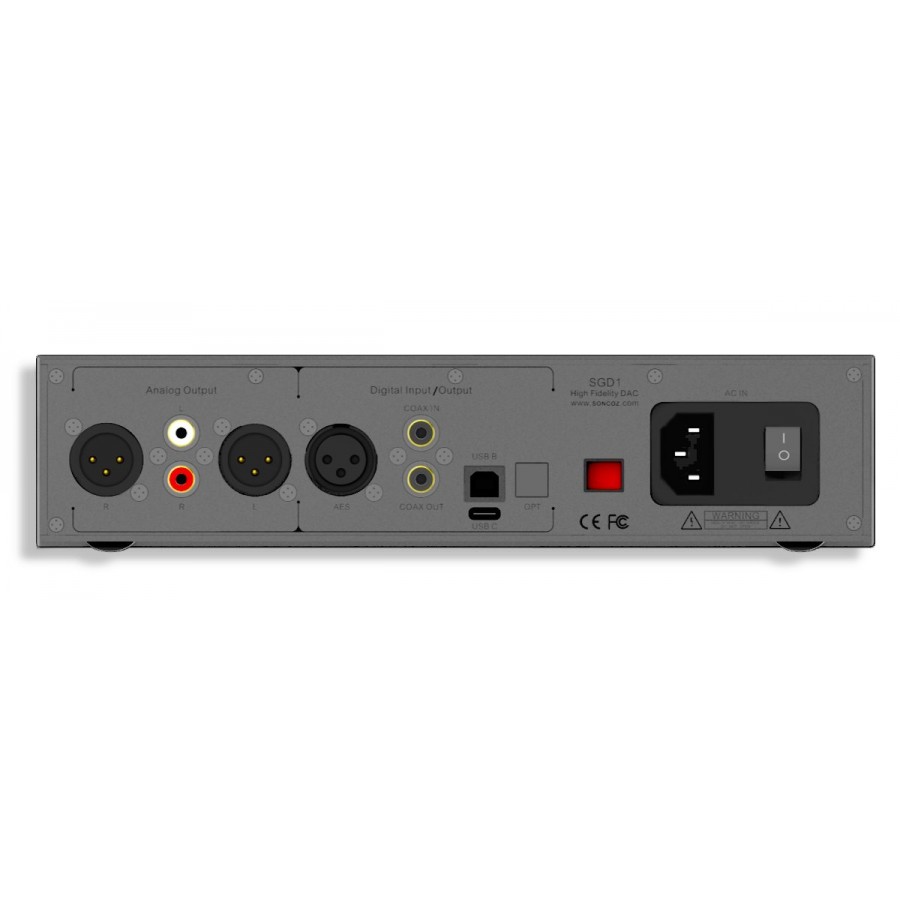

The device has two USB connectors on the rear panel. Respectively, USB-B input and a USB-C input for interfacing OTG devices.

Both USB inputs work with a XMOS U208 USB interface. This is a reference component in the field of high-fidelity music, with digital streams supports up to 32-bit 768kHz as well as (native) DSD512.

In addition to the USB inputs, the SONCOZ SGD1 has a AKM 4418A chip which allows the conversion of digital S / PDIF streams on its AES / coaxial, optical inputs with a 24-bit / 192 kHz / DSD64 resolution.

The S/PDIF and USB interfaces are communicating with one another. In addition to its DAC function, SONCOZ SGD1 can work as a digital interface capable of interfacing its six digital inputs (USB inputs included) to a coaxial S/PDIF output connector. Note that this output bypasses the device's mute function thus offering wide integration possibilities (connect an OTG device to a receiver that only have a coaxial input, connect for a while a secondary audio system for testing purposes...etc).


Each entry keeps track of its own volume level and the user does not have to redo the whole level adjusting each time a new source is selected.

WiFi & Bluetooth 5.0


A CSR8675 chip allows the device to connect through Bluetooth 5.0. The latter supports LDAC, ACC, SBC, apt-X Low-Latency & apt-X HD. A LDAC compatible device can stream up to 24-bit 96kHz digital audio data for high quality wireless audio.

With its wireless connectivity, it is able to check automatically (once configured) the presence of firmware updates and install them in the background without requiring user intervention. If no update are needed, the WiFi module turns off by itself after a minute.

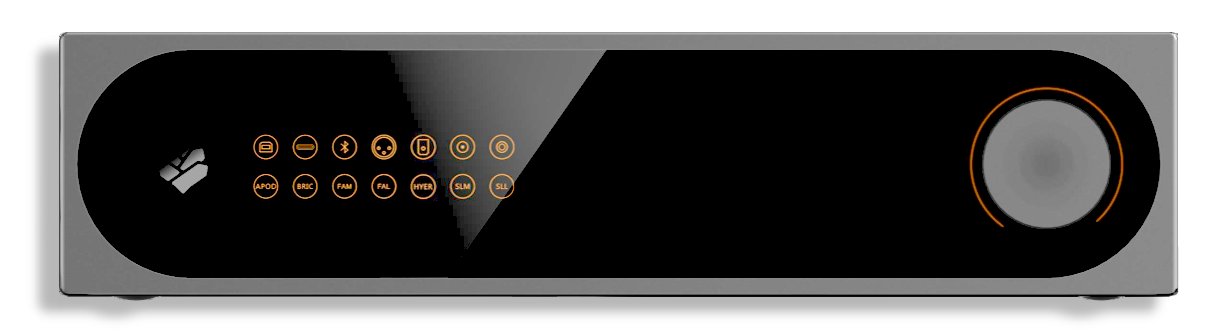

The front panel displays in real time the active input and the selected filters. Each option has its own backlit icon in order to leave no doubt as to the device proper configuration.

Well-built power stage


To make the most of the excellent electronic components composing the SGD1, the latter has a power stage with dual linear regulated power supply.

Two transformers constitute each an independent supply stage for separately powering the digital and analog stages. This type of integration significantly reduces interference and noise in the most sensitive stages of the digital / analog conversion.

An input voltage selector can toggle between 230V and 110V power grids.

Remote control


A remote control is included with the device to take advantage of all its functions while remaining comfortably seated.

The following functions are supported: Mute, filter selection, source selection, volume control.

Specifications
TypeDAC
DAC chip2x ES9038Q2M
USB interfaceXMOS XU208 32 bit
SPDIF interfaceAKM 4418A
OPA2x OPA1612A
2x RT6863S
Bluetoothstandard 5.0
Supported sampling frequenciesUSB: 768kHz PCM 32-bit / native DSD512
AES / Coax / Optical: 192kHz - 24bit
Power supply2x linear transformer
Audio Capacitors (Vishay / VIMA / ELNA / NCC)
Input voltage toggle 110 - 230V
Analog outputs1x stereo balanced XLR
1x stereo unbalanced RCA
Digital outputs1x SPDIF Coaxial
Digital inputs1x AES / EBU
1x SPDIF Coaxial
1x Optical SPDIF
1x USB-C
1x USB-B
Frequency response 20Hz ~ 20KHz (± 0.15dB) XLR
20Hz ~ 20KHz (± 0.15dB) RCA
Dynamic range126dB A-Weighted XLR
126dB A-Weighted RCA
SNR126dB A-Weighted XLR
124dB A-Weighted RCA
Output voltageXLR: 4.0Vrms
CAR: 2.Vrms
Dimensions250 x 225 x 55mm
Weight3 kg
ColorGray

Data sheet
InputS/PDIF
InputUSB
InputOptical
InputWiFi
InputAES/EBU
InputSPDIF
InputBluetooth
OutputRCA
OutputCoaxial SPDIF
OutputXLR
DAC / ADC ChipES9038Q2M
Max sampling rateDSD512
Max sampling rate768kHz
ColorGray
NetworkingNo
Remote ControlYes
