TOPPING D70 BT Balanced DAC 2x AK4497 XMOS XU208 I2S Bluetooth 5.0 LDAC 32bit 768kHz DSD512 Black

The DAC Topping D70 BT features many refinements specific to a high-end audio product. Powerful chips, ultra-low jitter clocks, latest generation interfaces and great versatility, this converter offers exceptional audio reproduction, characterized by magnificent transparency and a beautiful sound richness while offering practical features.

Average votes for this product
4.6 / 5

By buying this product you get 54 loyalty points


Reference : 14099
New product

549,00 €tax incl.

457,50 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

Topping D70 BT

Balanced DAC 2x AK4497 XMOS XU208 I2S Bluetooth 5.0 LDAC 32bit 768kHz DSD512 Blackr

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

The DAC Topping D70 BT features many refinements specific to a high-end audio product. Powerful chips, ultra-low jitter clocks, latest generation interfaces and great versatility, this converter offers exceptional audio reproduction, characterized by magnificent transparency and a beautiful sound richness while offering practical features.

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

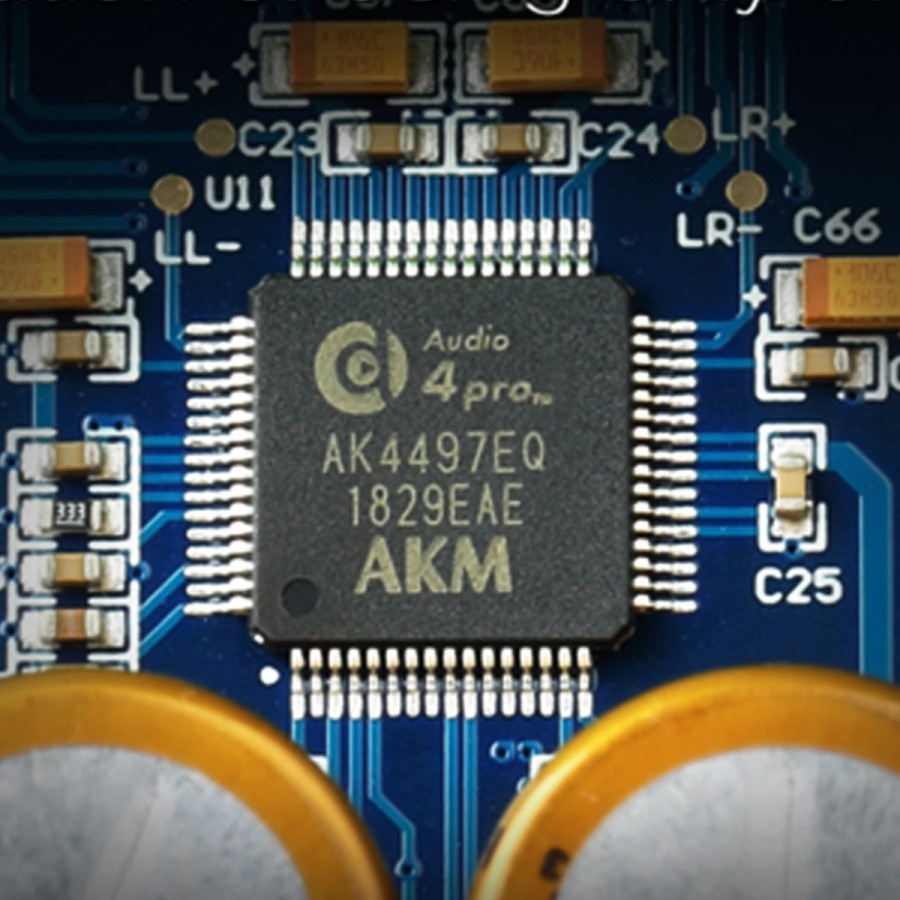

2x AK4497 DAC & Accusilicon Clocks

The AK4497 DAC chip from AKM is the brand's current flagship, allowing efficient and accurate decoding. Thus, the D70 BT integrates a pair of this DAC, each being associated with a channel for better separation of these. These chips allow it to reach a THD+N of -116dB and a dynamic range of 131dB. In addition, these chips support high sampling rates, allowing you to enjoy your PCM files up to 32bit 768kHz and DSD up to DSD512 Native.

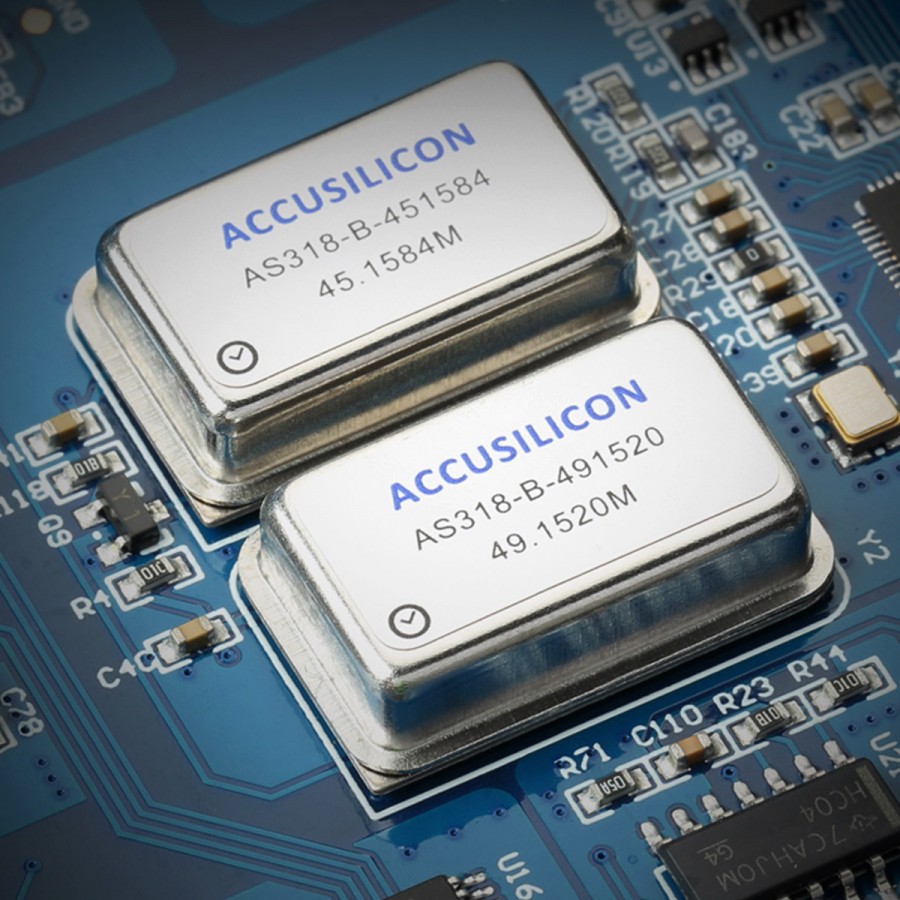

These AK4497 DACs are combined with a pair of AccuSilicon 45.1584MHz and 49.1520MHz high-end femtosecond clocks. These allow a perfect synchronization of the data signals for an impressive jitter attenuation.

Connectivity & Features

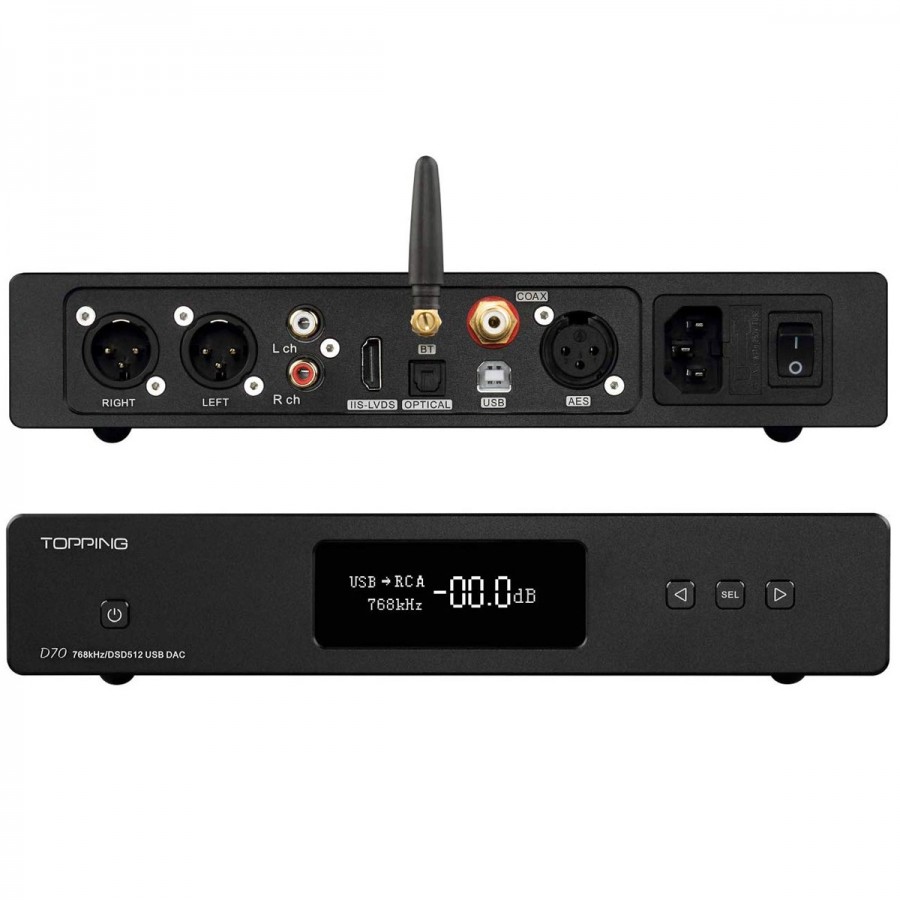

With its wide range of features and connectivity, the Topping D70 BT can be integrated into the vast majority of audio systems, offering many options for use and installation. On the input connector side, the device offers AES/EBU, Coaxial SPDIF, Toslink Optics, USB and I2S LVDS via HDMI. Note that this last input has several selectable modes, in order to adapt to your other I2S LVDS devices. The output includes balanced XLR and unbalanced RCA. The D70 BT allows you to select the output so that you can send the audio stream only to one or both of them.

The D70 BT also acts as a preamplifier since it includes a volume controller with attenuation from -99dB to 0dB. However, this volume control function can be disabled so that the D70 BT can only be used as a DAC with output levels constantly at their maximums, i.e. 4Vrms for XLR output and 2Vrms for RCA output.

Topping D70 BT DAC Symétrique 2x AK4497 XMOS XU208 I2S Bluetooth 5.0 LDAC 32bit 768kHz DSD512 Noir13872-topping-d70-inpage1-jpg.png
Topping D70 BT DAC Symétrique 2x AK4497 XMOS XU208 I2S Bluetooth 5.0 LDAC 32bit 768kHz DSD512 Noir

Bluetooth 5.0 LDAC

This version of the Topping D70 BT is equipped with a particularly powerful Bluetooth 5.0 CSR8675 chip and offers it Hi-Res Audio Wireless certification. It thus supports Bluetooth transmission protocols AAC, SBC, aptX, aptX LL, aptX HD and LDAC. This last protocol, LDAC, developed by Sony, allows the transmission of files with high sampling rates up to 24bit 96kHz.

The signal received by the Bluetooth chip is then converted by the two AK4497 chips, which are much more powerful than the DAC embedded in the Bluetooth chip.

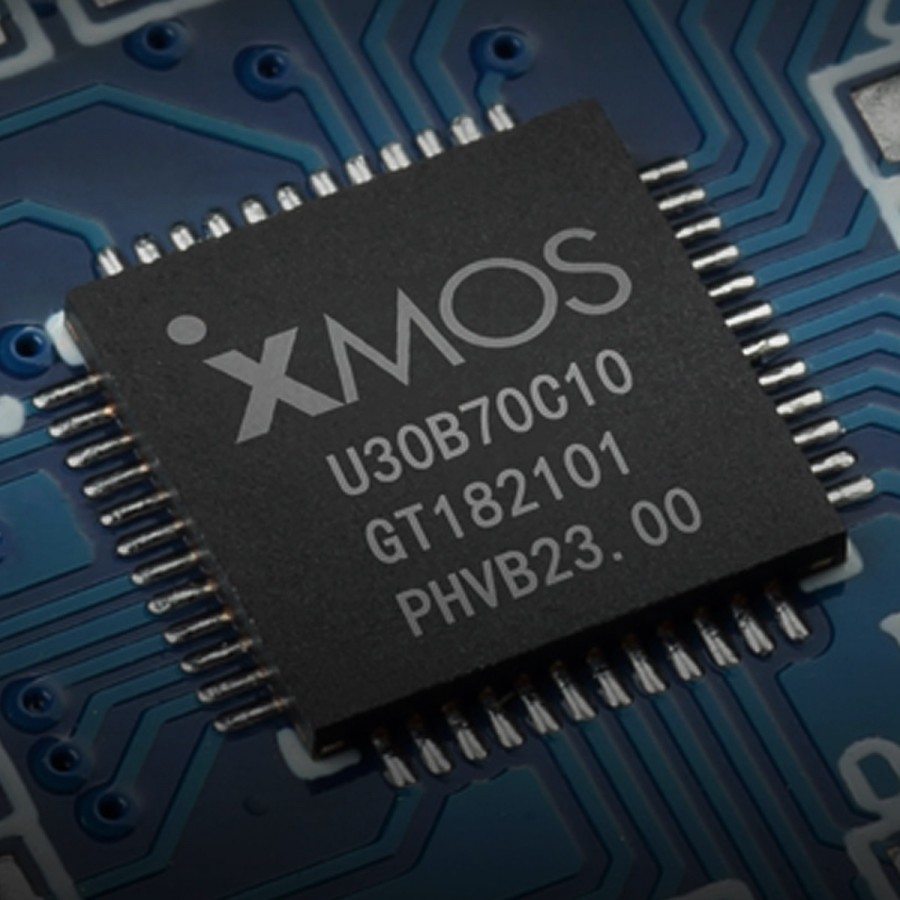

USB XMOS XU208 & SPDIF AK4418 Interface

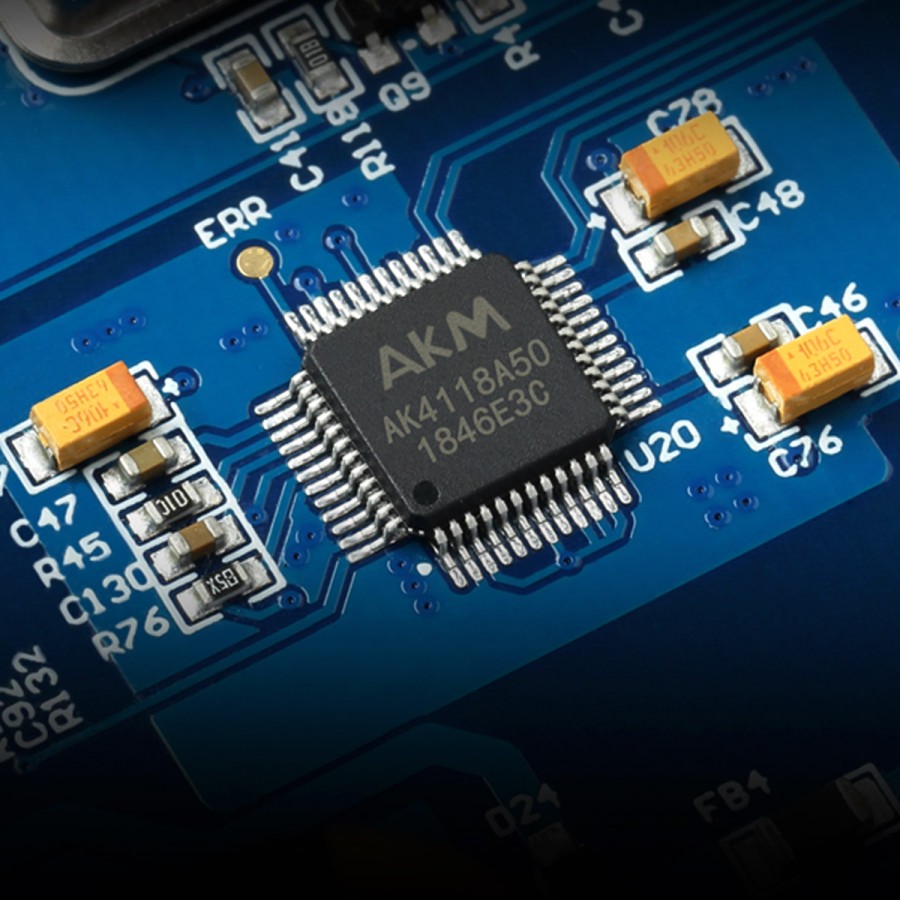

Once again, on the side of its digital interfaces Topping chooses quality and performance by integrating high-end chips into its D70 BT. For the USB interface, we find an XMOS XU208 chip supporting high sampling rates up to 32bit 768kHz in PCM and up to DSD512 Native. For SPDIF signals, an AK4118 chip does the job by providing the lowest jitter on the market for this type of interface. This chip is therefore used for the Optical, Coaxial and AES inputs and allows sampling rates of 24bit 192kHz to be achieved for the latter.

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

A set of incredible quality

While the conversion and interface chips integrated into the D70 BT represent the best that is currently available, the rest of the circuit is not to be outdone. For example, the PCB contains 4 Nichicon FW 3300µF capacitors as power reserve for the AK4497 and 8 Nichicon Muse capacitors for coupling the output signals. The output circuit is composed of a series of 3 AOP LME49720, high precision Vishay resistors and WIMA capacitors for excellent performance. The power supply circuit, on the other hand, incorporates ultra-low noise low voltage drop (LDO) linear regulators TPS7A4701 and TPS7A3301. This quality of manufacture allows the D70 BT to offer a breathtaking sound reproduction, with incredible precision, richness and depth.

Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

Remote ControlTopping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

1ON/OFF Button
2Volume +
3Previous input
4Volume -
5NC
6Filter selection
7Auto power on
8Mute
9Output mode selection
10Next input
11NC
12NC
13Screen brightness setting

Dimensions

Topping D70 BT DAC Symétrique 2x AK4497 XMOS XU208 I2S Bluetooth 5.0 LDAC 32bit 768kHz DSD512 Noir

Topping D70 BT review by Audio Science Review

" The D70 BT offers exceptional measured performance. Its strong point is its very low noise, allowing one of the best dynamic ranges I have ever measured. "
Test du Topping D70 par Audio Science Review

Technical characteristics

Specifications
Product typeDAC
DAC Chip2x AK4497
USB InterfaceXMOS XU208
Interface SPDIFAK4418
Inputs1x I2S LVDS (HDMI)
1x Optical Toslink
1x USB-B
1x Coaxial SPDIF
1x AES/EBU
Bluetooth 5.0
Supported sampling ratesUSB : PCM up to 32bit 768kHz / Native DSD up to DSD512 / DSD DoP up to DSD256
I2S : PCM up to 32bit 768kHz / DSD up to DSD512
Coaxial, Optical, AES : PCM up to 24bit 192kHz
Bluetooth : PCM up to 24bit 96kHz (LDAC)
Outputs1x Balanced XLR
1x Single-ended RCA
Bluetooth chipCSR8675
Supported Bluetooth protocolsAAC, SBC, aptX, aptX LL, aptX HD, LDAC
THD+NRCA : <0.0004% @ 1kHz A-Weighting
XLR : <0.0004% @ 1kHz A-Weighting
SNRRCA : >118dB @ A-Weighting
XLR : >127dB @ A-Weighting
Frequency responseRCA : 20Hz - 20kHz (+/-0.9dB)
XLR : 20Hz - 20kHz (+/-0.9dB)
Output voltageRCA : 2Vrms @ 0dBFS
XLR : 4Vrms @ 0dBFS
NoiseRCA : <2.4µVrms
XLR : <1.8µVrms
CrosstalkRCA : -128dB @ 1kHz
XLR : -137dB @ 1kHz
General

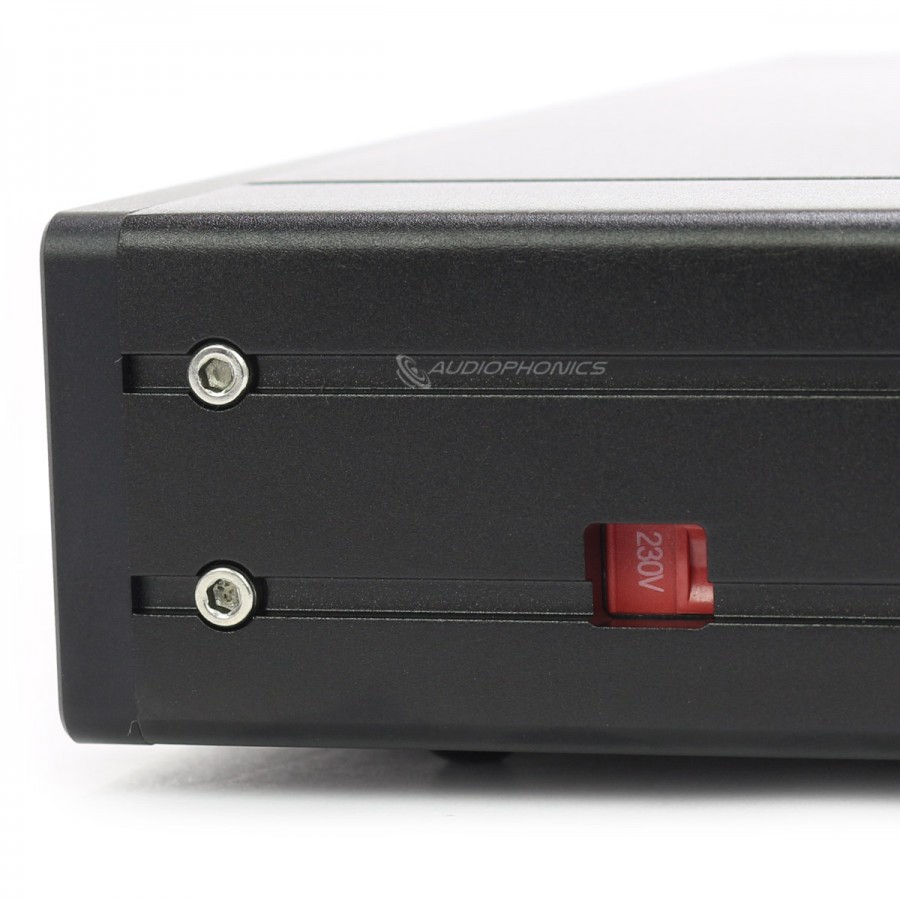

Power supplyAC110V/AC220V 50Hz/60Hz (switchable) via IEC (cable included)
Housing materialAluminium
Dimensions25 x 19.5 x 5cm
Weight1.9kg
ColorBlack
Package1x Topping DX70
1x IR Remote Control
1x USB Cable
1x Power cable
1x Bluetooth antenna
1x User manual
1x Warranty card
Output modes
Output modeDisplayRCA outputXLR outputAdjustable volume
RCA--> RCA
XLR--> XLR
RCA + XLR--> R+X
DACDAC
PreamplifierVolume display
Brightness mode
OptionIntensity
LLow
MMid (Default)
HHigh
PCM Filters
DisplayFilter
Mode1Sharp Roll-Off
Mode2Slow Roll-Off
Mode3Short Delay Sharp Roll-Off (Défaut)
Mode4Short Delay Slow Roll Off
Mode5Super Slow Roll-Off
Mode6Low Dispersion Short Delay
DSD Filters
DisplayFilter
Mode139kHz (Default)
Mode276kHz
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512
Topping D70 DAC 2x AK4497 XMOS XU208 AK4118 32bit 768kHz DSD512

Data sheet
InputXLR
InputOptical
InputI2S via HDMI
InputSPDIF
InputBluetooth
OutputXLR
OutputRCA
DAC / ADC ChipAK4497EQ
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlYes
