Topping DM7
Balanced DAC ES9038Pro 8 Channels Jack 6.35mm TRS 32bit 192kHz DSD128 Silver
Topping offers with its DM7 a particular DAC since it provides no less than eight balanced audio outputs in 6.35mm TRS jack format. It is thus thought to allow the implementation of a 7.1 powerful sound system. Its conversion stage integrates an ESS ES9038Pro DAC chip, capable of providing a precise and rich sound reproduction.
/>
ES9038Pro DAC
The digital/analog conversion stage of the Topping DM7 is equipped with the excellent ES9038Pro DAC chip. This one offers a high level sound reproduction, marked by a great precision and richness.
High resolution audio
The DM7 supports PCM audio streams up to 32bit 192kHz as well as native DSD up to DSD128 and DoP64, thus covering the vast majority of audio streams used.
Multi-channel audio decoding requires software support. The DM7 is only intended for digital/analog conversion. It does not allow the decoding of proprietary multi-channel audio streams.
Eight balanced outputs
The Topping DM7 offers a simple and efficient connectivity. The input is done via a USB-C port, and the output thanks to a series of eight balanced 6.35mm TRS connectors. These connectors allow the integration of a real 7.1 system.
12V Trigger
With its 12V trigger, integrating both an input and an output, the DM7 can be switched on and off automatically at the same time as other devices in your audio system. Practical to avoid a sometimes tedious switch-on sequence.

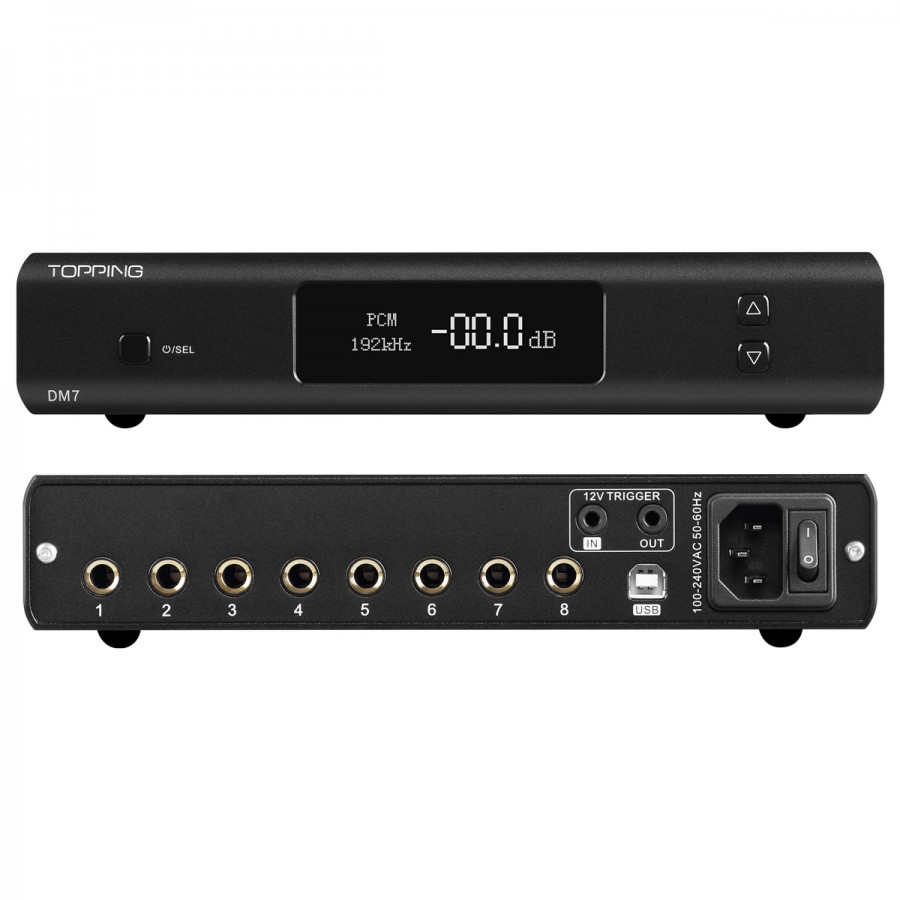

| 1 | Multi-function button |
| 2 | OLED Screen |
| 3 | IR Receiver |
| 4 | Volume + |
| 5 | Volume - |
| 6 | Balanced TRS Jack 6.35mm outputs |
| 7 | USB-B input |
| 8 | 12V Trigger (input/output) |
| 9 | Power connector |
| 10 | Power button |
Technical characteristics
| Specifications | |
|---|---|
| Product type | 8 Channels DAC |
| DAC Chip | ESS ES9038Pro |
| Inputs | 1x USB-B |
| Outputs | 8x Balanced TRS Jack 6.35mm |
| 12V Trigger | In / Out |
| Supported sampling rates | PCM up to 32bit 192kHz Native DSD up to DSD128 DSD DoP64 |
| THD+N | < 0.00009% @ A-Weighting, 1kHz < 0.0002% @ 90kBw, no-weighting, 20Hz-20kHz |
| SNR | 130dB @ A-Weighting, 1kHz |
| Dynamic range | 130dB @ A-Weighting, 1kHz |
| Frequency response | 20Hz - 40kHz (±0.1dB) |
| Output level | 4Vrms @ 0dBFS (Mode 4V) 5Vrms @ 0dBFS (Mode 5V) |
| Noise | < 1.5µVrms |
| Crosstalk | -143dB à 1kHz |
| Channels balance | < 0.3dB |
| Output impedance | 100Ω |
| General | |
|---|---|
| Supply voltage | 100/240VAC 50-60Hz |
| Dimensions | 222 x 160 x 45mm |
| Color | Silver |
| Package | 1x Topping DM7 1x Remote control 1x USB Cable 1x Power cable |
| Input | USB |
| Output | Jack 6.35mm |
| DAC / ADC Chip | ES9038PRO |
| Max sampling rate | DSD128 |
| Max sampling rate | 192kHz |
| Color | Silver |
| Networking | No |
| Remote Control | Yes |
