TOPPING DX3 PRO+ DAC ES9038Q2M NFCA Headphone Amplifier TPA6120A2 Bluetooth 5.0 aptX HD LDAC XMOS 32bit 768kHz DSD512 Black

USB XMOS XU208 USB Interface

In addition to this ES9038Q2M DAC chip, there is a second generation XMOS XU208 8-core USB interface, in charge of processing the data transmitted via the USB input. This one allows notably the support of high resolution audio streams, with PCM up to 32bit 768kHz and DSD up to DSD512. This chip also offers excellent compatibility with the majority of systems, whether the device is running Windows 10, Mac OS, Linux, iOS or Android.

QCC5125 & Bluetooth 5.0

The DX3Pro+'s Bluetooth 5.0 reception is provided by a QCC5125 chip designed by Qualcomm. This allows the DX3Pro+ to benefit from Hi-Res Wireless certification, thanks to the support of high-quality transmission codecs such as aptX, aptX LL, aptX HD and LDAC.

To achieve even better performance, this Bluetooth input is directly linked to the ES9038Q2M DAC for decoding the audio stream.

Preamplifier Function & Output Modes

The DX3Pro+ offers a preamplifier function and no less than four output modes to suit different uses:

Headphone amplifier output

Headphone amplifier output + line output

DAC

Preamplifier

Output channel

Indicator

Jack 3.5mm headphone outpout

RCA output

Adjustable volume

Headphone amplifier

Headphone indicator ON

Headphone amplifier + Line output

Headphone indicator ON
DAC indicator ON

Line output

DAC

Indicateur DAC allumé
Taux d'échantillonnage affiché

Preamplifier

DAC indicator ON
Volume displayed

Specifications
Product type	DAC Headphone amplifier Preamplifier

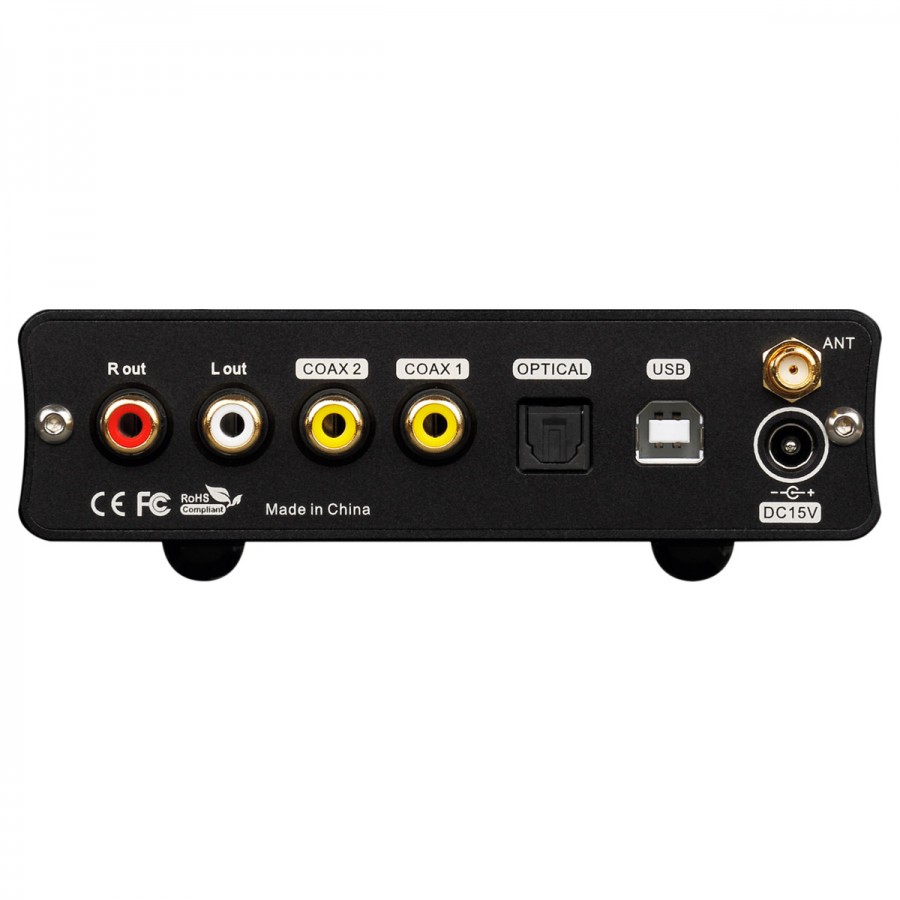

Inputs	1x USB-B 1x Optical Toslink 2x Coaxial Bluetooth 5.0
Outputs	1x Stereo RCA 1x Jack 3.5mm headphone output
Amplification chip	TPA 6120A2
DAC chip	ESS ES9038Q2M
Bluetooth chip	QCC5125
Supported sampling rates	USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256 Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64
Supported Bluetooth codecs	AAC, SBC, aptX, aptX LL, aptX HD, LDAC

Specifications

Product type

DAC
Headphone amplifier
Preamplifier

Inputs

1x USB-B
1x Optical Toslink
2x Coaxial
Bluetooth 5.0

Outputs

1x Stereo RCA
1x Jack 3.5mm headphone output

Amplification chip

TPA 6120A2

DAC chip

ESS ES9038Q2M

Bluetooth chip

QCC5125

Supported sampling rates

USB : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256
Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64

Supported Bluetooth codecs

AAC, SBC, aptX, aptX LL, aptX HD, LDAC

DAC Measurements (@ USB, 96kHz)
THD+N @ 1kHz, A-Weighting	< 0.00015%
THD @ 20Hz-20kHz, 90kBW	< 0.0002%
SNR @ 1kHz, A-Weighting	122dB
Dynamic range @ 1kHz, A-Weighting	122dB
Frequency response	20Hz-20kHz (±0.3dB) 20Hz-40kHz (±0.7dB)
Output level	2.1Vrms @ 0dBFS
Noise @ A-Weighting	< 1.8µVrms
Crosstalk @ 1kHz	-137dB
Channel balance	0.3dB
Output impedance	20Ω

DAC Measurements (@ USB, 96kHz)

THD+N @ 1kHz, A-Weighting

< 0.00015%

THD @ 20Hz-20kHz, 90kBW

< 0.0002%

SNR @ 1kHz, A-Weighting

122dB

Dynamic range @ 1kHz, A-Weighting

122dB

Frequency response

20Hz-20kHz (±0.3dB)
20Hz-40kHz (±0.7dB)

Output level

2.1Vrms @ 0dBFS

Noise @ A-Weighting

< 1.8µVrms

Crosstalk @ 1kHz

-137dB

Channel balance

0.3dB

Output impedance

20Ω

Headphone amplifier measurements
THD+N @ 1kHz, A-Weighting	< 0.00015% @ Output=1500mW, 32Ω < 0.00013% @ Output=160mW, 300Ω
THD @ 20Hz-20kHz, 90kBW	< 0.0005% @ Output=1500mW, 32Ω < 0.0005% @ Output=160mW, 300Ω
SNR @ Max output level, A-Weighting	120dB
Dynamic range @ 1kHz, A-Weighting	120dB
Frequency response	20Hz-20kHz (±0.3dB) 20Hz-40kHz (±0.7dB)
Output level	5.5Vpp @ G=L 21.5Vpp @ G=H
Noise @ A-Weighting	< 2.1µVrms @ G=L < 7µVrms @ G=H
Crosstalk @ 1kHz	-90dB
Gain	6dB (Vrms/FS) @ G=L 19dB (Vrms/FS) @ G=H
Output impedance	< 0.1Ω
Output power	2x 1800mW @ 32Ω, THD+N < 0.1% 2x 900mW @ 64Ω, THD+N < 0.1% 2x 250mW @ 300Ω, THD+N < 0.1%
Adapter impedance	> 8Ω

Headphone amplifier measurements

THD+N @ 1kHz, A-Weighting

< 0.00015% @ Output=1500mW, 32Ω
< 0.00013% @ Output=160mW, 300Ω

THD @ 20Hz-20kHz, 90kBW

< 0.0005% @ Output=1500mW, 32Ω
< 0.0005% @ Output=160mW, 300Ω

SNR @ Max output level, A-Weighting

120dB

Dynamic range @ 1kHz, A-Weighting

120dB

Frequency response

20Hz-20kHz (±0.3dB)
20Hz-40kHz (±0.7dB)

Output level

5.5Vpp @ G=L
21.5Vpp @ G=H

Noise @ A-Weighting

< 2.1µVrms @ G=L
< 7µVrms @ G=H

Crosstalk @ 1kHz

-90dB

Gain

6dB (Vrms/FS) @ G=L
19dB (Vrms/FS) @ G=H

Output impedance

< 0.1Ω

Output power

2x 1800mW @ 32Ω, THD+N < 0.1%
2x 900mW @ 64Ω, THD+N < 0.1%
2x 250mW @ 300Ω, THD+N < 0.1%

Adapter impedance

> 8Ω

General
Dimensions	120 x 165 x 40mm
Housing material	Aluminum
Color	Black
Package	1x Topping DX3Pro+ 1x Power supply 1x Remote control 1x USB Cable 1x Bluetooth antenna

General

Dimensions

120 x 165 x 40mm

Housing material

Aluminum

Color

Black

Package

1x Topping DX3Pro+
1x Power supply
1x Remote control
1x USB Cable
1x Bluetooth antenna

Input	Optical
Input	SPDIF
Input	Bluetooth
Input	USB
Output	RCA
Output	Jack 3.5mm
DAC / ADC Chip	ES9038Q2M
Max sampling rate	768kHz
Max sampling rate	DSD512
Color	Black
Class	Class D / T
Amplifier chip	N/A
Networking	No
Remote Control	Yes
