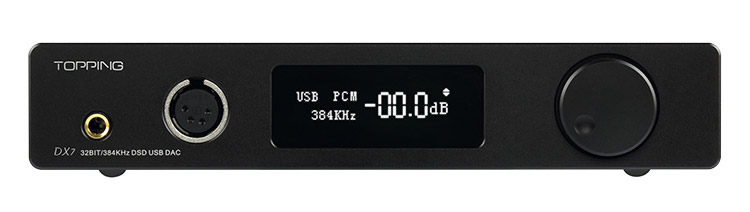

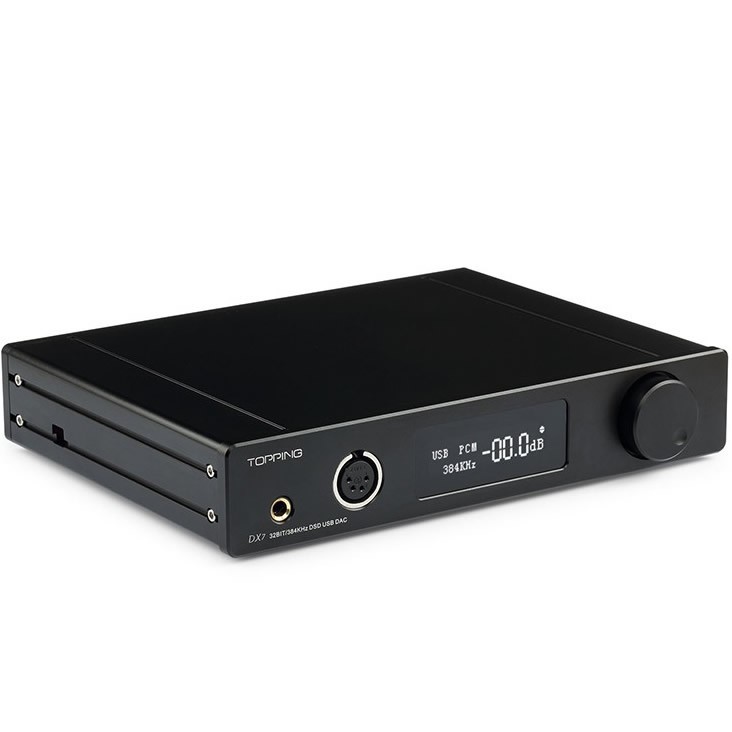

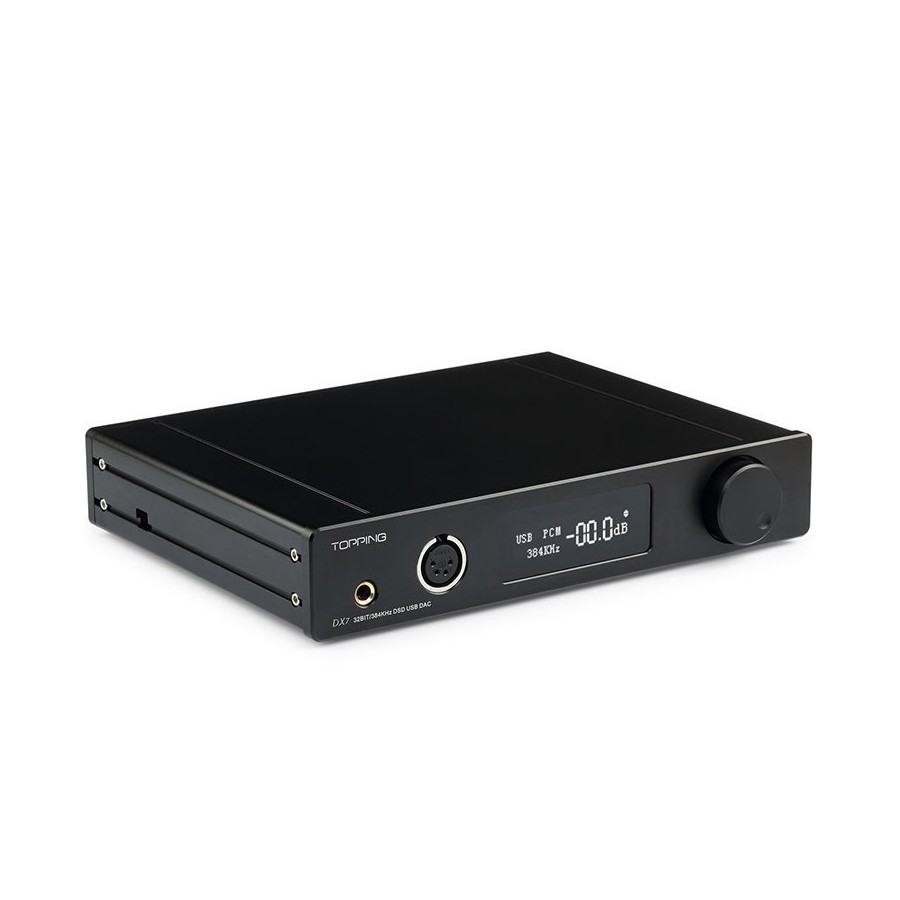

TOPPING DX7 2x ES9018K2M DAC / Preamplifier / Headphone ampli DSD 32bit / 384kHz Symetrical

The Topping DX7 (2017) is a versatile device that will serve you as both DAC, preamplifier and headphone amplifier. It incorporates a symmetrical design based on two DAC ES9018K2M for an exceptional rendition.

No customer reviews yet, login to write a review.

By buying this product you get 37 loyalty points


Reference : 12151
New product

379,00 €tax incl.

315,83 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Topping DX7 (2017)

DAC, Preamplifier and Headphone Amplifier

Topping DX7 DAC Preamp Headphone Amp

Versatility and efficiency

The Topping DX7 thanks to its "form factor" and its 32bit 384khz capacity offers many configuration possibilities. Combining the functions of DAC, digital preamplifier and high impedance headphone amplifier, it will fulfill most needs with a balanced headphone output.

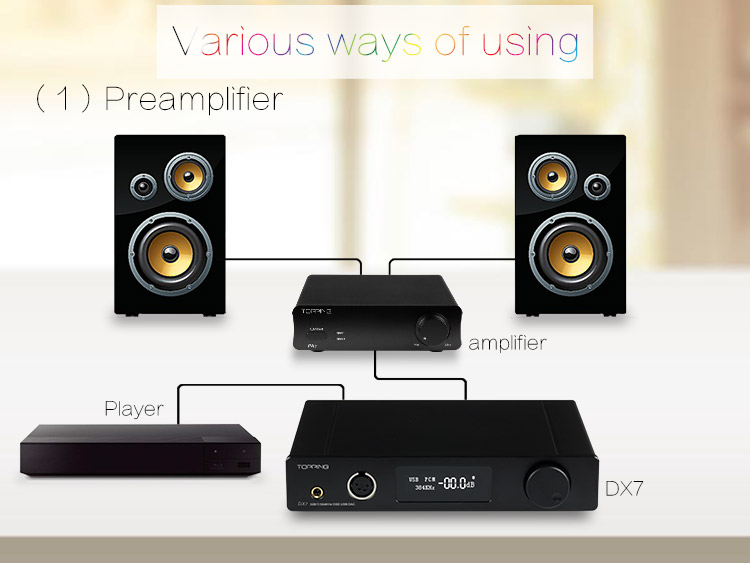

Topping DX7 a versatile system

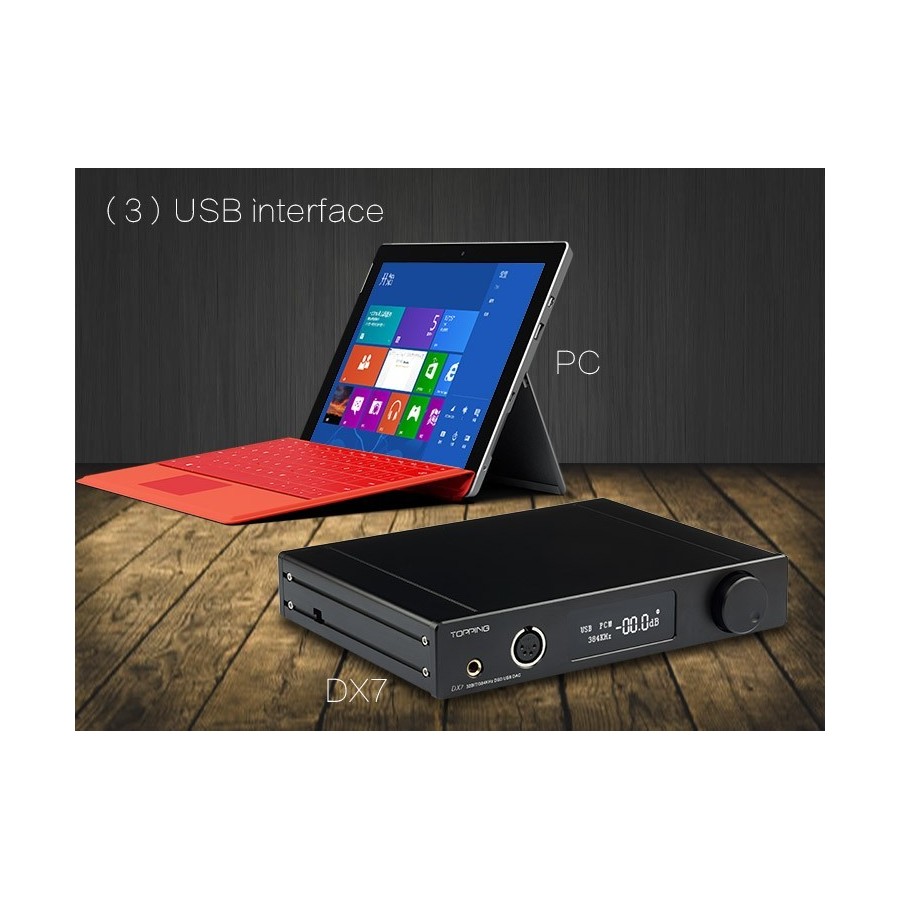

USB XMOS dual ES9018K2M

The fully symmetrical design of this Es9018K2M-based 2-Chip DAC gives it high-end technical qualities with minimal crosstalk and floor noise. Each standard PCM SPDIF digital input has a galvanic isolation transformer. The Topping Dx7 offers at a studied rate benefits rarely achieved.

Topping DX7 USB XMOS and Double DAC ES9018K2M

Double analogical floor realsymmetrical

The analog stage of this DAC is symmetrical with the output of both ES9018K2M. The analog part has separate OP amps for each left and right channel of Texas Instrument-grade audiophile quality.

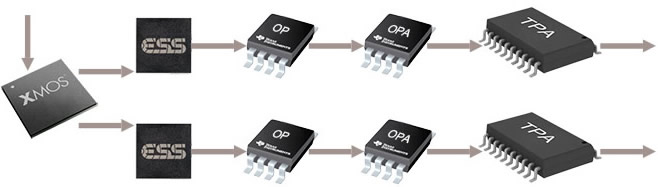

Topping DX7 Symmetrical Design

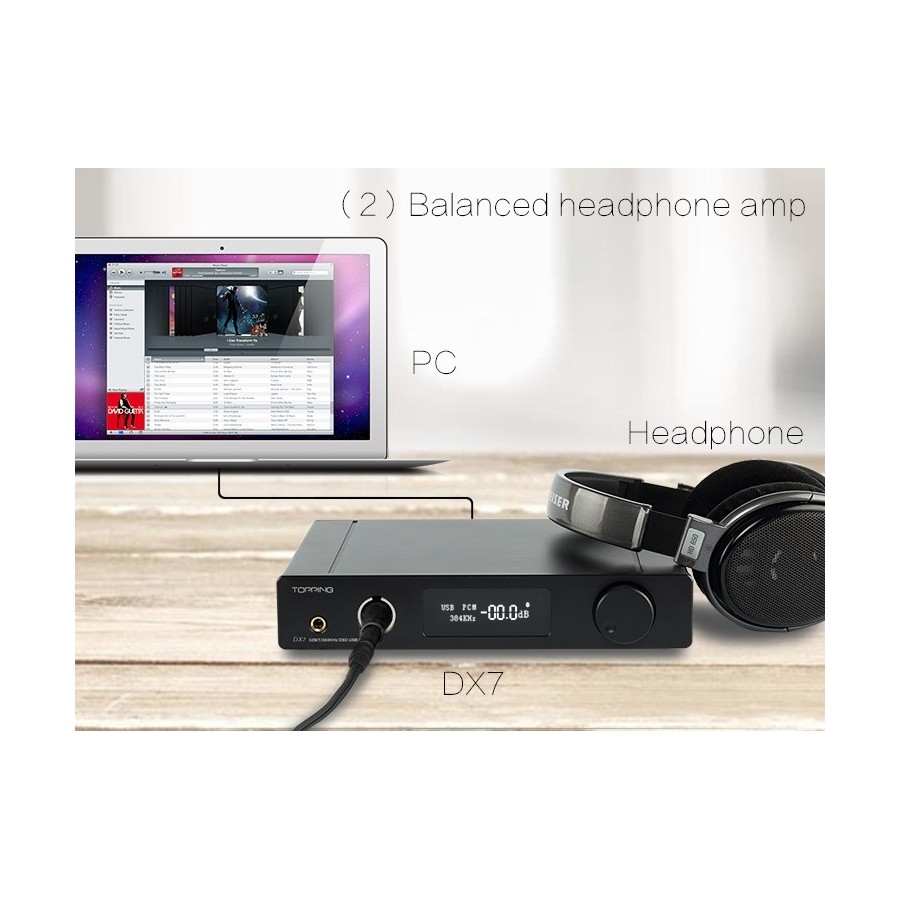

A symmetrical helmet section High Fidelity

The Topping DX7 DAC delivers optimal headphone output through two TPA6112A2 amplifiers. Thus, in addition to supporting the DSD / DXD and sampling rates up to 32bit / 384kHz, it benefits from a particularly neat analog output stage that can attack the market-leading audiophile headsets on XLR balanced 4 pin output.

This allows the DX7 to offer a lower sound color and therefore a faithful reproduction, a very low distortion and a high linearity. You gain in dynamics, details and neutrality.

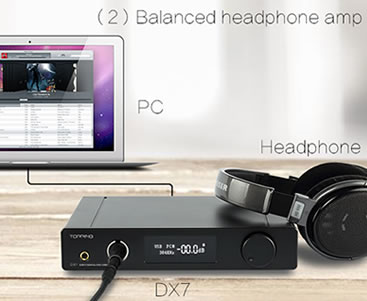

Topping DX7 High Fidelity Symmetrical Headphone Section

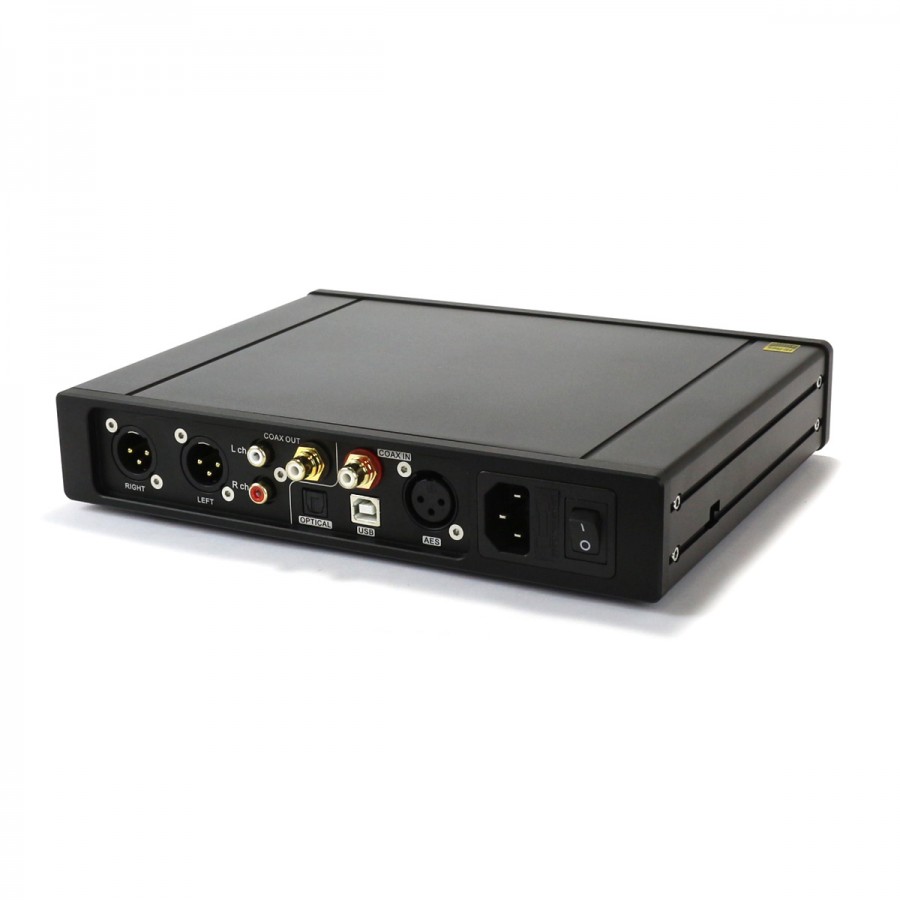

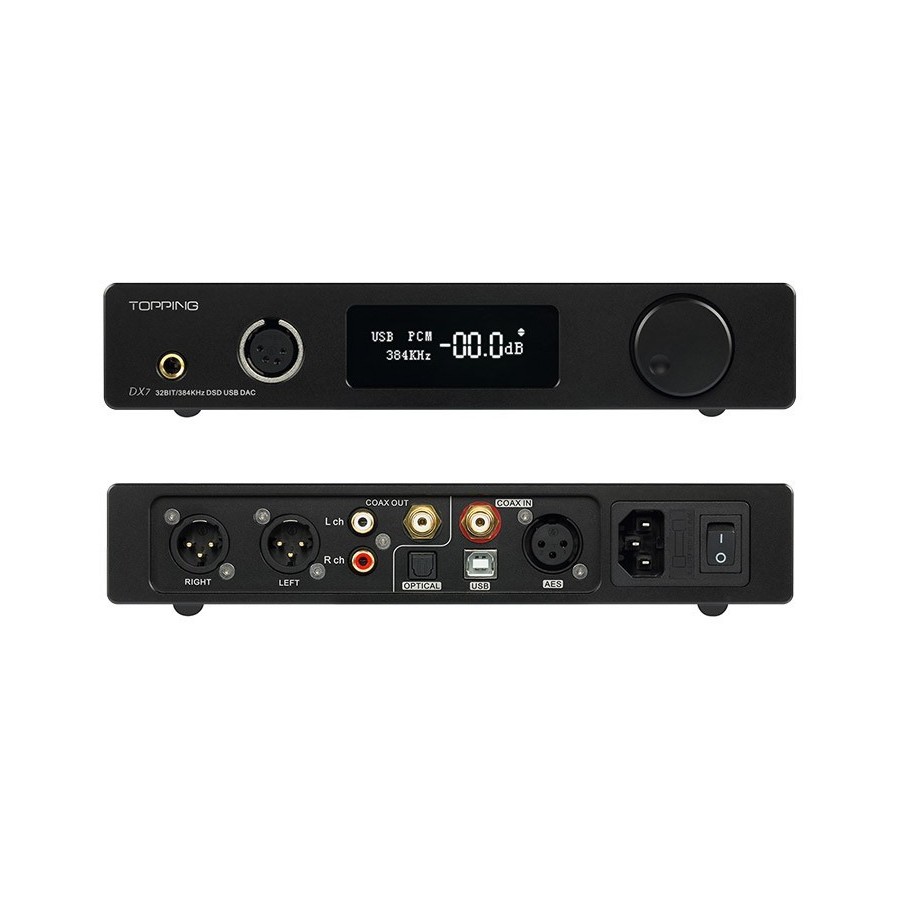

Topping DX7 Connectors
Connectors: Inputs1x USB XMOS16 to 32bit DSD64 to DSD128 (DOP)1x Coaxial75Ω 16 to 24bit 44.1kHz to 192kHz1x Toslink optics16 to 24 bit 44.1kHz to 192kHz1x AES / EBUSymmetrical 110Ω 16 to 24bits 44.1kHz to 192kHz
Connections: Outputs
1x RCA-
1x XLR Symmetrical-
1x Digital Coaxial75Ω 16 to 24bit 44.1kHz to 192kHz
1x Headphone Output6.35mm Jack
1x balanced XLR headphone output4 pins
Specifications
Report ifgreat noise114dB
crosstalk-130dB at 1kHz
Headphone output level 6.3516Vpp
Balanced headphone output level31Vpp
Fixed2V RMS
Headphone output impedance10Ω (20Ω symmetrical)
Impedance output DAC line100Ω
XLR line output impedance200Ω
Coaxial input sensitivity0.5V pp (75Ω)
Frequency response20Hz - 20kHz (-0.2dB)
Power headphone output
Asymmetrical Jack 6.35mm640mW to 32Ω, 110mW to 300Ω (16 to 300Ω)
Symmetrical XLR 4 pins420mW to 300Ω, 210mW to 600Ω (16 to 600Ω)
CompatibilityWindows, Mac
Consumption12W
Weight1.95kg
Dimensions250 x 205 x 50mm

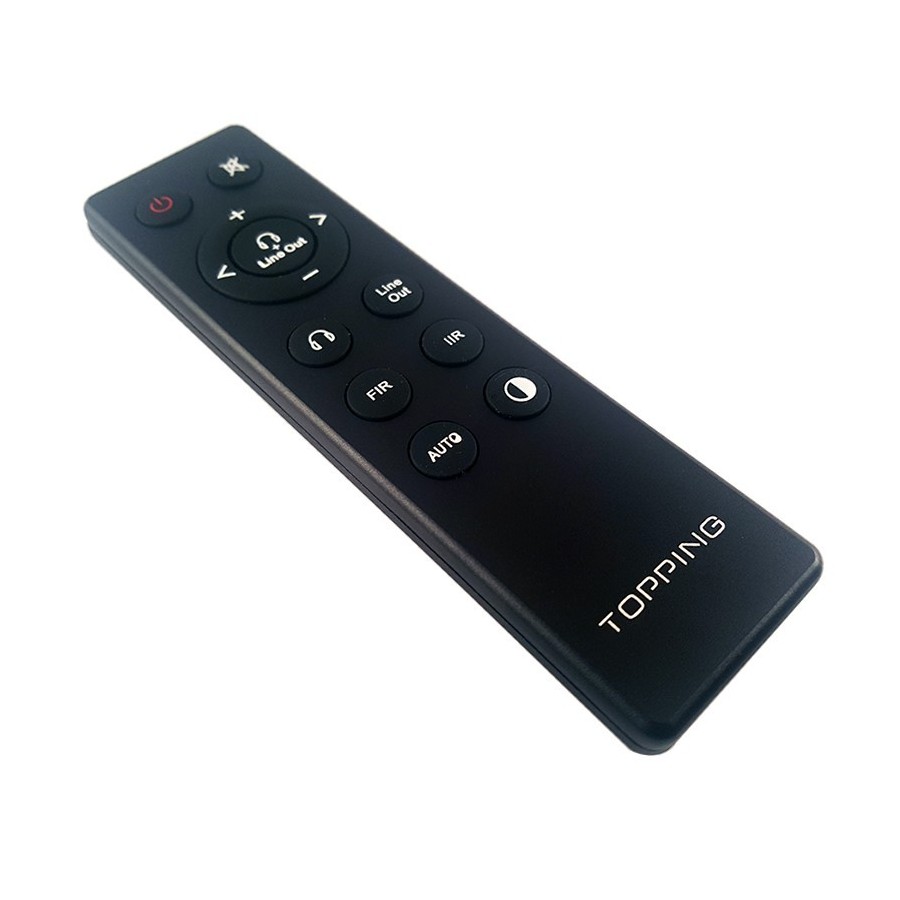

Accessories3.5mm Jack, 1x USB Cable, 1x Power Cable, 1x Remote Control

Data sheet
InputSPDIF
InputXLR
InputOptical
OutputRCA
OutputCoaxial SPDIF
OutputXLR
ColorBlack
