Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
The Topping DX7s with its "form factor" and its 32bit 768kHz capabilities offers many configuration possibilities. Combining the functions of DAC, digital preamplifier and high impedance headphone amplifier, it will meet most needs with a high-performance balanced headphone output.
The fully symmetrical design of this DAC based on Es9018Q2M 2 chips gives it high technical qualities with crosstalk and insignificant floor noise. Each conventional PCM SPDIF digital input has a galvanic isolation transformer. The Topping Dx7s offers at a studied price of the services rarely reached.
The analog placement of this DAC is symmetrical to the output of Both ES9038Q2M. The analog portion features separate OP amps For Each left and right audio quality original Texas Instrument channel.

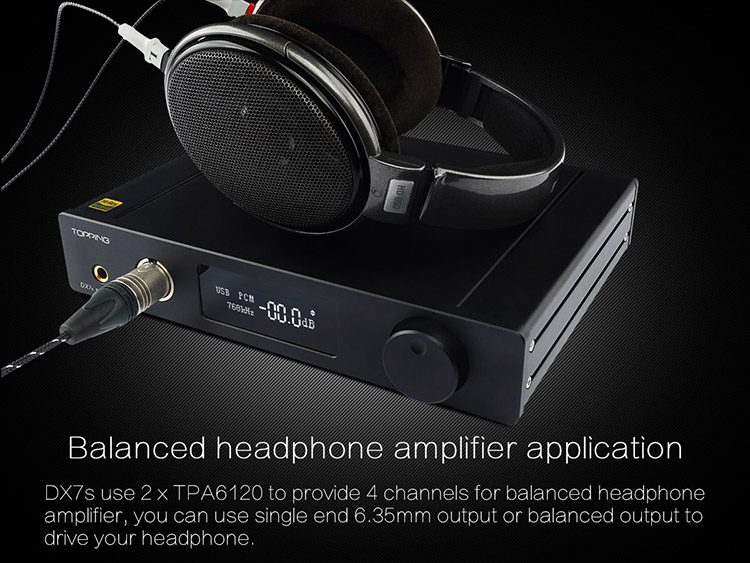

The DAC headphone Topping DX7s offers optimum performance thanks to two TPA6112A2 amps. In addition to Supporting the DSD / DXD and sampling rates of up to 32bit / 768kHz, it benefits from a similar course PARTICULARLY output neat That can attack the market-leading audiophile headphones was 4 pin XLR symmetrical output.
This Allows the DX7 to offer a lower color tone and consequently a faithful reproduction, has very low distortion and a great linearity. You gain in dynamics, details and neutrality.

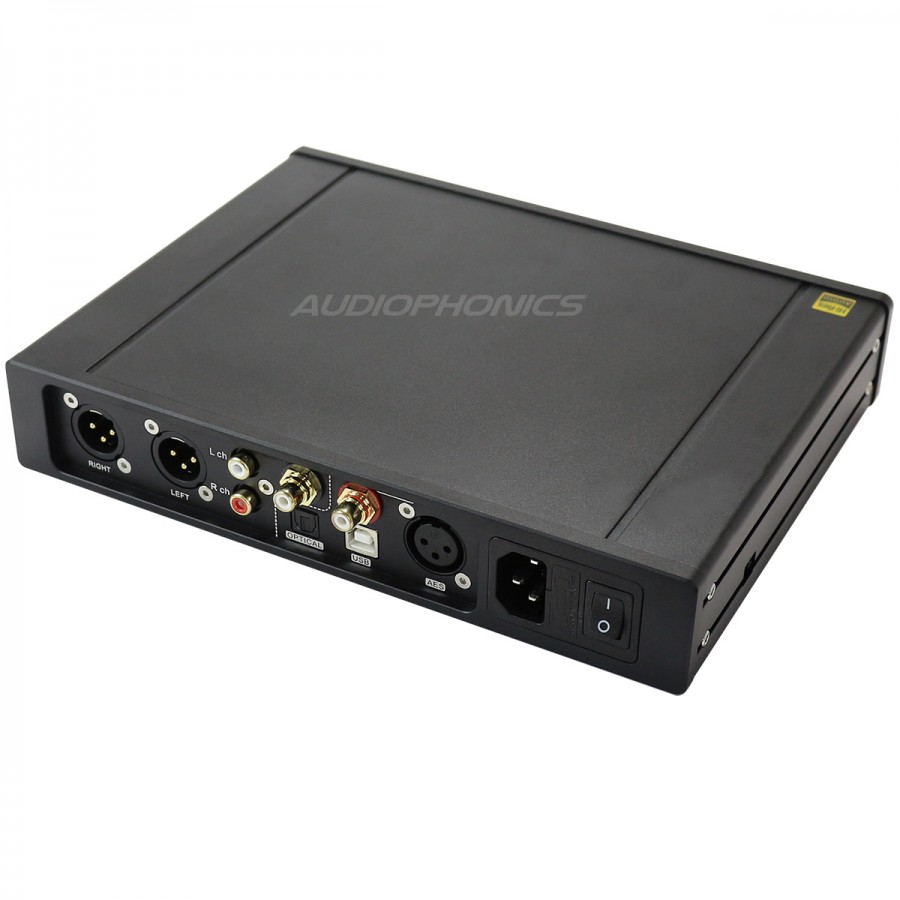

CONNECTORS: INPUTS | |
---|---|
1x USB XMOS | 16 - 32bits DSD64 to DSD512 (DOP) 768kHz |
1x Coaxial | 75Ω 16 - 24bits 44.1kHz - 192kHz |
1x Toslink Optical | 16 - 24bits 44.1kHz - 192kHz |
1x AES/EBU | Balanced 110Ω 16 - 24bits 44.1kHz - 192kHz |
Connectors: Outputs | |
---|---|
1x RCA | - |
1x XLR Symmetry | - |
1x Coaxial Digital | 75Ω 16 to 24 bits 44.1kHz to 192kHz |
1x Headphone Out | Jack 6.35mm |
1x balanced XLR headphone output | 4 pins |
Specifications | |
---|---|
Report ifgnal noise | 114dB |
crosstalk | -130dB to 1kHz |
Headphone output level 6.35 | 16Vpp |
Balanced headphone output level | 31Vpp |
Fixed | 2V RMS |
Headphone output impedance | 10Ω (20Ω symmetrical) |
Line output impedance DAC | 100Ω |
Line output impedance XLR | 200Ω |
Coaxial Input Sensitivity | 0.5V pp (75Ω) |
Frequency Response | 20Hz - 20kHz (-0.2dB) |
Headphone output power | |
---|---|
Asymmetrical Jack 6.35mm | 690mW to 32Ω, 110mW to 300Ω (16 to 300Ω) |
Symmetrical XLR 4 pins | 420mW to 300Ω, 210mW to 600Ω (16 to 600Ω) |
Compatibility | Windows, Mac |
Consumption | 12W |
Weight | 1.95kg |
Dimensions | 250 x 205 x 50mm |
Accessories | 3.5mm Jack, 1x USB Cable, 1x Power Cable / Remote control available as accessories |
Input | SPDIF |
Input | XLR |
Input | Optical |
Output | RCA |
Output | Jack 6.35mm |
Output | XLR |
Color | Black |
Remote Control | Yes |
