AUDIO-GD MASTER 7
DAC Symmetric / 8x PCM1704UK / DSP I2S / USB AMANERO


A DAC DSP out of the ordinary ...
The latest addition to the PCM1704UK brand converters, it is a new iteration that we consider it the most successful DAC on this component: indeed it does not contain less than 8! Equipped with the latest Amanero Asynchronous USB interface in an enhanced version by Audio-GD, this converter is pruned for the future.
text-center-line-height: 22px ; ">All the components are sorted on the shutter and paired by hand: this is a question of very high fidelity, so expect a breathtaking sound experience.

To top it all, this DAC also won a Qobuzissime from Qobuz: Qobuzissime for this DAC with superlative and super sound!

Specially provided interior

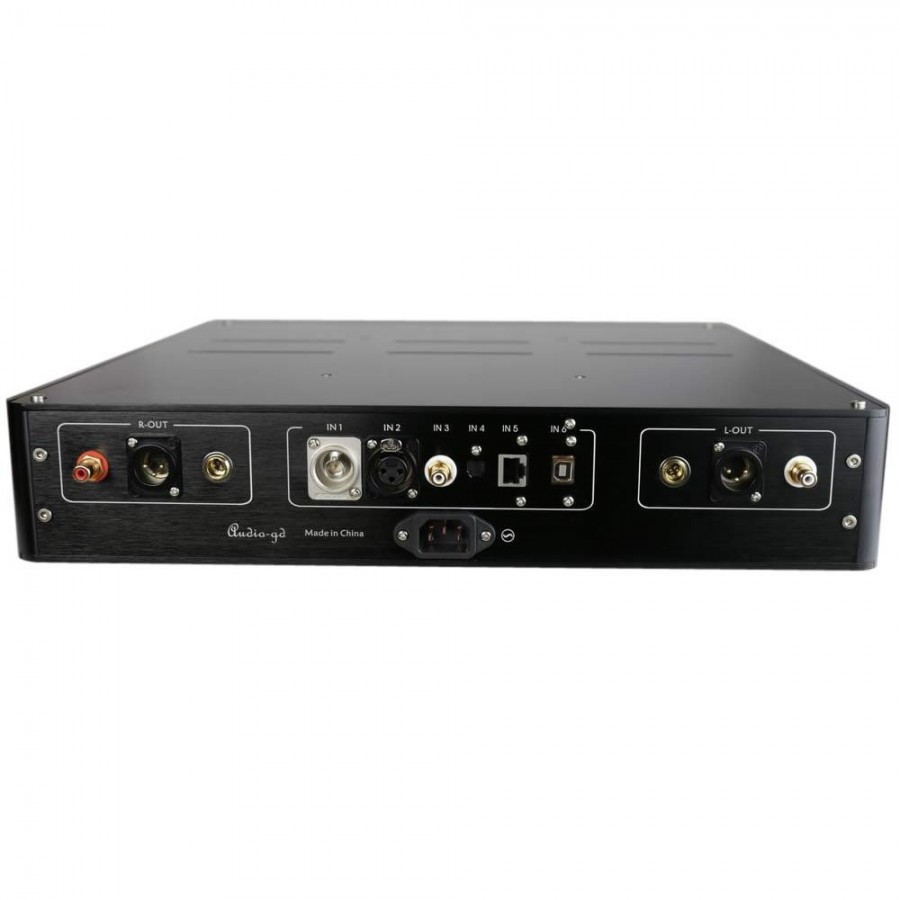

The integrated PCM1704UK converters allow you to manage sources up to 32Bit / 384Hz. The MASTER 7 has 6 inputs: BNC SPDIF, AES / EBU, Coaxial SPDIF, Toslink Optics, and I2S via USB or RJ45, as well as 3 outputs: RCA, ACSS, and XLR.
That is, the entire internal wiring is made of Copper OCC, and a TCXO Audio-GD Clock is directly integrated, allowingant the significant decrease of Jitter.

An exceptional architecture
32bit / 384kHz / I2S / TCXO / USB AMANERO
Its architecture with built-in DPS is combined with a separate oversized power supply of 21 groups, including 19 in Class A high-flying. Its transformers develop up to 1500W of power, for only 48W of consumption. <(s)div-text-editor text-center-div-style = "font-size: 15px" font-family: Muli, Arial; ; ">The MASTER 7 is therefore designed around 8 PCM1704UK and DSP1 (Altera Cyclone II) that work in parallel, alongside ultra discrete AOP. A structure 100% aluminum black anodized finishes this architecture sober, elegant, which reveals all its power.



DSP - Altera Cyclone II
The French definition of DSP would call it "Digital Signal Process", or "Digital Signal Processing". This mini processor is optimized to process a large amount of data in parallel with each clock cycle. It is very efficient to process the digital signals that arrive to it. This Altera Cylone II makes the MASTER 7 a high fidelity product par excellence.
8x PCM1704UK
These 8 analog digital converters (DAC) use the R2R conversion which consists in directly using the bits of the digital signals to reconstruct the analog signals, all this acting on a network constituted solely by resistors having a given value (R) and its double (2R), without going through an over-sampling phase.




Features:/ Div>
ratio Noise signal:> 120dB
Frequency response: 20Hz - 20kHz (-0.1dB)
</ Td>
Output Impedance: 10 Ohm </ Div>
</ Td>
Output Level: 2.5V (RCA) / 5V (XLR) / 2 + 2mA (ACSS)
</ Td>
Input Sensitivity: 0.5Vp-p (75 Ohm, Coaxial) / 19dBm (Optical)
</ Td>
System Dsupported operating systems: Windows (44.1kHz to 192kHz) / OSX (44.1Khz to 384kHz) / Linux (44.1kHz to 192kHz)
(44.1kHz, 48kHz, 88.2kHz, 96kHz) / Coaxial (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192khz) / BNC support 96kHz, 192kHz) / Optical (44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz)
Power Consumption: 48W
Dimensions: 430x430x93mm
Chassis 100% aluminum, black anodized
Weight: 15kg
Included Accessories: Power cord / USB cable

Data sheet
InputOptical
InputBNC
InputUSB
InputSPDIF
InputRJ45
InputXLR
OutputXLR
OutputRCA
OutputACSS
ColorBlack
