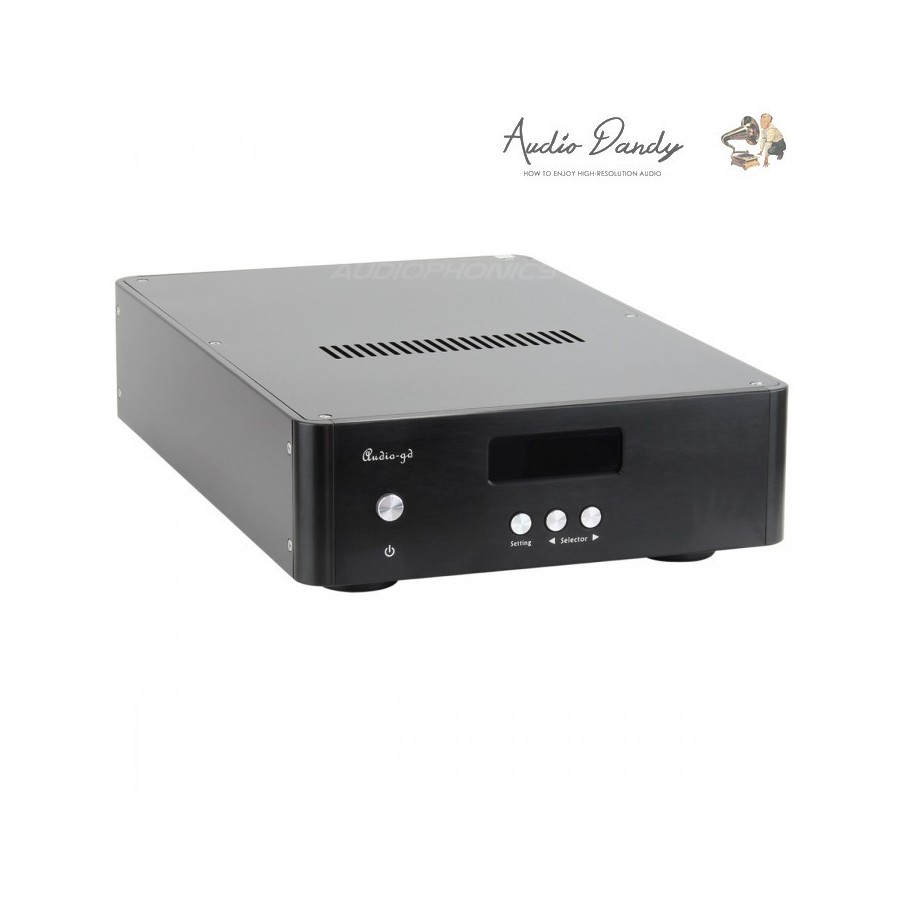

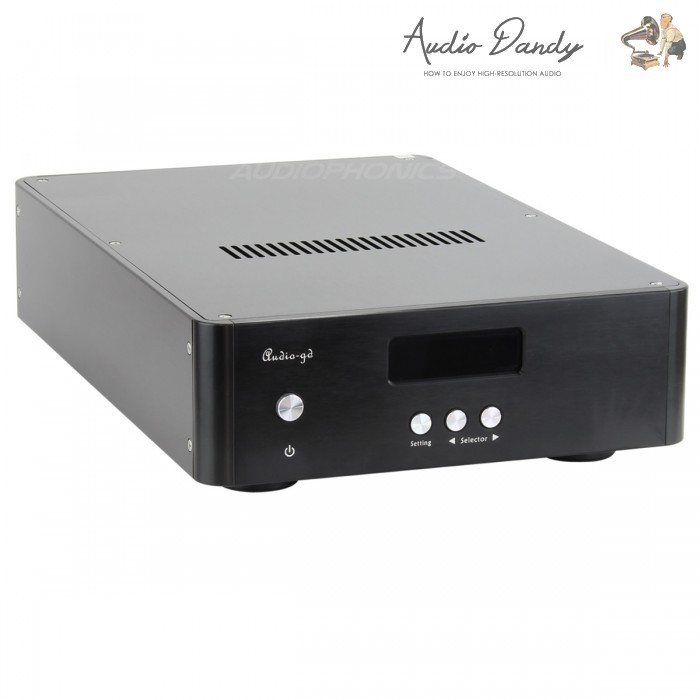

AUDIO-GD NFB-1DAC (2016) DSD/DXD Sabre ES9018 32bit/384K Amanero
The NFB-1DAC (2016) is equipped with the ESS ES9018 Sabre component and the Amanero latest generation USB interface.
No loyalty points for this product.
Reference : 10438
New product
Viewed products
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
The NFB-1DAC (2016) is equipped with the ESS ES9018 Sabre component and the Amanero latest generation USB interface.
This new edition offers a better implementation of the Sabre offering a shorter signal path, the possibility of selecting the hardware filters and a DSD auto-sensing (with switching without noise switching).
NFB is the acronym for Non-feedback; technology used by Audio-Gd so as not to "color" the sound at the level of the electronics of the output stage giving you a sound of a very professional neutrality.

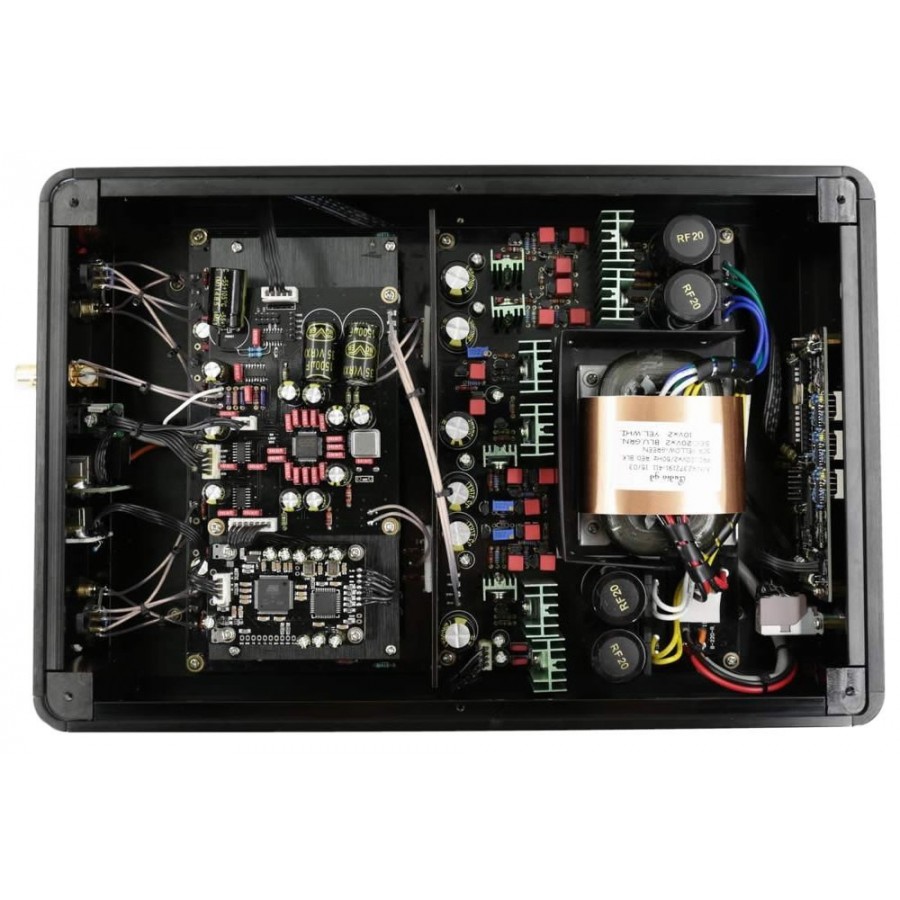

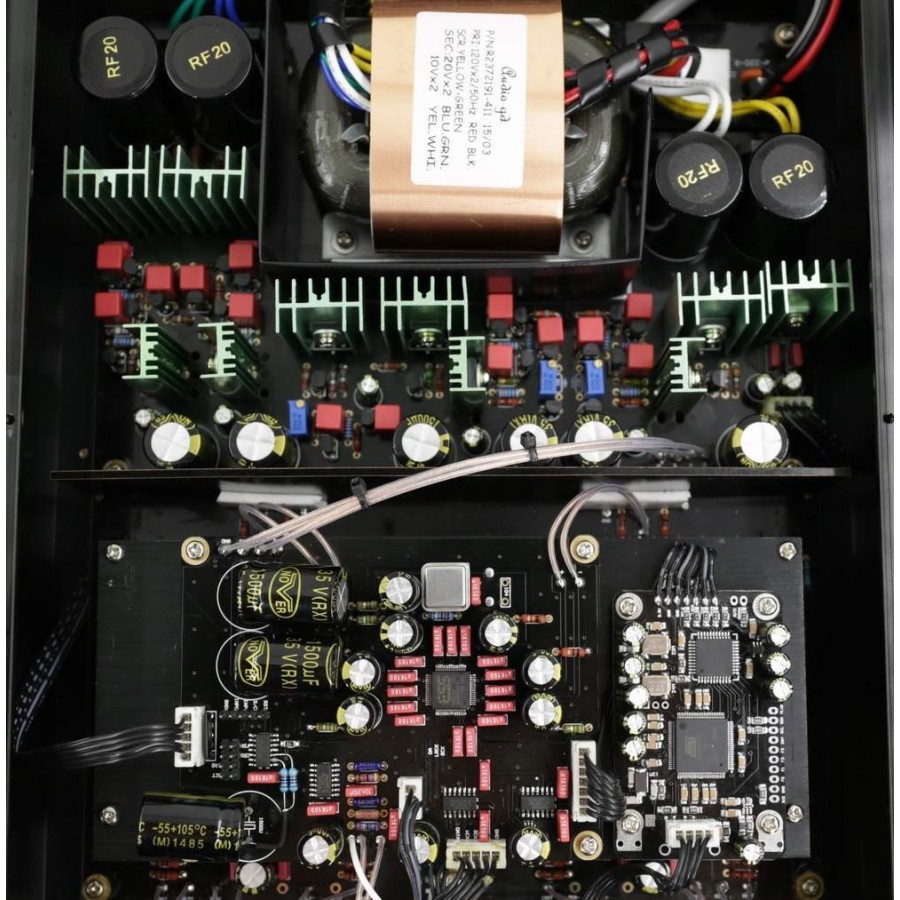

The 100% discreet design of this converter is backed by a high power (Class A) power supply.
The I2S input and output are compatible with the DI-2014 of the same brand.
Included Options:
- USB Interface Amanero
- TCXO Clock (DAC)
- H mode

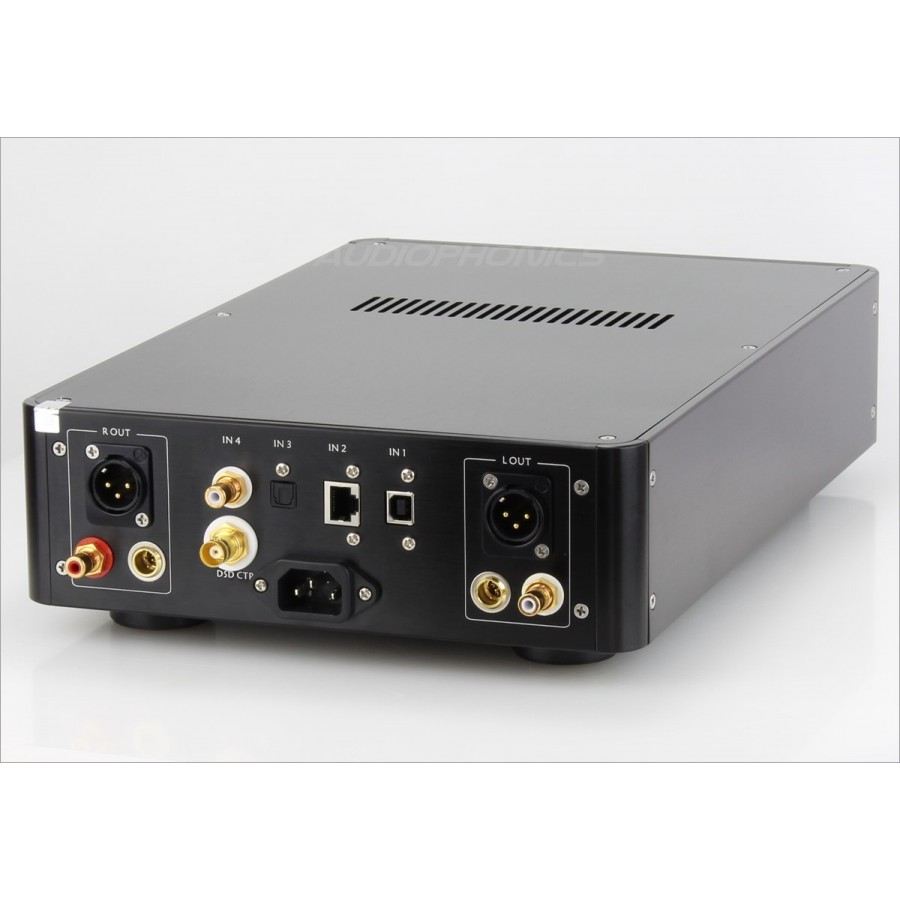

| INGREDIENTS | ||
| Interface / ConverterAmanero / Sabre ESS ES9018 | ||
| STARTERS | ||
| USB | USB x1 | |
| Coaxial | Digital coaxial x1 | |
Toslink I2S DSD CTR | Optical x1 I2S x1 DSD CTR x1 | |
| EXITS | ||
| analogXLR x2 RCA x 2 | ||
| ACSSACSS x 2 | ||
Features:/ Strong>
- <li> USB interface: Amanero (Audio-GD version)
- DSD (64 and 128) / DXD / PCM
- DAC: ESS SABRE ES9018
| Signal / noise ratio | > 120dB | ||
| Output Impedance | 10 ohm / DAC output | ||
| Output Level | 2.5V (RCA) 5V (XLR) 1.2 + 1.2MA (ACSS) | ||
| Input sensitivity | 0.5 Vp-p (75 Ohms, Coaxial) 19 dBm (Optical) USB1.1, USB2.0 (Full Speed, Class 2) | Supported Systems | Windows, OSX |
| Supported sampling rates | USB model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz | ||
| Frequency Response | 20Hz - 20KHz (<- 0.2DB) | ||
| Consumption | 22 W | ||
| Dimensions | 240 x 360 x 80mm | ||
| Weight | 5 Kg | ||
| Accessories | AC power cord X1 USB cable X1 |
