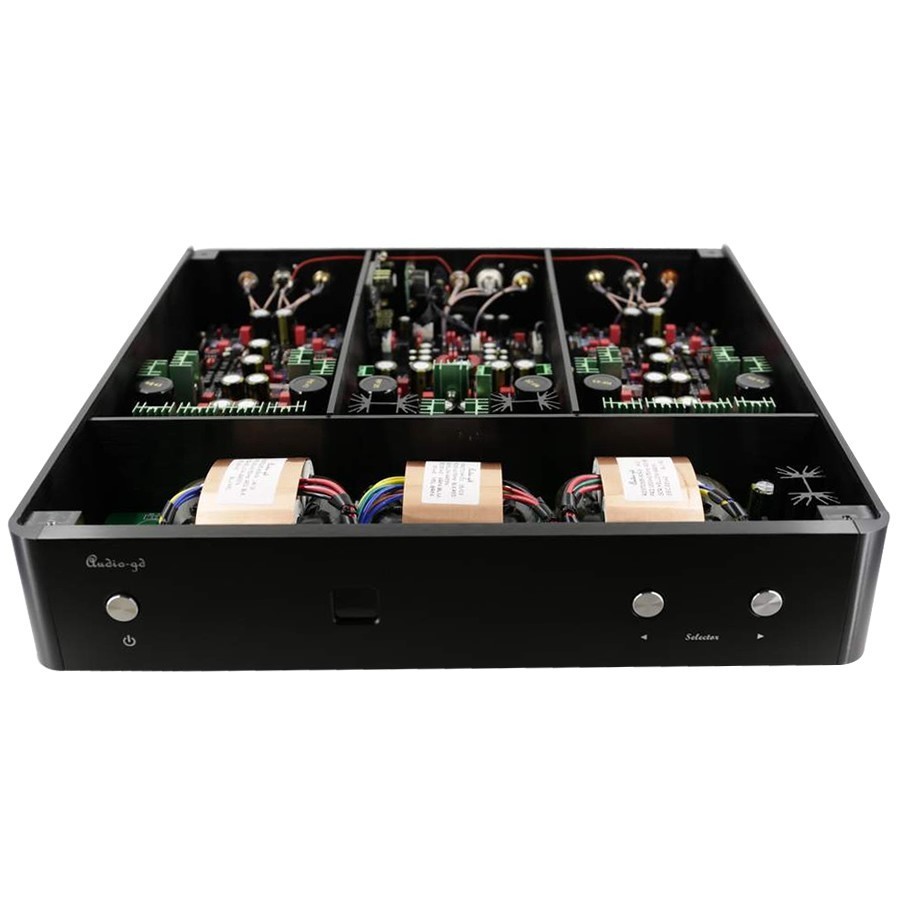

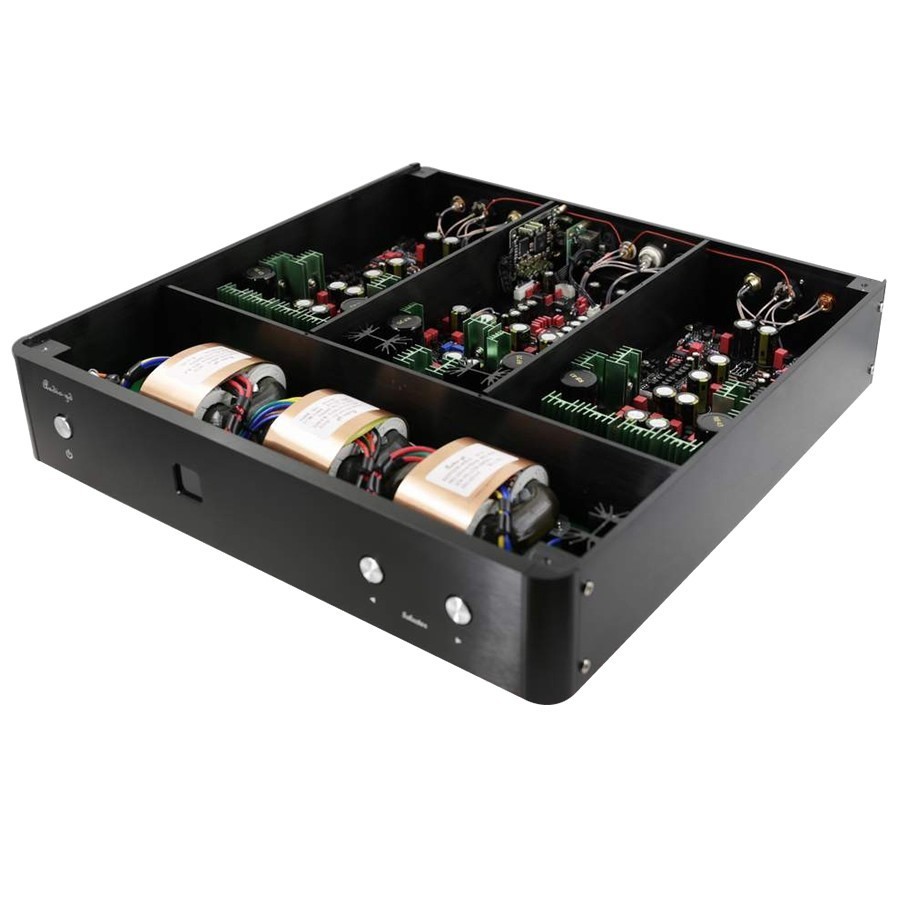

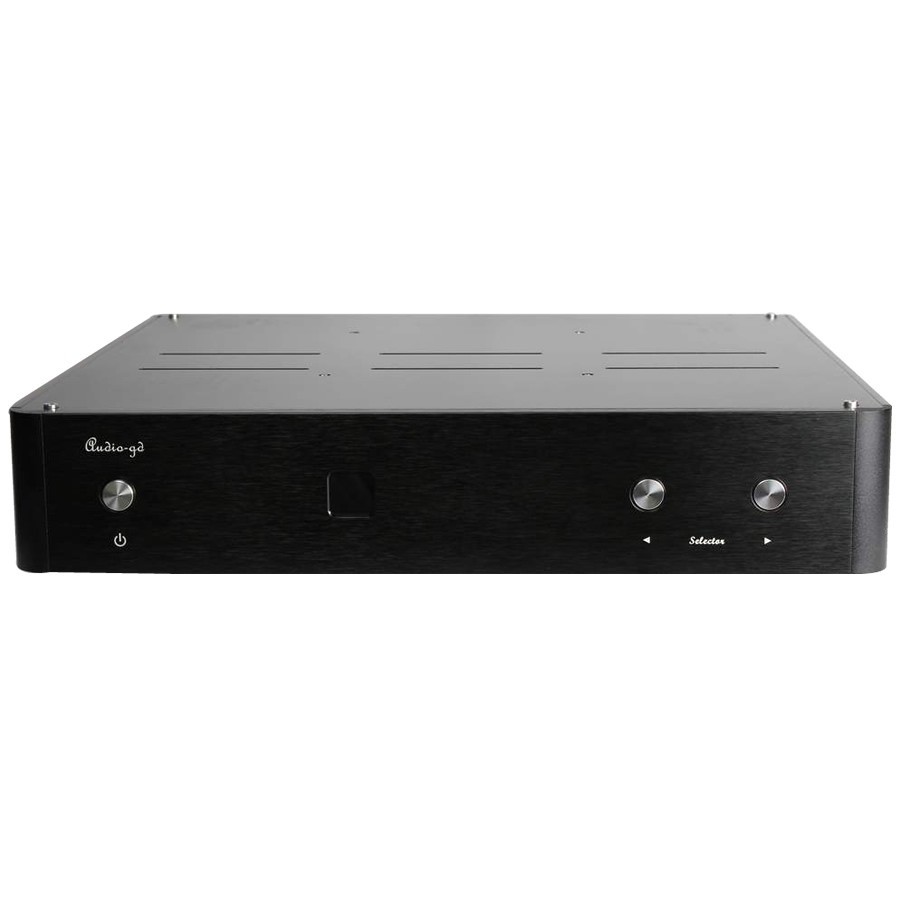

AUDIO-GD NFB-7 DAC ES9018 ACSS / XLR / RCA DSD / DXD AMANERO

This DAC Audio-GD NFB-7, integrates advanced technologies and a new design of the analog output stage, giving it greater neutrality. In addition, it incorporates Non Feedback technology to enhance this neutrality.

KEY POINTS:
  • DAC ES9018
  • DSD
  • USB Amanero
  • I2S
  • 32bits 384kHz

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 164 loyalty points


Reference : 10196
New product

1 649,00 €tax incl.

1 374,17 € tax excl.
Including 1,00 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

AUDIO-GD NFB-7

DAC ES9018 / DSD / USB AMANERO

High-end DAC

Audio-GD NFB-7 ES9018

A state-of-the-art CAD ...

This top-of-the-line Audio-GD converter takes the qualities of the NFB-7 from 2014 using a new design of the analog output stage giving it a higher sound quality and greater neutrality. Nothing of this device has been left to chance, the use of the ES9018 ESS allows it native management of streams up to 32 bit / 384kHz in USB and I2S.

NOTFB is the acronym for Non-Feedback, a technology used by Audio-GD in order not to color the sound at the level of the electronics of the output stage, thus providing you with a sound of professional neutrality and sought.

A sleek and incredibly efficient connectivity

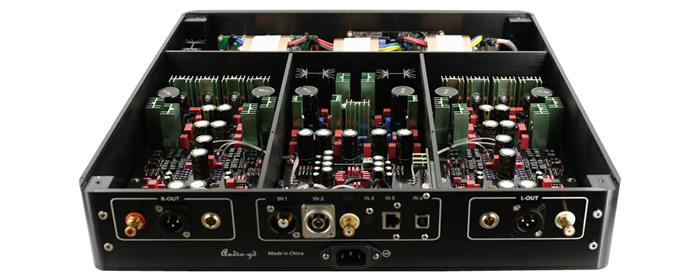

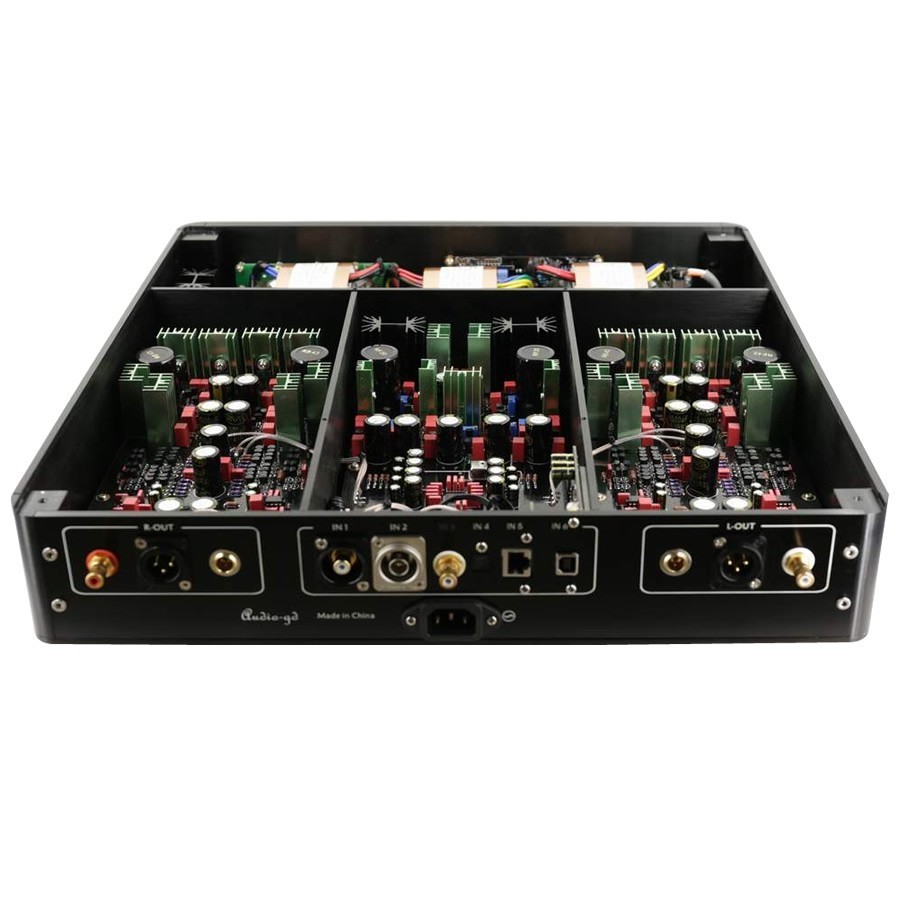

This Audio-GD has 6 digital inputs: BNC / RCA / Coaxial SPDIF / Optical / USB AMANERO / I2S via RJ45. Alongside 3 analog outputs: XLR / RCA / ACSS.

In order to take advantage of the AMANERO technology on the output of a Windows PC, you must first install the corresponding driver: Amanero Combo 384 USB Interface. The NFB-7 is compatible with all amplifiers on the market.

Back Audio-GD NFB-7

An Audio-GD HiFi device

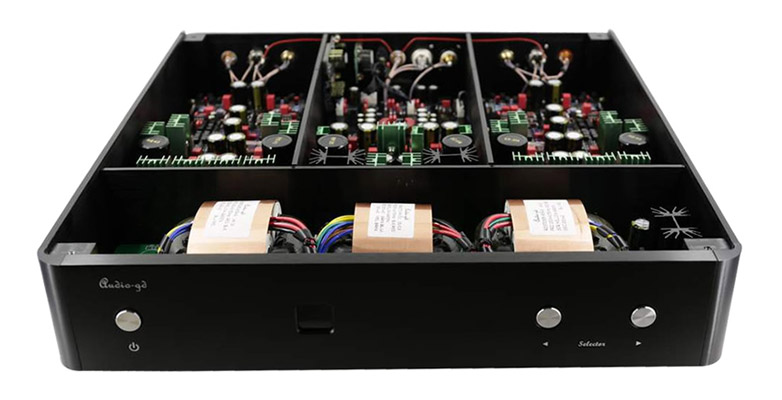

ES9018 / 32bit / 384kHz / TCXO / AMANERO / Class A

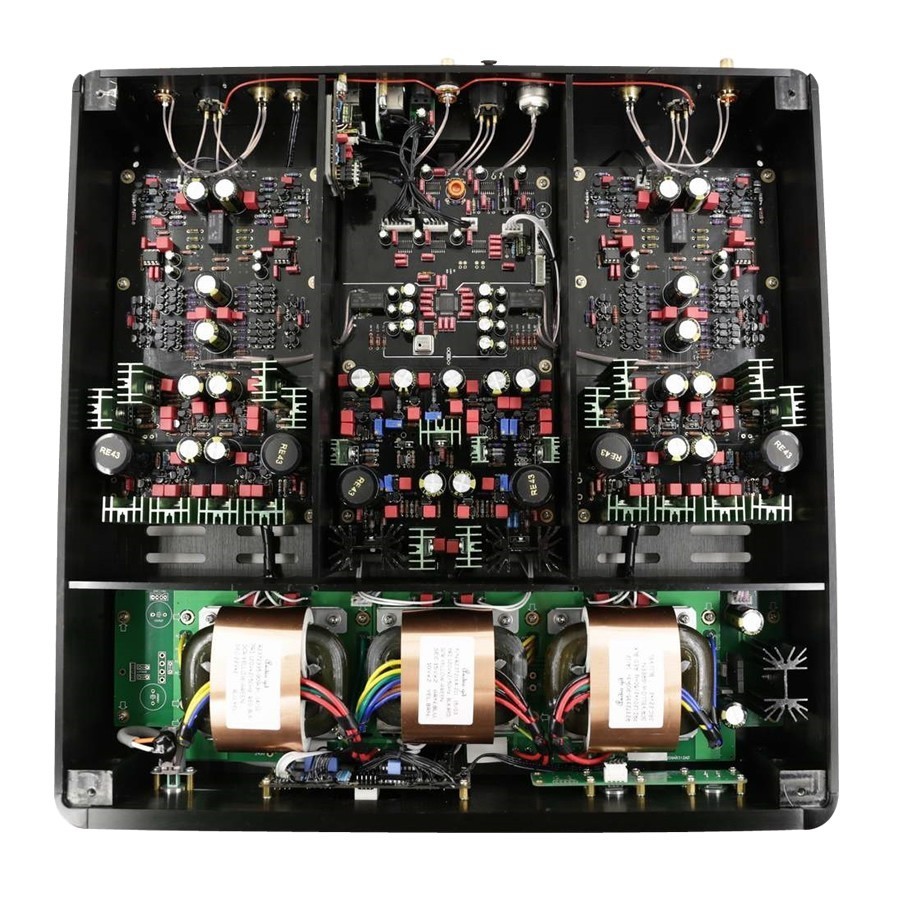

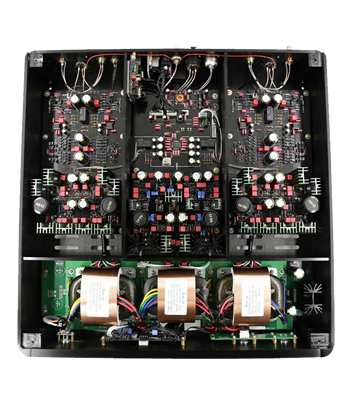

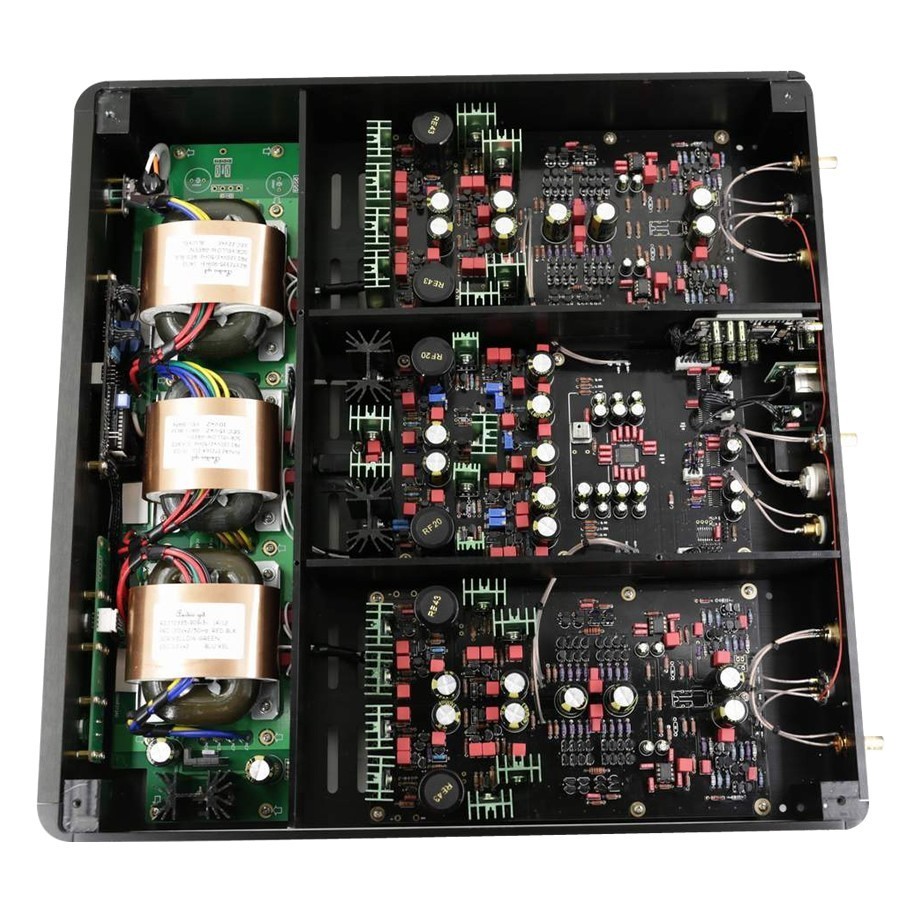

This NFB-7 operates a 100% discrete design that is backed by several high power Class A power supplies (15 groups). The 24K Gold Plated RCAs and the Nover (UK) capacitors have been specially manufactured on Audio-GD specifications.

A TCXO (Temperature Compensated X (Crystal) Oscillator) clock has been integrated, in order to significantly reduce the jitter. The entire internal wiring was also designed with OCC wires.

Audio-GD NFB-7

ACSS AUDIO-GD

ACSS

Audio-GD has its own signature technology called ACSS for "Audio-GD Current System Signal". Thanks to the expertisee and the know-how of the firm, this technology offers a less colored sound, more detailed, and a neutrality without equivalent. Every technical engineer of the firm is, in addition to being very experienced, a HiFi enthusiast and audio like you and us. That is, when the ACSS output is used, the XLR and RCA outputs go to MUTE.

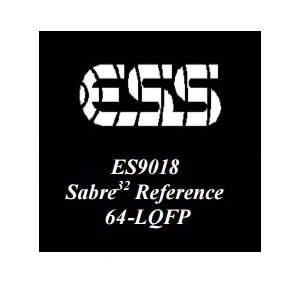

SABER ES9018

This high-fidelity DAC NFB-7 is equipped with the famous ESS ES9018, capable of processing high-definition formats up to 32 bit / 384kHz. Of course do not forget the DSD and DXD formats also supported by this ultra-powerful conversion chips. Be careful, this component is audiophile (so demanding), do not neglect the coaxial or Toslink cables used, otherwise your signals will not be handled correctly.

ESS SABER ES9018

Consumption
Specifications
SNR> 120dB
THD<0.0005%
Output Impedance10 Ohm
Output Level2.5V (RCA) / 5V (XLR) / 2mA + 2mA (ACSS)
Input sensitivity0.5Vp-p (75 Ohm, Coaxial) / 19dBm (Optical) / USB1.1, 2.0 (High Speed, Full Speed)
Supported Systems/ Windows (44.1kHz to 192kHz) / OSX (44.1kHz to 384kHz) / Linux (44.1kHz to 192kHz) / USB compatible iPhone and iPad via Apple Camera Kit
Supported sampling rates(44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz) / Optical (44.1kHz, 48kHz, 88.2kHz, 88.2kHz, kHz, 96kHz) / DSD (64 and 128) / DXD
Frequency Response20Hz - 20kHz
Miscellaneous
38W
Dimensions430x430x85mm
chassis100% aluminum
Weight15kg
ColorBlack Anodized
AccessoriesPower cord / USB cable
