AUDIOPHONICS U-Sabre Desktop K2M DAC / Headphone Ampli 24bit/96kHz SA9023 / ES9018

Average votes for this product
4.0 / 5
  Based on 3 customers reviews.

By buying this product you get 4 loyalty points


Reference : 11911
New product

49,90 €tax incl.

41,58 € tax excl.
Including 0,30 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

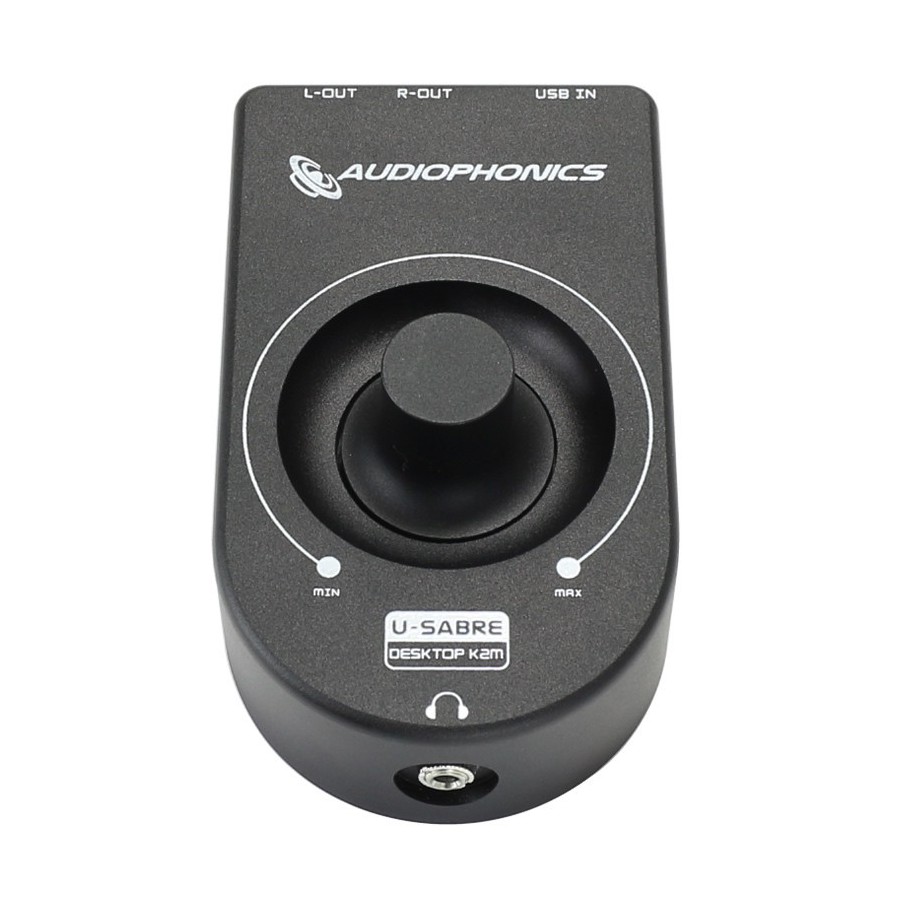

Our DAC USB U-Sabre DESKTOP comes back to us in version ES9018K2M , with the joyful musicality, a dynamics out of norms and always with the interface SA9023 requiring no drivers.

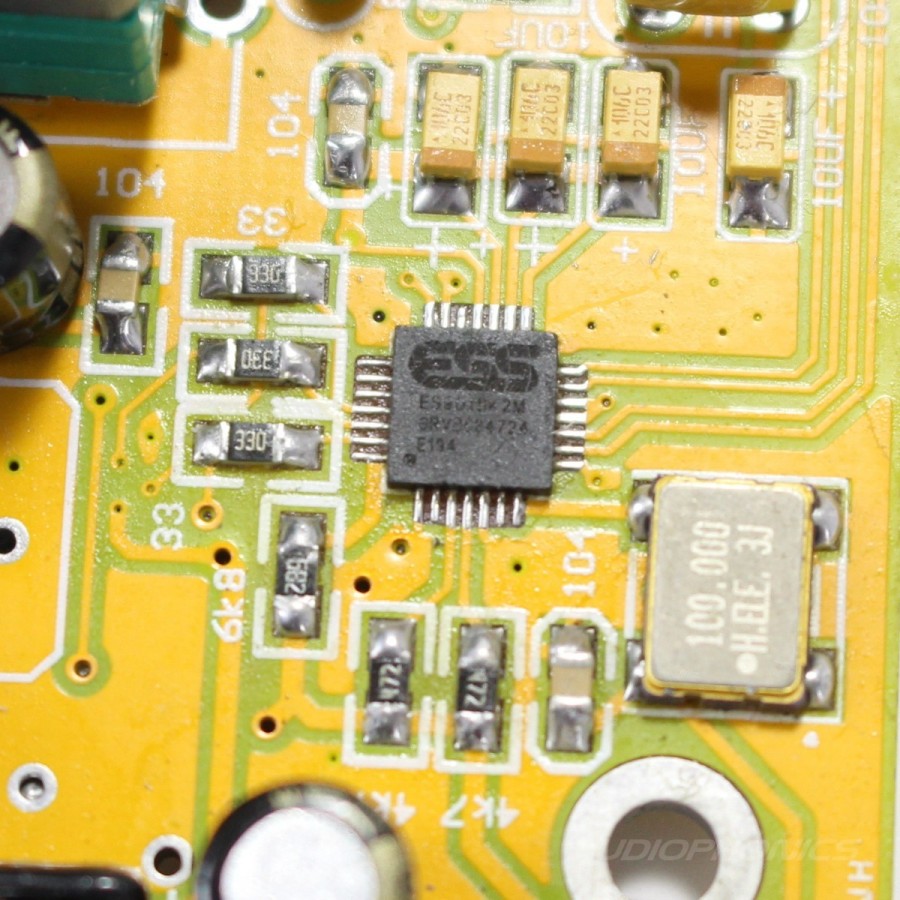

The addition of an ES9018K2M ESS chip enables the U-Sabre DESKTOP to achieve high-end performance, thanks to the 100MHz clock exclusively for the conversion chip.

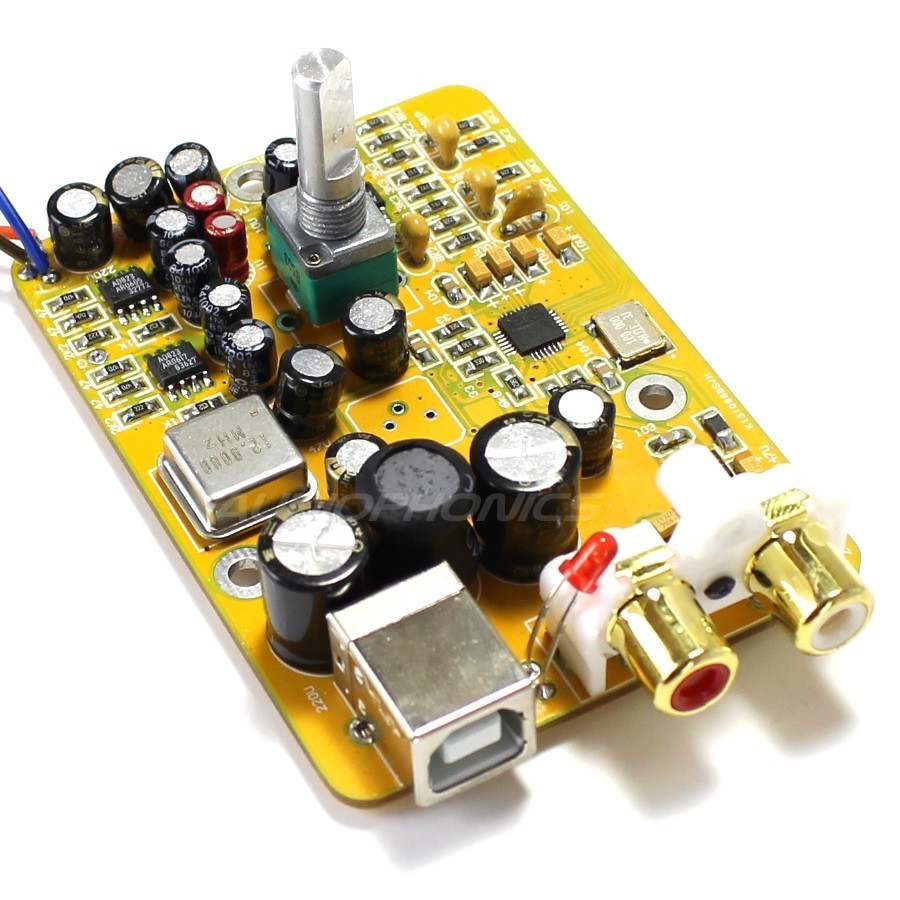

The U-Sabre DESKTOP is a digital to analog converter (USB to RCA), but it is also a headphone amplifier of a formidable efficiency whose amplification stage is driven by 3 AOP quality with volume adjustment by potentiometer with Carbon track.

The RCA output is fixed level and the headphone amplifier is capable of driving headphones up to 300 Ohms impedance.
The detailed technical data sheet of the ES9018K2M chip can be found in the attachments below.

Here you will find the ASIO driver link for the SA9023 Bravo: ASIO Driver

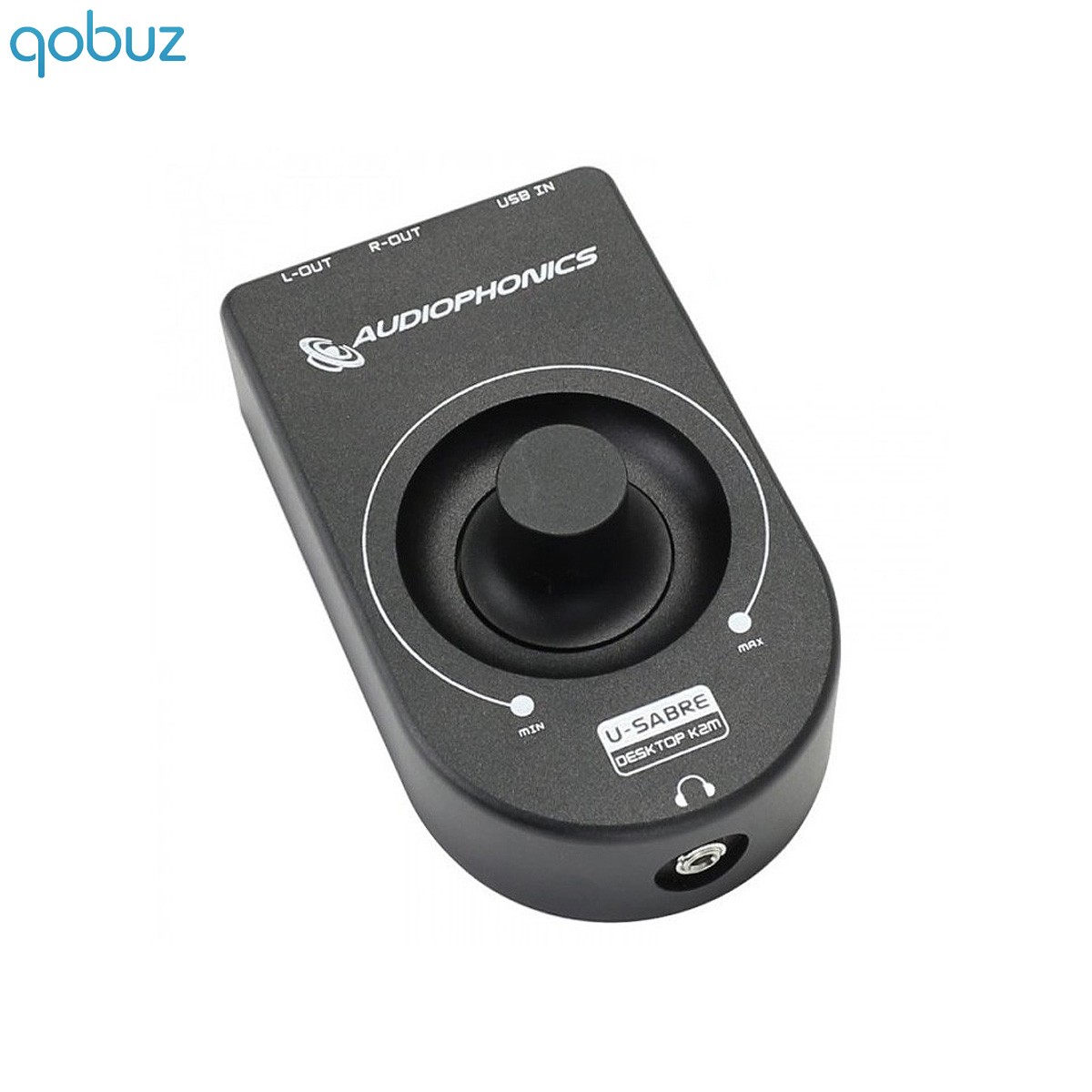

Audiophonics U-Sabre Desktop K2M review by Qobuz

" This DAC Audiophonics U-Sabre Desktop K2M deserves a stop if you like to play your keyboard to music (and even without it), by its design well suited to use on a desk close to your hand, its solidity and its very good sound performance, not to mention its friendly price. "
Test Qobuz

Characteristics :

  • DAC ESS SABRE: ES9018K2M
  • Interface Adaptive SA9023 (SAVIAUDIO): 16 / 24Bit and 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Inputs: USB-B
  • Outputs:
  •    Headphone Jack 3.5mm (0-2.2V Max 32-64ohm)
  •    RCA Stereo Gold Plated (2.2V @0dB)
  • No external power required
  • 100MHz High Precision Clock for Extremely Low Jitter
  • ASIO Support
  • Product delivered bare (no connectors or instructions for use)
  • Native / Plug & Play on Windows, Linux, OSX
  • Dimensions: 109x64x44 mm
  • Weight: 270g
  • Color: Black anodized




Data sheet
OutputJack 3.5mm
OutputRCA
ColorBlack

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
3 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 2/5
Date :
Igor T
When you're turning the volume control, unpleasant and loud noise in the headphones is clearly audible.
This DAC does not reproduce low sound frequencies at all.
Maybe I've got a defective one.
In any case, I'm going to make a return of the product...

High and medium frequencies are a little bit clearer compare to the integrated sound card, but not striking. I can’t say that the sound is impressive and you immediately will hear the difference between DAC & integrated sound card.
Again, maybe the reason is I've got a defective product.
 (0)
 (1)
Message from Audiophonics service
Hi,
the issues you're experiencing may surely come from a defective unit.

It's impossible for a Sabre DAC based product to doesnt provide any low frequencies.
I'll forward your post to after sales team who are gonna take care of your issues.
This review has been posted for AUDIOPHONICS U-Sabre Desktop K2M DAC / Headphone Ampli 24bit/96kHz SA9023 / ES9018
Note :
 5/5
Date :
Compagnon de bureau Hifi
Rendu précis et néanmoins très musical sur une large bande de fréquences (testé avec un Audio Technica ATH AVC 500). Parfait pour monter en gamme par rapport à la carte son de mon PC portable, c'est clairement un grand bon vers la HiFi. Contrôle volume très agréable.
 (0)
 (0)
This review has been posted for AUDIOPHONICS U-Sabre Desktop K2M DAC / Headphone Ampli 24bit/96kHz SA9023 / ES9018
Note :
 5/5
Date :
Donne entière satisfaction
J'utilise cet ampli casque au bureau avec une paire d'écouteurs intra-auriculaires à Sennheiser 15 €.

Le PC l'a reconnu automatiquement en USB.

Par rapport à l'écoute directe sur ma carte son, j'ai beaucoup plus de détails dans le médium aigu.

Le réglage du volume est aussi devenu beaucoup plus commode.

Recommandé !
 (0)
 (0)
This review has been posted for AUDIOPHONICS U-Sabre Desktop K2M DAC / Headphone Ampli 24bit/96kHz SA9023 / ES9018
