AUDIOPHONICS U-SABRE PRO DAC USB 32Bit/384kHz SA9227 / ES9018K2M OTG TCXO

The famous Audiophonics U-SABRE DAC evolves in PRO version, with an update of its main components. The decoding is now done with a SABRE ES9018K2M chip, as well as a new USB SA9227 chip.

Average votes for this product
5.0 / 5

By buying this product you get 5 loyalty points


Reference : 16739
New product

59,90 €tax incl.

49,92 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

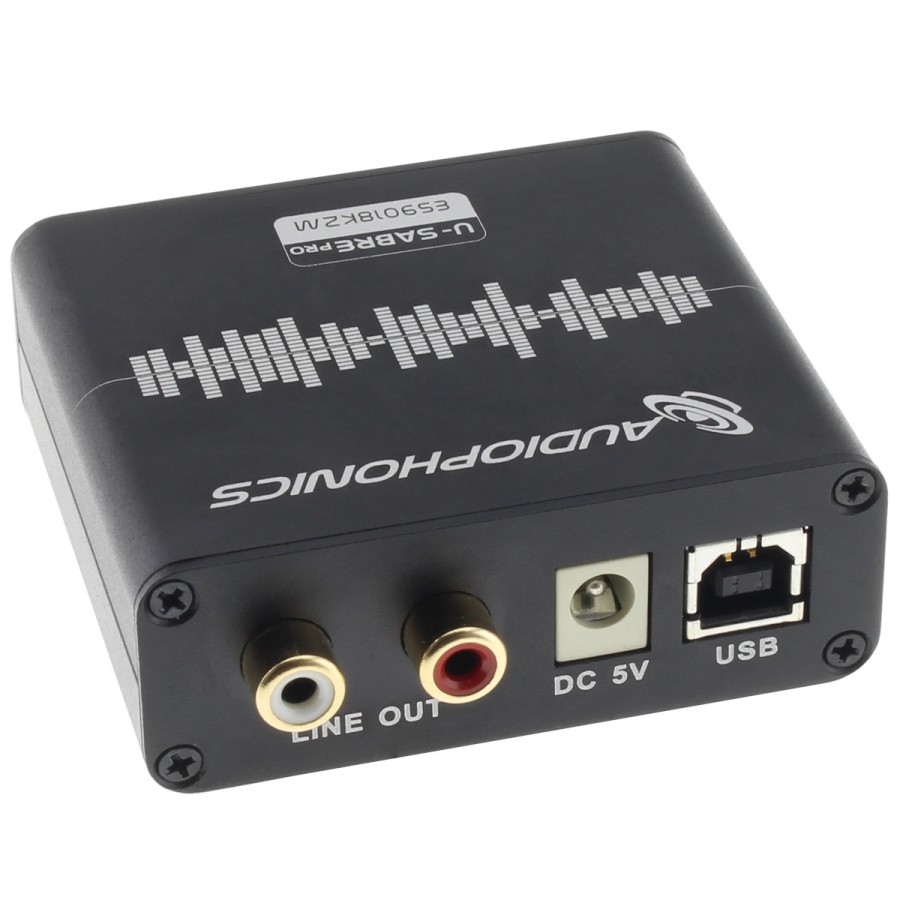

Audiophonics U-Sabre pro

USB DAC 32Bit/384kHz SA9227 / ES9018K2M V3 TCXO with optical output

Audiophonics U-Sabre PRO

A remastered USB DAC

The famous Audiophonics U-SABRE DAC has been upgraded to a PRO version, with an update of its main components. The decoding is now done thanks to a SABRE ES9018K2M chip, as well as a new USB SA9227 chip accepting sampling rates up to 32bit / 384kHz, and native DSD64.

This U-SABRE PRO DAC can be self-powered via USB with any smartphone or computer. However, if the amperage of your device is not sufficient, a DC 5.5 / 2.1mm jack input allows you to power it with an external 5V DC power supply.

This version features a 24bit/96kHz Mini Toslink digital output paired with the 3.5mm analogue jack output.

ESS ES9018K2M

This U-SABRE PRO features an excellent SABRE ES9018K2M DAC chip capable of reading high resolution files, up to 32bit 384kHz PCM and native DSD64, for true high-fidelity listening.

Audiophonics U-Sabre ES9018K2M
Audiophonics U-Sabre Es9018K2M TCXO

SAVIAUDIO SA9227

The SA9227 chip is a high performance 32bit USB receiver, allowing high resolution audio files. Furthermore, this receiver is plug & play and is natively recognized by Windows, Linux, OS X, and is even OTG.

Technical specifications

Specifications
CompatibilityNative Plug & Play on Windows, Linux and OS X / OTG
DAC chipESS Sabre ES9018K2M
USB chipSAVIAUDIO SA9227 (We recommend the use of a quality USB cable with a length of less than 1.5m)
Power supplyVia USB port (external 5V DC power supply possible on 5.5 / 2.1mm jack)
ClockVery high precision TCXO 100Mhz (0.5ppm)
ASIO supportYes (driver in the "Download" tab)
Supported sampling rates32bit / 384kHz / DSD64
Output level3V RMS / 12 Ohm
Power supplyJack DC 5V (+ = center pin / - = outer pin)

Data sheet
InputUSB
OutputJack 3.5mm
OutputRCA
OutputOptical Mini-Toslink
DAC / ADC ChipES9018K2M
Max sampling rateDSD64
Max sampling rate384kHz
ColorBlack
NetworkingNo
Remote ControlNo
Interface chipSA9227

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
4 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Essenziale e molto dettagliato
circuito essenziale con DAC slave, viene immediatamente riconosciuto dal PC e da' il meglio se lasciato in configurazione 32 bit. Dettagliato e dinamico, l' ho installato direttamente in ingresso all' amplificatore gainclone e casse autocostruite. Si tratta di un componente con caratteristiche Hi-end al prezzo di un componente consumer
 (0)
 (0)
This review has been posted for AUDIOPHONICS U-SABRE PRO DAC USB 32Bit/384kHz SA9227 / ES9018K2M OTG TCXO
Note :
 5/5
Date :
Audiophonics u-sabre pro dac usb
Super Perfekt
 (0)
 (0)
This review has been posted for AUDIOPHONICS U-SABRE PRO DAC USB 32Bit/384kHz SA9227 / ES9018K2M OTG TCXO
Note :
 5/5
Date :
Satisfait
En utilisation désormais régulière sur un "linux". Alsamixer propose 4 niveaux PCM. Je me sers de pipewire pour exposer toutes les interfaces proposée par l'appareil. Je peux donc laisser le cran à 0 pour le gain. Fortement suggéré. Ensuite pour la granularité du volume on peut effectivement binder n'importe quel recepteur.
Concernant l'écoute et la perception musicale, je peux juste conclure que l'habituation psychoacoustique demande encore une période de rodage. Pour le moment le rendu semble en faveur d'un son extrêmement dynamique mais froid. Selon le positionnement dans la pièce d'écoute on s'aperçoit que la structure du son rentre en faveur de certaines gammes de monitors et pas d'autres.. En ce qui me concerne le son manque un peu de chaleur sur des monitors Adam (classe D), mais les outils de masterisation sous linux me permettent de corriger la pièce selon les positionnements. mid field / near field. Bravo à l'équipe pour la conception. (Je ne me suis pas servi de l'alimentation proposé en 5volt optionnelle)
 (0)
 (0)
This review has been posted for AUDIOPHONICS U-SABRE PRO DAC USB 32Bit/384kHz SA9227 / ES9018K2M OTG TCXO
Note :
 5/5
Date :
Bien et pas cher !
Pour le prix, ce DAC est très intéressant. Les graves sont très bien gérées et les aigus pas agressifs. Acheté en remplacement d'un petit DAC Tangent, le son n'a rien à voir. C'est vraiment bon ! Cette nouvbelle puce Sabre fait des miracles ! Si vous hésitez vous ne serez pas déçu. Il y a certainement mieux mais c'est (beaucoup !) plus cher.
 (0)
 (0)
This review has been posted for AUDIOPHONICS U-SABRE PRO DAC USB 32Bit/384kHz SA9227 / ES9018K2M OTG TCXO
