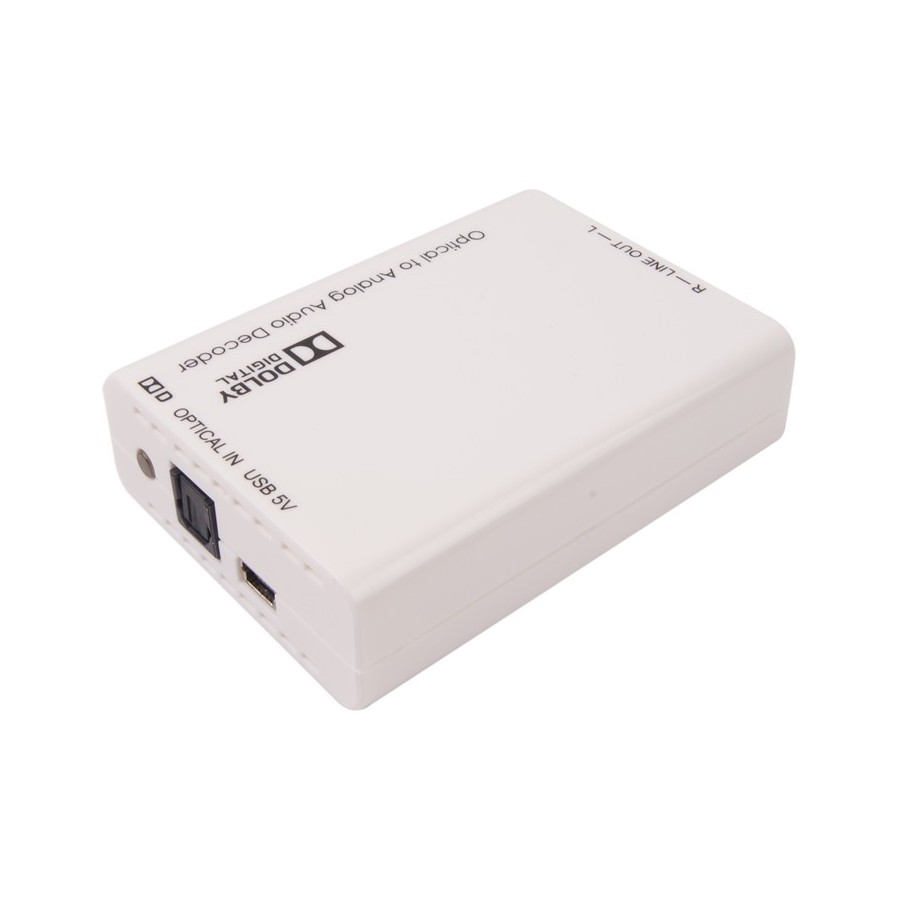

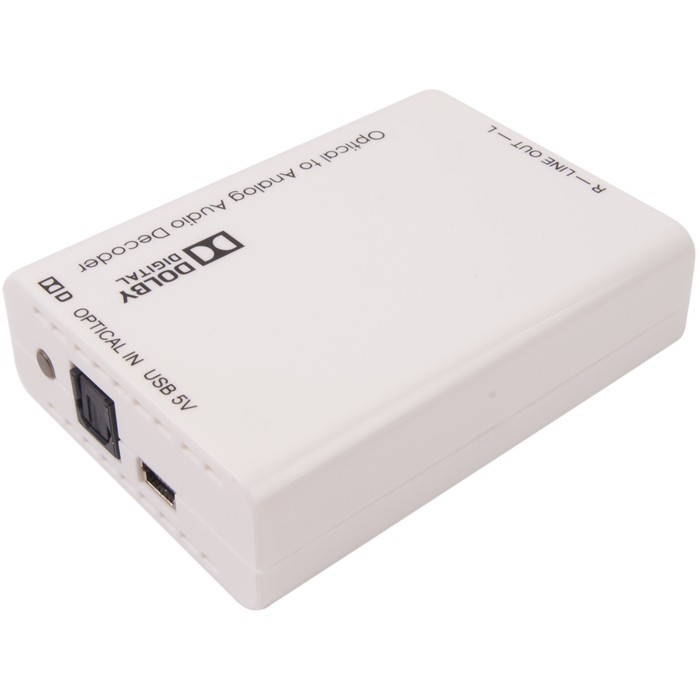

CYP DCT-1D DAC Toslink Dolby Digital Downmix 24bit / 96khz

CYP DCT-1D - Toslink DAC Dolby Digital Downmix 24bit / 96khz

This small device allows to transform:

S / PDIF Stereo PCM or Dolby Digital multichannel signal in standard stereo analog (RCA output)

This case is perfect for recovering the audio signal from DVB-T channels from your TV.
Being Dolby Digital compatible, it will work with all programs.
This is useful for example to connect a headphone or a classic Hifi amplifier to your TV

• Optical Input
• Analog Output RCA Stereo
• Format Supported: SPDIF LPCM 2ch, Dolby Digital up to 24Bit
• Supported frequencies: 32, 44.1, 48, 96 kHz
• Compatible with DVB-T digital audio formats.
• Output Level: 1V rms +/- 0.1
• Power supply via USB under 5V
• Dimensions: 55 x 82 x 22.5 mm
• THD + N @ 0dB: 0.01%
• 80dB S / N Ratio
• Weight: 65 g

CAUTION THIS PRODUCT IS DELIVERED WITHOUT POWER SUPPLY (if your TV does not have a USB, you must have a suitable power supply)
