CYP DCT-9DN DAC and ADC Dolby Digital 96kHz

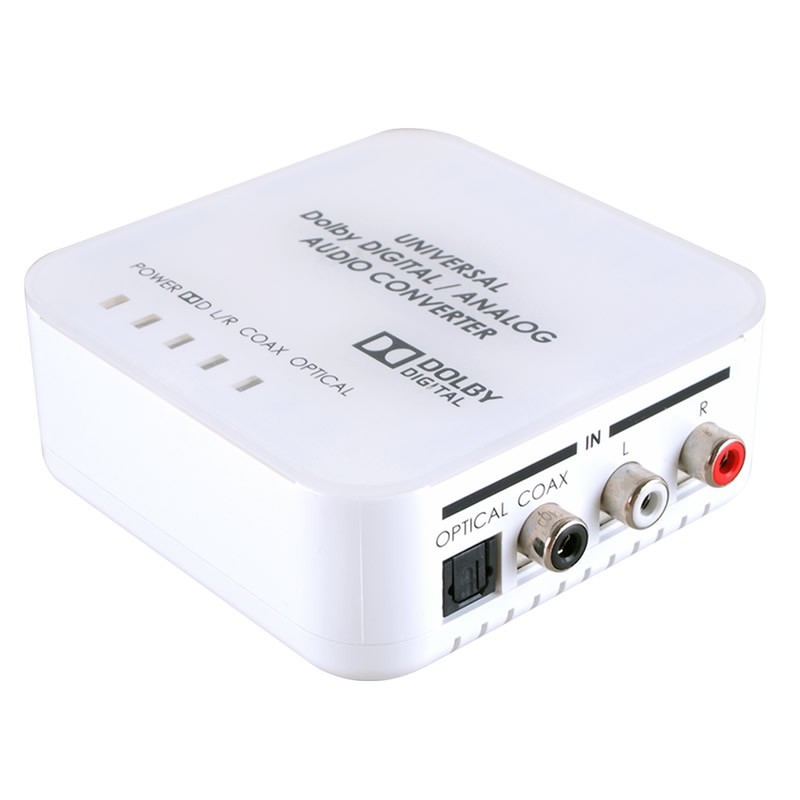

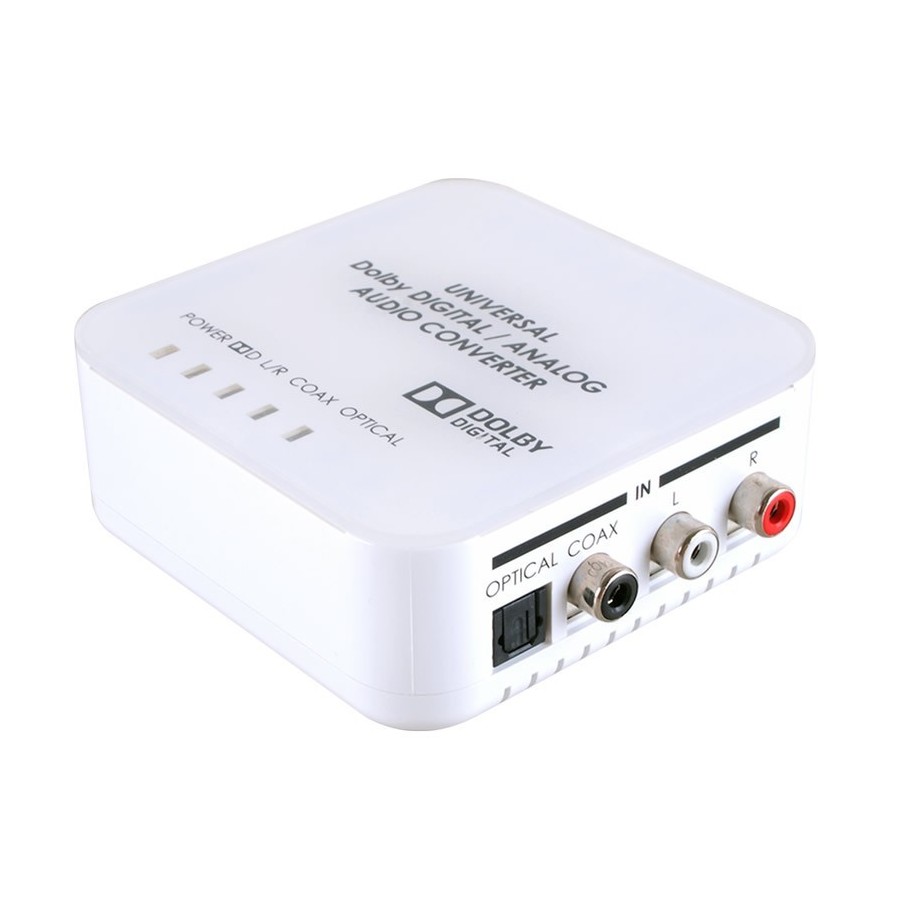

The DAC / ADC DCT-9DN is a digital to analog to analog to digital audio converter with integrated Dolby Digital decoder. It offers high-performance sound conversion to analog stereo or digital output and ensures Dolby Digital audio mixing with no loss of quality.

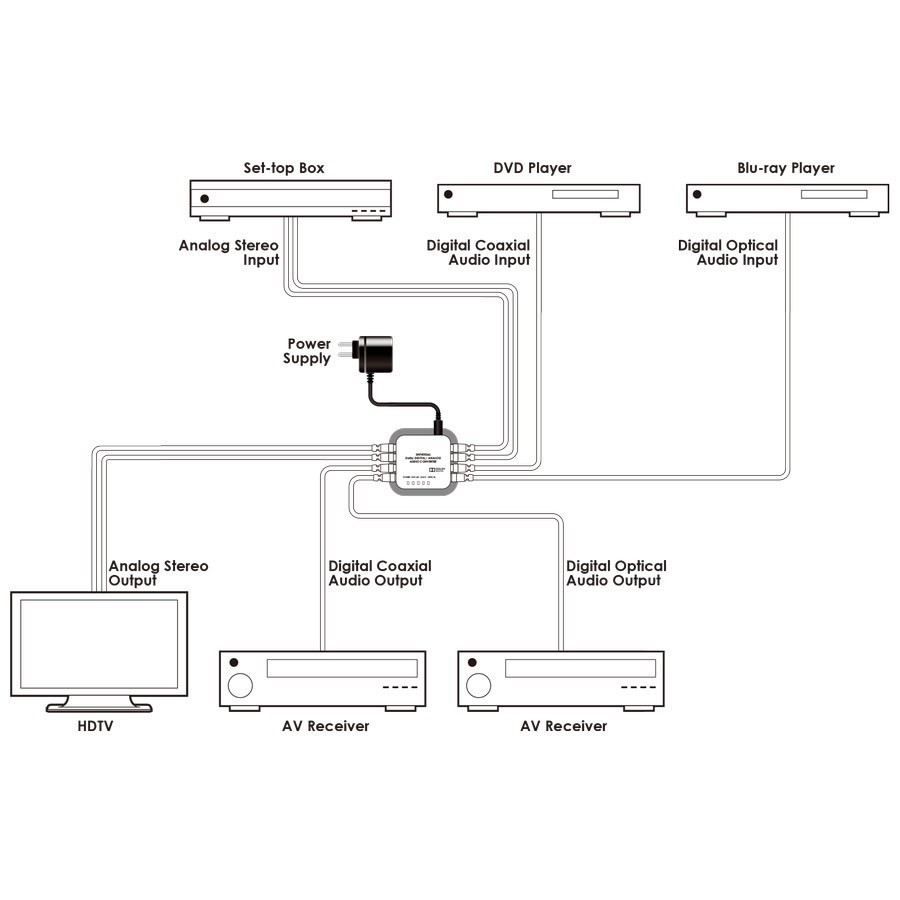

Its extensive connectivity: Optical, Coaxial, Stereo RCA, both input and output, allows you to use this DCT-9DN in a multitude of situations and audio systems. Sampling rates are supported up to 96kHz via LPCM 2Ch.

User manual available as an attachment below.

Technical characteristics :

• DAC function: Digital to analog converter
• ADC function: Analog to digital converter
• Supports LPCM 2Ch sampling frequencies: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz)
• Supports Dolby Digital 5.1Ch up to 48kHz
• Supports Dolby Digital audio mixing for left channel and right channel
• Provides a transmission without electromagnetic noise
• Ergonomic design and easy installation
• Signal Noise Ratio:> 80dB
• Input Impedance: 47kΩ
• Output Impedance: 600Ω

Main Features :

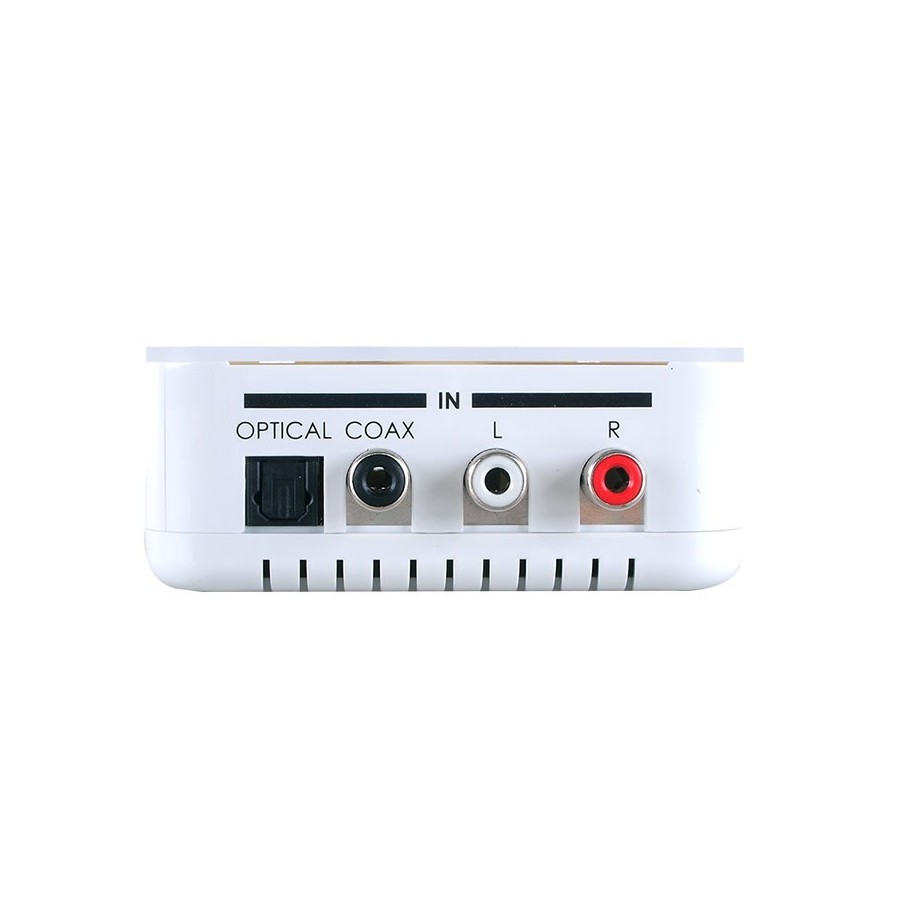

• Inputs: Coaxial (LPCM and Dolby Digital) / Optical (LPCM and Dolby Digital) / RCA Stereo (Red and White)

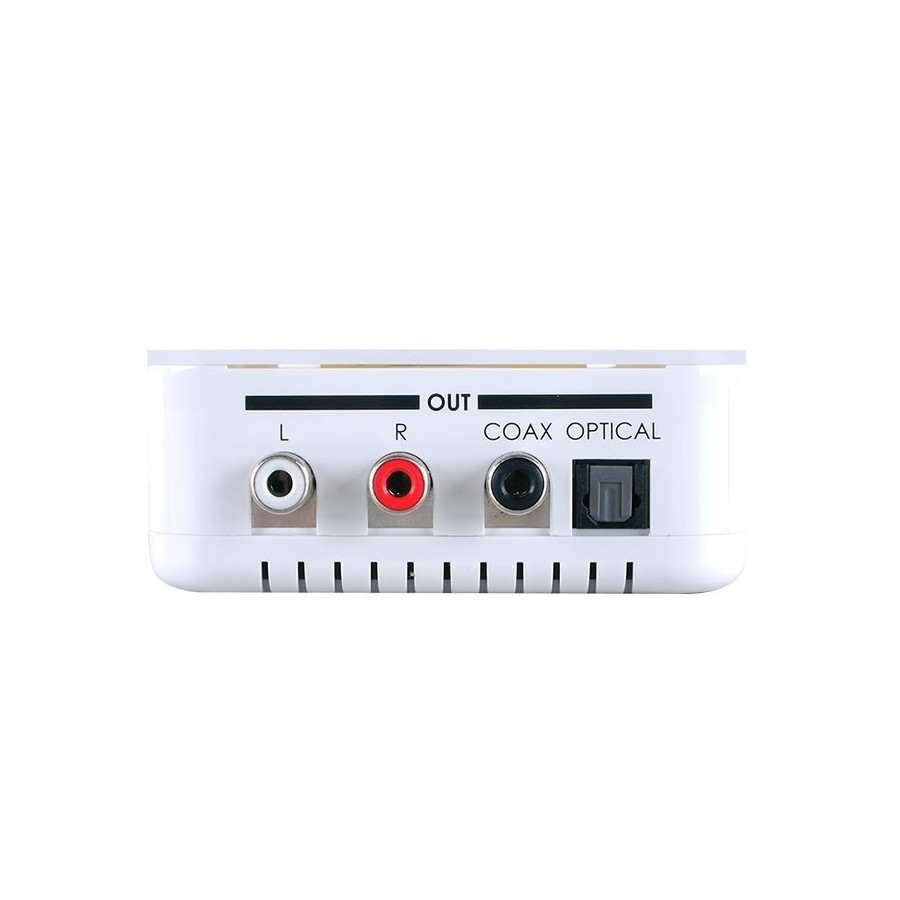

• Outputs: Coaxial (LPCM and Dolby Digital) / Optical Toslink (LPCM and Dolby Digital) / Stereo RCA (Red and White)

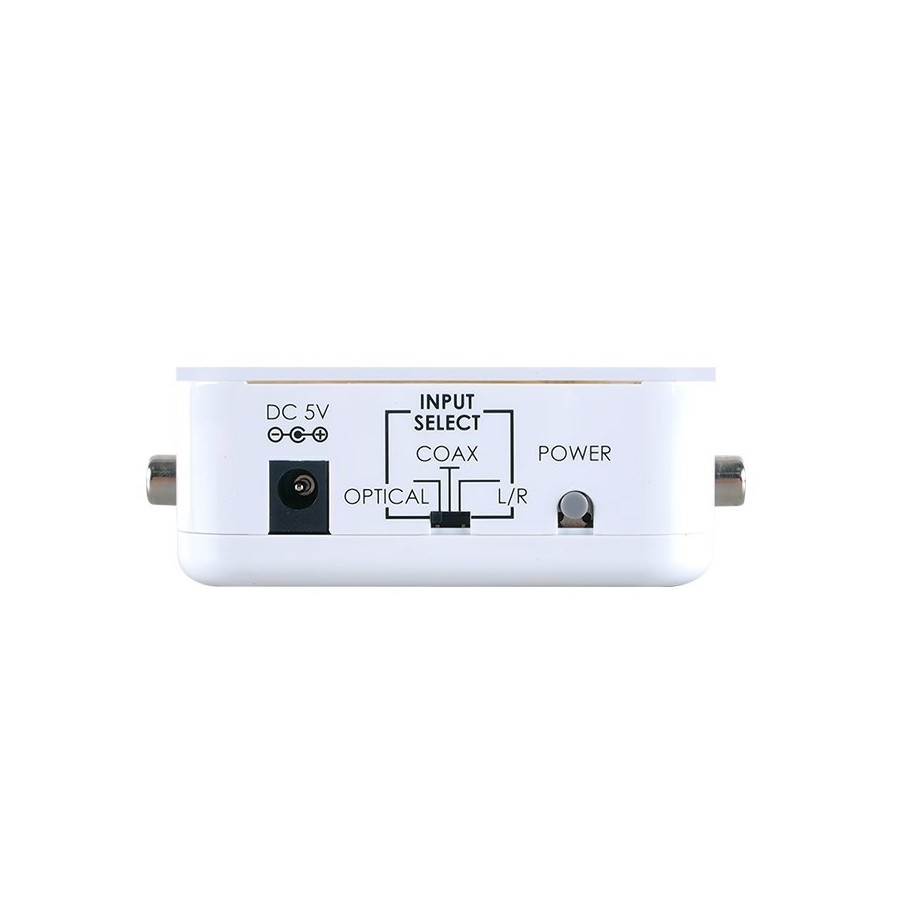

• Powered by 5V / 1.2A
• Power Consumption: 2.1W
• Dimensions: 97x85x35mm
• Weight: 110g
• White Colour
• CE / UL Certified
