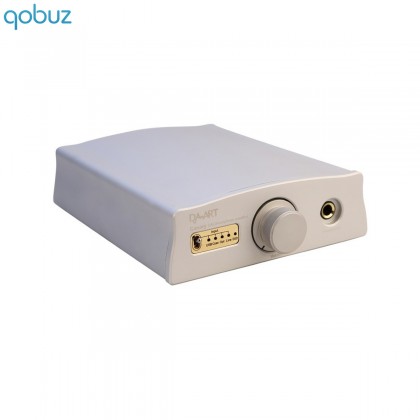

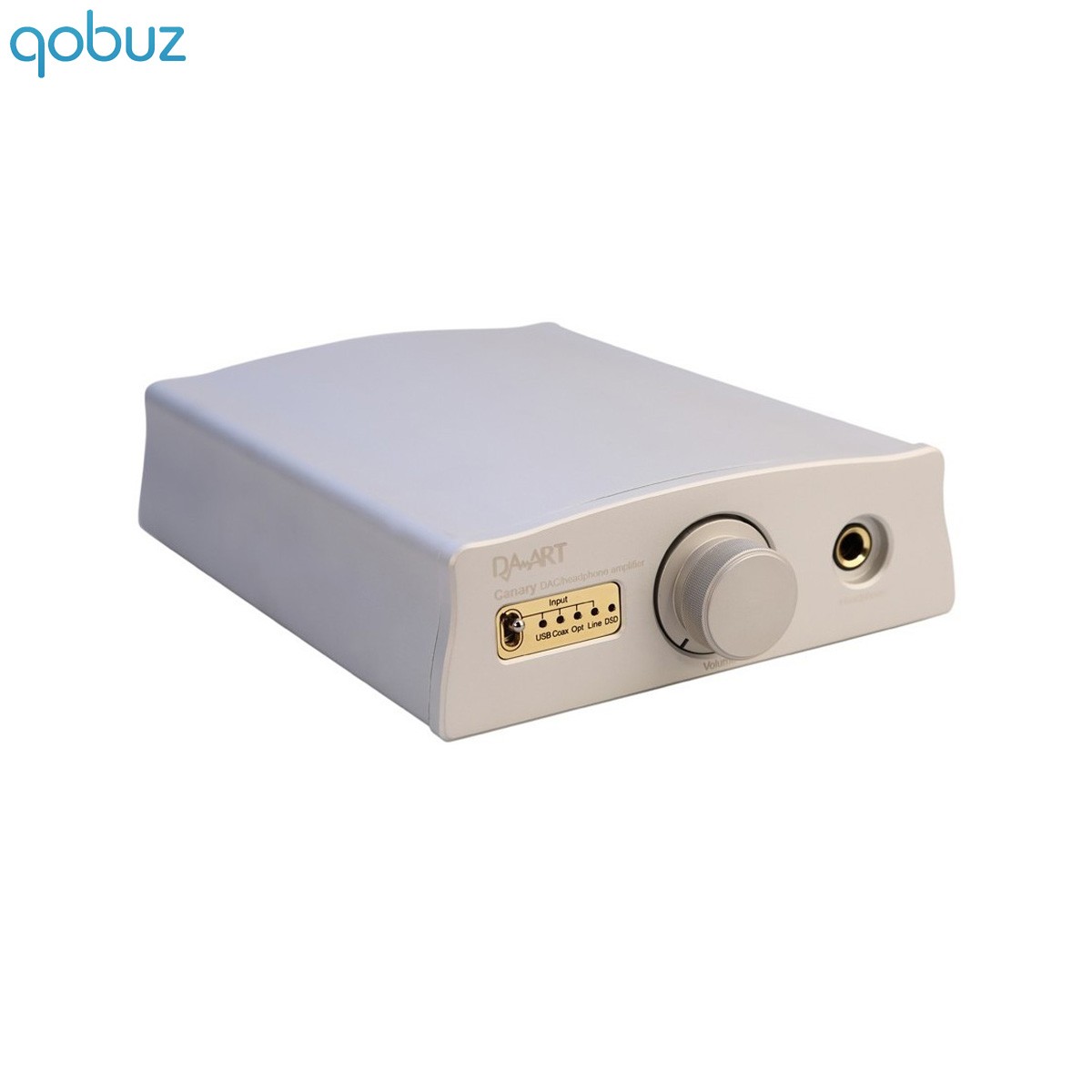

DAART Canary DAC USB XMOS DSD ES9018K2M 32bit Headphone out class A Silver

The DAART DAART Canary USB 32 bit 384Khz represents the new generation of audiophile converters with a powerful headphone output in discrete components. Equipped with a ES9018K2Mthe DAART Canary has 3 digital inputs for decoding all high-definition stereo signals up to DSD DOP 64/128 and PCM 384Khz (USB).

the technological advantages of this CAD are many:

• USB interface XMOS U8 and converter 32bit SABER ES9018K2M
• Audiophile precision potentiometer
• CLC-Type Conversion Filter
• DAC reference voltage separated by low-voltage voltage regulator LDO
• Double clocks 22 and 24mHZ
• 5 separate LDO control groups for each voltage
• Headphone Amplifier with JFET Class A Transistor
• Aluminum housing

An analog output of very high quality:

The DAART canary USB digital converter features the latest generation of high-precision (rail to rail) OPA1688at high current. They allow a high dynamics and are particularly adapted to the high resolution sound of 32bit DACs. In addition, the current stage voltage at the output of DAC comprises ADA 4075 with very low noise.

Main Features :

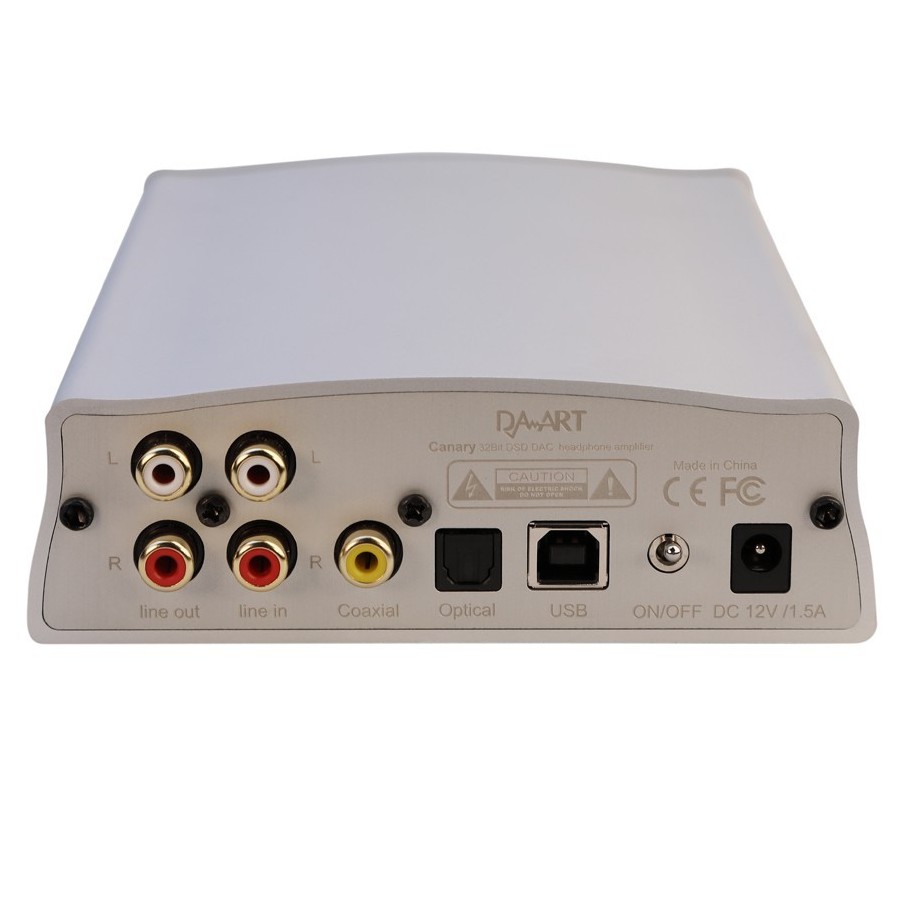

• Digital inputs : SPDIF / Optical Toslink compatible PCM 24bit 192KHz
• Digital Input USB compatible Native DSD64 / 128 / PCM 16-32bit, 32-384KHZ.

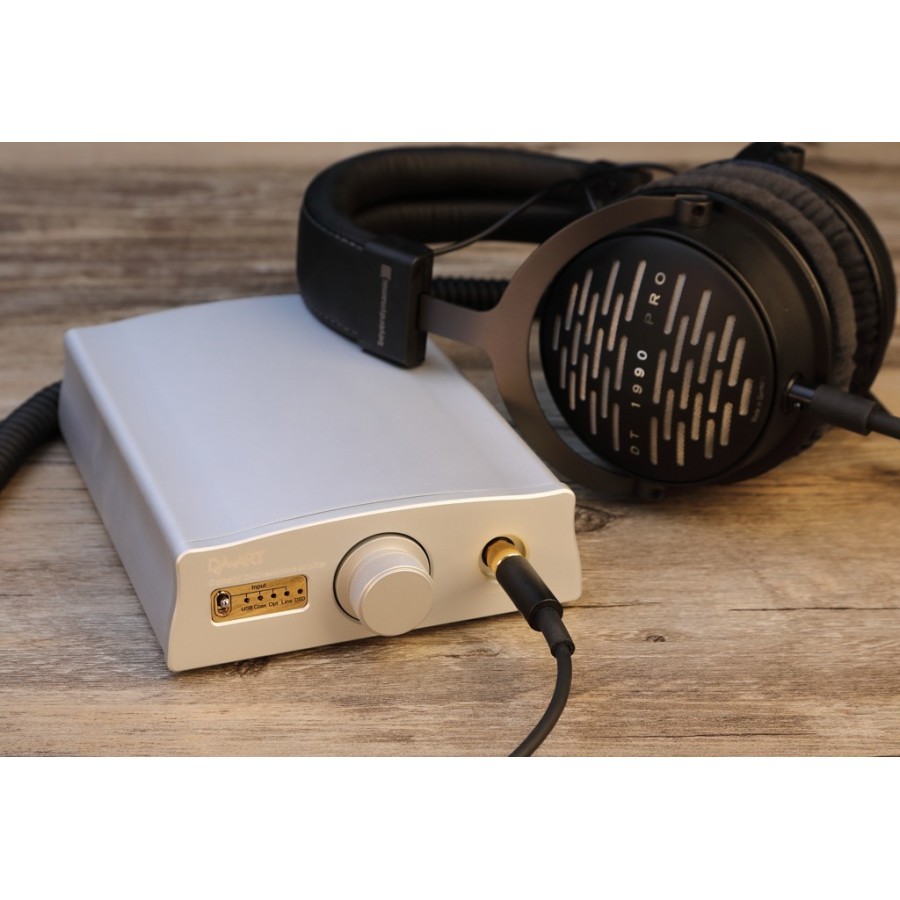

• Headphone output with high impedance input and JFET class A transistor.
• RCA Stereo Outputs
• Aluminum housing and feet.

Warning !Analog RCA outputs are fixed and non-variable.

USB Compatibility:

• Windows 7/8/10, MAC OS10X, Linux, Android
• Warning this DAC is not compatible Apple iOS

Daart Canary review by Qobuz

" This DAC Daart Canary offers a slightly marked restitution at the top of the spectrum, the results of which will be appreciated according to his tastes and the music he listens to. Its integrated, powerful and neutral headphone amplifier can also be used to listen to an external analog source under very good conditions. "

Specifications:

• Noise signal ratio: -128dB.
• Dynamic capacity: 120dB.
• Harmonic distortion 0.0004%.
• Frequency response: 20-30KHz to plus or minus 0.15dB.
• Channel separation (crosstalk): -120dB.
• Headphone output according to impedance: 100mW @ 600 Ohm, 200mW @ 300 Ohm, 400mW @ 150 Ohm, 1000mW @ 32 Ohm

Dimensions and weight:

• Dimensions: 27.5 x 22.5 x 7cm
• Weight: 1.2kg

XMOS U8 and dual clocks 22.579MHZ and 24.576MHZ

Class A helmet amplification with discrete components

Operating diagram
