This product has been replaced by the new version, the DD TC35B 2021 Adapter DAC USB-C.
Male USB-C to Female Jack 3.5mm DAC Adapter CTIA 32bit 384kHz

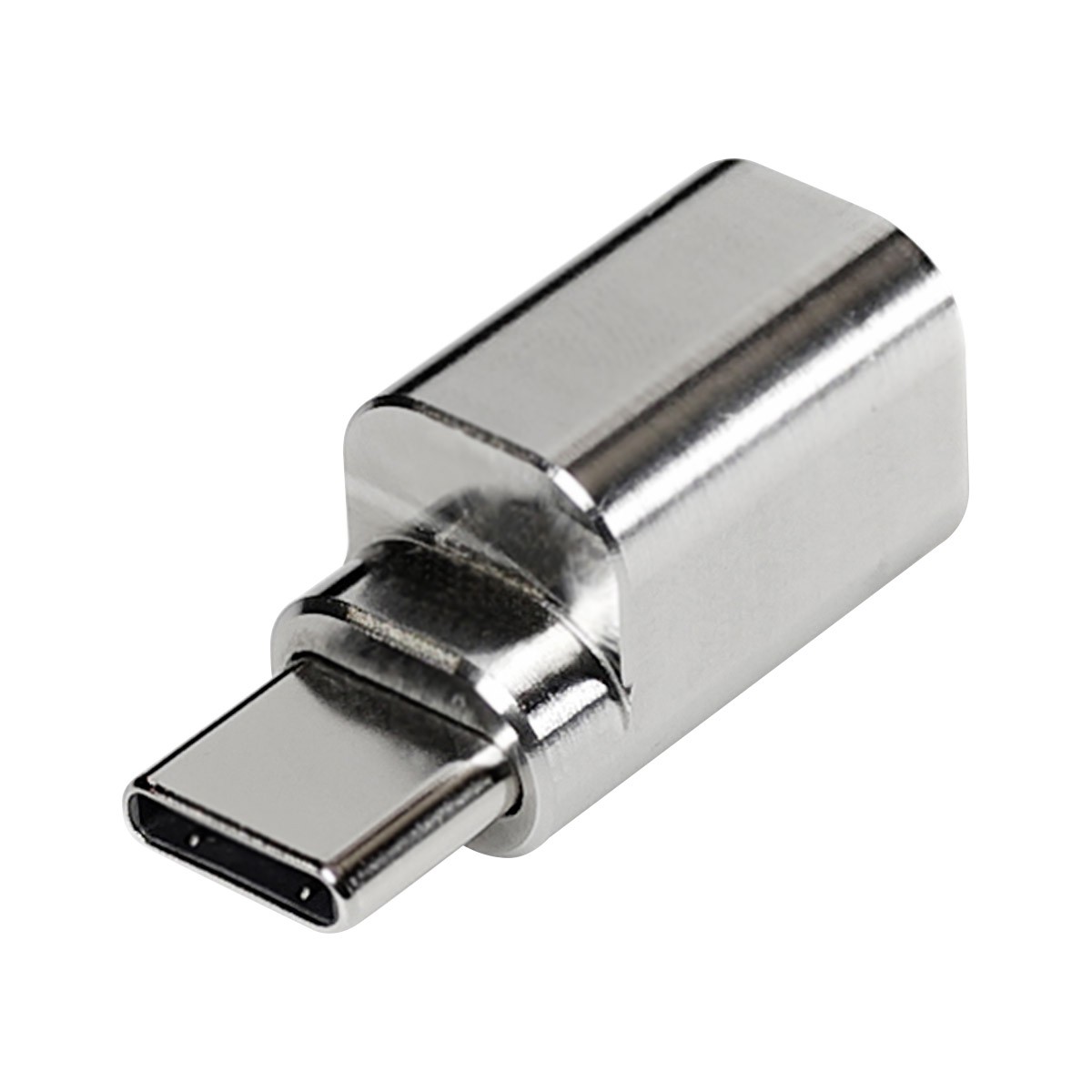

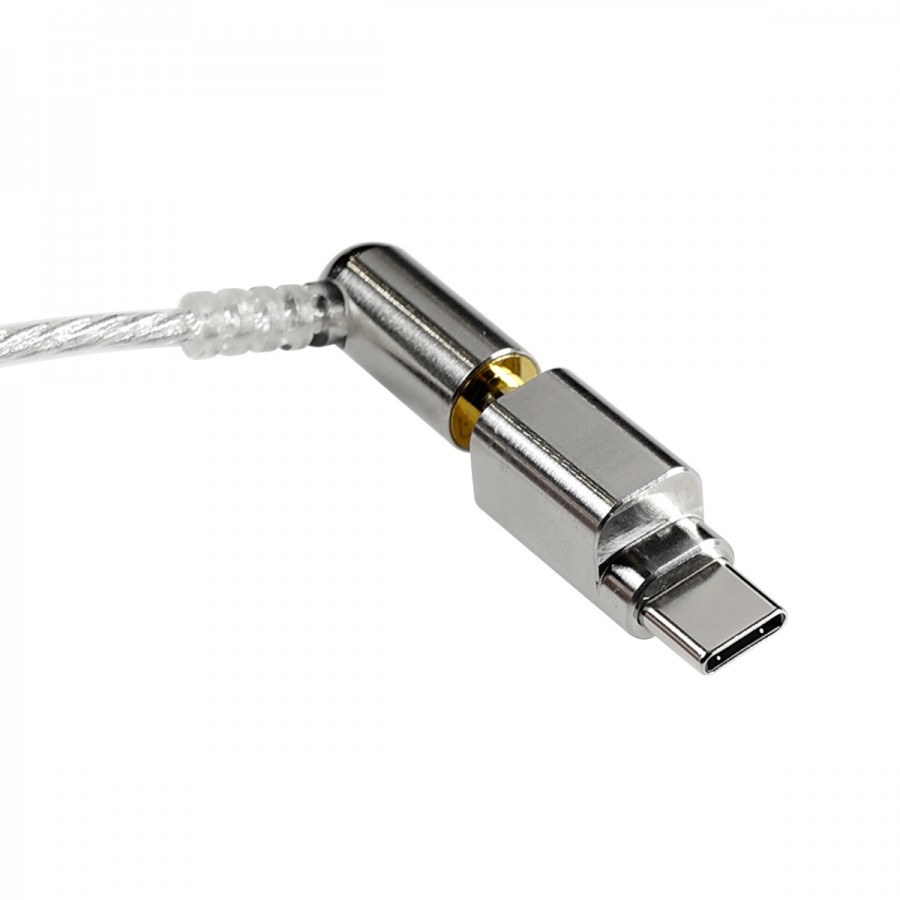

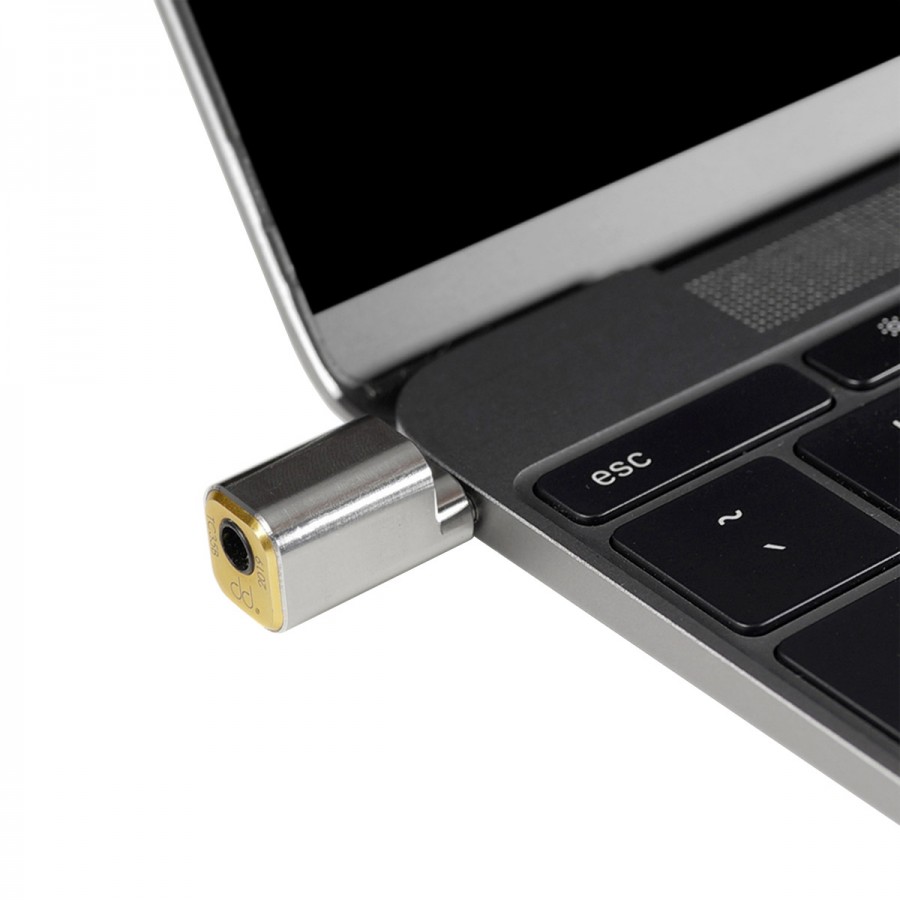

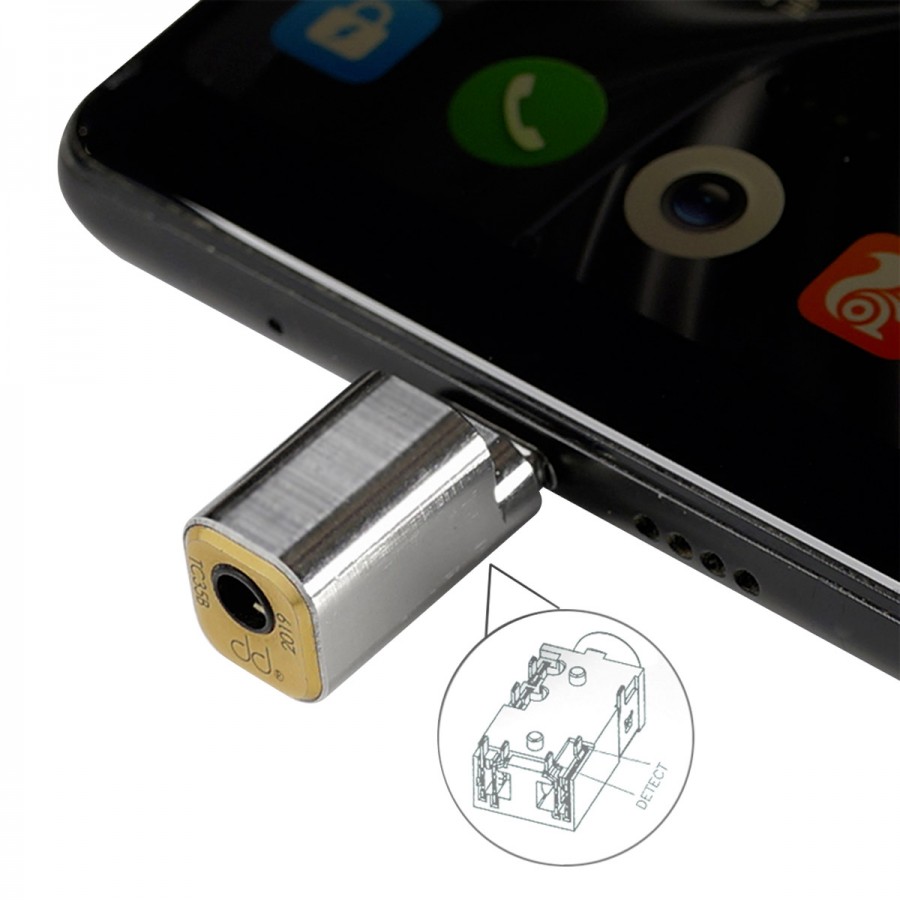

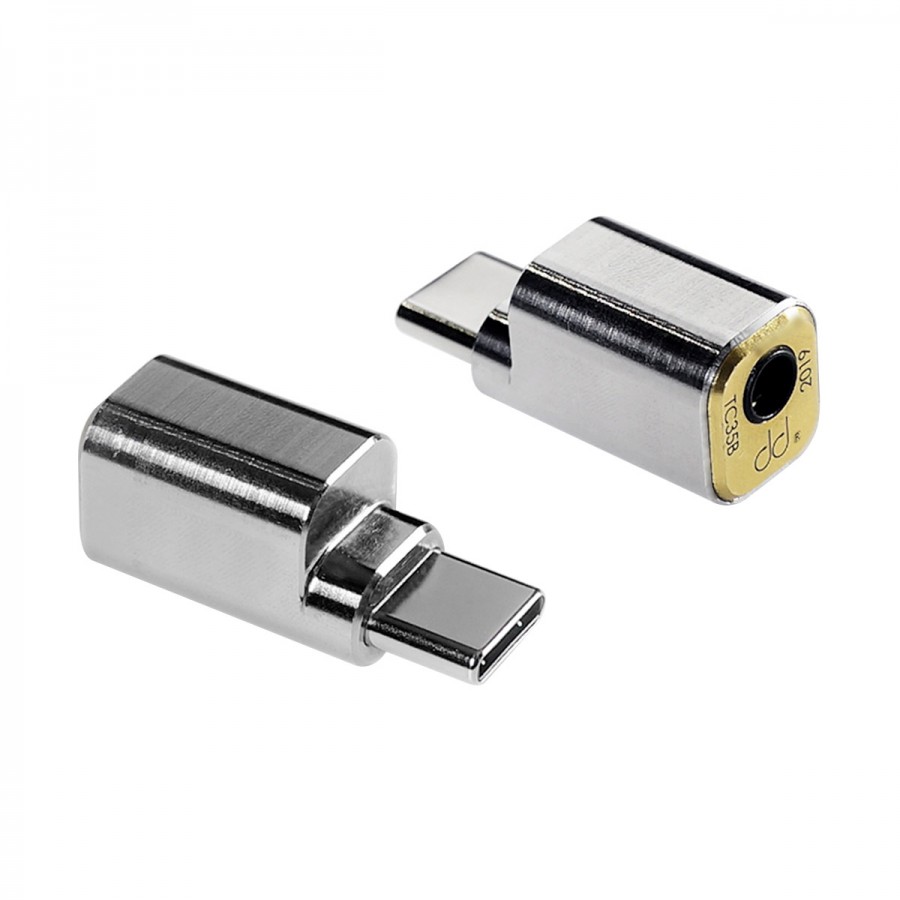

This TC35B adapter consists of a 3.5mm jack female connector on one side and a USB-C male connector on the other side. It will allow you to connect a 3.5mm jack to a device with a USB-C connection only, as it is the case on many recent smartphones. The components are integrated in a compact and robust 316 stainless steel housing. The TC35B automatically detects and activates when a headset is connected. The adapter is also CTIA compatible and can therefore be used with headsets/earphones with integrated controls and microphone.
Volume control for Apple headphones is not supported.
Specifications | |
---|---|
Product type | Jack 3.5mm / USB-C adapter |
Connectors | Female Jack 3.5mm Male USB-C |
USB Codec | ALC5686 |
THD+N | < -92dB |
DNR | > 110dB |
SNR | > 120dB |
Output power | 30mW @ 32Ω |
Recommended headphone impedance | 16-200Ω |
Frequency response | 20Hz - 20kHz |
Supported sampling rates | PCM up to 32bit 384kHz |
CTIA Support |
General | |
---|---|
Housing material | Stainless Steel 316 |
Dimensions | 18.8 x 11.2 x 10.2mm |
Weight | 6g |
Color | Silver |
