Laiv's Harmony DAC combines a neat, elegant minimalist design with discrete, balanced R2R digital/analogue conversion. With support for sampling rates up to DSD256 and PCM 768kHz and its internal CCHD-957 FEMTO clock, this DAC offers sound reproduction as close as possible to the original. Furthermore, the modular design of the Harmony DAC provides unrivalled flexibility, simple upgrades and easy maintenance.
The Harmony DAC benefits from an R2R digital/analogue conversion stage. This advanced audio technology is based on a ladder network of individual resistors arranged with a tolerance of 0.05% to achieve superior sound quality. With its emphasis on precision and quality, this technology enables clear and accurate sound reproduction, delivering an immersive listening experience with exceptional detail and fidelity.
The Harmony DAC incorporates first-class components to support its R2R conversion. The internal clock is handled by a Crystek CCHD-957 oscillator, offering incredibly low phase noise of just -100dBc/Hz. The power supply for the various modules is delegated to Audio Note Kaisei and Rubycon ZLH capacitors, eliminating any impact that the electrical supply might have on sound reproduction. These high-end components are carefully integrated into every vital part of the Harmony DAC, guaranteeing superior performance and exceptional audio quality. Expect an immersive listening experience, rich in clarity and precision.

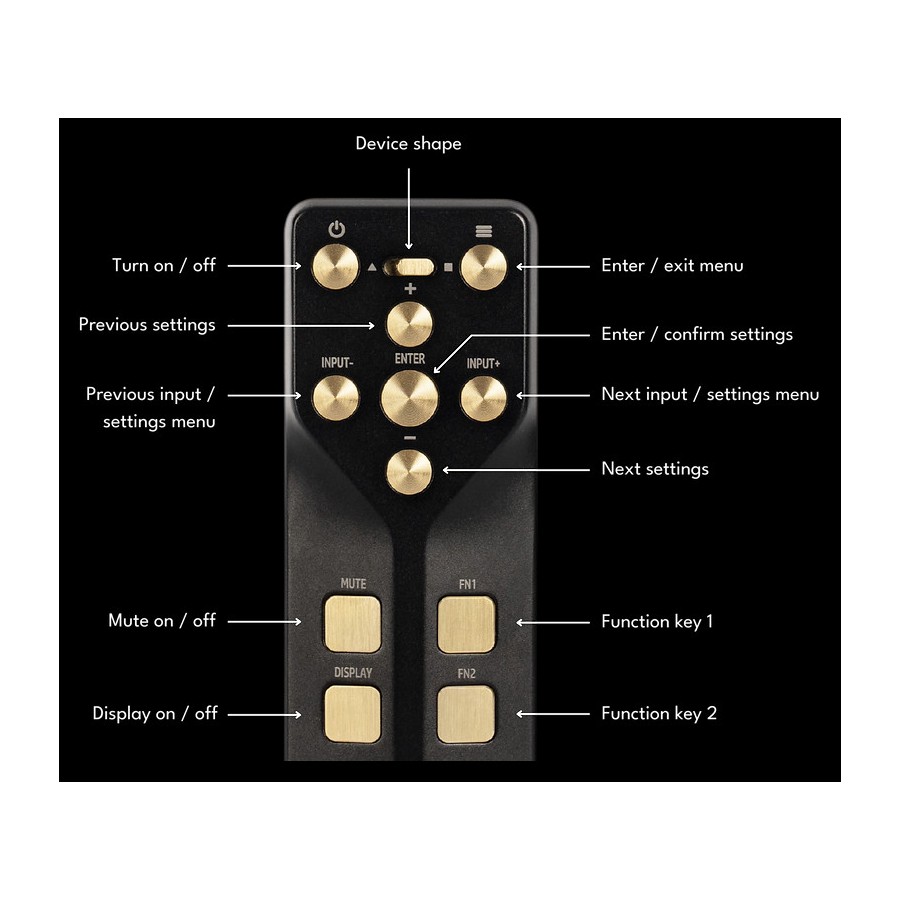

The Harmony DAC is designed to be as easy to use and flexible as possible. In fact, during its design, particular attention was paid to the user experience. All useful information is permanently visible on the device's OLED screen, furthermore, the dials are positioned in such a way that you won't accidentally push your DAC while using it. The same care has been taken with the remote control, which has the dual advantage of having fully customisable buttons and being able to control two devices simultaneously by flicking a simple switch. Finally, if you wish for the Harmony DAC to be synchronised with an external clock, this is perfectly possible thanks to the I2S input.
1 | Power button |
2 | Power LED |
3 | Menu button |
4 | Navigation dial |
5 | RCA output |
6 | Coaxial input |
7 | USB-B input |
8 | Fuse holder |
9 | Power outlet |
10 | XLR output |
11 | I2S input |
12 | Optical input |
13 | Chassis grounding |
Technical characteristics
Specifications | |
---|---|
Product type | DAC R2R |
Inputs | 1x USB-B 1x Optical 1x Coaxial 1x I2S |
Output | 1x Stereo XLR 1x Stereo RCA |
Processor | Intel Altera Cyclone FPGA |
Supported sampling rates | USB : Up to PCM 768kHz DSD256 Optical : Up to PCM 192kHz Coaxial : Up to PCM 192kHz I2S : Up to PCM 768kHz DSD256 |
Screen | 3.83’ monochrome OLED screen |
Internal clock | CRYSTEK CCHD-957 |
Frequency response | 20Hz-20kHz ± 0.25dB |
Total harmonic distortion (THD) | 0.0035% |
Crosstalk | 110 dB |
Signal-to-noise ratio (SNR) | 123dB |
Dynamic range | 110dB |
Output impedance | XLR : 1200 Ω RCA : 600 Ω |
General | |
---|---|
Power supply | 100V - 127V AC / 220V - 240V AC |
Weight | 4.3kg |
Dimensions | 75x250x255mm |
Color | Silver |
Package | 1x Laiv DAC Harmony 3x Speaker spikes with alignment card 1x Remote control 1x Power cable 1x Cleaning cloth |
Input | USB |
Input | Optical |
Input | SPDIF |
Input | I2S |
Output | RCA |
Output | XLR |
DAC / ADC Chip | R2R LADDER DAC |
Max sampling rate | 768kHz |
Max sampling rate | DSD256 |
Color | Silver |
Networking | No |
Remote Control | Yes |
