The Musician Pegasus presents itself as a magnificent and particularly powerful DAC, taking advantage of a neat R2R architecture. Integrating the best current technologies, the device benefits from a low-noise power supply, a FIFO buffer, signal processing by FPGA and a FIR filter. It is thus capable of decoding very high sample rates, up to 32bit PCM 1536kHz and DSD1024 via its USB and I2S inputs. The USB interface is managed by a STM32F446 MCU with Thesycon driver. The whole unit is integrated in a massive Aluminium case.

A more than complete connection system

The Musician Pegasus provides you with most of the connections common to today's HiFi devices. We thus find at the input of USB-B, I2S via HDMI LVDS, AES/EBU, Toslink Optics and Coaxial. On the output side, the device offers unbalanced RCA and balanced XLR, the latter output being obviously recommended to take advantage of the full potential of the device.

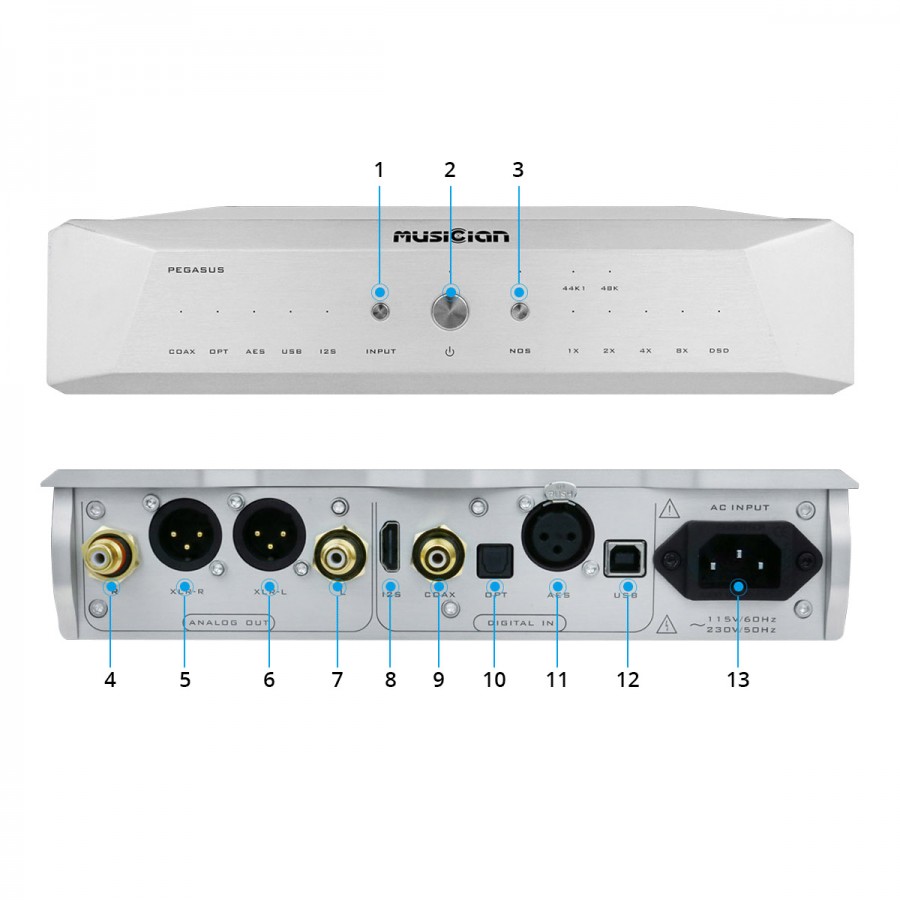

1	Input selector
2	Power button
3	NOS button
4	RCA right channel output
5	XLR right channel output
6	XLR left channel output
7	RCA left channel output
8	I2S input via HDMI
9	Coaxial input
10	Optical Toslink input
11	AES input
12	USB-B input
13	Power supply input
