ES9028Q2M USB DAC 32bit 768kHz DSD XMOS XU208
The new SMSL M8A, big brother of the excellent M8, looks like a high fidelity USB DAC at an affordable price. For example, this new version offers an ES9028Q2M SABRE ESS converter, an asynchronous XMOS Xcore 200 Xu208 USB interface and support for the 768kHz DSD512.

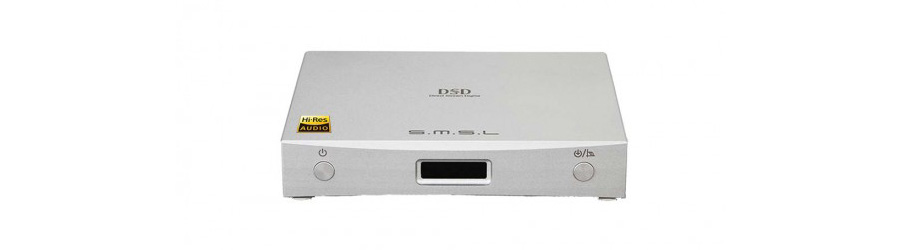

The SMSL M8A features a high-quality OLED display, giving you significant comfort during your listening sessions to simply select your source or view the type of file being decoded.

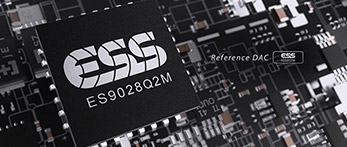

Based on the "32bit HyperStream" architecture but also "Time Domain Jitter Eliminator", the ES9028Q2M delivers a dynamic range (DNR) up to 125dB (in the case of the SMSL M8A) and a total harmonic distortion (THD+N) of -120dB, while minimizing jitter. In this way you get an exceptionally pure sound.

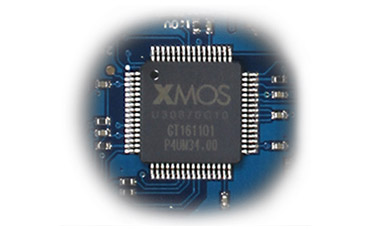

Taking advantage of the new XMOS Xcore200 XU208 with 8 cores, the SMSL M8A USB interface offers increased power and flexibility for your most demanding applications. It supports PCM files up to 768kHz and DSD512. In addition, the USB of this SMSL M8A offers a wide compatibility with the majority of current operating systems (MAC OSX 10.6, Windows 7/8/8.1/10, iOS, Android

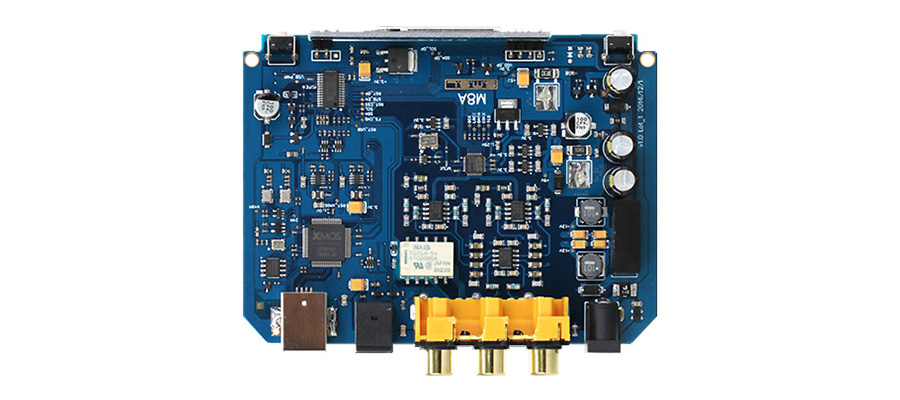

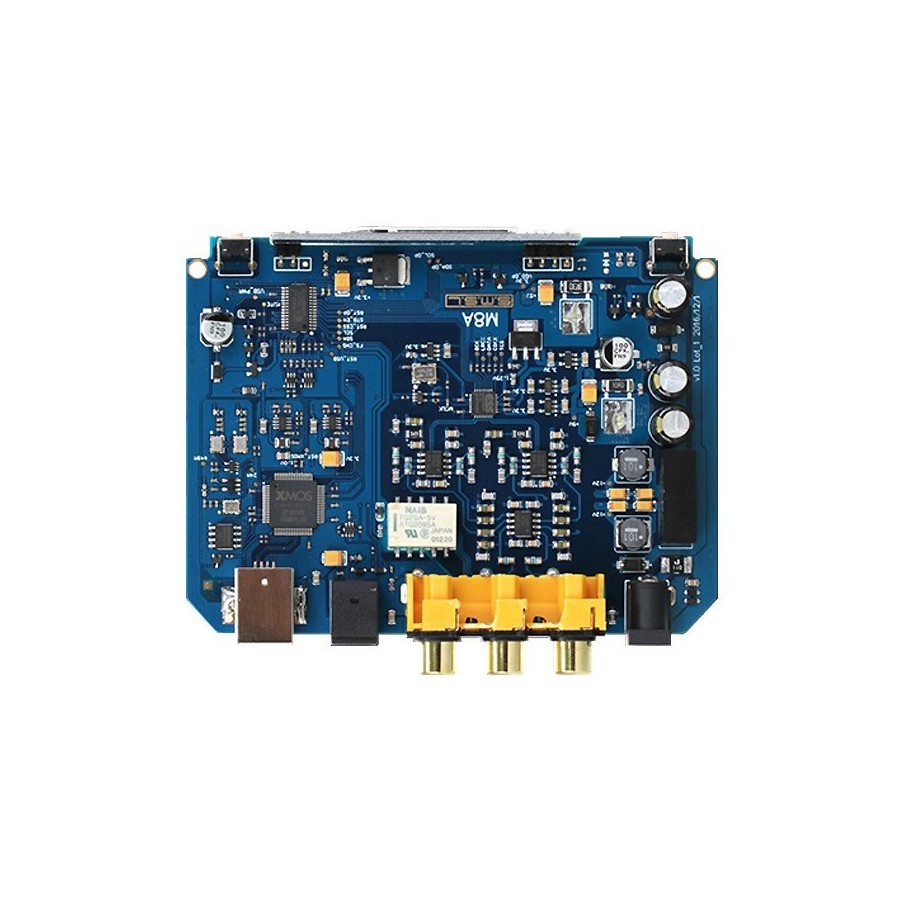

Independent Ultra low jitter and crystal clocks with low phase noise.
Specialized resistors and capacitors for audio products.
Audiophile power supply thanks to a couple of Ultra low-noise LDO regulators.
Equipped with the latest OPA1612 amplifier from Texas Instruments.
The SMSL M8A now supports the DSD512, allowing you to enjoy your DSD files and therefore increased audio quality.

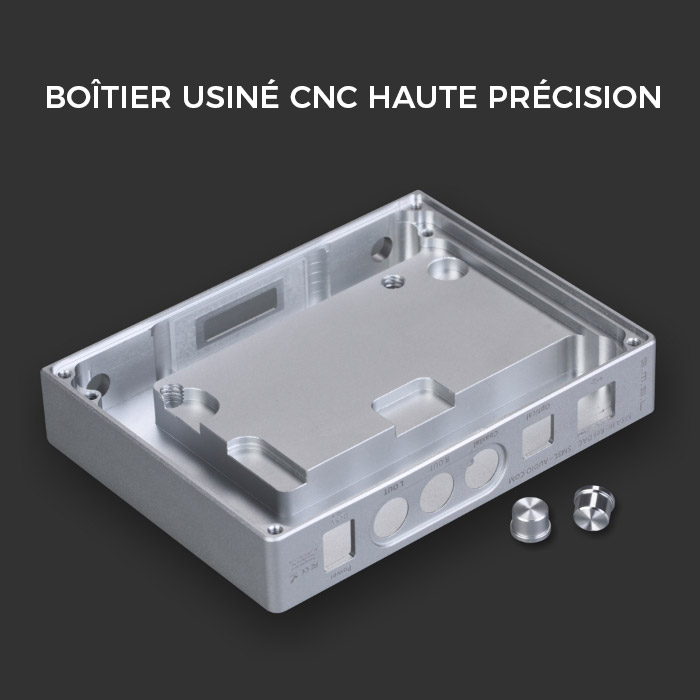

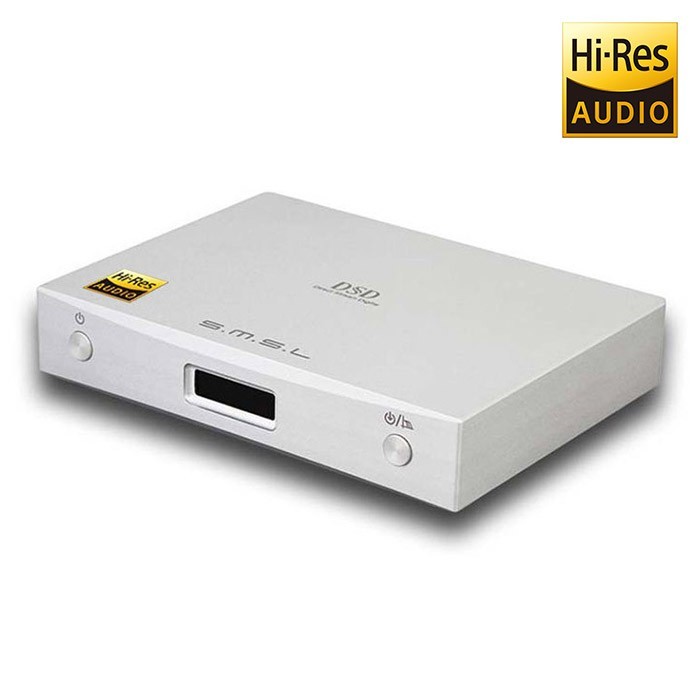

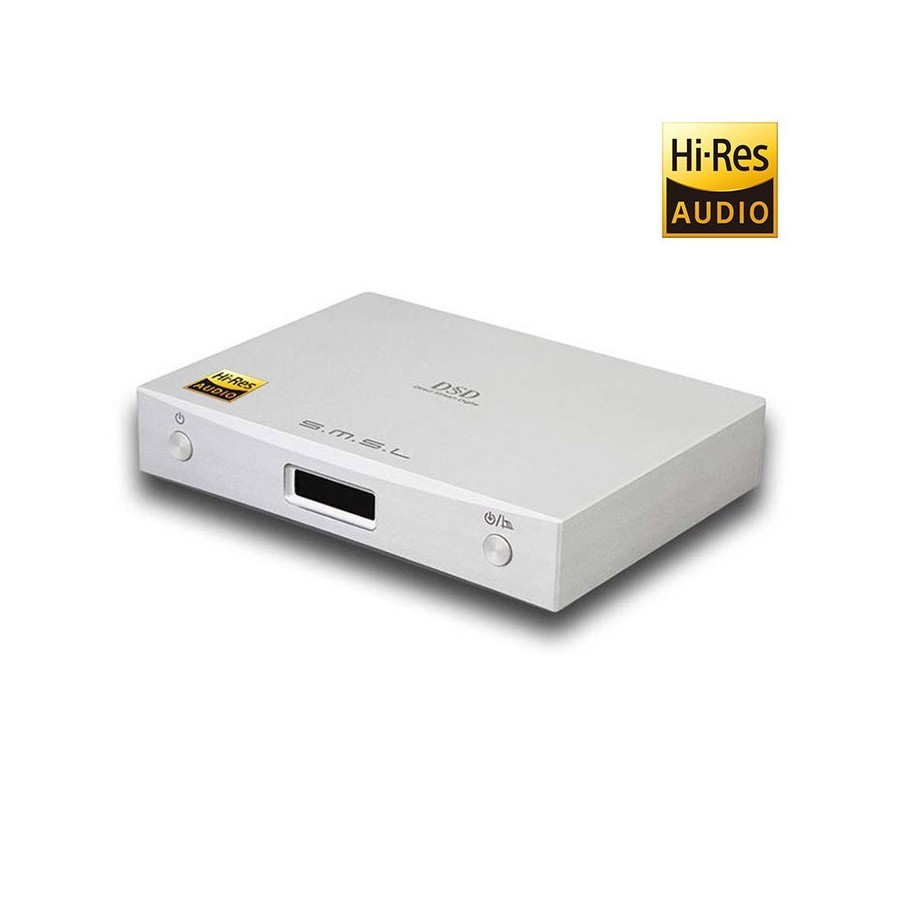

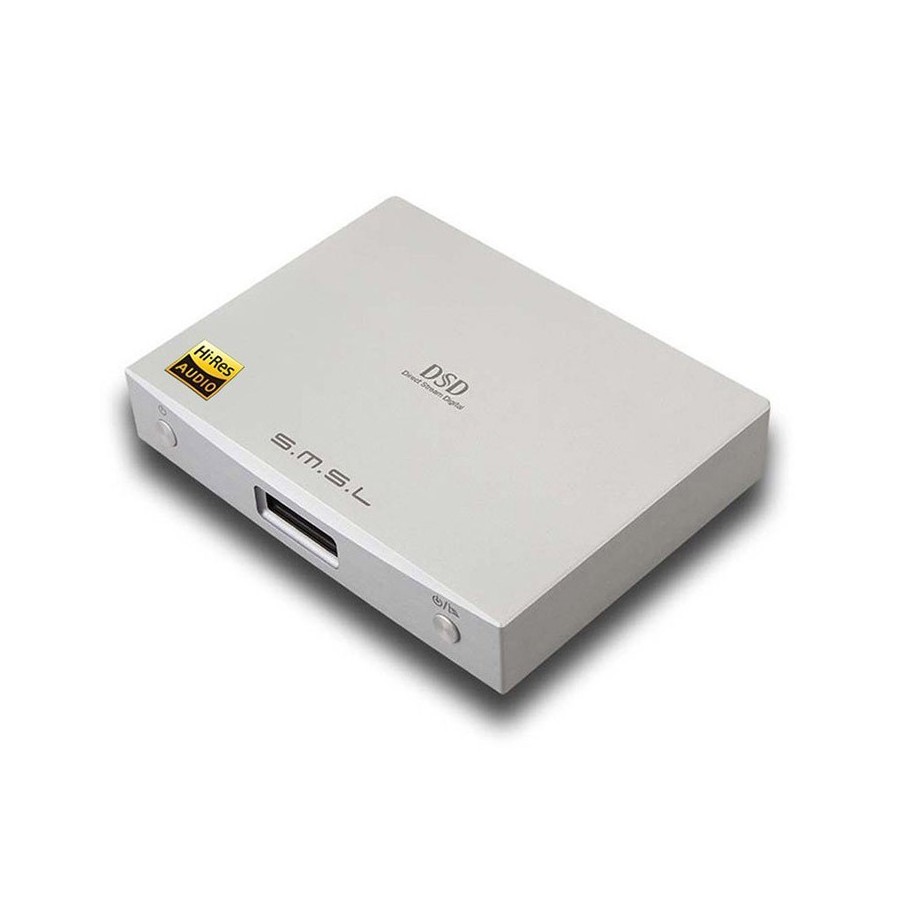

The SMSL M8A is mounted in a silver-coloured brushed aluminium CNC (numerical control) machined case, offering a sleek and elegant design that will fit beautifully into your Hifi system.
Specifications | |
---|---|
DAC | ESS Sabre ES9028Q2M |
USB Interface | XMOS Xcore 200 Xu208 Asynchronous |
Sampling rate / Bitrate | Coaxial / Optical : up to 192kHz USB PCM : up to 32bit 768kHz USB DSD : DSD512 |
Ultra low jitter | - |
THD+N | <0.0003% |
Dynamic range | Jusqu'à 125dB |
SNR | 117dB |
RCA Output level | 2V rms |
USB Compatibility | Windows 7/8/8.1/10, Mac OSX 10.6 |
OTG Support | Yes |
Connector | |
---|---|

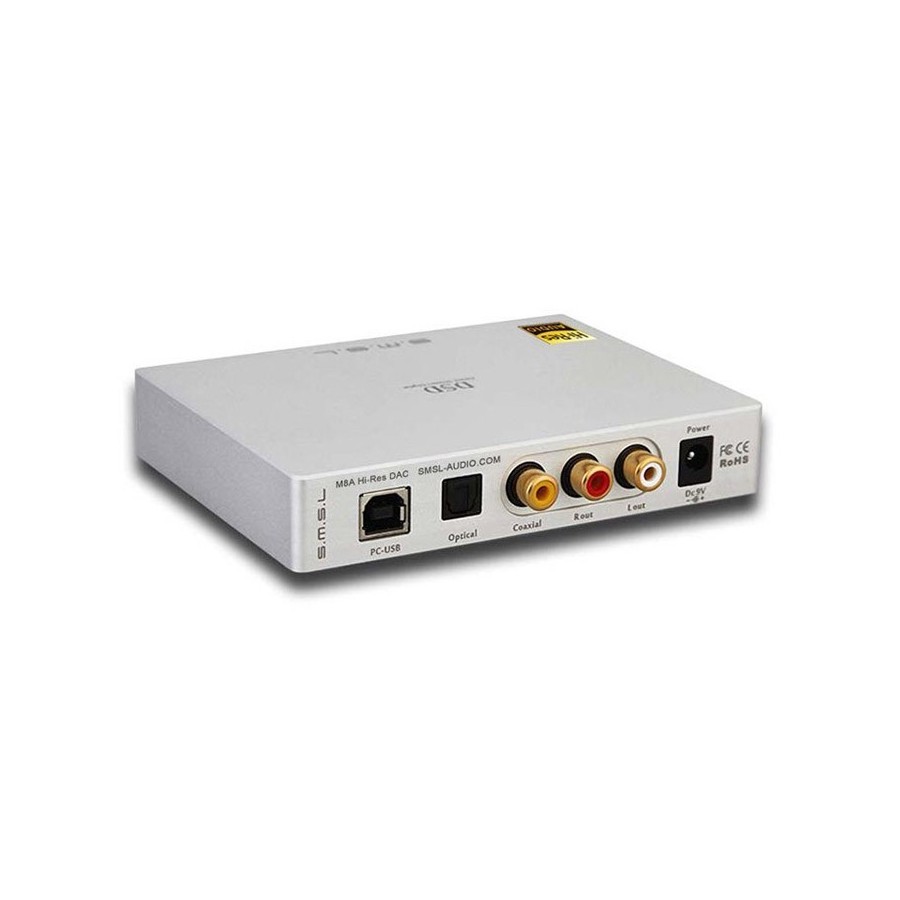

Inputs | USB 2.0 Type B Optical Toslink Coaxial S/PDIF |
Outputs | RCA Stéréo Analog Output |
