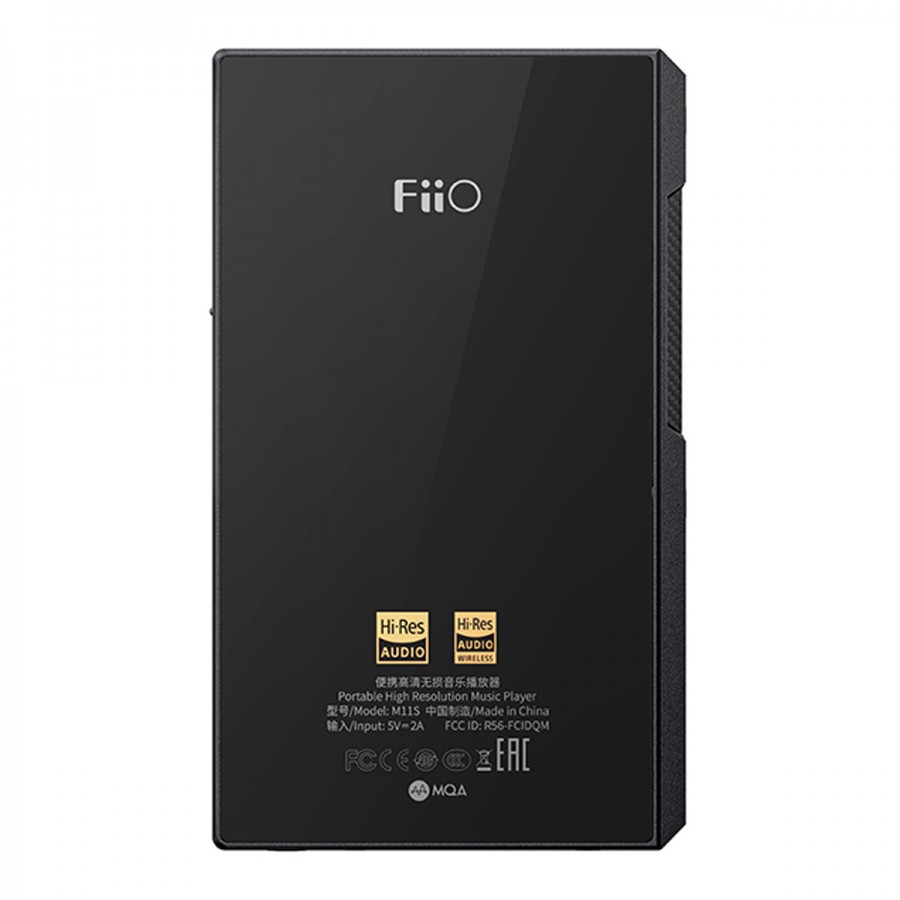

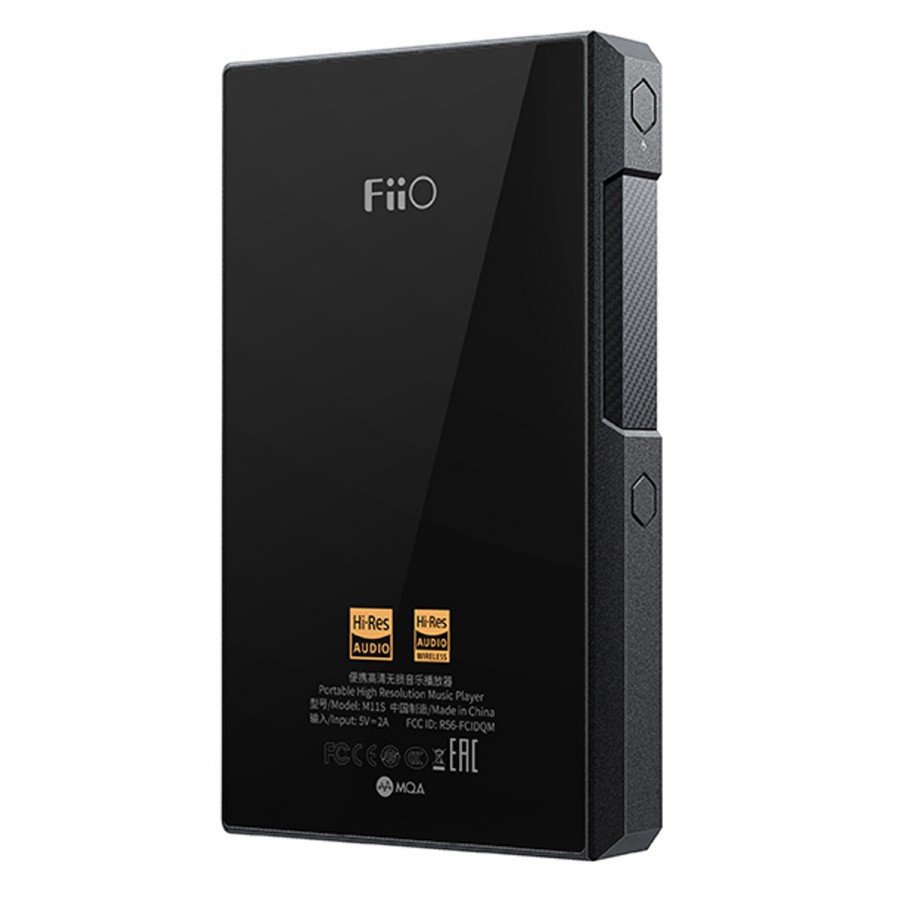

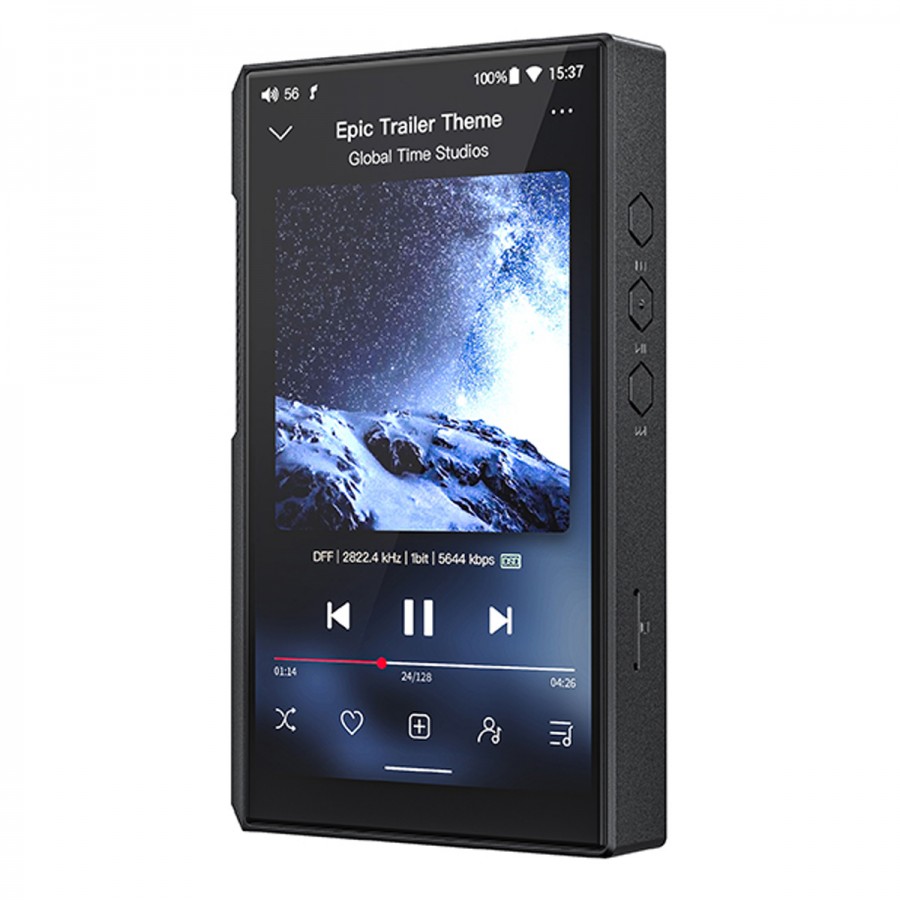

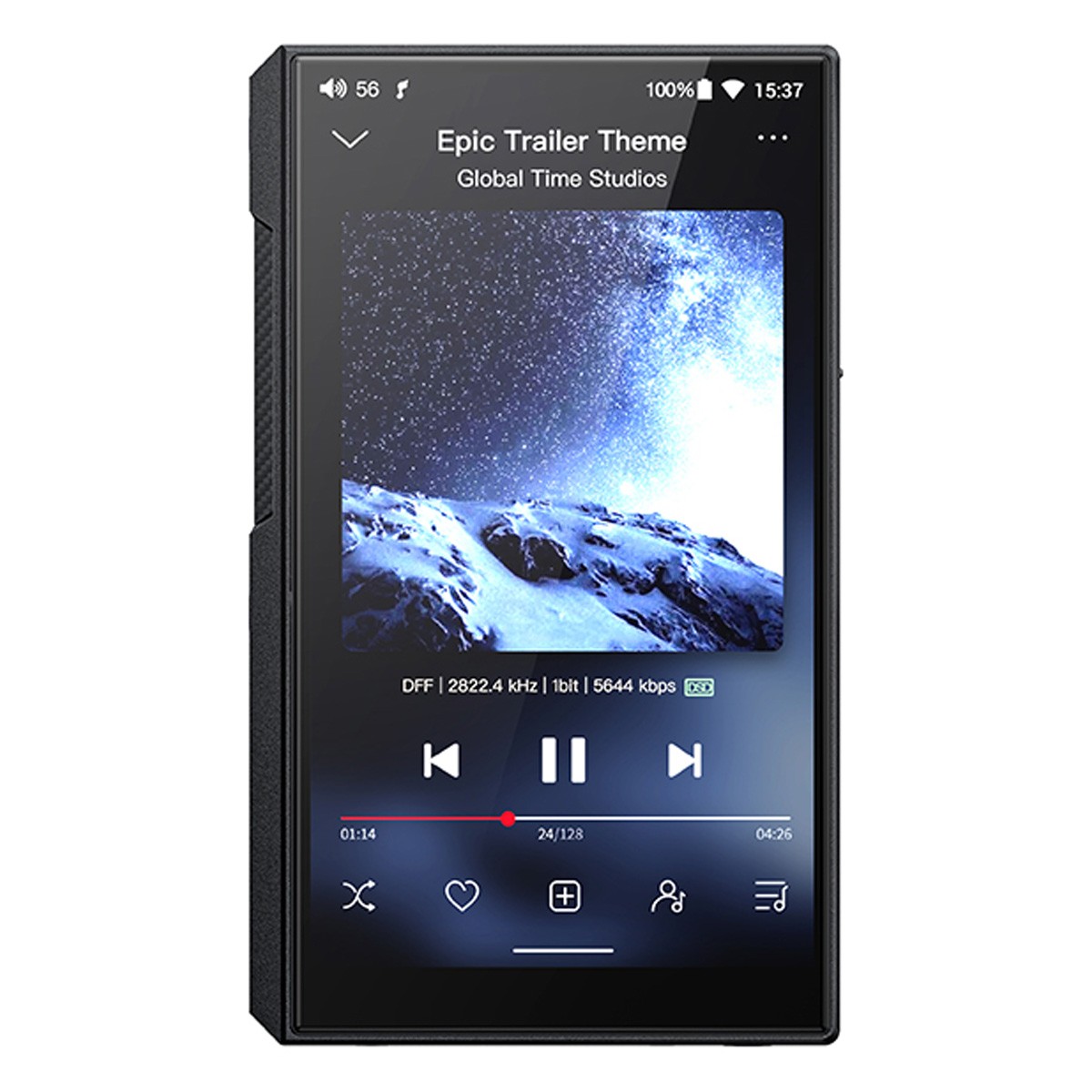

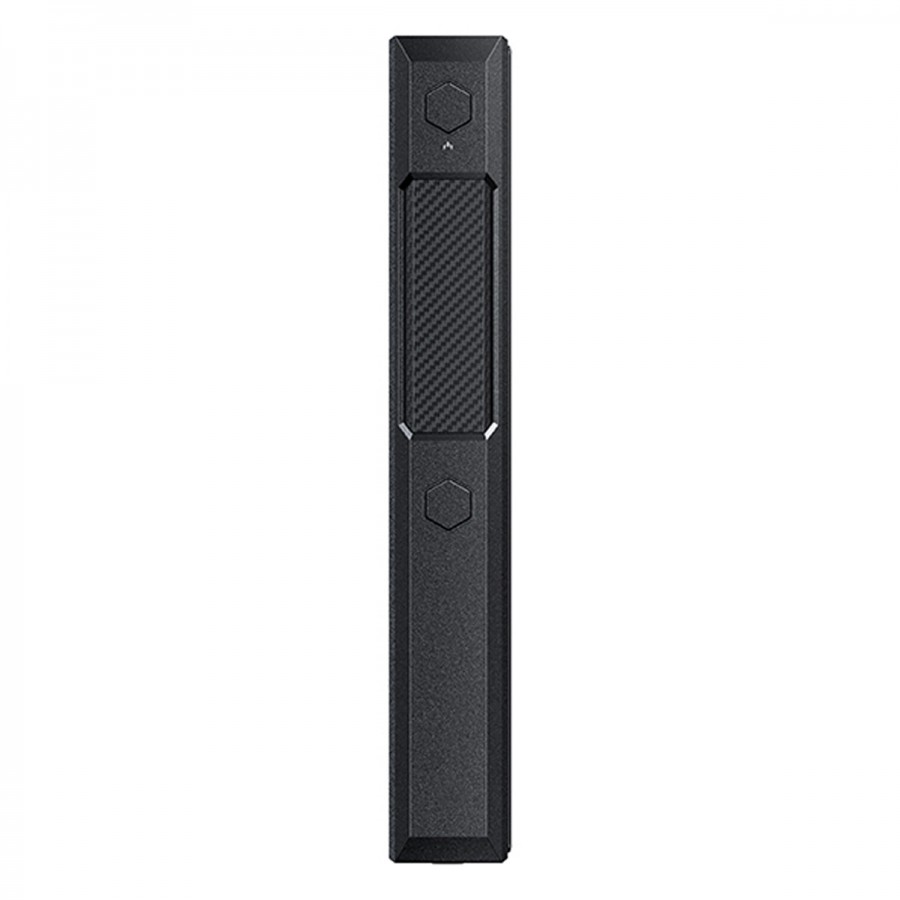

FiiO M11S
Digital Audio Player DAP 2x ES9038Q2M Balanced Bluetooth 5.0 aptX HD LDAC LHDC WiFi AirPlay DLNA 32bit 768kHz DSD256 MQA
The FiiO M11S is a high-end digital music player, benefiting from a careful architecture, using excellent components to offer a sound reproduction as rich and precise as dynamic.
Improved performance
The conversion stage of the DAP is based on a dual DAC structure. Each channel is equipped with an ESS ES9038Q2M DAC chip, capable of reproducing your music in great detail. Moreover, these chips allow the M11S to support high resolution audio streams, up to PCM 32bit 768kHz and DSD256.
4th generation FPGA
The audio data passes through a 4th generation FPGA with phase-locked loop technology, specifically developed by FiiO. This works in conjunction with two femtosecond oscillators to provide an extremely accurate clock signal and very low jitter for a consistently clean sound.
High-end power supply
The amplifier and op-amp sections of the M11S benefit from independent power supply and isolation, ensuring that everyone can enjoy a clean, stable and consistent power source, resulting in better dynamics.
A great reserve of energy
With its output power of 670mW via its balanced output or 200mW via its single-ended output (32Ω), the M11S provides you with a comfortable power reserve. It will thus be able to accompany without difficulty many models of headphones, without needing an external amplifier.
Bluetooth 5.0 & WiFi
With the M11S, you also benefit from a high quality bi-directional Bluetooth 5.0 transmission. The DAP is able to receive an audio stream from an external source or to broadcast itself to a headphone or Bluetooth headphones. This means you don't need wires, which is especially useful when you're on the move. In addition, the chip used allows the M11S to support high definition transmission codecs such as aptX HD, LDAC and LHDC.
The player also supports WiFi connectivity with DLNA, UPnP and AirPlay protocols, allowing you to access music stored on your network.
A complete connectivity

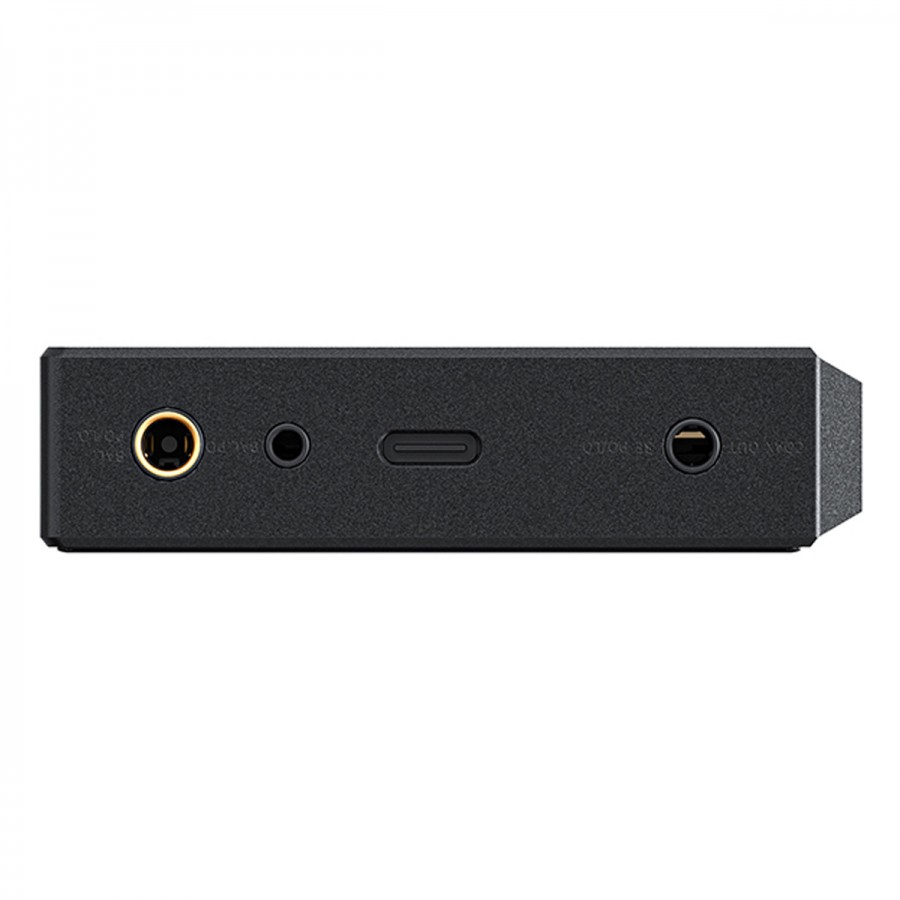

The M11S offers a particularly rich output configuration for a DAP. There is a single-ended 3.5mm jack output that can be used as a coaxial, headphone and line output, a balanced 2.5mm jack headphone output and a balanced 4.4mm jack headphone and line output.
A powerful processor
Just like in the brand's flagship, the M17, the M11S houses a powerful 8-core Qualcomm Snapdragon 660 processor. This allows for a smooth user experience without slowing down, even for resource-intensive uses.
Designed to accompany you throughout the day
A large 5300mAh battery allows the M11S to accompany you throughout the day, with up to 14 hours of playback time. It also supports fast charging with QC 4.0 and USB-PD technologies, allowing the DAP to be fully charged in just 3 hours.
Android 10 & Bypass SRC
The M11S is based on an intuitive and flexible Android 10 operating system with SRC bypass. You can enjoy your favorite streaming applications but also play high-resolution files.
MQA Decoding
MQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers or rights holders. These files are light enough to stream or download. The M11S includes an MQA decoder to play these files for the best possible audio quality.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Digital audio player (DAP) |
| Outputs | 1x Single-ended Jack 3.5mm (coaxial / headphone output / line output) 1x Balanced Jack 2.5mm (headphone output) 1x Balanced Jack 4.4mm (headphone output / line output) |
| Connectivity | Two-way Bluetooth 5.0 WiFi 2.4/5GHz (DLNA, UPnP, Airplay) |
| Supported Bluetooth codecs | Transmission : SBC, AAC, aptX, aptX HD, LDAC, LHDC Reception : SBC, AAC, LDAC |
| CPU | Qualcomm Snapdragon 660 |
| DAC chip | 2* ES9038Q2M |
| OS | Android 10 |
| RAM | 3GB |
| ROM | 32GB (expandable via Micro SD (sold separately)) |
| Screen | 5", 720*1280px |
| Output power | Single-ended : 200mW @ 32Ω, THD+N < 1% Balanced : 670mW @ 32Ω, THD+N < 1% |
| SNR | Single-ended : ≥ 123dB @ A-Weighted, 20k low-pass Balanced : ≥ 123dB @ A-Weighted, 20k low-pass |
| THD+N | Single-ended : ≤ 0.00066% @ 1kHz, 32Ω Balanced : ≤ 0.00043% @ 1kHz, 32Ω |
| Crosstalk | Single-ended : ≥ 79dB @ 1kHz, 32Ω Balanced : ≥ 112dB @ 1kHz, 32Ω |
| Noise floor | Single-ended : ≤ 1.8µV @ A-Weighted, 20k low-pass Balanced : ≤ 3.1µV @ A-Weighted, 20k low-pass |
| Output impedance | Single-ended : ≤ 1.5Ω @ 32Ω Symétrique : ≤ 2.6Ω @ 32Ω |
| Battery | 5300mAh 3.8V |
| Lifetime | ~ 14h (single-ended) |
| Charging time | ~ 3h (fast charge QC) |
| Supported sampling rates | PCM up to 32bit 768kHz DSD up to DSD256 |
| MQA decoding | |
| General | |
|---|---|
| Dimensions | 125.2*74*18.5mm |
| Weight | 271g |
| Color | Black |
Frequency response curve 1
Test conditions : -5dB sine signal, 20Hz-20kHz, headphone output, 32Ω
Red : right channel / Blue : left channel
Frequency response curve 2
Test conditions : -5dB sine signal, 20Hz-50kHz, headphone output, 32Ω
Red : right channel / Blue : left channel
Frequency response curve 3
Test conditions : -5dB sine signal, 20Hz-20kHz, line output, 10kΩ
Red : right channel / Blue : left channel
THD+N curve 1
Test conditions : -3dB sine signal, gain = H, 48kHz, 20Hz-20kHz, headphone output, 32Ω
Red : right channel / Blue: left channel
THD+N curve 2
Test conditions : -5dB sine signal, 20Hz-20kHz, line output, 10kΩ
Red : right channel / Blue : left channel
THD+N curve 3
Test conditions : -2dB sine signal, 20Hz-20kHz, balanced line output, 10kΩ
Red : right channel / Blue: left channel
| Input | Micro SD |
| Input | Bluetooth |
| Input | WiFi |
| Output | Coaxial SPDIF |
| Output | Jack 4.4mm |
| Output | WiFi |
| Output | Jack 3.5mm |
| Output | Jack 2.5mm |
| Output | Bluetooth |
| DAC / ADC Chip | ES9038Q2M |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD256 |
| Color | Black |
