FiiO X5 3rd Gen DAP DAC Digital Audio Player 32bit / 768kHz 2xAK4490 Titanium

No customer reviews yet, login to write a review.

By buying this product you get 39 loyalty points


Reference : 11656
New product

399,00 €tax incl.

332,50 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

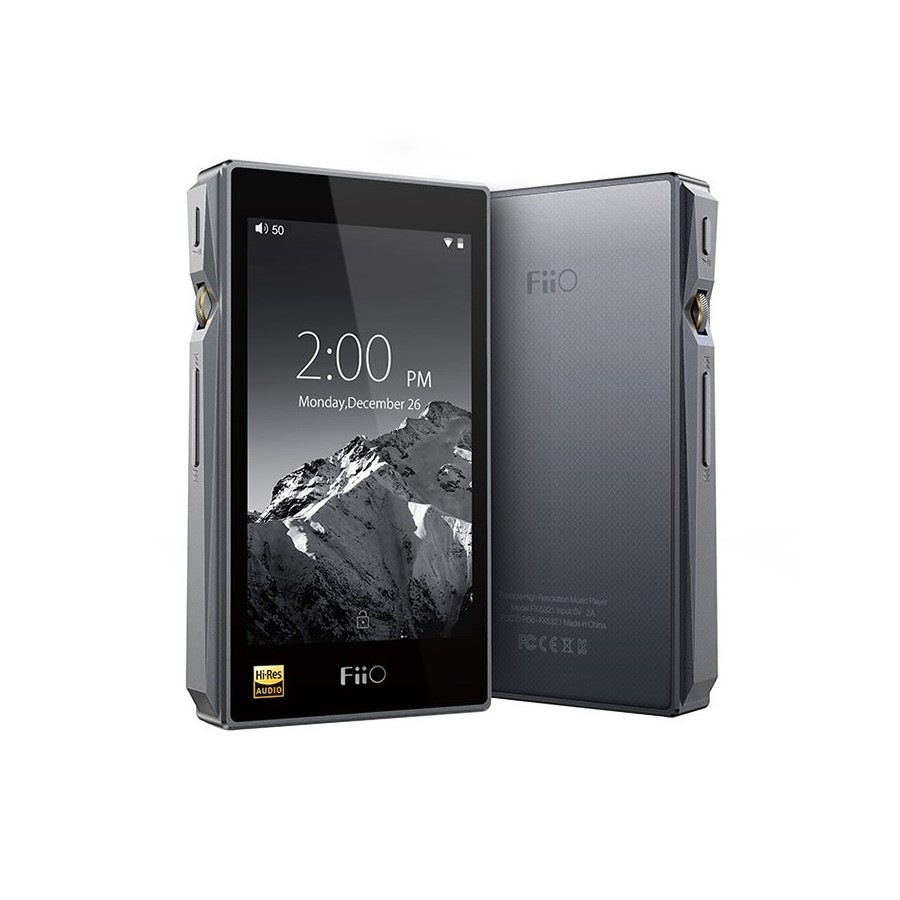

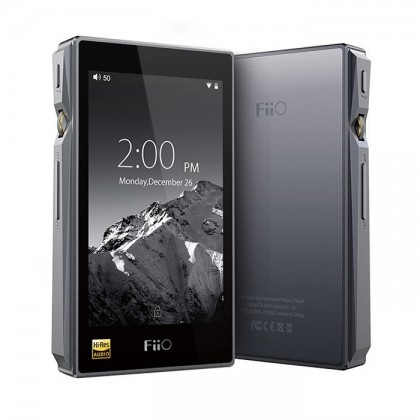

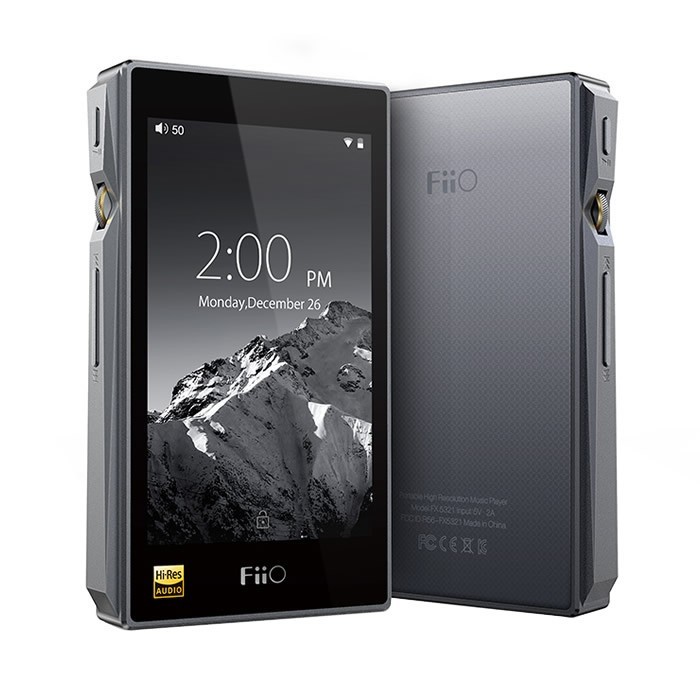

Discover the most innovative DAP on the market, the Fiio X5 3rd Gen ! The FiiO X5 3rd Gen is the ultimate in versatility in the range of portable digital players of the brand that has already proved many times its know-how in the field of Digital Audio Player.

Based on TWO AKM AK4490 converters combined with a RK3188 processor, it is extremely efficient and can achieve record sampling rates of32Bit / 768kHz.

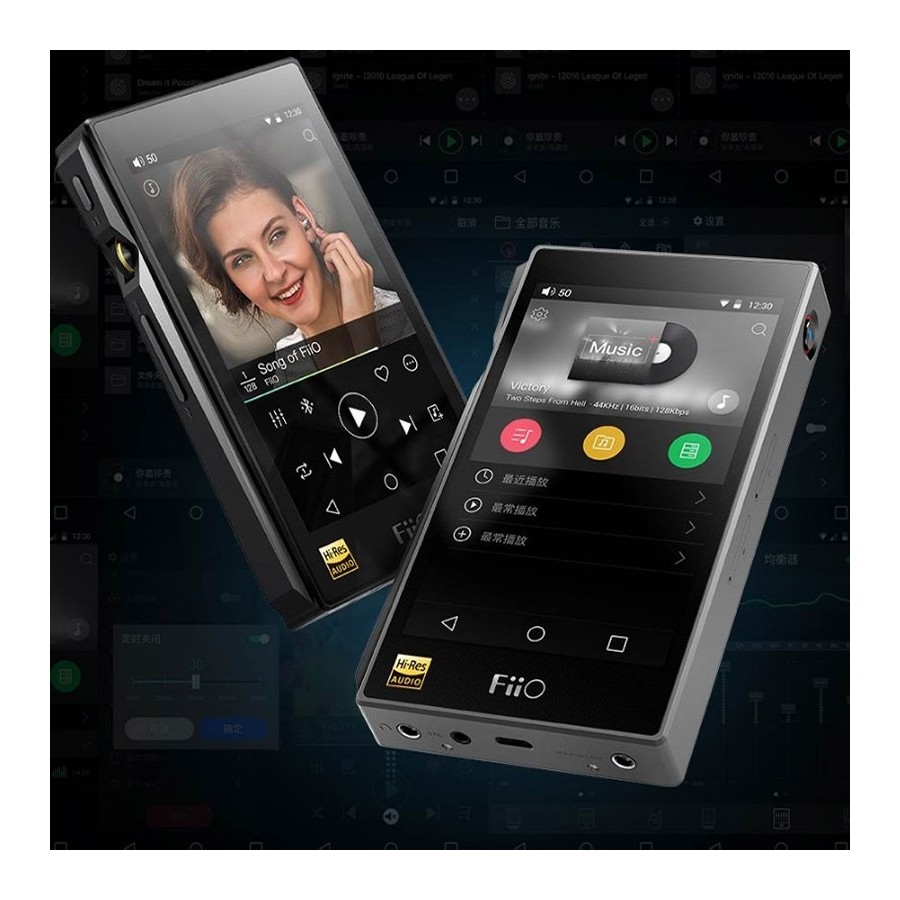

With a touchscreen (16.7 million colors) IPS TFT (3.97 ") of a great definition, it is easily imposed in the category of DAP whose interface FiiO Music is very pleasant to use and particularly intuitive.

Il can also act as <strong> DAC USBhigh-quality audio to enjoy your digital sources on your home audio systems, with sampling rates up to 24 Bit / 192kHzin this DAC mode.

It is a complete HiFi player capable of playing almost all PCM audio files up to 32bit 768kHz (APE / FLAC / ALAC / WMA / WAV / MP3) as well as DSD natively and ISO SACD files.

DSD DXD PCM Audio

It hastransmissionBluetooth 4.0 Apt-X Low Latencyand theDLNA / WIFI 2.4GHzas well as wired via Micro USB 2.0.

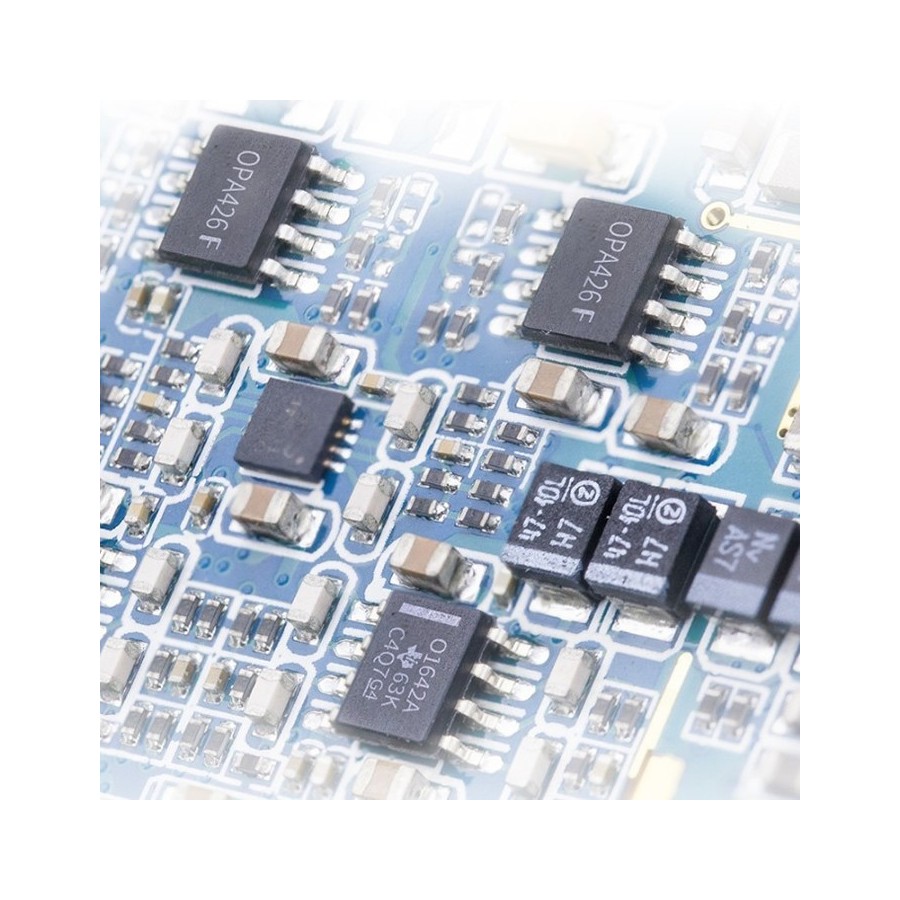

Its amplification stage is composed of very low distortion AOP OPA1642 and OPA1612 (for the filtering stage LPF).f = "https://www.audiophonics.fr/fr/amplifier-casque-sedentaire-c-645.html" target = "_ blank">Headphone Amplificationapplied gives a great dynamics and a pleasant precision in the bottom of the spectrum.

The 3rd X5 uses two "Crystal oscillators"One for the DSD and 44.1 / 88.2 / 176.4 / 352.8kHz, and the other for the 48/96/192 / 384kHz rates. This guarantees for all sampling rates a very low Jitter, Clock accuracy still improved, more stable operation, and virtually no artificial conversion of sampling frequency.

deux oscillateurs à cristaux séparés

Finally this audiophile player works under 2 modes:Pure MusicorAndroid 5.1. In the latter mode, the DAP is compatible with audio streaming applications such asQobuz, Spotify, Deezer, etc ... Under the Pure Music mode the Fiio X5 3rd uses your internal storage or your cards Micro SD to play the available music.

Technical characteristics :

  • Digtial Audio Player HiFi Hi-Res Audio
  • Processor Quad-Core A9 RK3188 Rockship 1.4GHz
  • RAM: 1GB
  • DAC: 2x AKM AK4490
  • Used societies: OPA1612 / 2x OPA426
  • Lossless files supported: APE, AIFF, WAV, WMA, MP3, FLAC, ALAC, DXD, DSD64, DSD128
  • USB DAC function: Supports up to 24Bit / 192kHz
  • Bluetooth Apt-X function: 4.0 / Low Latency
  • 2.4GHz / DLNA WiFi function
  • Sound balance: L10 ~ R10 (0.5db / step)
  • Output Level: 300mW (32Ohm)
  • Noise Ratio: 120dB
  • Harmonic Distortion: -112dB
  • Sampling rate up to 32Bit / 768kHz
  • 2 modes of operation: Pure Music & Android

Main Features :

  • Headphone Jack Jack 3.5mm / Headphone Jack Jack 2.5mm Symmetrical
  • Line Output Jack 3.5mm / Micro USB Port
  • Battery: 3.8V / 3400mAh / Li-polymer
  • Autonomy: 10h
  • Charging time: 2h (With 12V / 1.5A adapter)

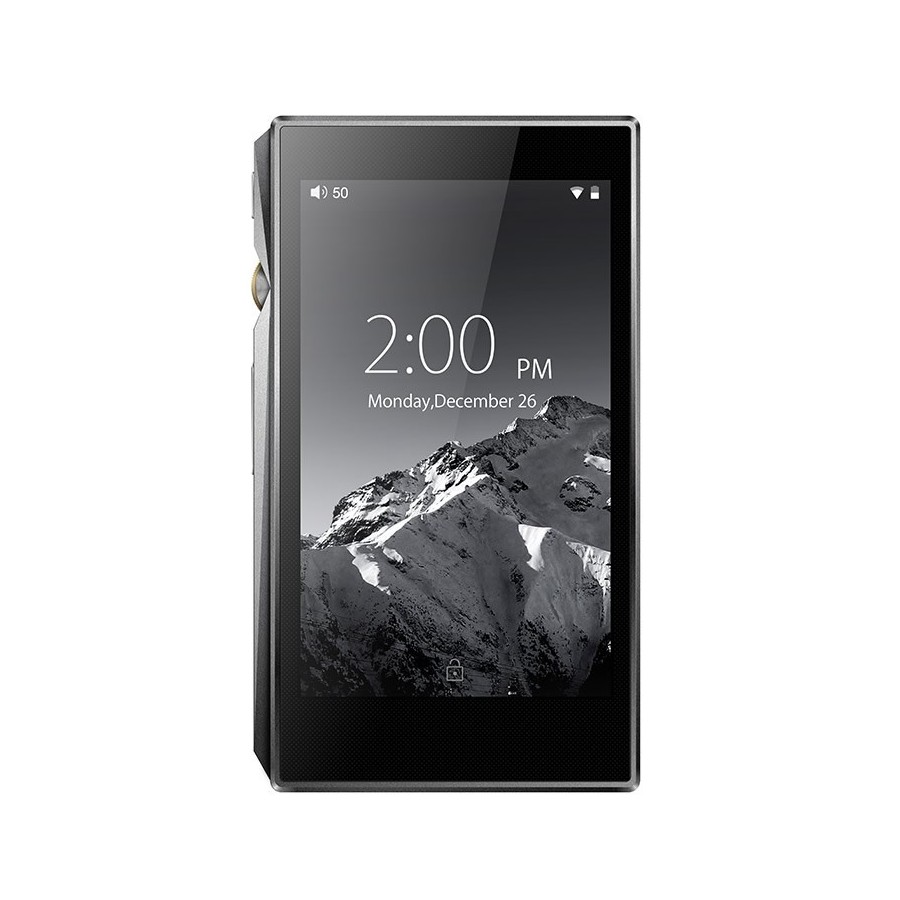

  • Touch screen 3.97 "/ IPS TFT / 16.7 million colors
  • Internal Storage: 32GB
  • Dual Micro SD card storage: up to 2x 256GB

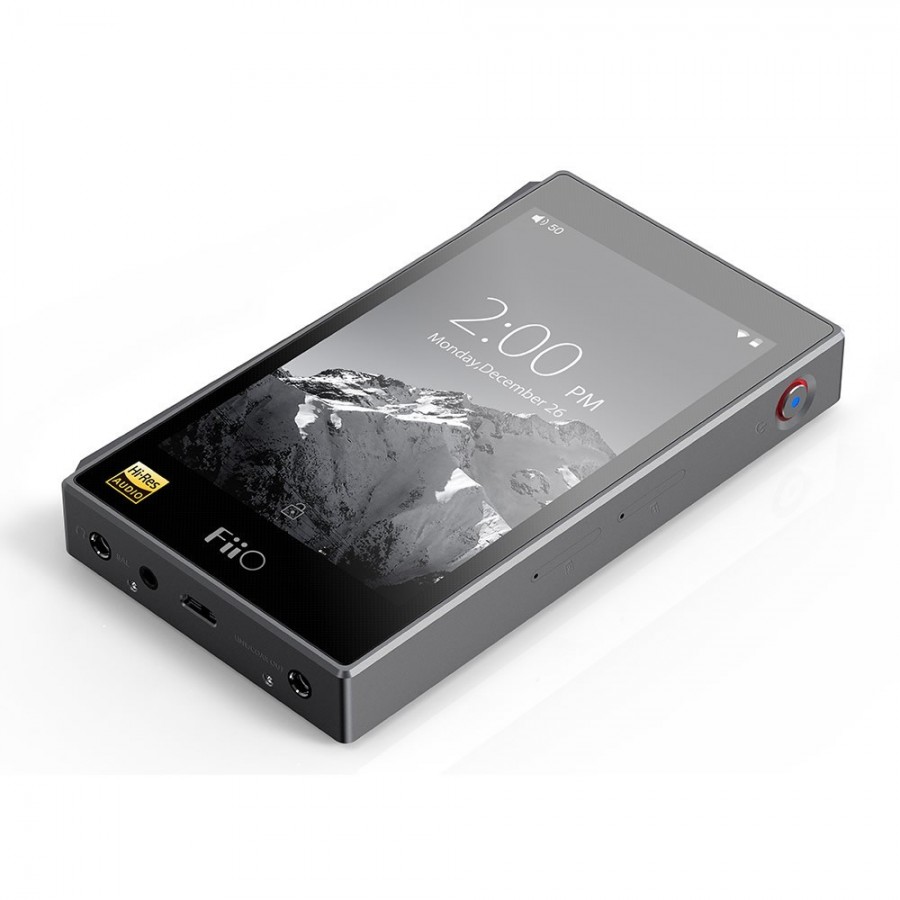

  • Case 100% CNC Machined Aluminum Black

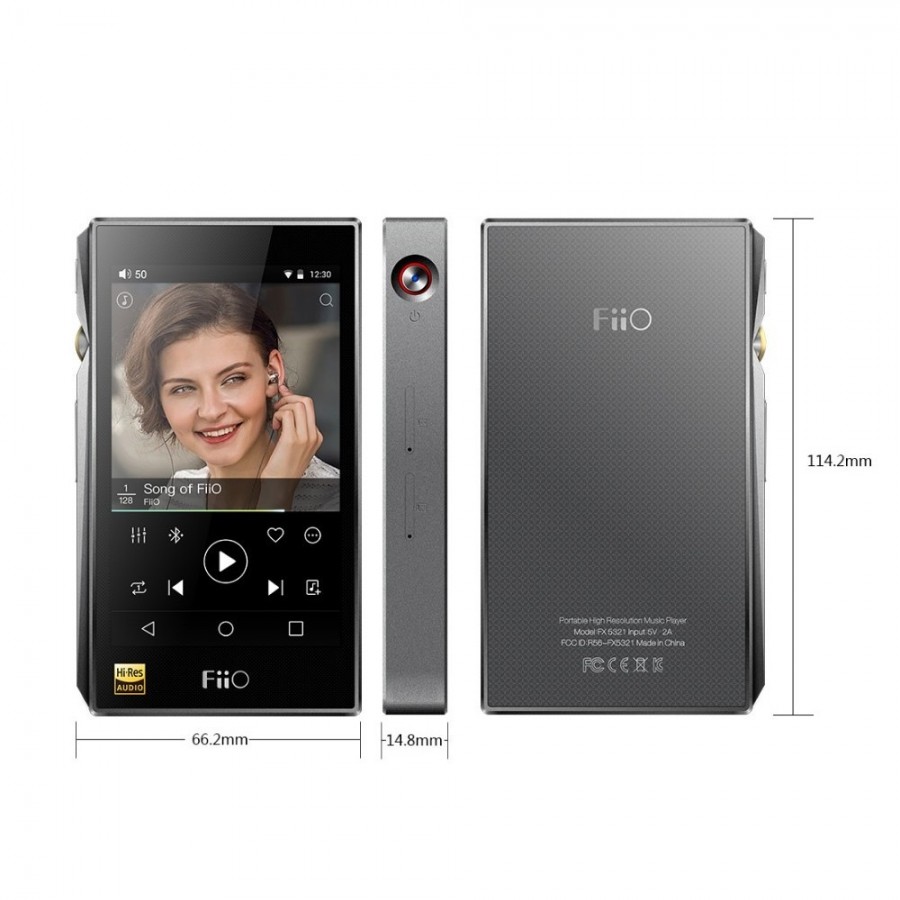

  • Dimensions: 114.2x66.2x14.8mm
  • Weight: 186g
  • Color: Titanium
  • Included Accessories: Micro USB Cable/ Coaxial cable adapter / Screen protector / Cleaning cloth / Protective cover

Hi-Res DAP DAC AK4490

Fiio X5 3rd DAP

Fiio X5 3rd DAP

Fiio X5 3rd Gen Bluetooth Apt-X

CNC Aluminium Body Fiio X5

Fiio X5 3rd DAP


Data sheet
OutputCoaxial SPDIF
OutputJack 3.5mm
OutputJack 2.5mm
DAC / ADC ChipAK4490
Max sampling rateDSD128
Max sampling rate768kHz
ColorTitanium
