SHANLING M1 Black DAP High Fidelity DAC AK4452 32bit/192kHz DSD

The famous Shanling brand here unveils the DAP M1 Nomadic High Fidelity Walkman Bluetooth 4.0 APTX.
Designed around a sober and elegant design at the same time, its compactness brings in a pocket-sized audiophile sound.

Ideal for mobile listening, this full-fidelity player offers you the possibility to play virtually all PCM high-resolution audio files up to32bit 192kHzor DSD 64 and 128.

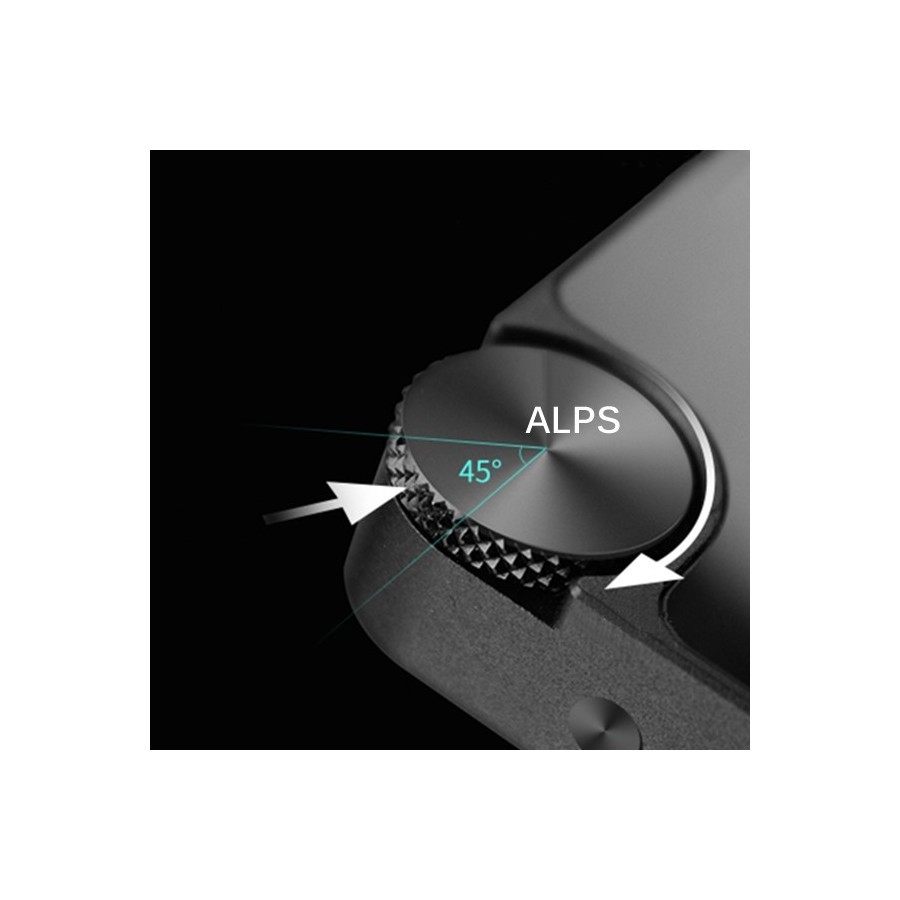

In addition, the analog part features an original ALPS potentiometer for increased reliability and sound fidelity.

This DAP uses a converter32bit AK4452192Khz latest generation as well as a high performance headphone output MAXA97220the result of which is a great musicality. Its very ergonomic design, its careful electronics makes it a successful product that represents an alternative to larger digital players.

Of course this player is alsoDAC OTG.

Features:/ Strong>

• Screen: 2.35 "TFT (360x400)
• Support DSD: Supported and converts to PCM by software channel
• Bluetooth receiver: Version: 4.0 APT-X
• DAC conversion component: AK4452
• Amplification chipheadphone: MAX97220
• Two-level gain (high / low)
• Supported formats: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DFF
• Supported sampling frequencies: 44.1-192 kHz
• Headphone output power: 35mW @ 32Ω
• Bandwidth: 20Hz to 20kHz (-0.5dB)
• Distortion: 0.006% (A-weighting, 500mV output)
• S / N:> 105dB (A-weighting)
• Dynamic capacity:> 105dB
• Output Impedance: 0.1Ω
• Channel separation> 70dB (1 kHz)
• Jitter: 30ps (Typ)
• Reference clock: 200 femtoseconds
• Battery: 950mAH, 9-10 hours of operation (manufacturer data), 3-4 hours of charging
• OS: Windows XP, 7, 8, 10 (32/64 bit), Mac OS X 10.7 or above

Connectors:

• USB: Type-C
• Headphone output: 3.5mm jack
• Micro SD card reader: 1 TF (up to 200GB)

Dimensions and weight:

• Width: 60 mm
• Depth: 12.8 mm
• Height: 50 mm
• Weight: 60g
• Black color
• Comes with 3 screen protectors / USB-C cable to USB-C 15cm / USB-C cable to USB-B 15cm / USB-C cable angled to USB-C angled 15cm
