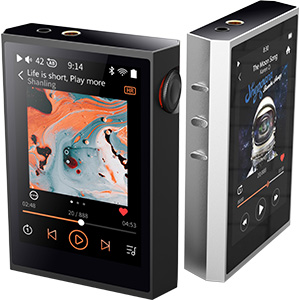

Shanling's M1 Plus is a technical and aesthetic evolution of the M1S high-fidelity digital music player. This Plus version benefits from an improved digital/analogue conversion stage now based on an ESS ES9069Q chip, a new amplification stage and a Bluetooth receiver updated to version 5.2. Its appearance has also been modernised to make it as ergonomic as possible, a real distinguishing feature of the M1. As a result, the M1 Plus is the ideal companion, whether you're on the move or at home, for listening sessions of incredible quality.
The first thing that stands out about the Shanling M1 Plus is its compact size. Designed to take you wherever you go without weighing you down, the DAP measures just 86x61x17mm. In terms of weight, the M1 Plus weighs just 116g. So it's easy to forget, so you can enjoy your music to the full.
Shanling has made no concessions to ergonomics, however, and has integrated a magnificent 3.2" 480x320px high-definition touch screen. This gives you easy access to your music and all the available settings. The screen is housed behind curved tempered glass and the components are protected by a superb 100% aluminium CNC-machined case.
Like its predecessor, the Shanling M1 Plus is based on the Mtouch operating system, providing access to a wide range of useful functions. It's powered by an Ingenic X2000 processor, ensuring smooth browsing in all circumstances.
In terms of sound, the M1 Plus incorporates an ESS ES9069Q DAC. These provide seamless, high-quality digital/analogue conversion up to PCM 32 bit / 768kHz and DSD512. This converter is combined with a high-performance amplification section with two SGM8262 amplifier chips delivering output power of 195mW @ 32 Ohm (Single-ended 3.5mm jack) and 660mW @ 32 Ohm (Balanced 4.4mm jack). This combination enables this small DAP to offer an SNR of 122dB and a distortion rate of 0.0007%.
While the Shanling M1 Plus naturally has a 3.5mm jack for conventional connection to your headphones, it also offers Bluetooth 5.2 connectivity for even greater convenience. Bluetooth connectivity with Sony LDAC and Qualcomm aptX technologies. The first of these technologies, LDAC, enables Bluetooth users to enjoy Hi-Res Audio files at up to 24bit 96kHz 4.5Mbps, where conventional Bluetooth would only allow 16bit 44.1Hz compressed audio. The second technology, aptX, enables transmission with less latency and greater stability, to deliver a clean signal.
Furthermore, the M1 Plus features bi-directional Bluetooth 5.2. So, while it can transmit to a speaker or headphones, it can also be used as a receiver, to take advantage of its amplification and DAC from a third-party source.
Furthermore, the M1 Plus can connect to a WiFi network to use AirPlay and DLNA technologies. A 4.4mm balanced jack is also available for exceptional quality headphone listening.
In the same vein, this player also features a bi-directional USB-C port. Just like Bluetooth, this port is capable of receiving or sending audio data. Ideal for taking advantage of the device's audio performance.
Technical characteristics
Specifications | |
---|---|
Product type | Digital music player (DAP) |
DAC Chips | ESS ES9069Q |
AOP Chips | 2x SGM8262 |
Processor | Ingenic X2000 |
Inputs | Bluetooth 5.2 1x USB-C 1x Slot Micro SD (up to 2TB) |
Outputs | Bluetooth 5.2 Wifi 1x Jack 3.5mm 1x Jack 4.4mm balanced 1x USB-C |
SyncLink | Via the Eddict Player application |
Touch screen | 3.2" 320x480px |
Battery | 2100mAh |
Autonomy | 12.5h |
Supported Bluetooth codecs | SBC, AAC, aptX, aptx HD, LDAC |
Supported Wifi protocols | Airplay DLNA, OTA updates |
Supported sampling rates | PCM up to 32bit 768kHz DSD up to DSD512 |
Output power | Single-ended output : 195mW @ 32Ω Balanced output : 660mW @ 32Ω |
Total harmonic distortion (THD+N) | 0.0007% |
Cross channels | Single-ended output : 74dB Balanced output : 100dB |
Signal-to-noise ratio (SNR) | 122dB |
Output impedance | Single-ended output : 0.6Ω Balanced output : 1.2Ω |
General | |
---|---|
Dimensions | 86 x 61 x 17 mm |
Weight | 116g |
Color | Black |
Package | 1x Shanling M1 Plus 1x USB-A to USB-C cable 1x Screen protection |
Input | USB |
Input | Micro SD |
Input | Bluetooth |
Output | WiFi |
Output | Jack 3.5mm |
Output | Bluetooth |
Output | USB |
Output | Jack 4.4mm |
DAC / ADC Chip | ES9069Q |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Color | Black |
