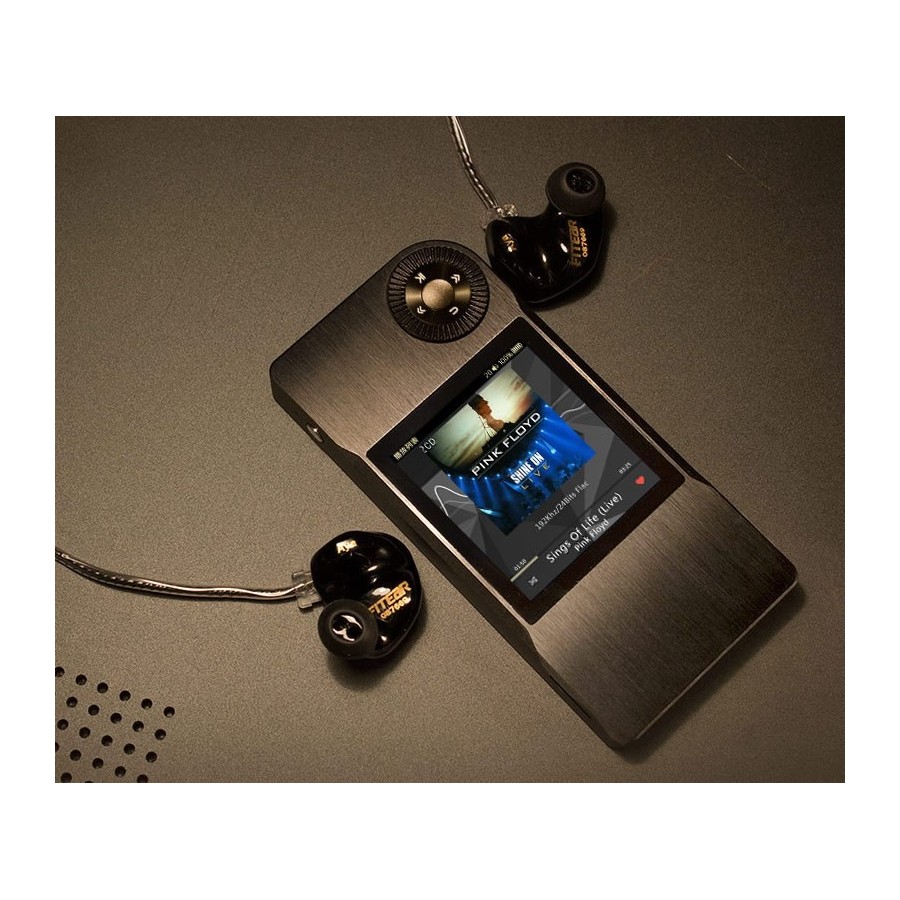

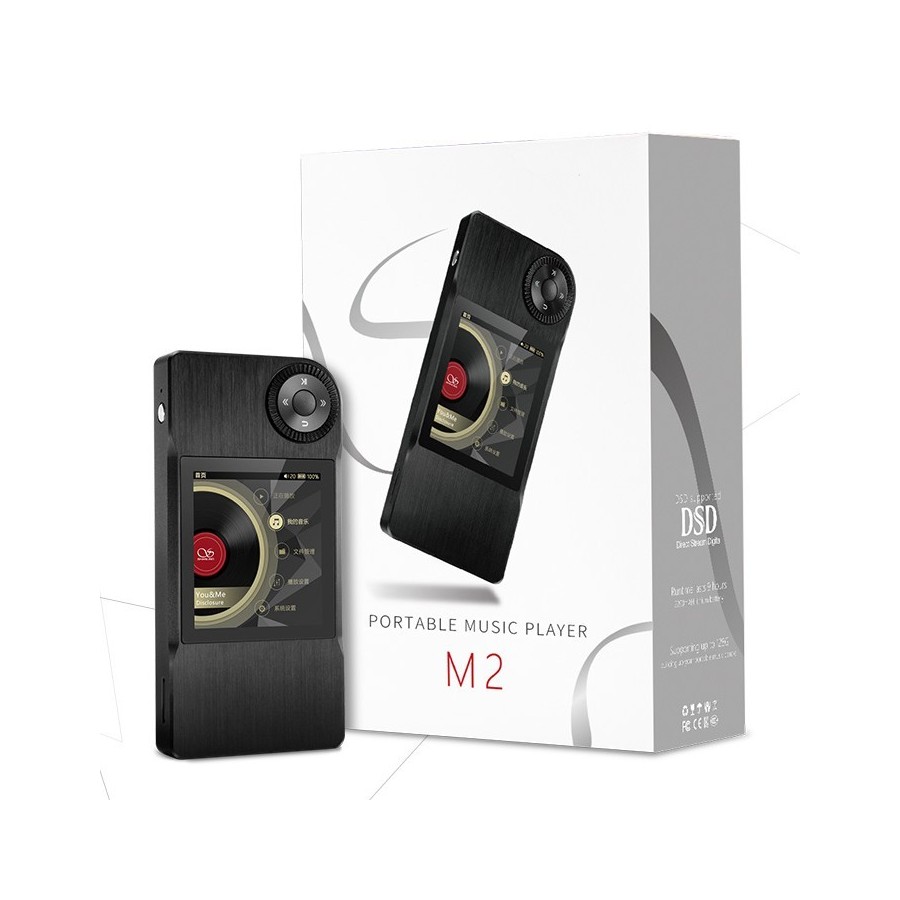

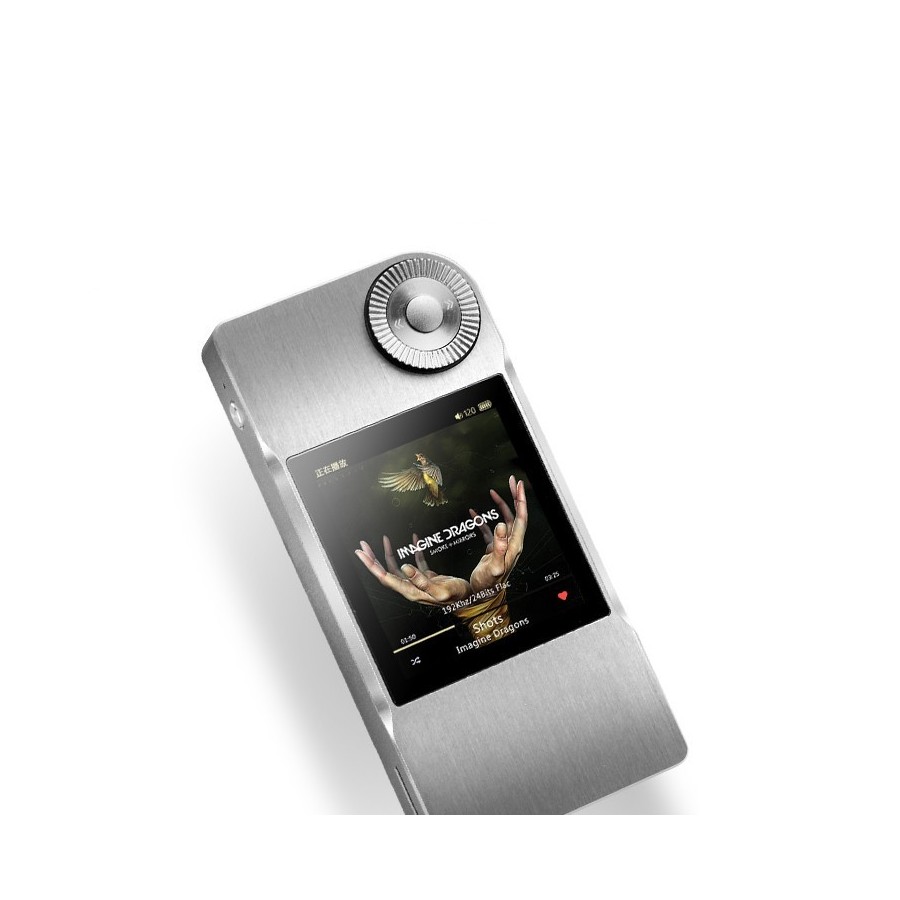

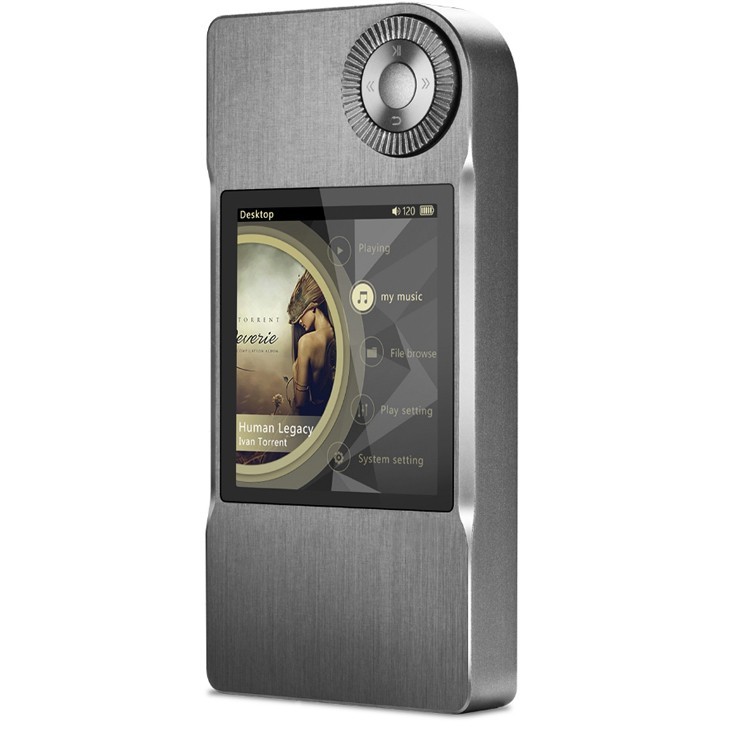

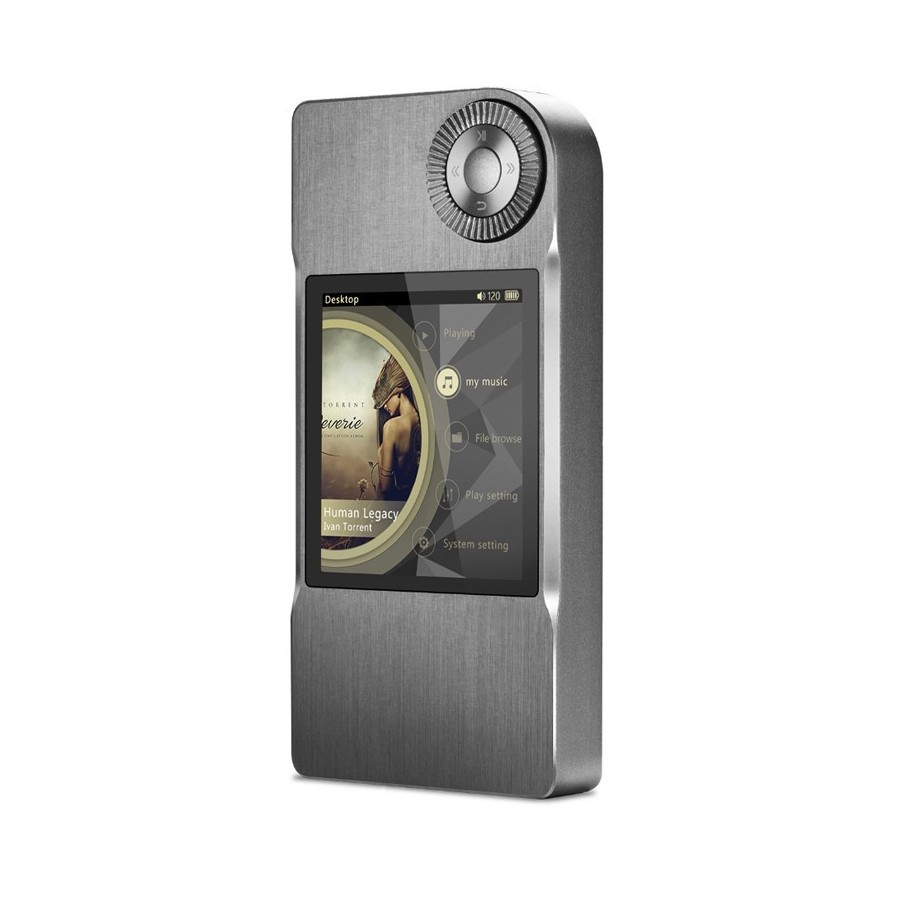

SHANLING M2 Space Grey DAP DAC CS4398 32bit/192kHz DSD

The famous firm here unveils the compact DAP of its range of high fidelity players: the Shanling M2.
Surprising in efficiency and designed around a sober and elegant design at once, it is as comfortable as DAP, as a sedentary Audiophile or DAC USB source.

It's a full-featured Hi-Fi player that gives you the ability to play almost all high-resolution PCM files up to 32bit 192kHz or DSD.

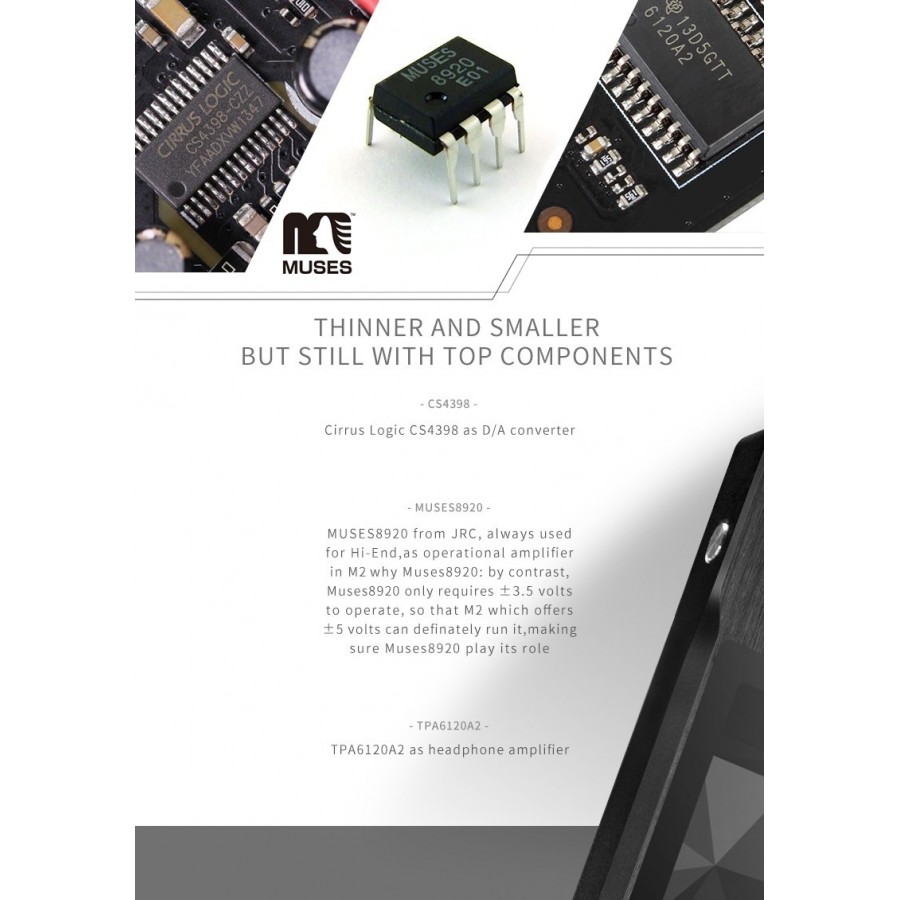

heuses a Cirrus Logic CS4398 converter and a combination of new components (low-pass filter MUSE8920 3.5V low voltage, AOP TPA6120A2 headphone output) resulting in great musicality.

The Shanling M2 is a compact DAP with reflective and neat electronic architecture.
It is a very good value for money.

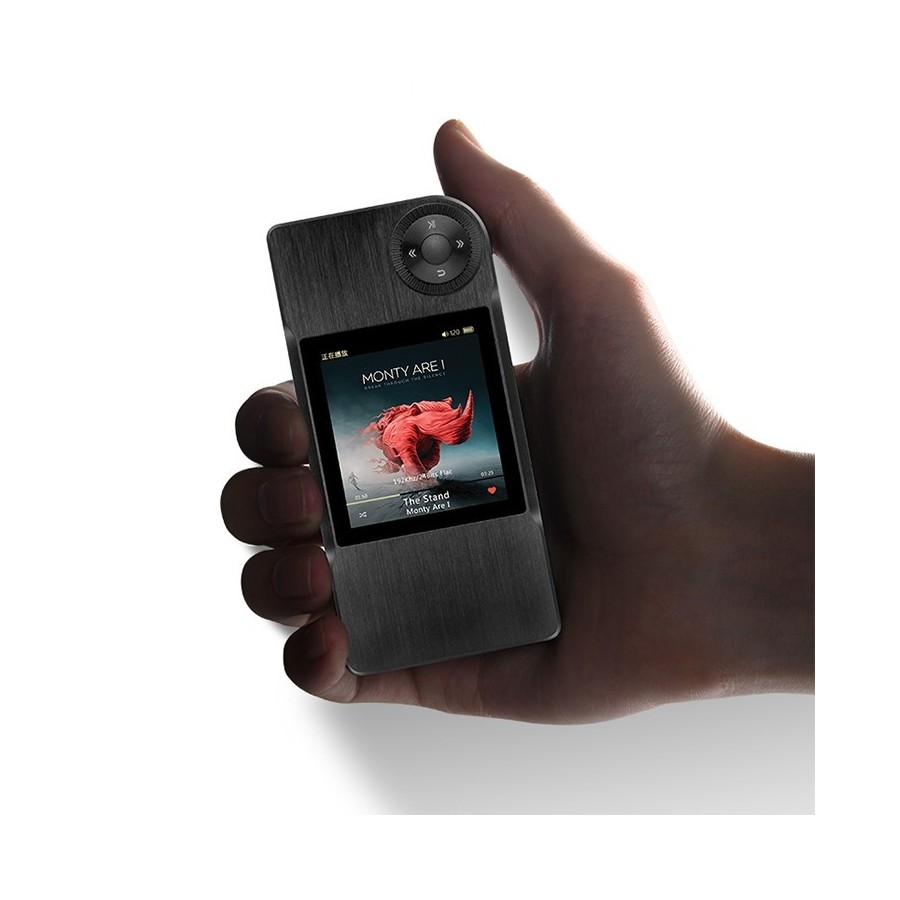

Its very ergonomic design makes it a successful product that represents an alternative to larger digital players.

Test of the Shanling M2 by Nomad.

Features:/ Strong>

• DAC Cirrus Logic CS4398
• USB DAC function
• Taux supported: 32bit 192kHz, including the 88.2kHz
• Supported Audio Files: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DIFF, DSD
• Headphone amplifier: TPA6120A2
• Low-pass filter CCR MUSE8920 low voltage (3.5V) on DIP8 support
• Frequency response: 20Hz - 20kHz to -0.5dB
• THD + N: <0.004%
• Signal Noise Ratio (SNR):> 102dB
• High precision clock (jitter: 200fs)
• Analog volume control via ALPS potentiometer

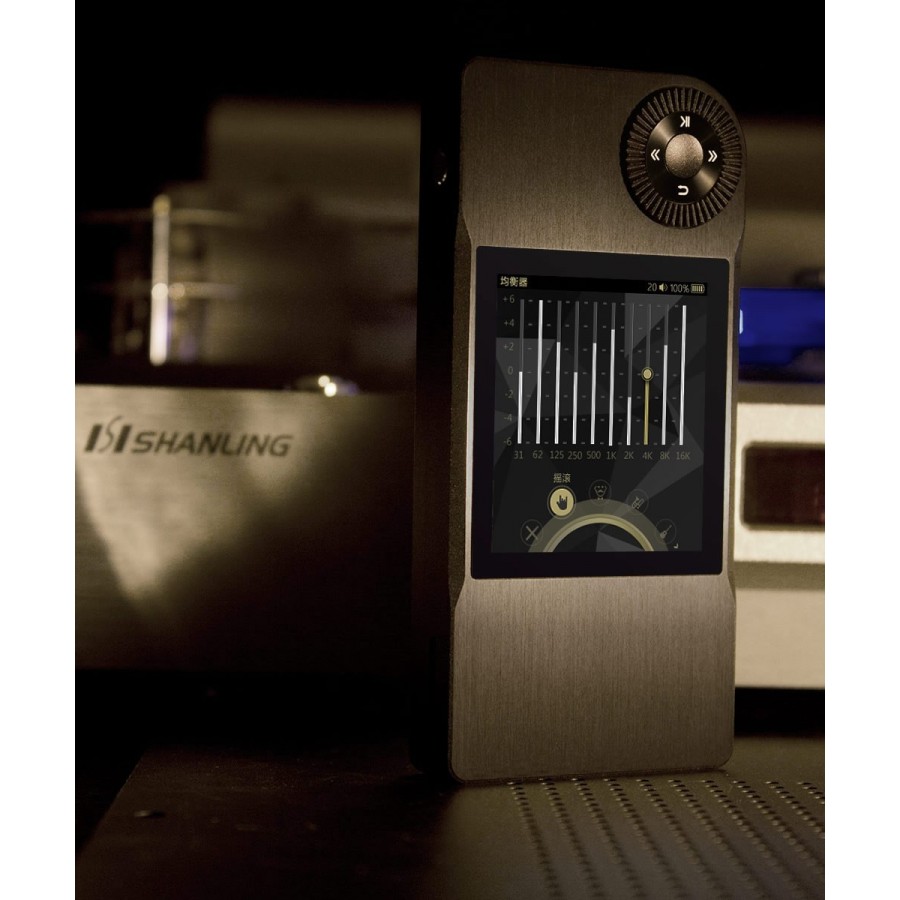

• Digital Equalizer
• Output Level: 1.3Vrms
• Output power: 125mW under 32 Ohms, 13mW at 300 Ohms
• Impedance: 32 - 300 Ohms

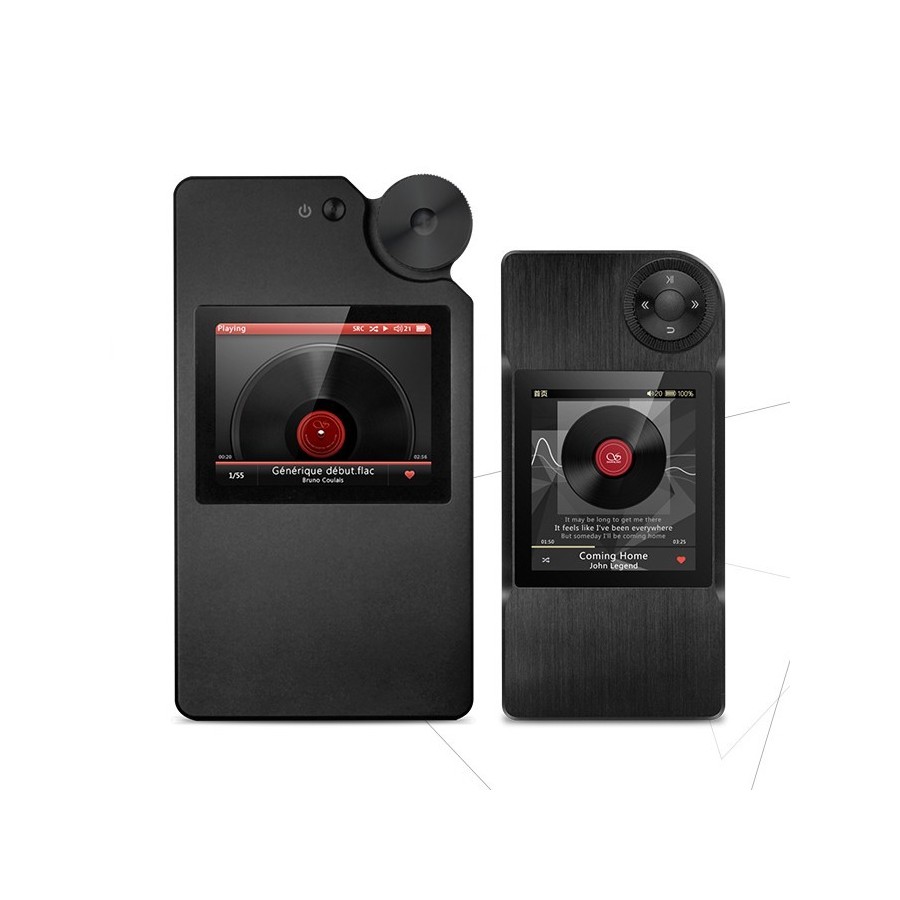

• 2.4 "TFT screen
• External memory: Micro SD up to 128 Giga (not included)
• Micro USB port

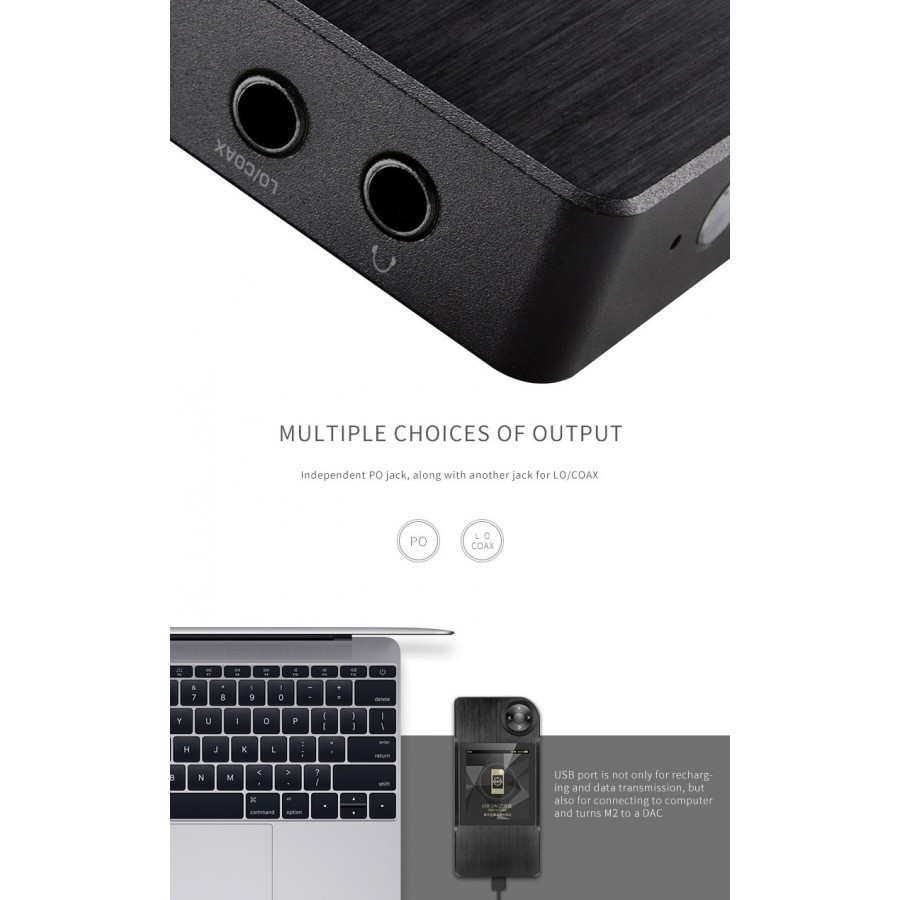

• Output Jack 3.5mm: Headphone (amplified), line (not amplified)
• Battery: 2200mA / h
• Autonomy: 9 hours
• Dimensions: 110x52.5x13.8mm
• Weight: 115g

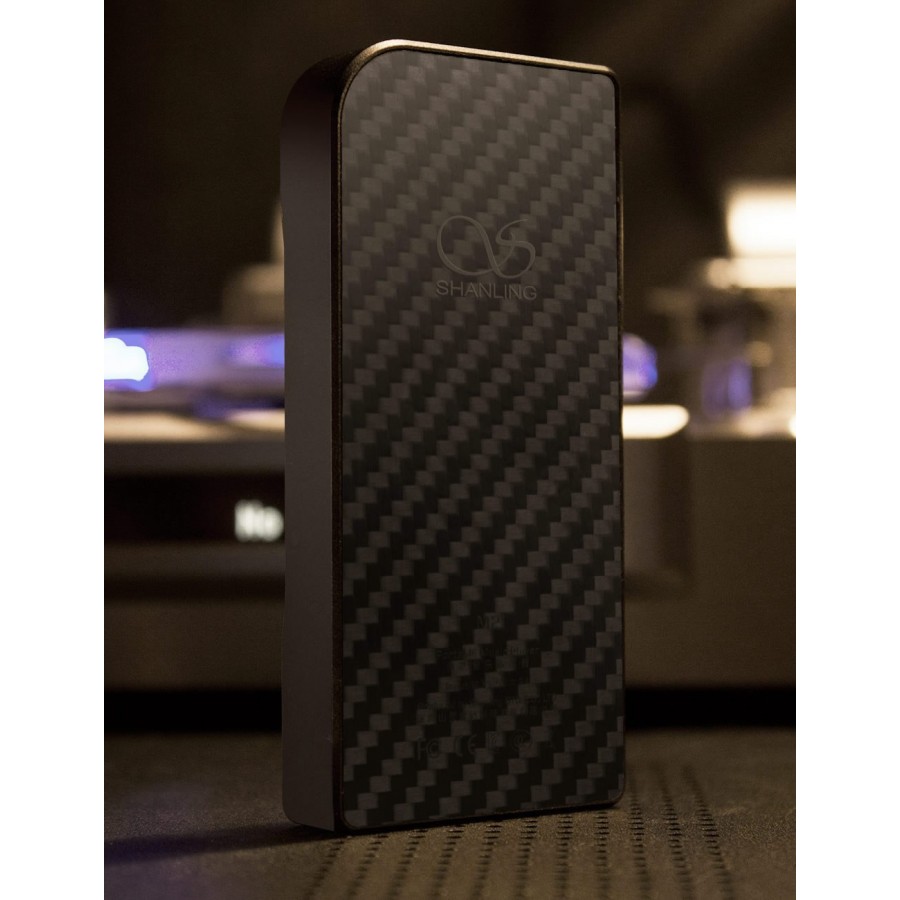

• Chassis Aluminum, Carbon finish
• Space Gray Anodized

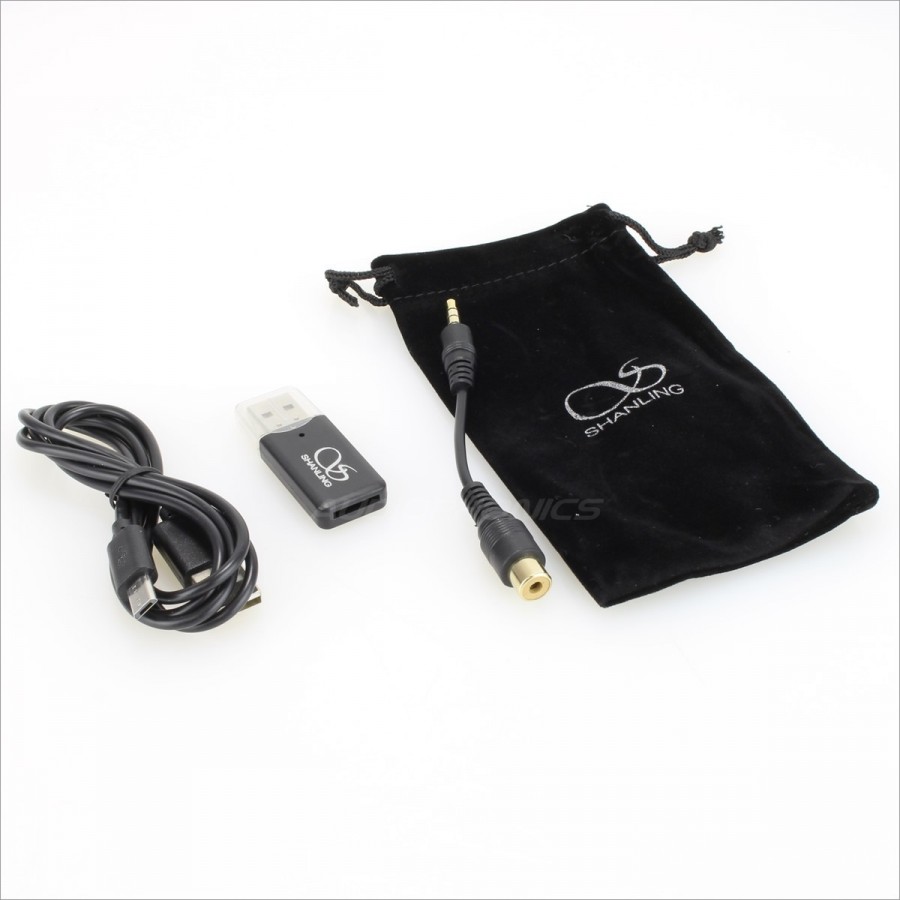

• USB A to Micro USB cable, 3.5mm to S / PDIF RCA coaxial cable, USB stick adapter for micro SD card and supplied cover
• Compatible with Mac OS 10.7 and Linux without drivers and Windows XP, 7, 8 (driver nécessaire)

M2 "href =" http://www.head-fi.org/products/shanling-m2-hifi-portable-lossless-musicl-player-dsd-player/reviews/14446 "target =" _ blank ">
Test in English (Click here).
