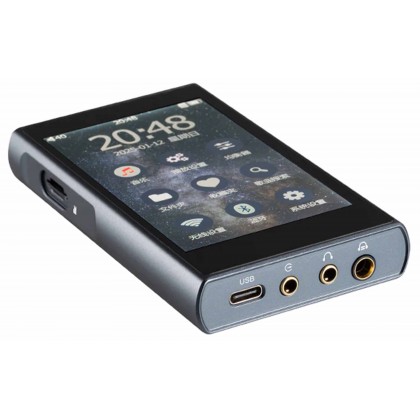

The DAP xDuoo X5 is a digital music player based on two CS43131 DAC chips in a balanced architecture. These DAC chips give it the ability to support high-resolution sampling rates up to PCM 32bit 384kHz and DSD256. On top of this come a host of features such as bi-directional Bluetooth 4.2 (AAC, SBC, LDAC), a microSD slot for up to 1TB (microSD card not included), 10-band equalization, an “IN-CAR” mode and USB DAC functionality. All this is accessed via a handsome 3.5” HD IPS display, and, on the connectivity side, there's a USB-C port (power and DAC) as well as 3 outputs: 3.5mm line output, single-ended jack 3.5mm headphone output and balanced jack 4.4mm headphone output. The xDuoo X5's power supply is based on a 2600mAh battery offering up to 10h of autonomy with a full charge time of 3h, making it a perfect ally for everyday use or travel.
The xDuoo X5 features two CS43131 DAC chips implemented within a balanced architecture. This enables it to support sampling rates up to PCM 32bit 384kHz and DSD256. Furthermore, its USB port enables it to operate as a USB DAC for easy enjoyment of high-resolution files.
The xDuoo X5 benefits from bi-directional Bluetooth 4.2 functionality supporting AAC, SBC and LDAC codecs for reliable, stable wireless signal reception and transmission.
The xDuoo X5 features a MicroSD slot for adding up to 1TB (microSD card not included) of memory, so you can enjoy an extensive music library.
The xDuoo X5's 10-band equalization allows each frequency band to be precisely adjusted to suit both hardware and user taste.
By connecting the X5's USB port to your car, you can synchronize its use with your car and provide high-quality audio sources.
1 | 3.5” HD IPS display |
2 | MicroSD slot |
3 | Power button |
4 | Volume control |
5 | USB-C port (charge/DAC) |
6 | Jack 3.5mm line output jack |
7 | Single-ended Jack 3.5mm headphones output |
8 | Balanced Jack 4.4mm headphones output |
Technical characteristics
Specifications | |
---|---|
Product type | DAP |
DAC chip | 2x CS43131 |
Inputs | 1x USB-C (DAC) 1x 1TB microSD slot Bluetooth |
Outputs | 1x Balanced 4.4mm jack headphones output 1x Single-ended 3.5mm jack headphones output 1x AUX jack 3.5mm output Bluetooth |
Supported sample rates | PCM up to 32bit 384kHZ, native DSD up to DSD256 |
Bi-directional Bluetooth 4.2 | |
Supported Bluetooth codecs | SBC, AAC, LDAC |
Suppoted formats | DSD64-256 (DSF, DFF, ISO), WAV, AIFF, FLAC, APE, MP3, WMA, OGG, M4A, AAC |
MicroSD support | Up to 1TB (FAT32, EXFAT, NTFS) |
USB DAC | Plug and play |
Compatible output impedance | 16-300 ohm |
Display | HD IPS 3.5" (480x800px) |
Single-ended Jack 3.5mm headphones output specifications | |
---|---|
Output power | 200mW (32 ohm / THD+N <0.001%) |
Frequency response | 20Hz-20kHz (+/-0.5dB) |
SNR | ≥ 115dB |
Crosstalk | > 75dB |
THD+N | 0.001% @ 1kHz (32 ohm @ 1kHz) |
Balanced Jack 4.4mm headphones output specifications | |
---|---|
Output power | 270mW (32 ohm / THD+N <0.001%) |
Frequency response | 20Hz-20kHz (+/-0.5dB) |
SNR | ≥ 120dB |
Crosstalk | > 115dB |
THD+N | 0.0009% @ 1kHz (32 ohm @ 1kHz) |
3.5mm line output specifications | |
---|---|
Output level | 2.0Vrms |
Frequency response | 20Hz-20kHz (+/-0.5dB) |
SNR | ≥ 115dB |
Crosstalk | > 108dB |
THD+N | 0.001% @ 1kHz (32 ohm @ 1kHz) |
General | |
---|---|
Power supply | 5V DC via USB-C |
Battery | 3.7V/2600mAh lithium polymer battery |
Battery life | 10h |
Charging time | 3h |
Dimensions | 105 x 60 x 16mm |
Weight | 150g |
Color | Grey |
Package | 1x xDuoo X5 1x USB Cable |
Input | USB |
Input | WiFi |
Input | Bluetooth |
Output | Jack 4.4mm |
Output | Jack 3.5mm |
DAC / ADC Chip | CS43131 |
Max sampling rate | 384kHz |
Max sampling rate | DSD256 |
Color | Gray |
