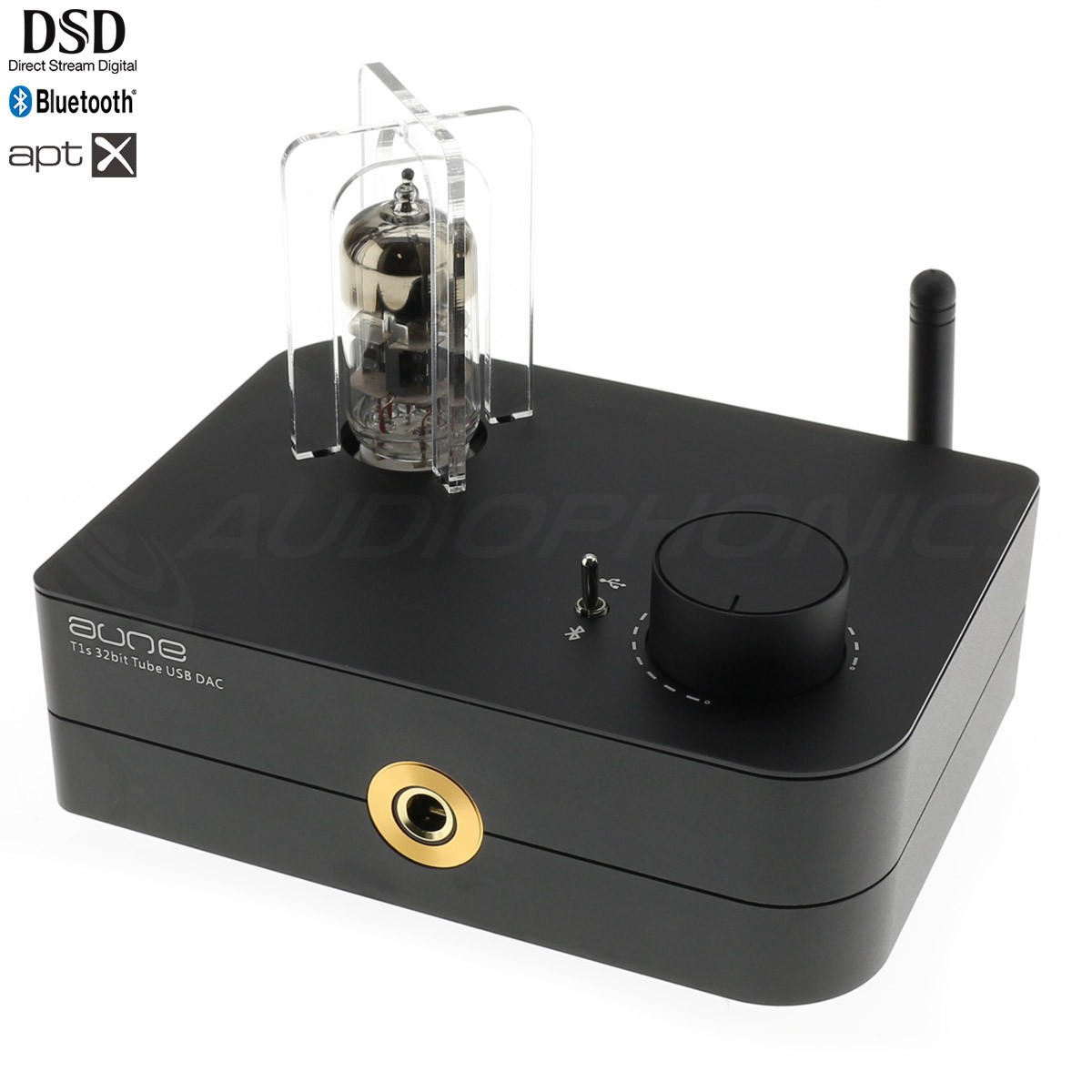

AUNE T1S 4TH GEN Headphone Tube Amplifier DAC ES9038Q2M Bluetooth aptX HD 32bit 768kHz DSD512 Black

The T1s is the fourth generation of the Aune T1 range. As for its predecessors, it is a headphone amplifier combo with tube and DAC, integrated in a compact housing. However, this new version offers extended connectivity and a revised architecture to provide improved audio performance.

No customer reviews yet, login to write a review.

By buying this product you get 29 loyalty points


Reference : 14128
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Aune T1s

Headphone Tube Amplifier DAC ES9038Q2M Bluetooth aptX HD 32bit 768kHz DSD512

Aune T1s Amplificateur Casque à Tube DAC ES9038Q2M Bluetooth aptX HD 32bit 768kHz DSD512

The T1s is the fourth generation of the Aune T1 range. As for its predecessors, it is a headphone amplifier combo with tube and DAC, integrated in a compact housing. However, this new version offers extended connectivity and a revised architecture to provide improved audio performance.

Aune T1s Amplificateur Casque à Tube DAC ES9038Q2M Bluetooth aptX HD 32bit 768kHz DSD512

Tube Headphone Amplifier & DAC

The amplification section of the Aune T1s is based in particular on the use of an Electro Harmonix 6922EH tube offering a rich and warm sound. The conversion section is handled by an ESS ES9038Q2M chip, offering incredible audio performance in terms of accuracy and precision, while supporting high sampling rates, in PCM up to 32bit 768kHz and in DSD up to DSD512.

Bluetooth 5.0 aptX

New addition also for this T1s version, the integration of a Bluetooth 5.0 chip. This allows you to easily broadcast your audio files remotely, directly from a smartphone or tablet. The embedded chip supports Qualcomm's aptX HD transmission codec, providing higher throughput and transmission stability for CD-like audio playback.

Custom power supply

With its 12V positive / negative power supply module, its two power supply circuits for the digital and analog stage, and its high voltage tube, the T1s ensures an excellent dynamic range.

Connectivity

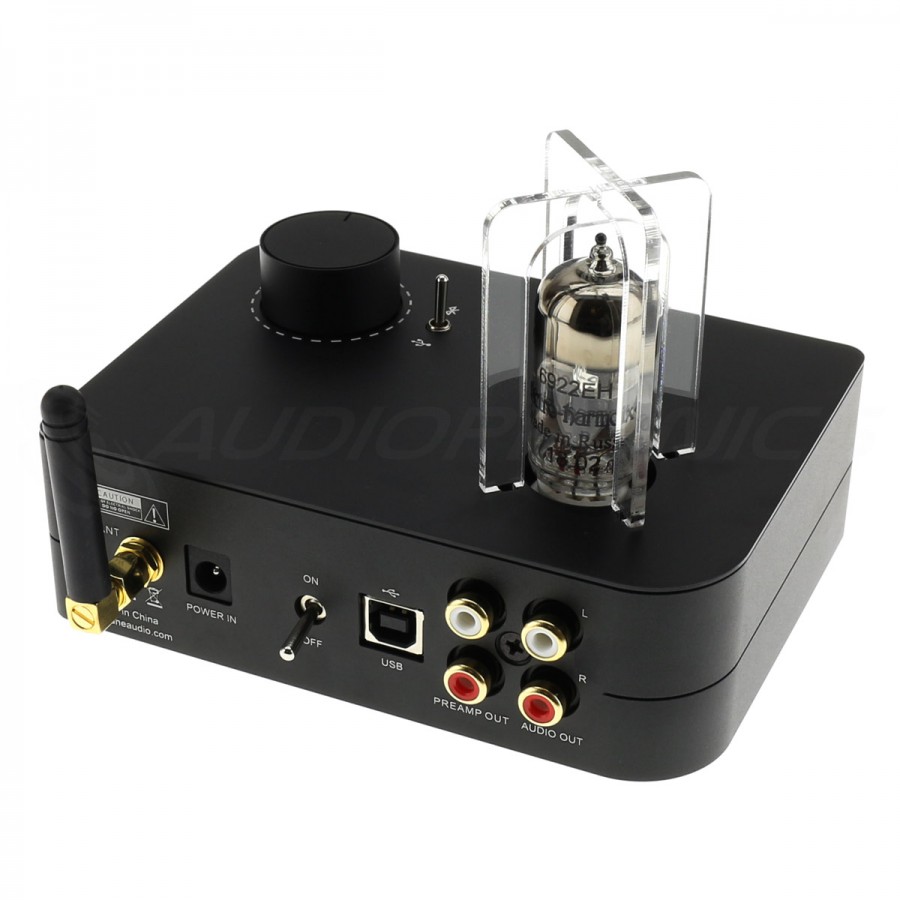

The Aune T1s' connectivity is simple and efficient, while allowing it to be integrated into many audio systems. This includes the USB-B input and Bluetooth 5.0 reception. For the outputs, the T1s offers an amplified headphone output in 6.35mm Jack format on the front panel, as well as a Line output and a Pre Out output on RCA connectors.

Diagram

Aune T1s Amplificateur Casque à Tube DAC ES9038Q2M Bluetooth aptX HD 32bit 768kHz DSD512

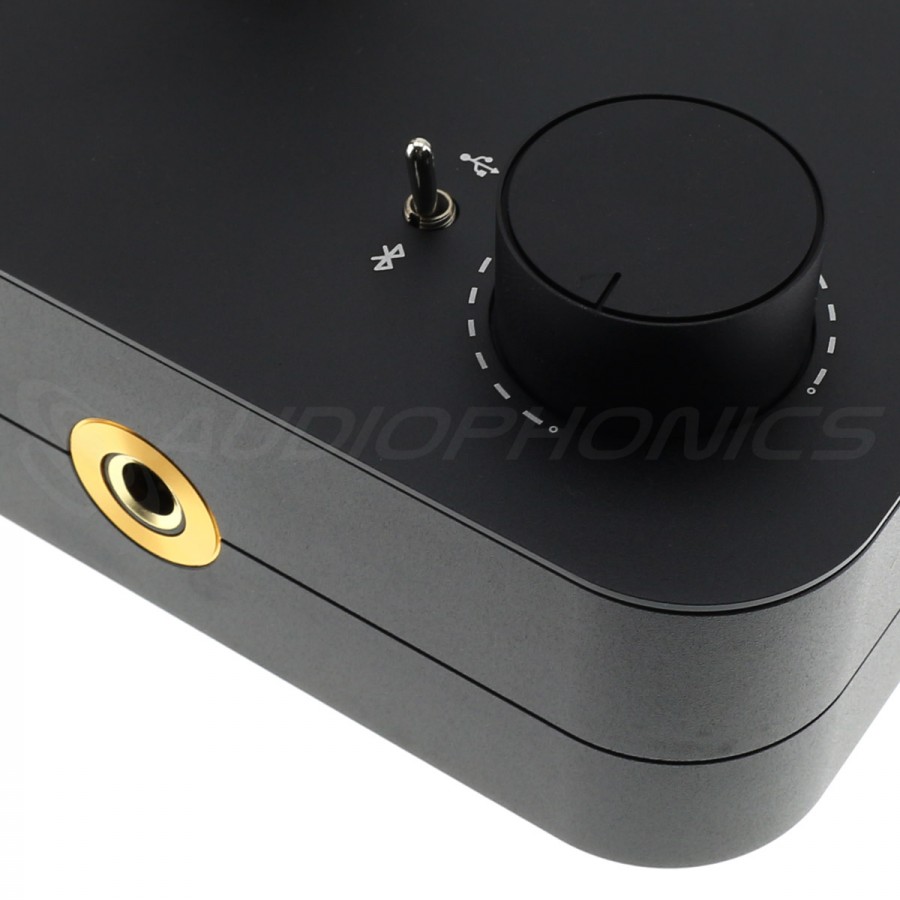

1.1Jack 6.35mm headphone output
1.2Tube armature support
1.3Tube socket
1.4Bluetooth / USB switch
1.5Volume button

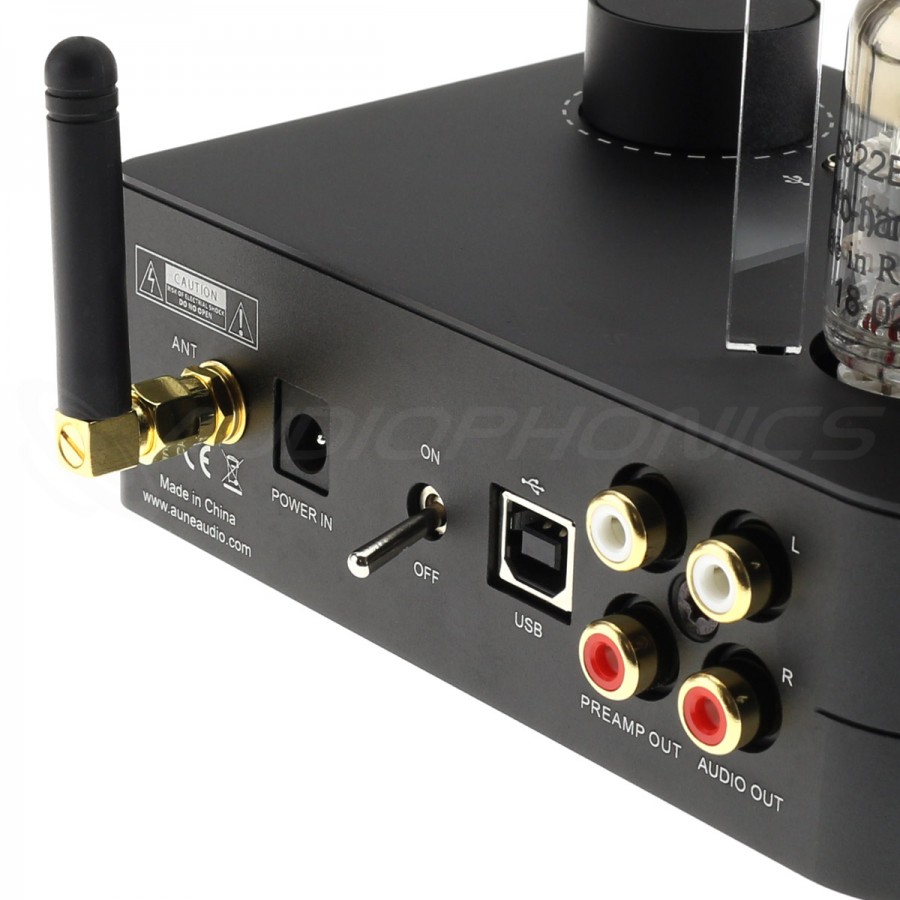

2.1RCA Line output
2.2Pre Out RCA
2.3USB input
2.4ON/OFF Switch
2.5Power connector
2.6Bluetooth antenna connector
2.7Gain selection switch


Technical characteristics

Specifications
Product typeHeadphone tube amplifier
DAC
Tube1x Electro Harmonix 6922EH
Inputs1x USB-B
Bluetooth
Outputs1x Jack 6.35mm
1x RCA
1x RCA Pre Out
Supported sampling rates (USB Input)PCM up to 32bit 768kHz
DSD up to DSD512
Line output level2Vrms
Line output frequency response20Hz - 20kHz +/-0.5dB
Line output THD+N0.01%
SNR7.9µV
Headphone output power300mW @ 120Ω
Gain switch0dB
10dB
16dB
General
Case materialAluminium
ColorBlack
Dimensions132 x 95 x 105mm
Weight530g
Package1x Aune T1s
1x USB Cable
1x Bluetooth antenna
1x Male Jack 6.35mm to Female Jack 3.5mm adapter
1x Tube
1x Tube armature
1x Power supply

Data sheet
InputBluetooth
OutputRCA
OutputJack 6.35mm
ColorBlack
Remote ControlNo
