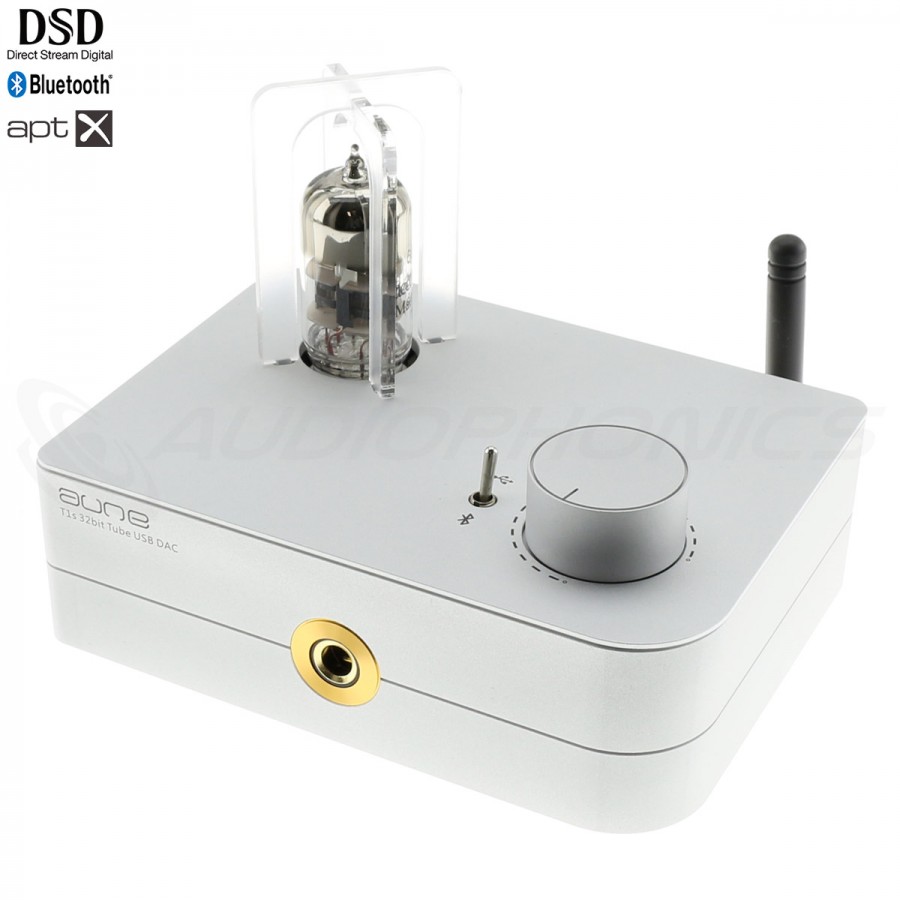

AUNE T1S 4TH GEN Tube Headphone Amplifier DAC ES9038Q2M Bluetooth aptX HD 32bit 768kHz DSD512 Silver
The T1s is the fourth generation of the Aune T1 range. As for its predecessors, it is a headphone amplifier combo with tube and DAC, integrated in a compact housing. However, this new version offers extended connectivity and a revised architecture to provide improved audio performance.
The amplification section of the Aune T1s is based in particular on the use of an Electro Harmonix 6922EH tube offering a rich and warm sound. The conversion section is handled by an ESS ES9038Q2M chip, offering incredible audio performance in terms of accuracy and precision, while supporting high sampling rates, in PCM up to 32bit 768kHz and in DSD up to DSD512.
New addition for this T1s version, the integration of a Bluetooth 5.0 chip. This allows you to easily broadcast your audio files remotely, directly from a smartphone or tablet. The embedded chip supports Qualcomm's aptX HD transmission codec, providing higher throughput and transmission stability, for CD-like playback.
With its 12V positive / negative power supply module, its two power supply circuits for the digital and analog stage, and its high voltage tube, the T1s ensures an excellent dynamic range.
The Aune T1s' connectivity is simple and efficient, while allowing it to be integrated into many audio systems. This includes the USB-B input and Bluetooth 5.0 reception. For the outputs, the T1s offers an amplified headphone output in 6.35mm Jack format on the front panel, as well as a Line output and a Pre Out output on RCA connectors.

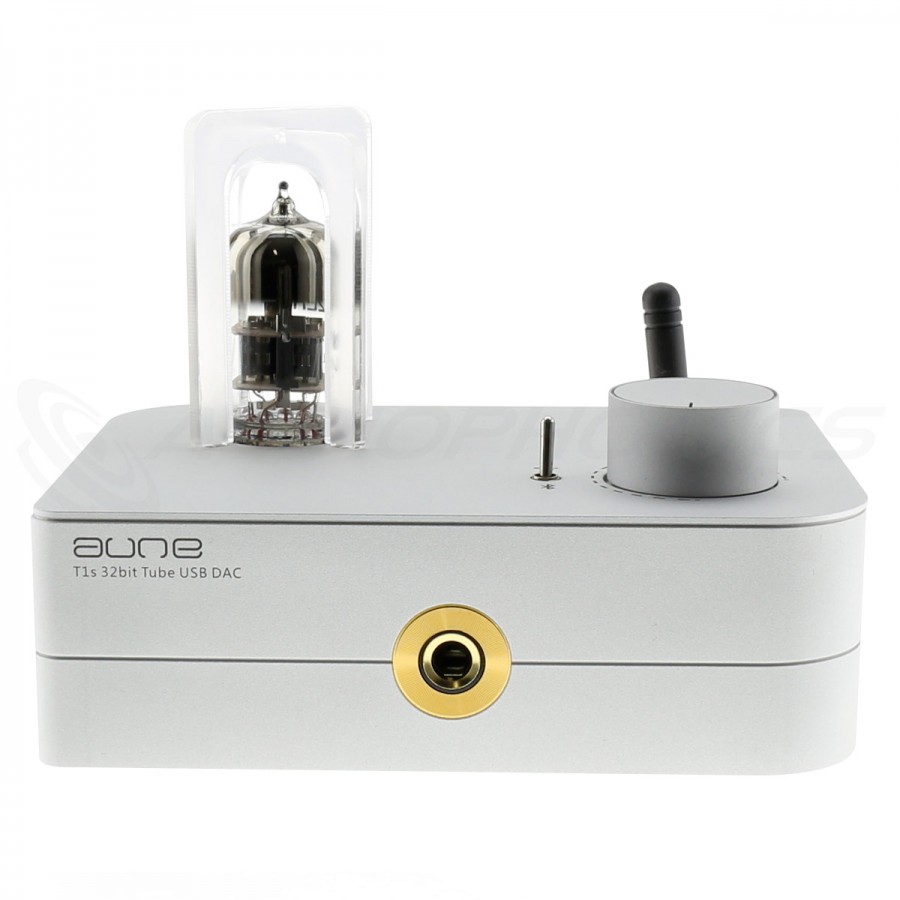

1.1 | Jack 6.35mm headphone output |
1.2 | Tube armature support |
1.3 | Tube socket |
1.4 | Bluetooth / USB switch |
1.5 | Volume button |

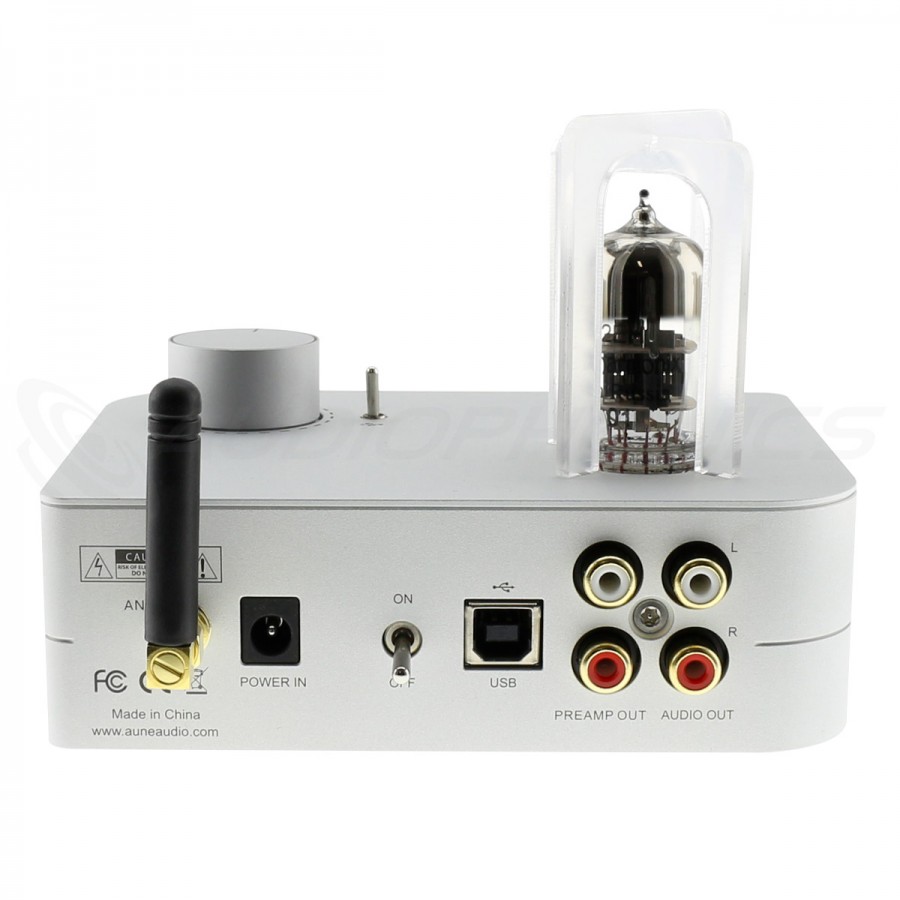

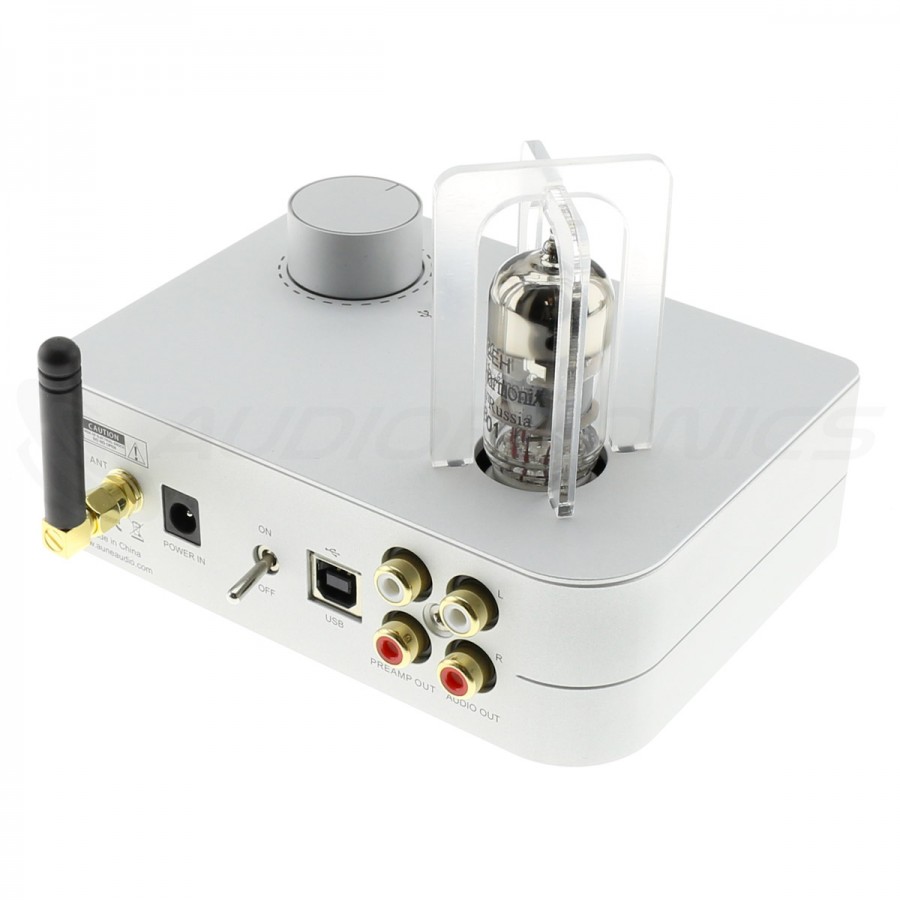

2.1 | RCA line output |
2.2 | RCA Pre out |
2.3 | USB input |
2.4 | ON/OFF button |
2.5 | Power supply connector |
2.6 | Bluetooth antenna connector |
2.7 | Gain selection switch |
Specifications | |
---|---|
Product type | Tube headphone amplifier DAC |
Tube | 1x Electro Harmonix 6922EH |
Inputs | 1x USB-B Bluetooth |
Outputs | 1x Jack 6.35mm 1x RCA 1x RCA Pre Out |
Supported sampling rates (USB input) | PCM up to 32bit 768kHz DSD up to DSD512 |
Line output level | 2Vrms |
Line output frequency response | 20Hz - 20kHz +/-0.5dB |
THD+N line output | 0.01% |
SNR | 7.9µV |
Headphone output power | 300mW @ 120Ω |
Gain | 0dB 10dB 16dB |
General | |
---|---|
Case material | Aluminium |
Color | Black |
Dimensions | 132 x 95 x 105mm |
Weight | 530g |
Package | 1x Aune T1s 1x USB Cable 1x Bluetooth antenna 1x Male Jack 6.35mm adapter to female Jack 3.5mm 1x Tube 1x Tube armature 1x Power supply |
