FOSI AUDIO PH05 5-Channel Headphone Splitter Amplifier

The Fosi Audio PH05 5-channel headphone splitter amplifier is a device that provides a stereo signal via 5 separate outputs, each with independent volume control. Each output has its own independent amplification and offers an output power of 310mW under 32 ohms, enabling you to drive IEMs or headphones with impedances ranging from 16 to 300 ohms.

No customer reviews yet, login to write a review.

By buying this product you get 4 loyalty points


Reference : 19935
New product

49,90 €tax incl.

41,58 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Fosi Audio PH05 5-Channel Headphone Splitter Amplifier

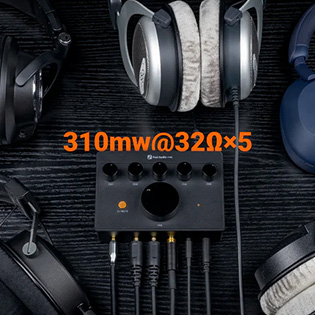

Photo of Fosi Audio PH05

The Fosi Audio PH05 5-channel headphone splitter amplifier is a device that provides a stereo signal via 5 separate outputs, each with independent volume control. Each output has its own independent amplification and offers an output power of 310mW under 32 ohms, enabling you to drive IEMs or headphones with impedances ranging from 16 to 300 ohms. In addition to 5 independent potentiometers, there's also a master volume control and a mute button for total control of the Fosi Audio PH05. Input is via 3.5mm AUX jack, while the 5 outputs are via 3.5mm headphone jack. Thanks to its excellent technical performance, the PH05 can be used in a wide range of scenarios: music production, podcasting, group listening, etc.

Fosi Audio PH05: Texas Instrument NE5532 chip

The Fosi Audio PH05 is based on an OPA NE5532 chip, giving it an output power of up to 310mW under 32 ohms per 3.5mm headphone output. This enables it to drive a wide range of headphones and in-ear monitors, from 16 ohm to 300 ohms impedance.

Fosi Audio PH5 output power

Fosi Audio PH05: advanced features

Global volume control

Global volume control

A large potentiometer controls all 5 outputs.

5 independent volume controls

5 independent
volume controls

Each small potentiometer is dedicated to a headphone output for a listening experience tailored to each user.

Mute function

Mute function

A button with LED indication mutes the 5 headphone outputs.

Fosi Audio PH05: audiophile performance

Suitable for studio use, the Fosi Audio PH05's internal circuitry is optimized for audiophile performance. It features an SNR of 105dB, a THD+N of 0.001% and a noise figure of 25μV.

Fosi Audio PH5 performance

Fosi Audio PH5 overview

Fosi Audio PH5 overview
15x Independent volume control
2Mute button
3Global volume control
4Indicator LED
5AUX input 3.5mm jack
65x 3.5mm headphone output
712V DC 1A power port

Technical characteristics

Specifications
Product typeHeadphone amplifier
5-channel splitter
OPANE5532
Input1x 3.5mm jack AUX
Outputs5x 3.5mm jack headphone output
Output power5x310mW @ 32 ohm
THD< 0.001%
SNR105db
Dynamic range105db
SINAD90dB
Crosstalk90dB
Frequency response20Hz-20kHz (±0.5dB)
Terminaison impedance16-300 Ohm
General
Power supply12V DC 1A
Dimensions79 x 117 x 50mm
Package1x Fosi Audio PH05
1x AUX 3.5mm jack cable
1x Power adapter
Fosi Audio PH5 measurements

Data sheet
InputJack 3.5mm
OutputJack 3.5mm
ColorBlack
ClassClass D / T
Remote ControlNo
