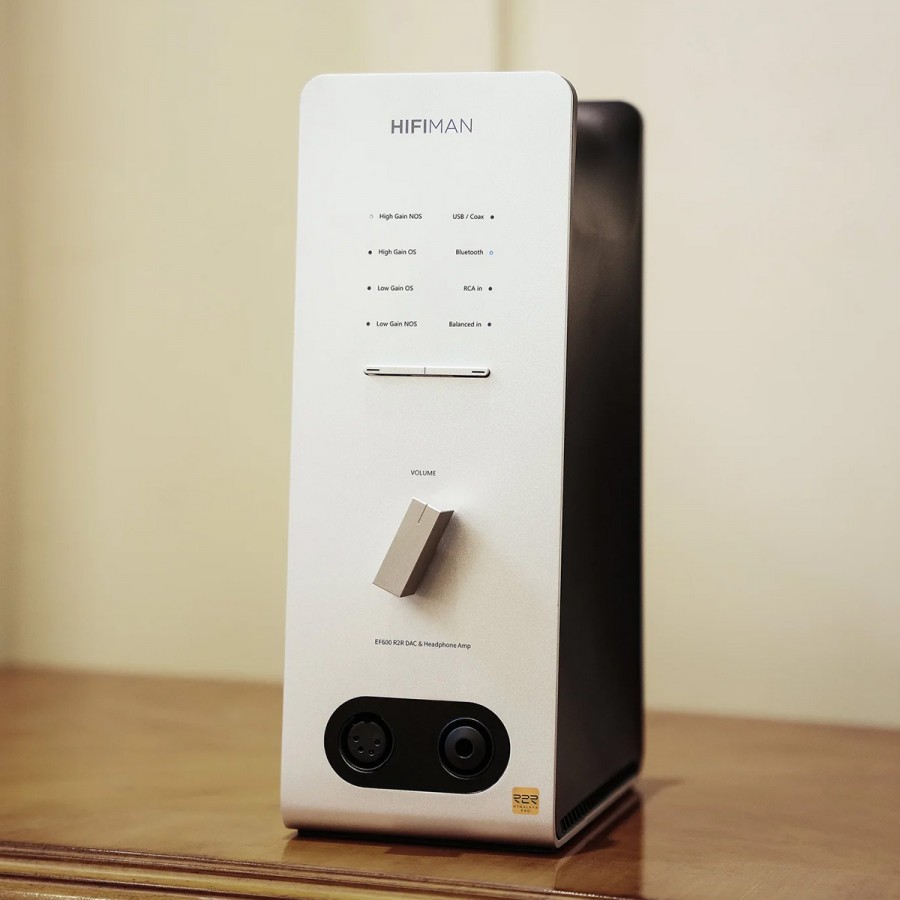

An amazing format for an original, performing and practical product, the EF600 from HifiMan takes on the roles of balanced headphone amplifier, R2R DAC and headphone stand. Thus, in addition to offering a high quality headphone listening, it allows an obvious saving of space, ideal for an office installation.
Unlike many DACs on the market that use delta-sigma digital-to-analog conversion chips, the EF600 chooses to use the R2R ladder conversion method. This particular approach uses a network of high precision resistors for a musical, lively and clear listening.
Wirelessly connect a source such as a smartphone or tablet directly to the EF600 via its Bluetooth receiver. Stream and control your music remotely and take advantage of the high-resolution aptX HD and LDAC transmission codecs for accurate sound reproduction.
Both on the input and output sides, the HifiMan EF600 offers balanced and single-ended connections. Thus, on the input side, in addition to its digital connections in coaxial, USB-C and USB-B format, the device provides balanced XLR and single-ended RCA. In the same way, for its outputs, the EF600 provides balanced XLR 4 pins and unbalanced Jack 6.35mm for the headphone output, and balanced XLR and unbalanced RCA for the line output.
With no less than 5W under 32Ω (balanced) available for each channel, the HiFiMan does not lack power. It will therefore have no trouble accompanying the vast majority of headphones, including the most demanding high-impedance models.
Technical characteristics
Specifications | |
---|---|
Product type | Balanced headphone amplifier and R2R DAC |
Headphone amplifier | 2x HYMALAYA PRO |
Bluetooth chip | Bluetooth 5.0 QCC5124 (LDAC / AptX HD / AptX / AAC / SBC) |
Inputs | Bluetooth 1* USB-B 1* Coaxial 1* USB-C 1* Balanced stereo XLR 1* Single-ended stereo RCA |
Outputs | 1* Single-ended Jack 6.35mm headphone output 1* Balanced XLR 4 pins headphone output 1* Balanced stereo XLR line out 1* Single-ended stereo RCA line out |
Headphone output impedance | 2x5.12W @ 32Ω, balanced 2x 1.8W @ 32Ω, single-ended |
SNR | 118dB |
Channel separation | 131dB ±3dB |
THD+N (line out) | 0.0014% (-8dB) |
General | |
---|---|
Supply voltage | 210-230VAC 50Hz |
Dimensions | 104*165*283mm |
Color | Silver |
Input | XLR |
Input | Bluetooth |
Input | RCA |
Input | SPDIF |
Input | USB |
Output | XLR |
Output | RCA |
Output | Jack 6.35mm |
DAC / ADC Chip | R2R LADDER DAC |
Max sampling rate | NC |
Color | Silver |
Class | N/A |
Networking | No |
Remote Control | No |
