IFI AUDIO ZEN CAN 3 Headphone Amplifier Class A

Front view of IFI Audio ZEN Can 3 New
As the successor to the ZEN Can 2, IfI Audio's ZEN Can 3 benefits from an improved look and a number of additional features. This Class A headphone amplifier features a purely analog design, with no DSP for a more natural sound, and extended equalization parameters.

No customer reviews yet, login to write a review.

By buying this product you get 22 loyalty points


Reference : 19541
New product

229,00 €tax incl.

190,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 05-07-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

IFI Audio ZEN Can 3 Headphone amplifier Class A

IFI Audio ZEN Can 3 picture

As the successor to the ZEN Can 2, IfI Audio's ZEN Can 3 benefits from an improved look and a number of additional features. This Class A headphone amplifier features a purely analog design, with no DSP for a more natural sound, and extended equalization parameters. In addition to the Xbass + and Xspace modes, it now features equalization modes for video games, movies and XMEMS micro-speakers. The ZEN CAN 3 has been specially designed to power a wide range of headphones and IEMs on the market, thanks to its power of up to 2000mW on its balanced output. In addition, a gain adjustment potentiometer provides 4 levels of gain adjustment (0dB/6dB/12dB/18dB), while a second potentiometer lets you select the input source. This headphone amplifier features 3 analog inputs: stereo RCA, 3.5mm jack and balanced 4.4mm jack. In addition to the two headphone outputs on the front panel, it features a balanced stereo 4.4mm jack line output for use as a preamplifier.

IFI Audio ZEN Can 3: a powerful headphone amplifier

The iFi Audio ZEN Can 3, thanks to its Class A discrete component amplification circuit, is capable of delivering up to 2000mW @ 64 ohm on its balanced headphone output, and up to 1600mW @ 32 ohm on its 6.35mm jack output. This is complemented by a 4-level gain control for adaptation to all headphones and in-ear monitors on the market. Despite its high output power, this headphone amplifier manages to maintain a THD < 0.006% and an SNR greater than 119dBA. The ZEN Can 3 amplifier stage uses proprietary iFi/AMR "OV" series OPAs.

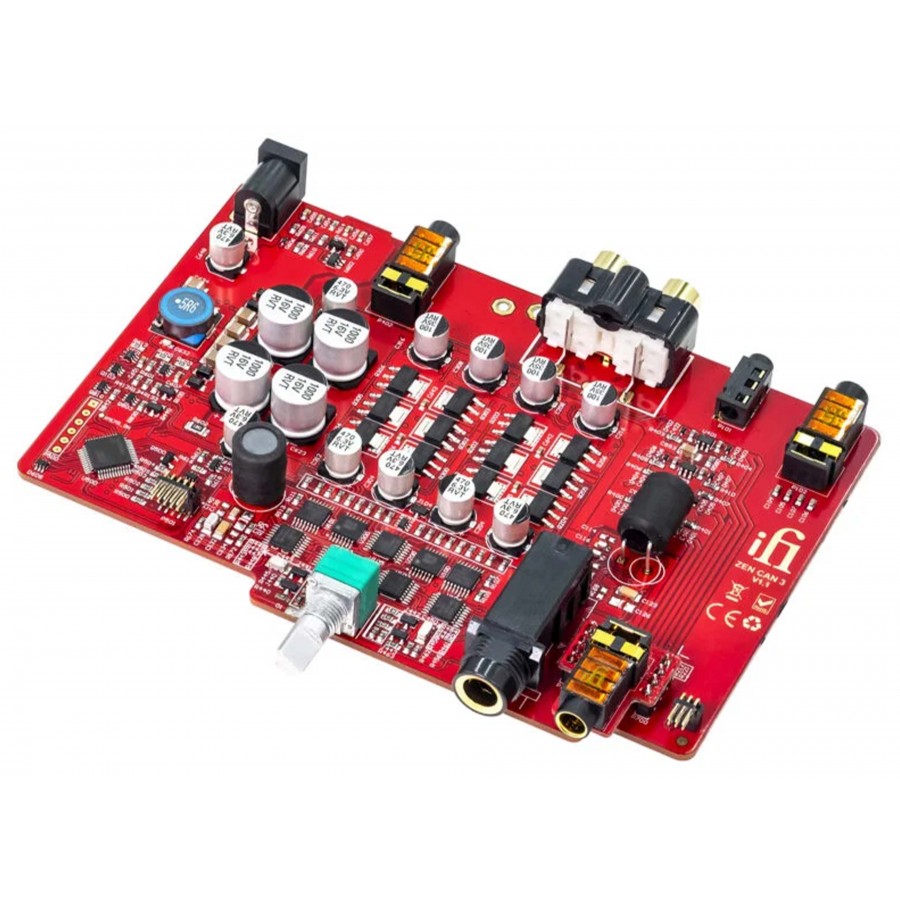

IFI Audio ZEN Can 3 circuit picture
Photo of IFI Audio ZEN Can 3 equalization parameters

IFI Audio ZEN Can 3: 5 different equalization settings

The ZEN Can 3 is a major improvement, with new equalization parameters. The main new feature is the xMEMS mode, enabling the balanced output to reach an output voltage of 21Vpp.

  • Xbass + : compensates for the loss of bass on open headphones.
  • Xspace : enlarges the soundstage.
  • Gaming : enhances detail so you can hear even the most subtle sounds.
  • Film : ensures clear dialogue.
  • xMEMS : guarantees compatibility with xMEMS utrasonic earphones transducer.
IFI Audio ZEN Can 3 components

iFi Audio ZEN Can 3 overview

IFI Audio ZEN Can 3 overview
1ON/OFF button
2Source selector
3Gain adjustment
4Volume control
56.35mm headphone output
6Balanced 4.4mm headphone output
7Equalization setting
8Balanced 4.4mm stereo jack input
93.5mm stereo jack input
10RCA stereo input
11Balanced 4.4mm stereo jack line output
12DC jack power port

Technical characteristics

Specifications
Product typeHeadphone amplifier
Amplification typeClass A
Inputs1x RCA stereo
1x 3.5mm jack
1x Balanced 4.4mm jack
Outputs1x 6.35mm headphone output
1x Balanced 4.4mm headphone output

1x Balanced 4.4mm stereo jack output
RMS headphone output power6.35mm jack: up to 1600mW RMS @ 32 ohms (>7.2V)
4.4mm jack: up to 2000mW RMS @ 64 ohms (>11.5V)
Headphone output impedance6.35mm jack: < 1 Ohms
4.4mm jack: < 2 Ohms
Max. headphone output powerJack 6.35mm: 98mW @ 600 Ohms (>7.6V) / 1600W @ 32 Ohms (>7.2V)
Jack 4.4mm: 385mW @ 600 Ohms (>15.1V) / 1,200mW @ 32 Ohms (>6.2V)
XMEMSJack 4.4mm: >21Vpp, 22 Ohms, 11V DC bias
THD< 0.006%
Frequency response10Hz-200kHz (-3dB)
SNR>119dBA (@ 0dBFS)
Gain adjustment0dB/6dB/12dB/18dB
LINE OUTPUT SPECIFICATION
Output impedance<200 Ohms
Output level4Vrms (0dB, 200kOhm load)
SNR≥125dB (7.3V, 4.4mm jack input, 0dB, @ 200kOhm)
DNR≥119dB(A)
THD+N0.006% (0dB, 200kOhm load)
General
Power supply5V 2.5A DC
Power consumptionNo signal: 5W
Operating: 13W
Dimensions158 x 35 x 117mm
Weight495g
ColorGrey
Package1x iFi Audio ZEN Can 3 headphone amplifier
1x Pair of RCA interconnect cables
1x 3.5mm jack to 6.35mm jack adapter
1x Mains adapter

Data sheet
InputJack 3.5mm
InputRCA
InputJack 4.4mm
OutputJack 6.35mm
OutputJack 4.4mm
ColorGray
ClassClass A / AB
Remote ControlNo
