D30 Pro DAC CS43198 + Topping A30 Pro Headphone Amplifier NFCA + Topping TCX1 XLR Cable

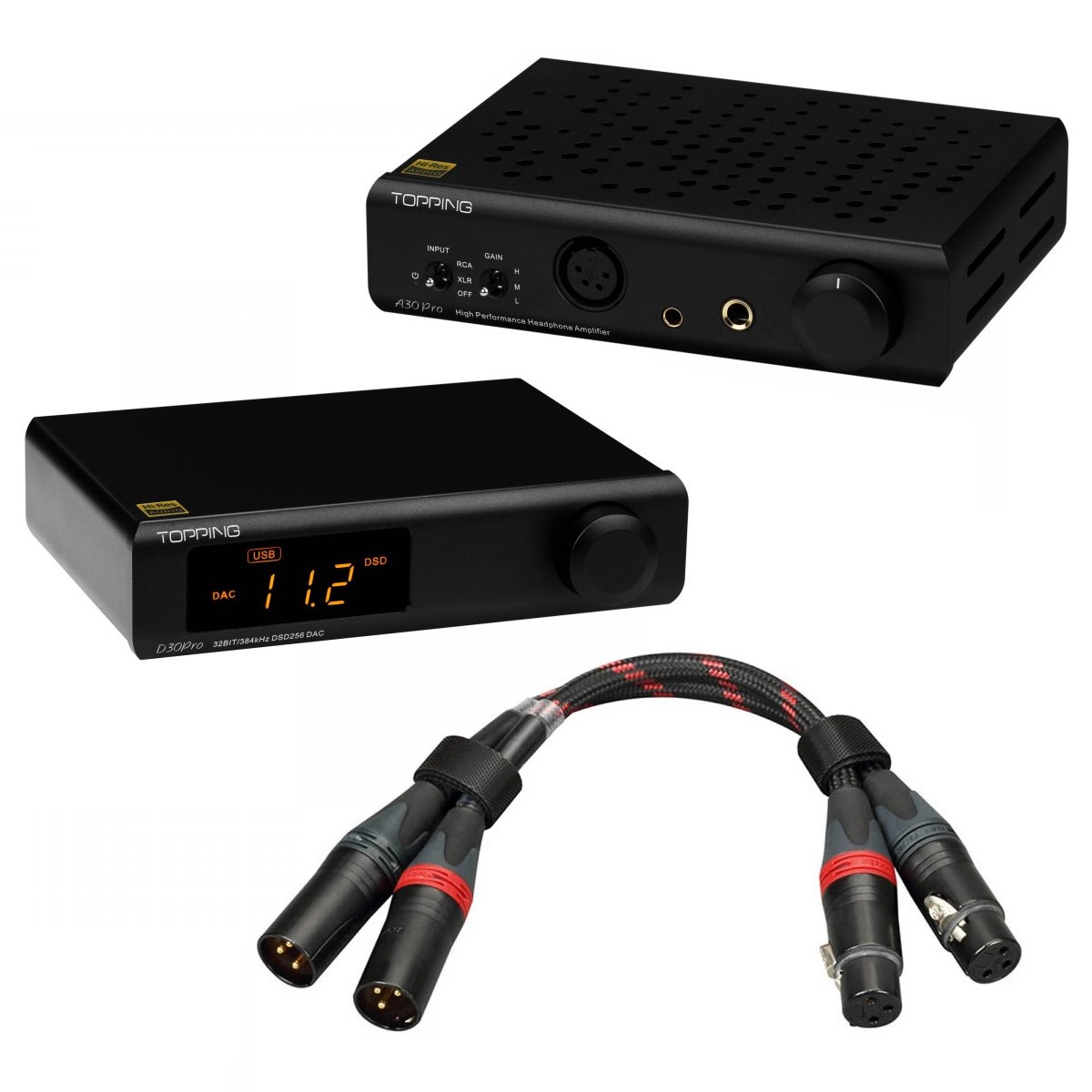

This pack will allow you to enjoy an audio system composed of a Topping A30 Pro headphone amplifier and a Topping D30 Pro DAC, both of which are extremely high-performance, for rich, accurate and immersive listening. An XLR cable is also included, allowing you to connect the devices in a balanced way.

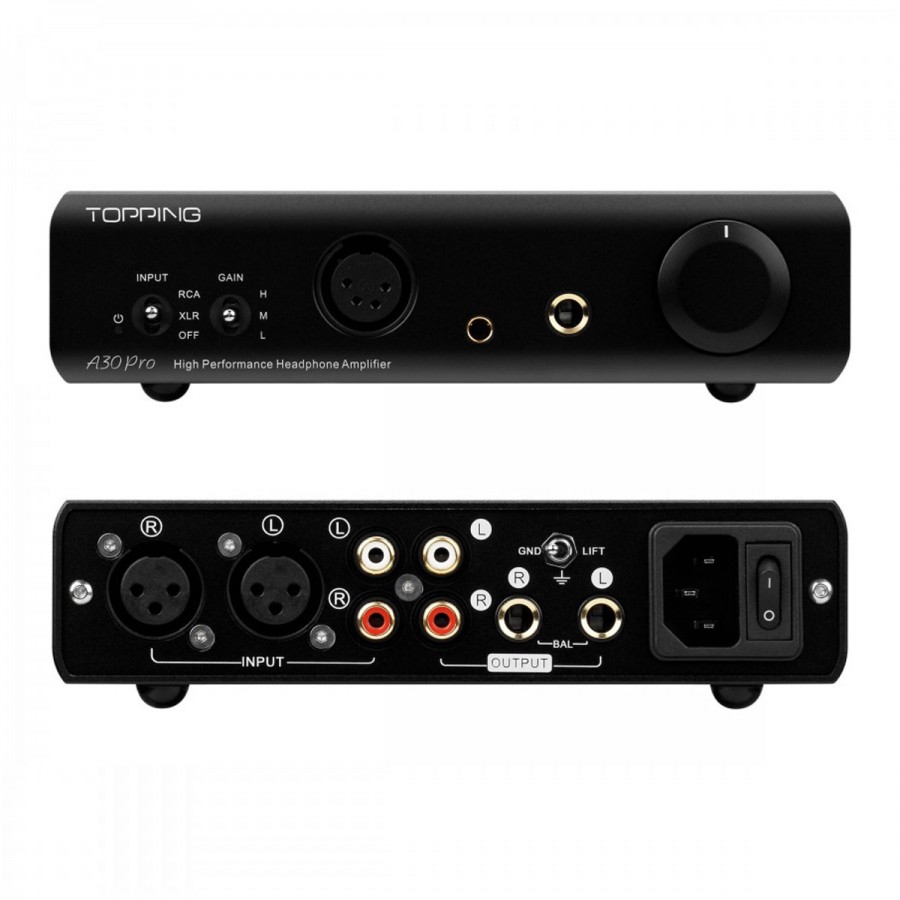

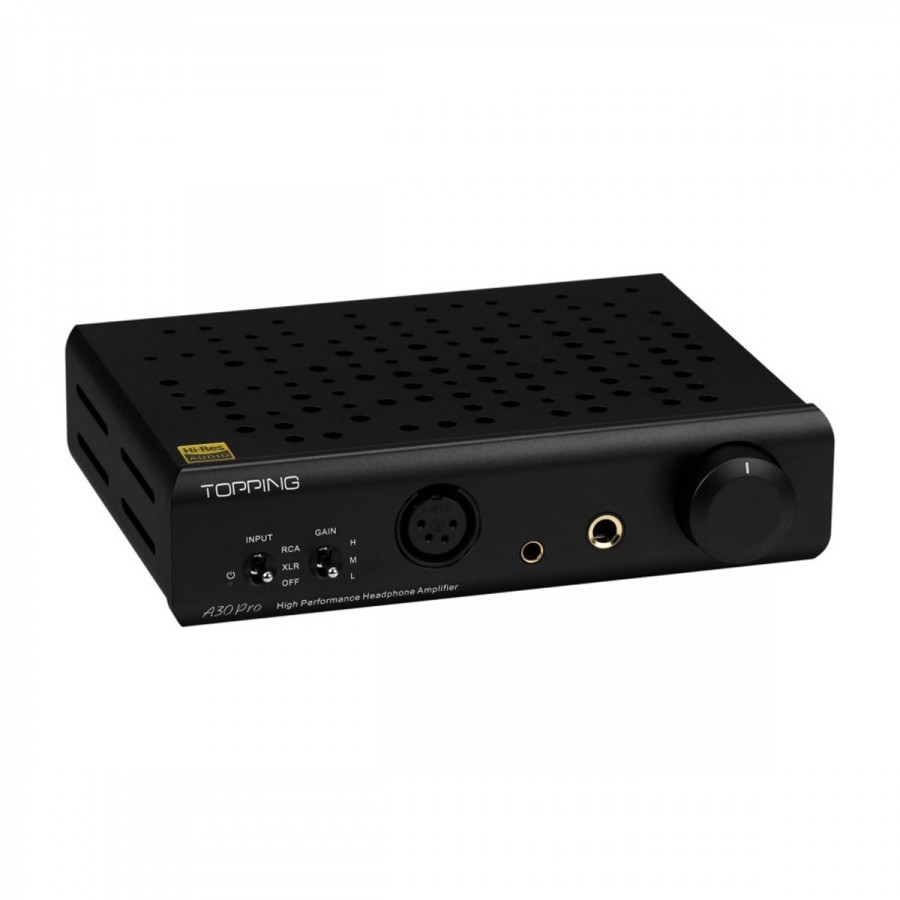

The Topping A30 Pro is a high quality headphone amplifier that will delight lovers of headphone listening. With two headphone outputs at different impedances and a three-level adjustable gain, it will work with all types of headphones. Its symmetrical amplification circuit allows it to offer excellent performance, ensuring great precision and richness of sound.
On the connector side, the A30 Pro offers balanced XLR or unbalanced RCA inputs. For its headphone outputs, the amplifier offers unbalanced 6.35mm jack, as well as 4-pin XLR and unbalanced 4.4mm jack. The A30 Pro also offers two pass-through outputs with unbalanced RCA or two mono 6.35mm jacks for the balanced output. These are not preamplifier outputs.

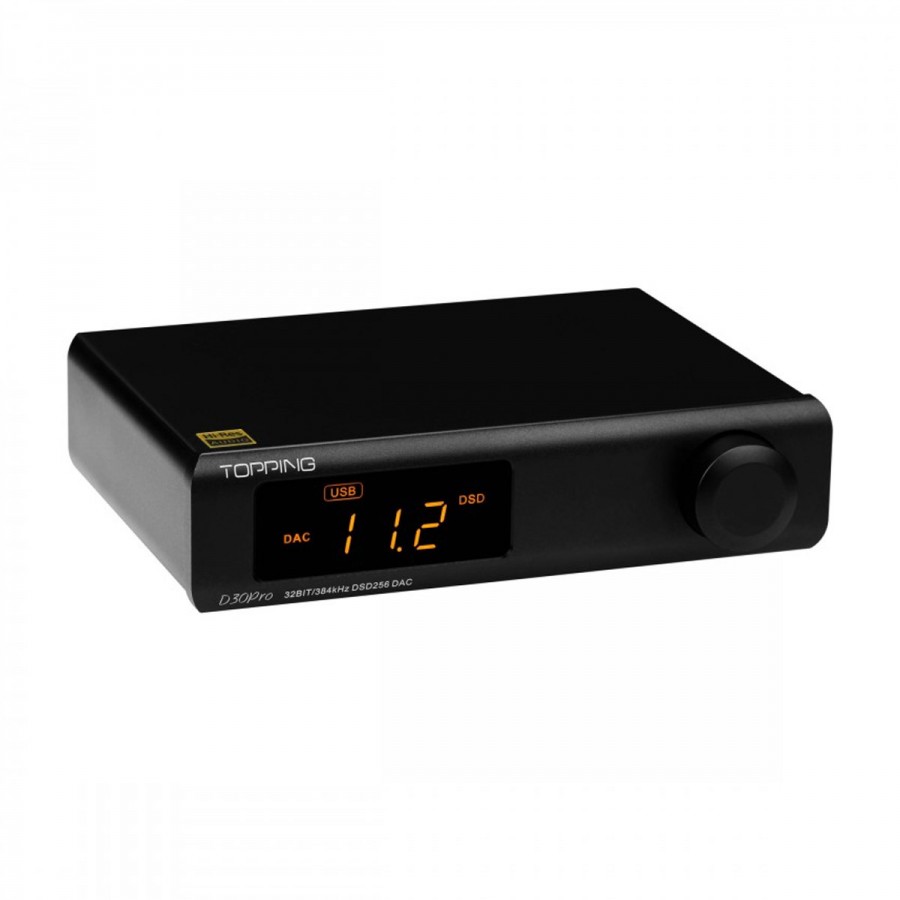

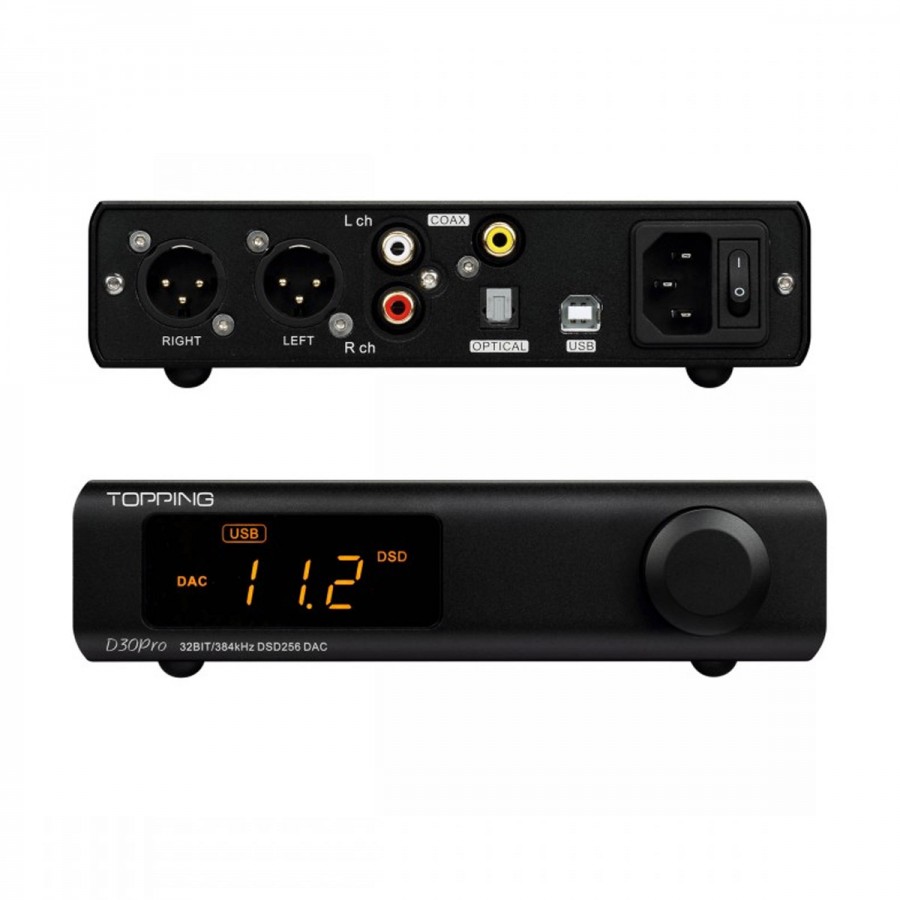

Powerful and compact symmetrical DAC, the digital-to-analog conversion stage of the Topping D30 Pro is based on no less than four Cirrus Logic CS43198 chips. These enable it to support high sample rates up to 32bit 384kHz PCM and DSD256, while offering incredible performance in terms of distortion level, THD+N and dynamics.

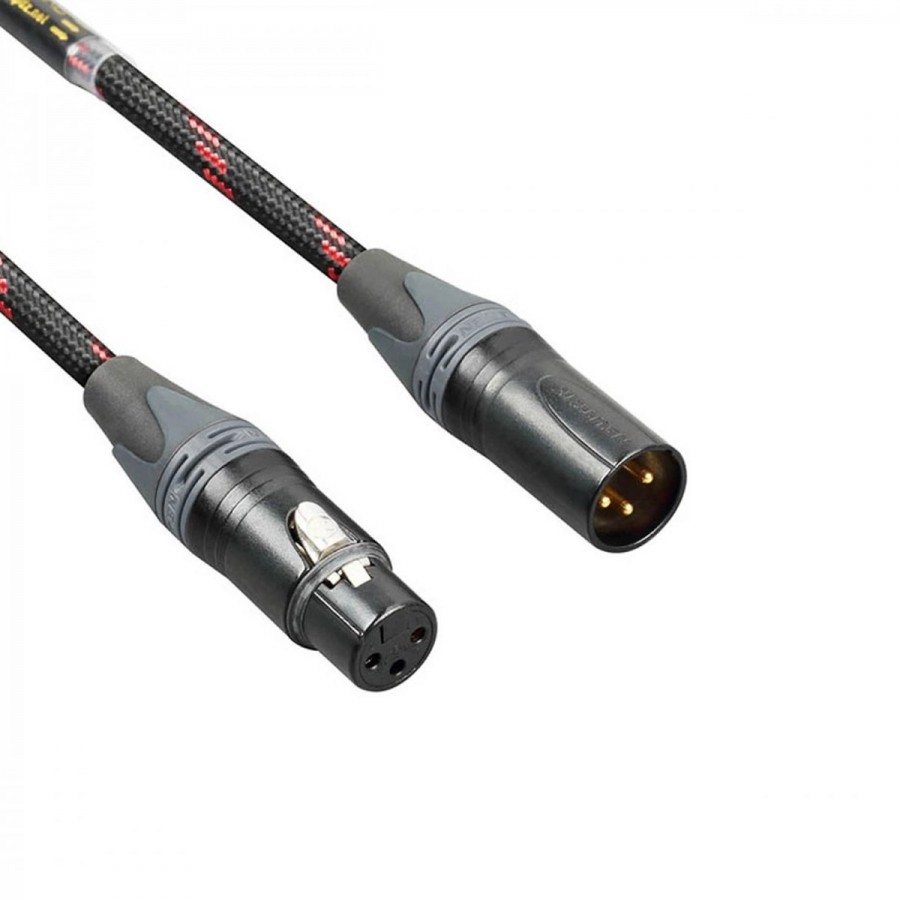

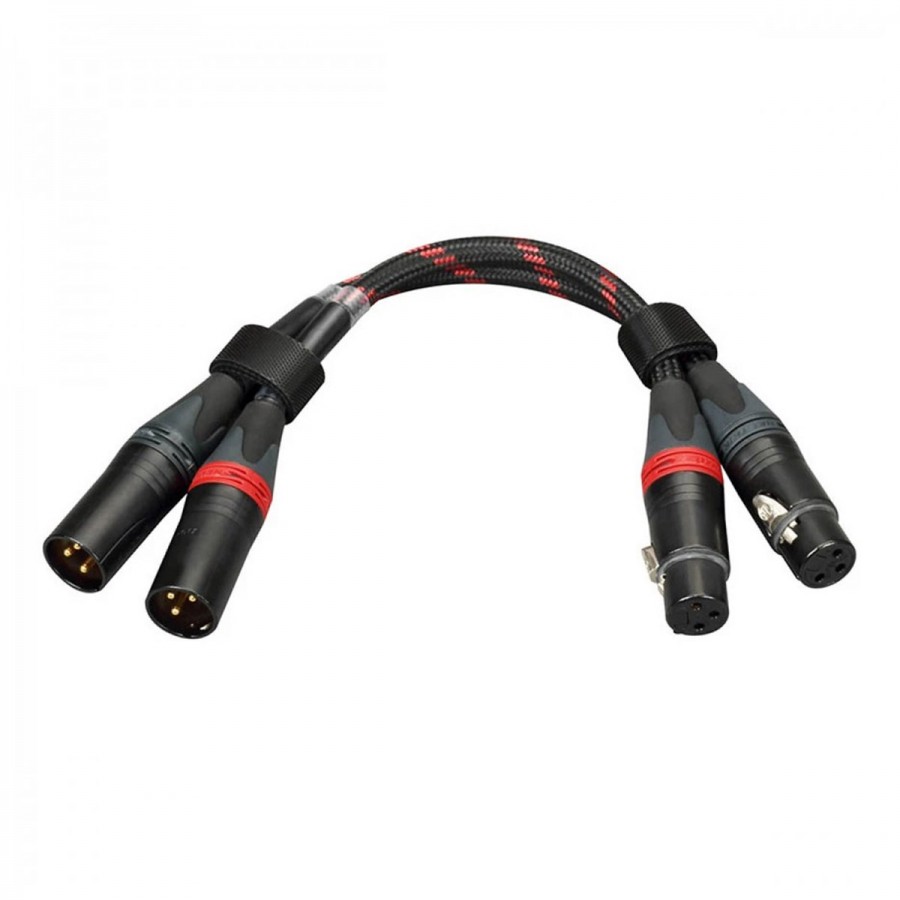

TCX1 cables from Topping are high quality XLR male/female cables. They incorporate 6N Copper and Silver plated 6N Copper conductors for perfect signal transmission. Each conductor has a cross section of 0.533mm² (19AWG). The contacts of the connectors are gold plated to maintain excellent conductivity while ensuring high resistance to oxidation. Each cable has a beautiful and robust black and red braided nylon sheath.
Learn more about Topping TCX1Topping A30 Pro Specifications | |
---|---|
Product type | Headphone amplifier |
Inputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR |
Outputs | 1x Single-ended Jack 6.35mm headphone output 1x Balanced Jack 4.4mm headphone output 1x Balanced XLR 4 poles headphone output 1x Single-ended stereo RCA (pass through) 2x Balanced mono Jack 6.35mm (pass-through) |
THD | 0.00009% @ 1kHz |
SINAD | 121dB |
SNR | 128dB @ Mid gain, 4V In/Out 95dB @ Mid gain, 50mV Out, 600Ω |
THD | 0.00009% @ 1kHz |
Frequency response | 10Hz - 30kHz |
Topping D30 Pro Specifications | |
---|---|
Product type | DAC |
Inputs | 1x USB-B 1x Optical Toslink 1x Coaxial 1x Stereo RCA |
Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR |
DAC Chips | 4x Cirrus Logic CS43198 |
Sampling rates | USB : PCM up to 32bit 384kHz, Native DSD up to DSD256, DSD DoP up to DSD128 Coaxial / Optical : PCM up to 24bit 192kHz, DSD64 (DoP) |
THD+N @ A-Weighting | RCA : < 0.0001% @ 1kHz XLR : < 0.00009% @ 1kHz |
THD @ No-Weighting 45kBw | RCA : < 0.0004% @ 20Hz-20kHz XLR : < 0.0004% @ 20Hz-20kHz |
SNR @ A-Weighting | RCA : 127dB @ 1kHz XLR : 132dB @ 1kHz |
Dynamic range @ A-Weighting | RCA : 127dB @ 1kHz XLR : 132dB @ 1kHz |
Frequency response | RCA : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB) XLR : 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.3dB) |
Output voltage | RCA : 2Vrms @ 0dBFS XLR : 4Vrms @ 0dBFS |
Noise @ A-Weighting | RCA : < 0.9µVrms XLR : < 1.1µVrms |
Crosstalk | RCA : -116dB @ 1kHz XLR : -145dB @ 1kHz |
Output impedance | RCA : 20Ω XLR : 40Ω |
Topping TCX1 Specifications | |
---|---|
Product type | XLR Cable |
Connectors | 1x 3 poles male XLR 1x 3 poles female XLR |
Length | 25cm |
Cable external diameter | Ø8mm |
Conductors material | Copper Silver plated Copper |
Conductors section | 0.533mm² (19AWG) |
Connectors contacts plating | Gold |
External sheath | Braided Nylon |
Color | Black and red |
Quantity | Sold in pair (1 cable with red rings, 1 cable with black rings) |
Input | USB |
Input | XLR |
Input | Optical |
Input | RCA |
Input | SPDIF |
Output | XLR |
Output | Jack 4.4mm |
Output | Jack 3.5mm |
Output | Jack 6.35mm |
Output | RCA |
Color | Black |
Class | N/A |
Remote Control | Yes |
