Pack Topping E30 AK4493 DAC + Topping L30 Headphone Amplifier + Topping TCR2 RCA Cables

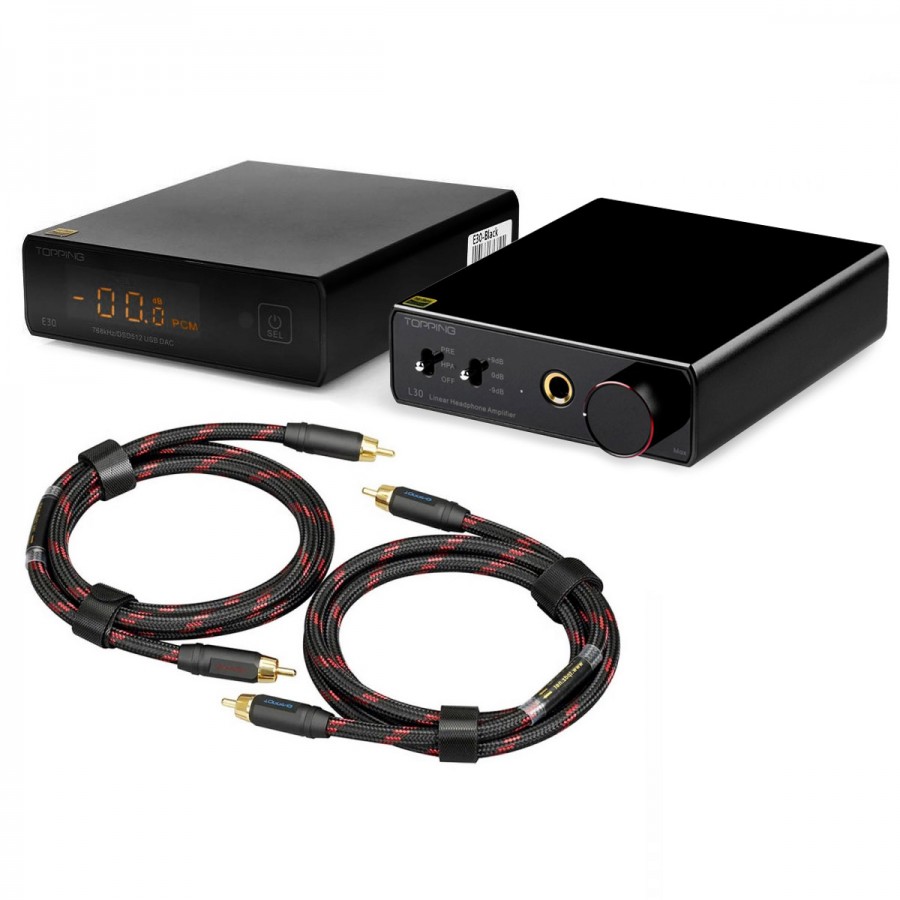

This Topping pack consists of an E30 DAC based on an AKM AK4493 conversion chip, an L30 headphone amplifier and preamplifier combo and a pair of RCA cables to connect the two devices. This set will allow you to enjoy a high quality audio system for headphone listening at an affordable price and with a reduced form factor.
No customer reviews yet, login to write a review.

By buying this product you get 32 loyalty points


Yes, notify me when available !
Reference : 15572
New product

329,00 €tax incl.

274,17 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Pack content


More info

Pack Topping

Topping E30 AK4493 DAC + Topping L30 Headphone Amplifier + Topping TCR2 RCA Cables

Pack DAC Topping E30 AK4493 + Amplificateur Casque Topping L30 + Câbles RCA Topping TCR2

This Topping pack consists of an E30 DAC based on an AKM AK4493 conversion chip, an L30 headphone amplifier and preamplifier combo and a pair of RCA cables to connect the two devices. This set will allow you to enjoy a high quality audio system for headphone listening at an affordable price and with a reduced form factor.

Topping E30

The E30 from Topping is a DAC with very advantageous compact dimensions and surprisingly good performance, considering its small size. It embeds an AKM AK4493 DAC chip, a very famous component in the high-fidelity audio world, as well as an XMOS interface offering a clear and transparent link with your digital sources equipped with a USB output. This DAC has an integrated and bypassable volume control function. It can therefore be connected directly to an amplifier or active speakers, as well as to a preamplifier. The aesthetics is not left out as the E30 has an elegant and readable display, accompanied by a touch control button of the most beautiful effect.

VIEW THE FULL DESCRIPTION OF THE TOPPING E30


Topping E30  review by Audio Science Review (Amir)

" Distortion levels are incredibly low at -120 dB and lower. The addition of noise takes SINAD down to 112 dB which is most competent for a small little DAC like this. "
Test du Topping E30 par Audio Science Review (Amir)

Topping L30

The Topping L30 is a headphone amplifier with a preamplifier function that is compact, affordable and above all extremely powerful! It benefits from excellent measurements, allowing it to deliver an incredibly precise, rich and dynamic sound reproduction.

VIEW THE FULL DESCRIPTION OF THE TOPPING L30


Topping L30 review by Audio Science Review (Amir)

" The race toward perfection and beyond continues in headphone amplifiers at incredibly low prices. The L30 is the latest offering, firmly grabbing the top of the class and holding on to it. Its functionality is excellent and price is very reasonable. "
Test du Topping L30 par Audio Science Review (Amir)

Topping TCR2

Topping offers with the TCR2 a very good male to male RCA cable. It benefits from a very nice design with a silver plated OFC copper conductor offering an excellent signal conductivity, as well as gold plated copper connectors, the latter being oxidation resistant for a more durable cable. A blue and red sheath finishes this cable, giving it both a very nice aesthetic but also a greater longevity.

VIEW THE FULL DESCRIPTION OF THE TOPPING TCR2

Technical characteristics

Topping E30 Specifications
Product typeDAC
DAC ChipAKM AK4493
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512
Optical, Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD256
THD+N0.0003%
Crosstalk< -130dB
SNR121dB
Dynamic range119dB
Dimensions100 x 125 x 32mm
ColorBlack
Topping L30 Specifications
Product typeHeadphone amplifier
Inputs1x Stereo RCA
Outputs1x Jack 6.35mm headphone output
1x Pre-Out stereo RCA
Output power2x 3500mW @ 16Ω, THD+N < 0.1%
2x 2300mW @ 32Ω, THD+N < 0.1%
2x 280mW @ 300Ω, THD+N < 0.1%
Gain-9.9dB / 0dB / +9.5dB
THD+N @ 1kHz, A-WeightingHeadphone amplifier : < 0.00007% @ Sortie = 500mW
Preamplifier : < 0.00009%
Dynamic range @ 1kHz, A-WeightingHeadphone amplifier : 141dB
Preamplifier : 141dB
SNR @ Max out level, 1kHz, A-WeightingHeadphone amplifier : 141dB
Preamplifier : 141dB
Frequency responseHeadphone amplifier : 20Hz - 40kHz (±0.05dB)
Preamplifier : 20Hz - 40kHz (±0.05dB)
Measured noise levelHeadphone amplifier : < 0.7µVrms @ G=L, < 0.7µVrms @ G=M, < 0.9µVrms @ G=H
Preamplifier : < 0.7µVrms @ G=L, < 0.7µVrms @ G=M, < 0.9µVrms @ G=H
Output levelHeadphone amplifier : 26Vpp @ G=L, 26Vpp @ G=M, 26Vpp @ G=H
Preamplifier: 26Vpp @ G=L, 26Vpp @ G=M, 26Vpp @ G=H
Crosstalk @ 1kHzHeadphone amplifier : -91dB
Preamplifier : -91dB
Input sensitivityHeadphone amplifier : 25Vrms @ G=L, 9Vrms @ G=M, 3Vrms @ G=H
Preamplifier : 25Vrms @ G=L, 9Vrms @ G=M, 3Vrms @ G=H
Output impedanceHeadphone amplifier : < 0.1Ω
Preamplifier : 20Ω
Topping TCR2 Specifications
Product typeRCA Cables
Length25cm
Conductor materialOFC Copper
Conductor platingSilver
Total section2x 0.533mm²
Conductor resistance26.9Ω/km
External diameterØ8mm
Connectors materialCopper
Connectors platingGold
ColorBlack

Data sheet
InputSPDIF
InputUSB
InputOptical
OutputJack 6.35mm
OutputRCA
ColorBlack
ClassN/A
Remote ControlYes
