The SH-9 from SMSL is a headphone amplifier incorporating the great THX AAA technology (Achromatic Audio Amplifier). It benefits from the powerful correction algorithms specific to the THXAAA version 888 (Audiophile high power series) with up to 40dB of reduction against distortions (harmonic / intermodulation / crossover). This matchless technology offers incomparable listening performance in terms of sound transparency, dynamic range, maximum output power and sound pressure (SPL).

Its architecture is articulated around two mono amplification blocks offering among the highest Hi-Fi performance that a headphone amplifier can deliver with today's technologies. The SH-9 is thus able to develop up to 6W of power under 16 Ohms with a THD+N of 0.00006% (A).

Its entire circuit is integrated with an amazing sense of detail for its price range. It uses anti-pop relays and has a  256-intervals analog volume control built on a resistance array.

Ultra compact & ergonomic design

If it integrates the largest THX-AAA circuits, the SMSL SH9 benefits from compact dimensions with its 187.5 x 154 x 40mm case for a weight of 790g. This small jig makes it a part of choice for a desktop headphone amplifier to enjoy a greater audio even in a compact environment.

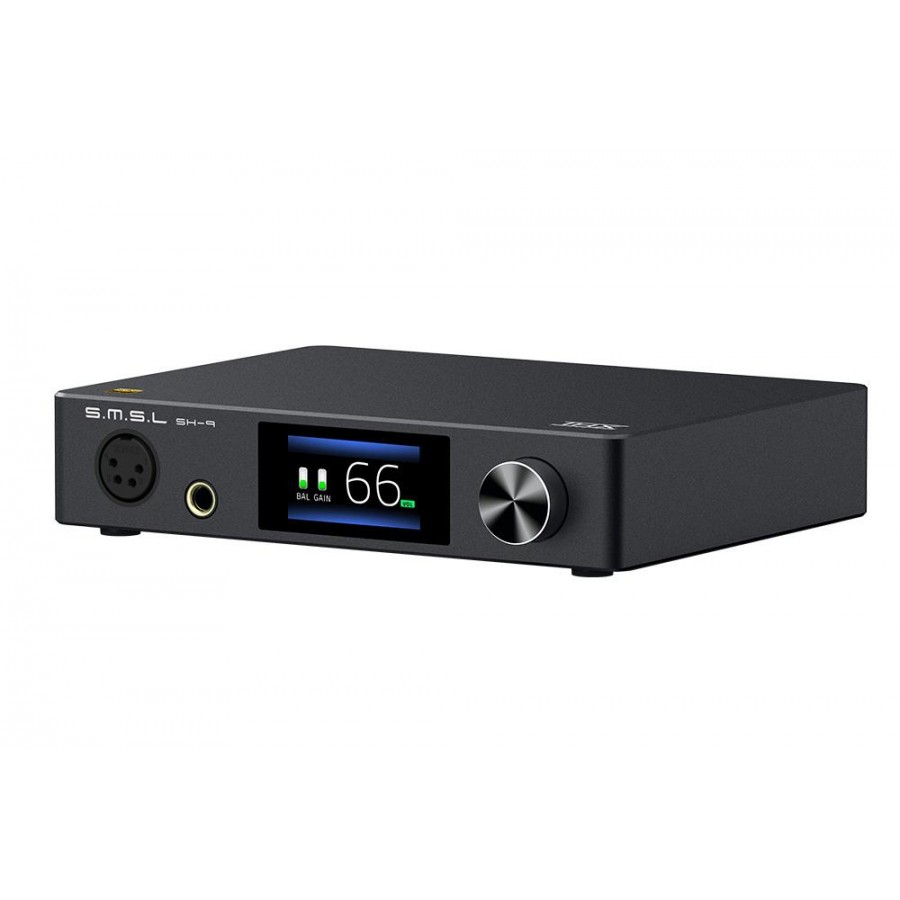

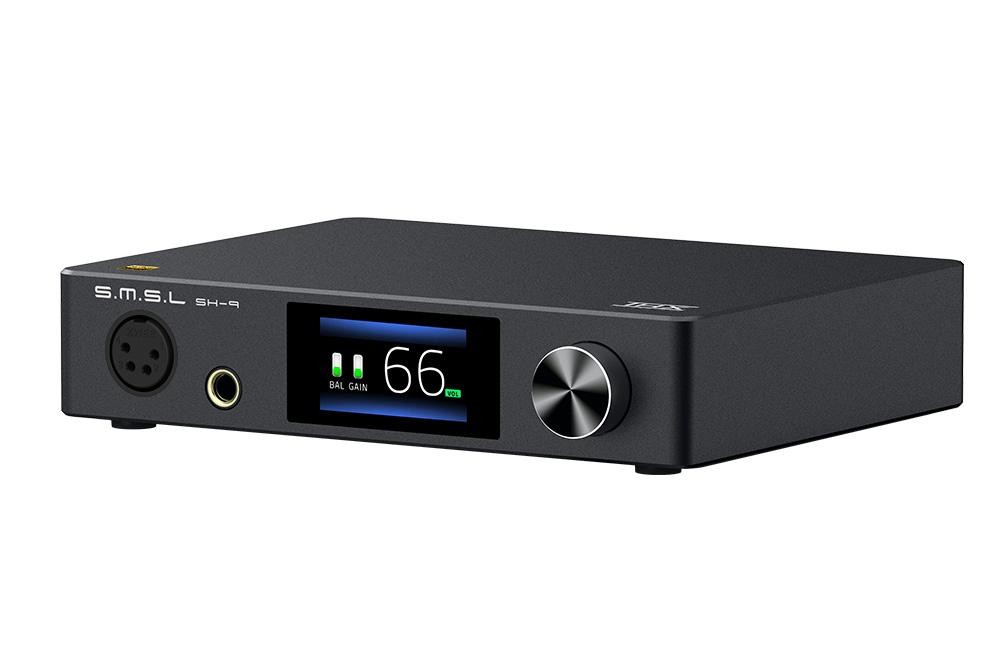

Extremely ergonomic, its front panel has a 1.9-inch LCD screen displaying the volume in real time as well as the gain and balance settings. This panel also features a large rotary potentiometer dedicated to analog volume control as well as the two headphone outputs (balanced 4-pole XLR and unbalanced 6.35mm jack).

RCA & XLR input

In order to easily connect to your DACs and other analog sources of different degrees of complexity, the SH-9 has an single-ended line input on a stereo RCA connector as well as a balanced input on a 3-pole XLR connector.

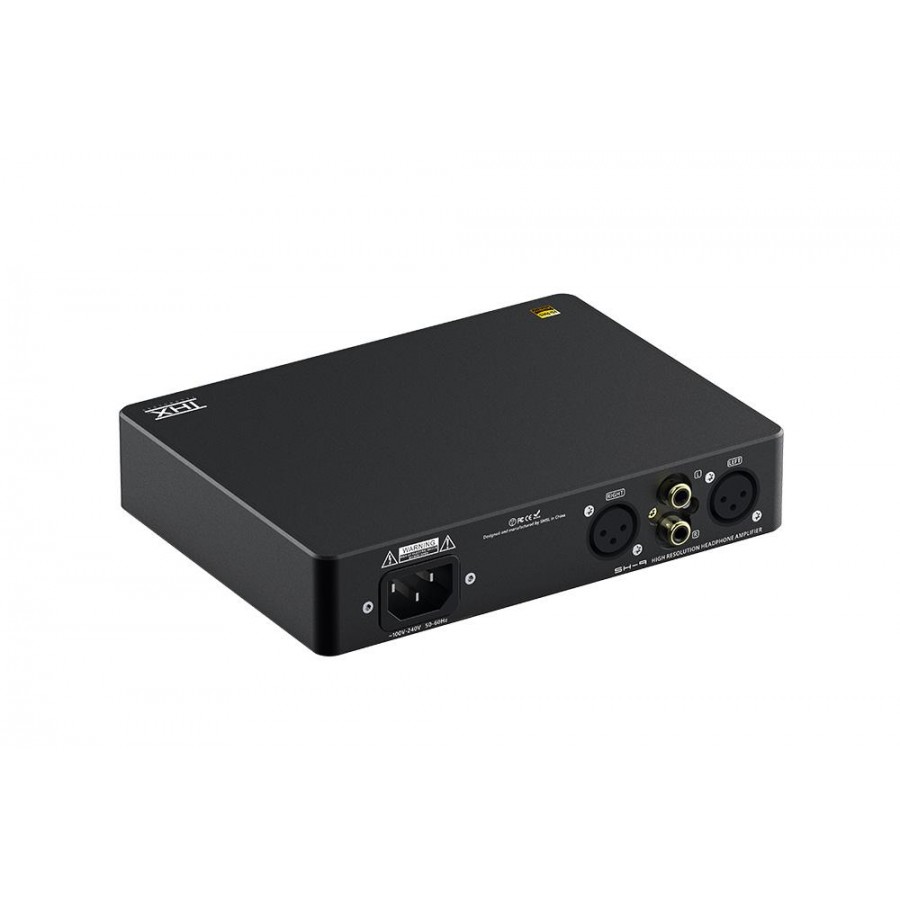

The input circuit has an impedance of 47kΩ with a gain adjustment (+ 0 / + 10dB) to match the level delivered by the source. Its connectors are located on the back panel order to limit the bulk due to the wiring.
