TOPPING EHA5 Electrostatic Headphone Amplifier Balanced

Most electrostatic headphones offer excellent musical potential, but their performance is often limited by the associated headphone amplifier. The Topping EHA5 electrostatic headphone amplifier helps your headphones to reach their full potential, with detailed and dynamic sound reproduction.

Average votes for this product
5.0 / 5

By buying this product you get 40 loyalty points


Reference : 17617
New product

409,00 €tax incl.

340,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Topping EHA5

Electrostatic Headphone Amplifier Balanced 700Vrms

Topping EHA5 Amplificateur casque électrostatique symétrique 700Vrms


Most electrostatic headphones offer excellent musical potential, but their performance is often limited by the associated headphone amplifier. The Topping EHA5 electrostatic headphone amplifier helps your headphones to reach their full potential, with detailed and dynamic sound reproduction.

This headphone amplifier will work perfectly with STAX electrostatic headphones or even Kingsound.

Topping EHA5 Amplificateur casque électrostatique symétrique 700Vrms
Topping EHA5 Amplificateur casque électrostatique symétrique 700Vrms

An incredible reserve of energy

Topping's EHA5 offers a large power reserve to accompany demanding electrostatic headphones. With an output level of 700Vrms and 2000Vp-p, it will have no trouble driving the vast majority of headphones with efficiency.

12V Trigger

The Topping EHA5 provides a 12V trigger input that can be connected to other devices to automatically turn the amplifier on and off. It allows a practical and fluid use to enjoy the best of your music.

Topping EHA5 Amplificateur casque électrostatique symétrique 700Vrms
Topping EHA5 Amplificateur casque électrostatique symétrique 700Vrms

Pass-through feature

When the headphone output of the EHA5 is switched off, the input signal is routed directly to the balanced XLR and single-ended RCA outputs at the rear. This allows the EHA5 to be used with electrostatic headphones as well as with other audio devices with a preamp function.

Topping EHA5 Amplificateur casque électrostatique symétrique 700Vrms
Topping EHA5 Amplificateur casque électrostatique symétrique 700Vrms
1Output selection
2Gain selection
3Headphone output
4Volume button
5Balanced input
6Single-ended input
7Balanced output
8Single-ended output
9ON/OFF switch
1012V trigger input
11USB-C input for firmware update
12Power input

Technical characteristics

Specifications
Product typeHeadphone amplifier
Inputs1* Balanced stereo XLR / Jack 6.35mm
1* Single-ended stereo RCA
Outputs1* Headphone output
1* Balanced stereo XLR
1* Single-ended stereo RCA
Trigger12V input

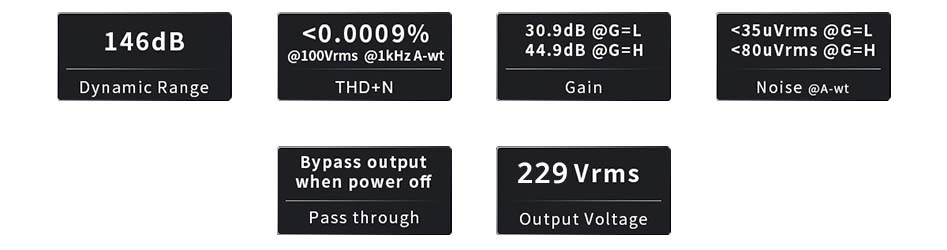

Measurements
InputSingle-endedBalanced
THD+N @ 1kHz (A-weighted)< 0.0009% @ 100Vrms
THD+N @ 20kBw (No-weighted)< 0.07%< 0.05%
SNR @ Max out, 1kHz (A-weighted)140dB146dB
Dynamic range @ 1kHz (A-weighted)140dB146dB
Frequency response20Hz-40kHz (±2.5dB)
Noise (A-weighted)< 35µVrms @ G=L
< 80µVrms @ G=H
Crosstalk @ 1kHz-89dB
Input sensitivity10Vrms @ G=L
2Vrms @ G=H
20Vrms @ G=L
3.9Vrms @ G=H
Gain36.8dB @ G=L
50.8dB @ G=H
30.9dB @ G=L
44.9dB @ G=H
Channel balance0.5dB
Output level700Vrms
Bias voltage580VDC
General
Dimensions (L*P*H)23.2*17.3*9.3cm
ColorBlack
Package1* Topping EHA5
1* Power supply 15V DC

Data sheet
InputJack 6.35mm
InputRCA
InputXLR
OutputRCA
OutputXLR
ColorBlack
ClassN/A
Remote ControlNo
