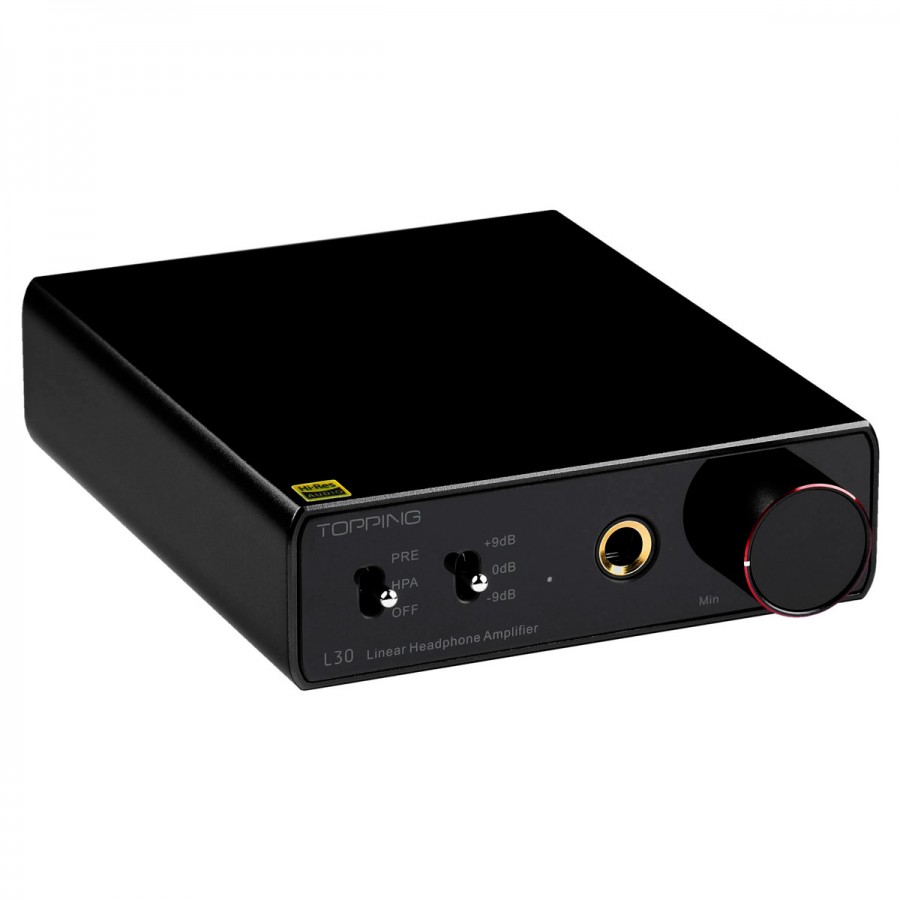

TOPPING L30 Headphone Amplifier / Preamplifier NFCA Black

Ultra high performance NFCA modules

The L30 uses the same NFCA (Nested Feedback Composite Amplifier) modules as the Topping A90 flagship. The hybrid voltage/current feedback architecture combined with UHGF (Ultra High Gain Feedback) technology provides excellent AC and DC performance. The unit's high output level allows it to easily accompany low impedance headphones. The L30's ultra-low noise of 0.3µV gives it a considerable lead over the competition, as does its extremely high dynamic range of 141dB. It is therefore capable of delivering vivid sound reproduction with unrivalled clarity. During measurements, the high limits of the Audio Precision APX555B analyzer have even been reached!

Suitable for all types of headphones

With an output level of 26Vp-p, a power of 2x 3500mW and an output impedance of less than 0.1ohm, the L30 will have no problem fitting to all types of headphones. The L30 will work equally well with high impedance headphones that require a high power input, as well as with in-ear earphones with very high sensitivity.

Specifications
Product type	Headphone amplifier
Inputs	Stereo RCA
Outputs	1x Jack 6.35mm headphone output 1x Stereo RCA Pre-Out
Gain selection	-9.9dB 0dB +9.5dB

Specifications

Product type

Headphone amplifier

Inputs

Stereo RCA

Outputs

1x Jack 6.35mm headphone output
1x Stereo RCA Pre-Out

Gain selection

-9.9dB
0dB
+9.5dB

Headphone amplifier specifications
THD+N @ 1kHz, A-Weighting	< 0.00007% @ Output = 500mW, 32Ω < 0.00006% @ Output = 80mW, 300Ω
THD+N @ 20Hz-20kHz, 90kBW	< 0.0001% @ Output = 500mW, 32Ω < 0.00009% @ Output = 80mW, 300Ω
Dynamic range (DNR) @ 1kHz, A-Weighting	141dB
SNR @ Max output level, 1kHz, A-Weighting	141dB
Frequency response	20Hz - 40kHz (±0.05dB)
Measured noise level @ A-Weighting	< 0.7µVrms @ G=L < 0.7µVrms @ G=M < 0.9µVrms @ G=H
Actual noise level @ A-Weighting	< 0.3µVrms @ G=L < 0.3µVrms @ G=M < 0.7µVrms @ G=H
Output level	26Vpp @ G=L 26Vpp @ G=M 26Vpp @ G=H
Channel crosstalk @ 1kHz	-91dB
IMD CCIF @ 18kHz+19kHz	-116dB
IMD SMPTE @ 60Hz+7kHz	-110dB @ SMPTE4:1 -115dB @ SMPTE1:1
Input sensitivity	25Vrms @ G=L 9Vrms @ G=M 3Vrms @ G=H
Output impedance	< 0.1Ω
Max power	2x 3500mW @ 16Ω THD+N < 0.1% 2x 2300mW @ 32Ω THD+N < 0.1% 2x 280mW @ 300Ω THD+N < 0.1%
Load impedance	> 8Ω

Headphone amplifier specifications

THD+N @ 1kHz, A-Weighting

< 0.00007% @ Output = 500mW, 32Ω
< 0.00006% @ Output = 80mW, 300Ω

THD+N @ 20Hz-20kHz, 90kBW

< 0.0001% @ Output = 500mW, 32Ω
< 0.00009% @ Output = 80mW, 300Ω

Dynamic range (DNR) @ 1kHz, A-Weighting

141dB

SNR @ Max output level, 1kHz, A-Weighting

141dB

Frequency response

20Hz - 40kHz (±0.05dB)

Measured noise level @ A-Weighting

< 0.7µVrms @ G=L
< 0.7µVrms @ G=M
< 0.9µVrms @ G=H

Actual noise level @ A-Weighting

< 0.3µVrms @ G=L
< 0.3µVrms @ G=M
< 0.7µVrms @ G=H

Output level

26Vpp @ G=L
26Vpp @ G=M
26Vpp @ G=H

Channel crosstalk @ 1kHz

-91dB

IMD CCIF @ 18kHz+19kHz

-116dB

IMD SMPTE @ 60Hz+7kHz

-110dB @ SMPTE4:1
-115dB @ SMPTE1:1

Input sensitivity

25Vrms @ G=L
9Vrms @ G=M
3Vrms @ G=H

Output impedance

< 0.1Ω

Max power

2x 3500mW @ 16Ω THD+N < 0.1%
2x 2300mW @ 32Ω THD+N < 0.1%
2x 280mW @ 300Ω THD+N < 0.1%

Load impedance

> 8Ω

Preamplifier specifications
THD+N @ 1kHz, A-Weighting	< 0.00006%
THD+N @ 20Hz-20kHz, 90kBW	< 0.00009%
Dynamic range (DNR) @ 1kHz, A-Weighting	141dB
SNR @ Max output level, 1kHz, A-Weighting	141dB
Frequency response	20Hz - 40kHz (±0.05dB)
Measured noise level @ A-Weighting	< 0.7µVrms @ G=L < 0.7µVrms @ G=M < 0.9µVrms @ G=H
Measured actual noise @ A-Weighting	< 0.3µVrms @ G=L < 0.3µVrms @ G=M < 0.7µVrms @ G=H
Output level	26Vpp @ G=L 26Vpp @ G=M 26Vpp @ G=H
Channel crosstalk @ 1kHz	-91dB
IMD CCIF @ 18kHz+19kHz	-116dB
IMD SMPTE @ 60Hz+7kHz	-110dB @ SMPTE4:1 -115dB @ SMPTE1:1
Input sensitivity	25Vrms @ G=L 9Vrms @ G=M 3Vrms @ G=H
Output impedance	20Ω

Preamplifier specifications

THD+N @ 1kHz, A-Weighting

< 0.00006%

THD+N @ 20Hz-20kHz, 90kBW

< 0.00009%

Dynamic range (DNR) @ 1kHz, A-Weighting

141dB

SNR @ Max output level, 1kHz, A-Weighting

141dB

Frequency response

20Hz - 40kHz (±0.05dB)

Measured noise level @ A-Weighting

< 0.7µVrms @ G=L
< 0.7µVrms @ G=M
< 0.9µVrms @ G=H

Measured actual noise @ A-Weighting

< 0.3µVrms @ G=L
< 0.3µVrms @ G=M
< 0.7µVrms @ G=H

Output level

26Vpp @ G=L
26Vpp @ G=M
26Vpp @ G=H

Channel crosstalk @ 1kHz

-91dB

IMD CCIF @ 18kHz+19kHz

-116dB

IMD SMPTE @ 60Hz+7kHz

-110dB @ SMPTE4:1
-115dB @ SMPTE1:1

Input sensitivity

25Vrms @ G=L
9Vrms @ G=M
3Vrms @ G=H

Output impedance

20Ω

General
Supply voltage	15VAC (power supply included)
Dimensions	10 x 13.4 x 3.2cm
Housing material	Aluminum
Color	Black
Package	1x Topping L30 1x Power supply 1x Jack 6.35mm to Jack 3.5mm adapter

General

Supply voltage

15VAC (power supply included)

Dimensions

10 x 13.4 x 3.2cm

Housing material

Aluminum

Color

Black

Package

1x Topping L30
1x Power supply
1x Jack 6.35mm to Jack 3.5mm adapter

Input	RCA
Output	Jack 6.35mm
Output	RCA
Color	Black
Class	N/A
Remote Control	No
