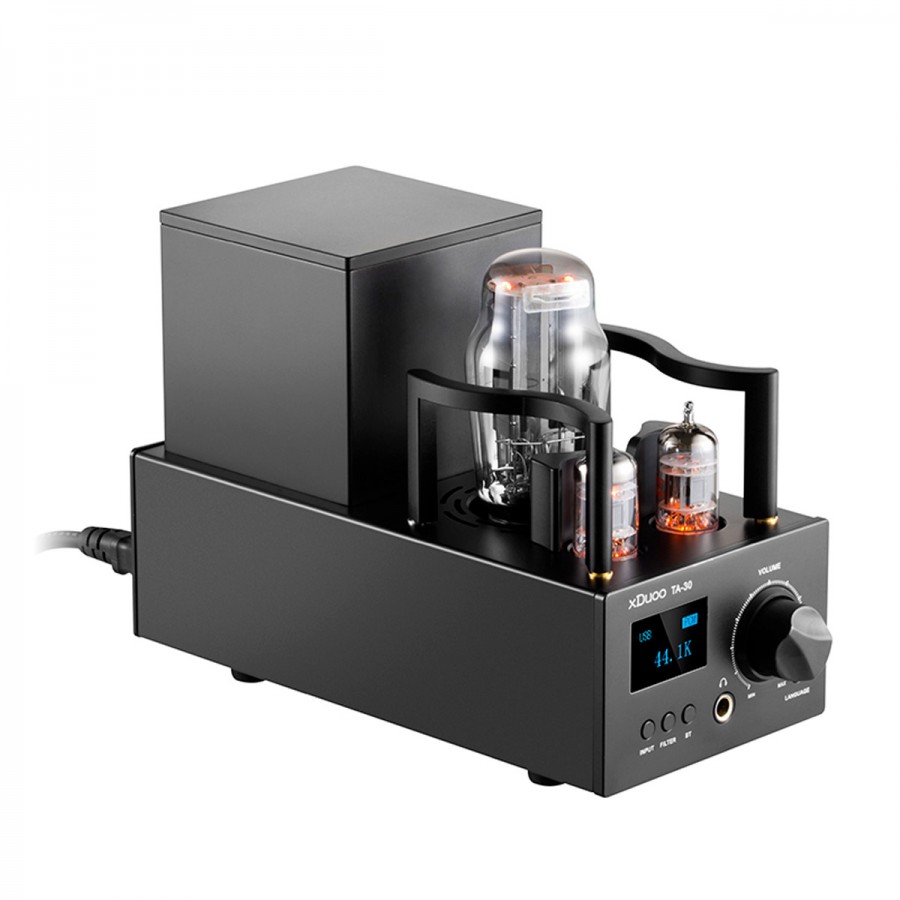

XDUOO TA-30 DAC Tube Headphone Amplifier ES9038Q2M XMOS XU208 Bluetooth 5.0 32bit 768kHz DSD512

The xDuoo TA-30 is a high-performance tube and DAC headphone amplifier combo, offering rich and detailed sound reproduction. Its headphone output amplified by a pair of power tubes is capable of developing a consequent power of 3000mW, allowing to accompany the vast majority of headphones on the market.

Average votes for this product
5.0 / 5

By buying this product you get 59 loyalty points


Reference : 14330
New product

599,00 €tax incl.

499,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 25-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

xDuoo TA-30

DAC Amplificateur Casque à Tubes ES9038Q2M XMOS XU208 Bluetooth 5.0

xDuoo TA-30 DAC Amplificateur Casque à Tubes ES9038Q2M XMOS XU208 Bluetooth 5.0 xxx

Powerful headphone amplifier & high-performance DAC

The xDuoo TA-30 is a high-performance tube and DAC headphone amplifier combo, offering rich and detailed sound reproduction. Its headphone output amplified by a pair of power tubes is capable of developing a consequent power of 3000mW, allowing to accompany the vast majority of headphones on the market.

The digital/analogue conversion section is entrusted to a DAC ES9038Q2M chip, efficiently processing and converting the signal for the most transparent reproduction possible. This chip also supports high sample rates up to 32bit 768kHz PCM and DSD512.

xxx

A complete set of connectors

The TA-30 offers a complete connectivity allowing it to be integrated into many audio systems. The TA-30 offers Coaxial, Optical, USB-B and Bluetooth 5.0 inputs. The SPDIF inputs are combined with an AKM AK4118 receiver supporting PCM sample rates up to 24bit 192kHz and DSD64 (DoP). The USB input uses a high-performance XMOS XU208 interface that can read PCM files up to 32bit 768kHz, DSD up to DSD512 and DXD up to 32bit 384kHz. The onboard Bluetooth chip supports the aptX HD and LDAC codecs, enabling high quality remote transmission.

On the output side, the TA-30 offers an amplified headphone output on the front panel on a 6.35mm jack connector and two stereo RCA outputs on the rear panel.

xxx

Bluetooth 5.0 transmission

The xDuoo TA-30 is equipped with a Qualcomm CSR8675 Bluetooth 5.0 receiver chip. This high quality chip enables fast and stable remote broadcasting of your audio stream. The chip supports the aptX, aptX HD, aptX LL and LDAC codecs, providing near or better than CD quality playback.

xxx

Tube rectification and amplification

This amplifier integrates 3 tubes. The first one, a 5Z3P tube serves as a high voltage rectifier, where the two others, ECC82, allow to process and amplify the audio signal. These tubes ensure a rich reproduction marked by a signature peculiar to tube devices.

xxx

Dual active clock

The TA-30 uses two active oscillators with low phase noise, enabling highly accurate digital-to-analog conversion at any sampling rate.

xxx
xxx

CPLD

A CPLD is directly associated with these clocks, processing the data and allowing an efficient synchronization of the clocks in order to reduce jitter as much as possible.

Coupling capacitors

The coupling is ensured by custom polyester metal film capacitors and ELNA SILMIC (II) capacitors for a transparent and soft restitution.

xxx
xxx

Filter capacitors

Japanese Nichicon FW(M) capacitors are used for filtering, providing a soft and warm sound and excellent high-frequency reproduction.

DAC ES9038Q2M

The ES9038Q2M DAC for digital-to-analog conversion offers excellent audio performance, thanks in particular to its Time Domain Jitter Eliminator technology delivering a dynamic range of 129dB and a THD+N of -120dB. The DAC also incorporates 7 PCM filters and 1 DSD filter.

xxx

Technical characteristics

Specifications
Product typeDAC
Headphone tube amplifier
DAC ChipES9038Q2M
USB interface chipXMOS XU208
Inputs1x USB-B
1x Optical Toslink
1x Coaxial SPDIF
Bluetooth 5.0
Outputs1x Jack 6.35mm headphone output
2x Stereo RCA
ScreenOLED 1.3"
System compatibilityWindows 7, 8, 10
Mac OS X
Android
Output power3000mW (32Ω)
Frequency responseUSB, Optical, Coaxial, Bluetooth : 20Hz - 20kHz (±0.5dB)
Amplified output : 10Hz - 100kHz (± 0.5dB)
Supported sampling ratesUSB : PCM up to 32bit 768kHz, DXD up to 32bit 384kHz, DSD up to DSD512
Optical, Coaxial : PCM up to 24bit 192kHz, DSD64 (DoP)
Supported Bluetooth codecsSBC, AAC, aptX, aptX HD, aptX LL, LDAC
THD+N0.5% @ 1kHz
SNR110dB (A-Weighted)
Crosstalk≥ 65dB
General
Case materialAluminium
Dimensions29 x 11 x 17cm
Weight3kg
ColorBlack
Package1x xDuoo TA-30
1x Power cable
1x USB cable
1x Bluetooth antenna
1x Jack 6.35mm adapter

Data sheet
InputSPDIF
InputBluetooth
InputOptical
OutputJack 6.35mm
OutputRCA
DAC / ADC ChipES9038Q2M
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
ClassTube amp
NetworkingNo
Remote ControlNo
