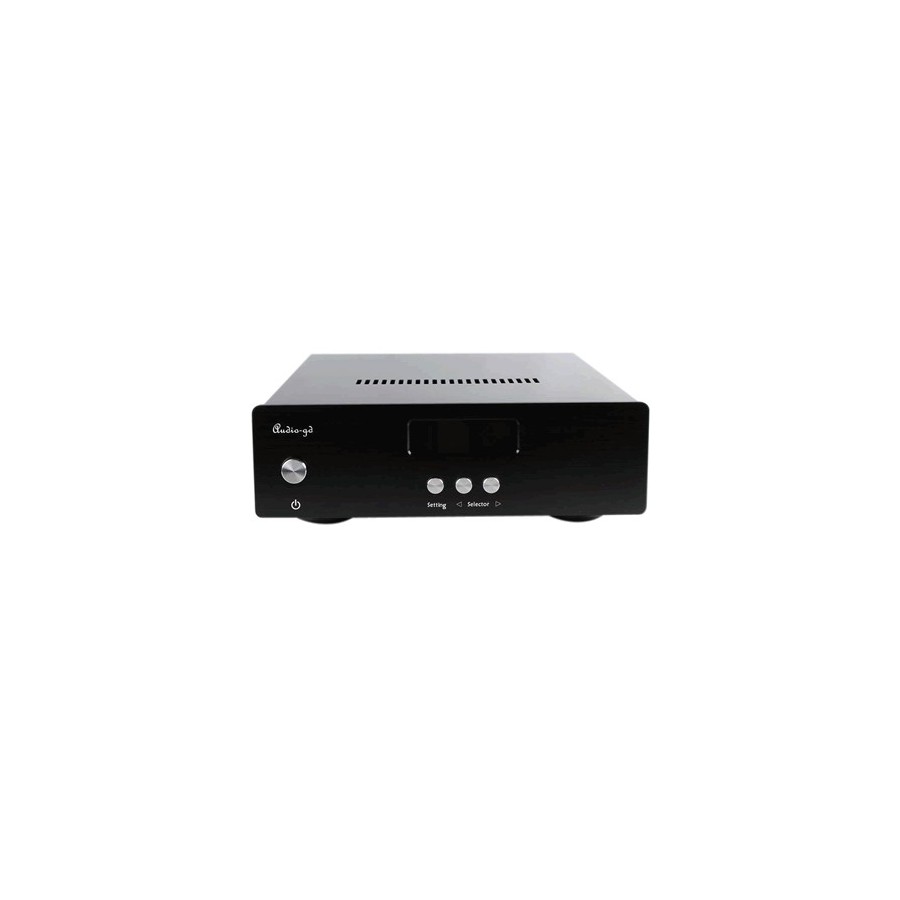

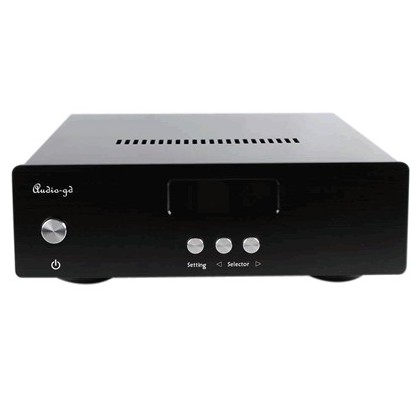

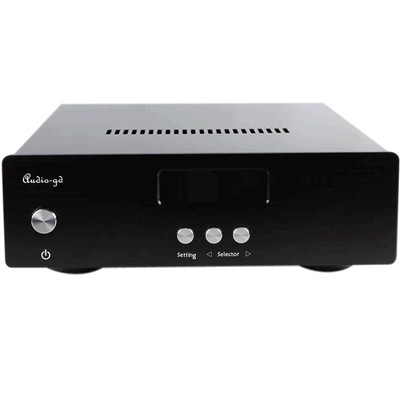

Audio-GD DAC NFB 1.32 - 32Bit / 192khz COAX / OPT / USB Sabre ES9018

No customer reviews yet, login to write a review.

No loyalty points for this product.


Yes, notify me when available !
Reference : 7004
New product

649,00 €tax incl.

540,83 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

The NFB-1.32 family of the non-feeedback family integrates an ES9018 Sabre supporting up to 32 bits 192khz and this on all inputs thanks to the new asynchronous interface USB32 of the manufacturer (32bit / 384Khz).

NFB is the acronym for Non-feedback; technology used by Audio-Gd so as not to "color" the sound at the level of the electronics of the output stage giving you a sound of a very professional neutrality.

The 100% symmetrical and discreet design of this converter is backed by a 5 class A power supply.

24k Gold Plated RCAs and Nover (UK) capacitors have been specially manufactured on Audio-Gd specifications.

Characteristics :

  • USB interface: USB 32 (VIA VT 1731)
  • SPDIF Receiver: WM8805
  • DAC: SABRE ES9018



Signal / noise ratio

> 120db

Output Impedance
Output Level

2.5V (RCA)
5V (XLR)
1.2 + 1.2MA (ACSS)

Input sensitivity

0.5 Vp-p (75 Ohms, Coaxial)
19 dBm (Optical)
USB1.1, USB2.0 (Full Speed, Class2)

Supported Systems

Windows: 44.1kHz to 192kHz
OSX: 44.1kHz to 384KHz
Linux: 44.1kHz to 192kHz


Supported sampling rates

size = "2"> USB model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Coaxial model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Optical mod
el: 44.1kHz, 48kHz, 88.2kHz, 96kHz (176.4KHz and 192KHz available if the source support)

DSD 64/128

DXD

Frequency Response


20Hz - 20KHz

Consumption220-240V AC 50/60 Hz 17W
Dimensions240 X 360 X 80 mm
Weight
5KG
AccessoriesAC power cord X1

https://www.audiophonics.fr/images2/7004/7004_AUDIOGD_NFB1.32_1.jpg

https://www.audiophonics.fr/images2/7004/7004_AUDIOGD_NFB1.32_2.jpg

https://www.audiophonics.fr/images2/7004/7004_AUDIOGD_NFB1.32_3.jpg

https://www.audiophonics.fr/images2/7004/7004_AUDIOGD_NFB1.32_3.jpg


Data sheet
InputUSB
InputOptical
InputSPDIF
OutputACSS
OutputXLR
OutputRCA
DAC / ADC ChipES9018
Max sampling rate192kHz
ColorBlack
